Recently Viewed Plans | Advanced Plan Search

Sq Ft
3,523 FT²

Beds
3

Baths
2.5

Stories
2

Garage
3

Depth
75'

Width
79'

On Sale
$1,070.70
$1,290.00

Color Rendering

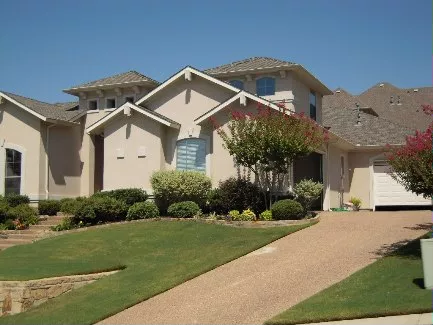

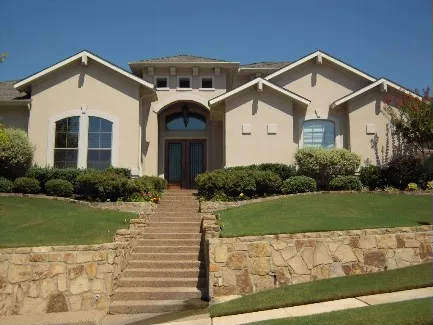

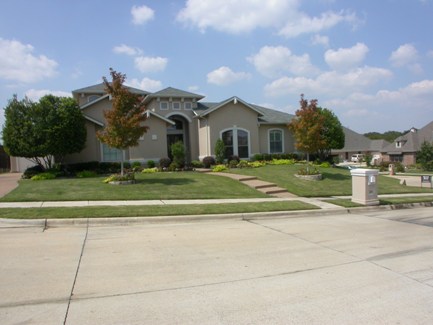

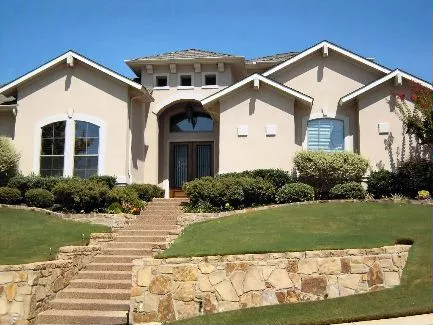

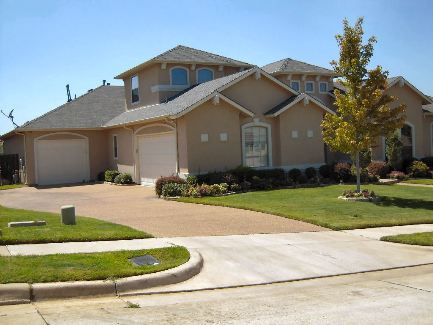

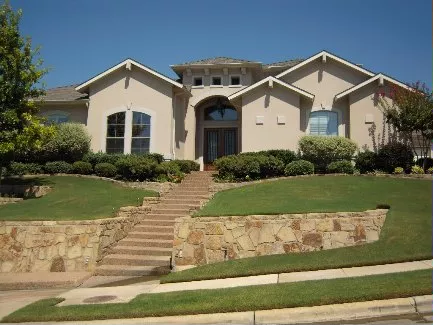

View All 14 Images | Photographs may reflect modified home

Sq Ft

3,523 FT²

From

$1,070.70

Beds

Baths

2.5

Stories

Garage

Depth

75'

Width

79'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

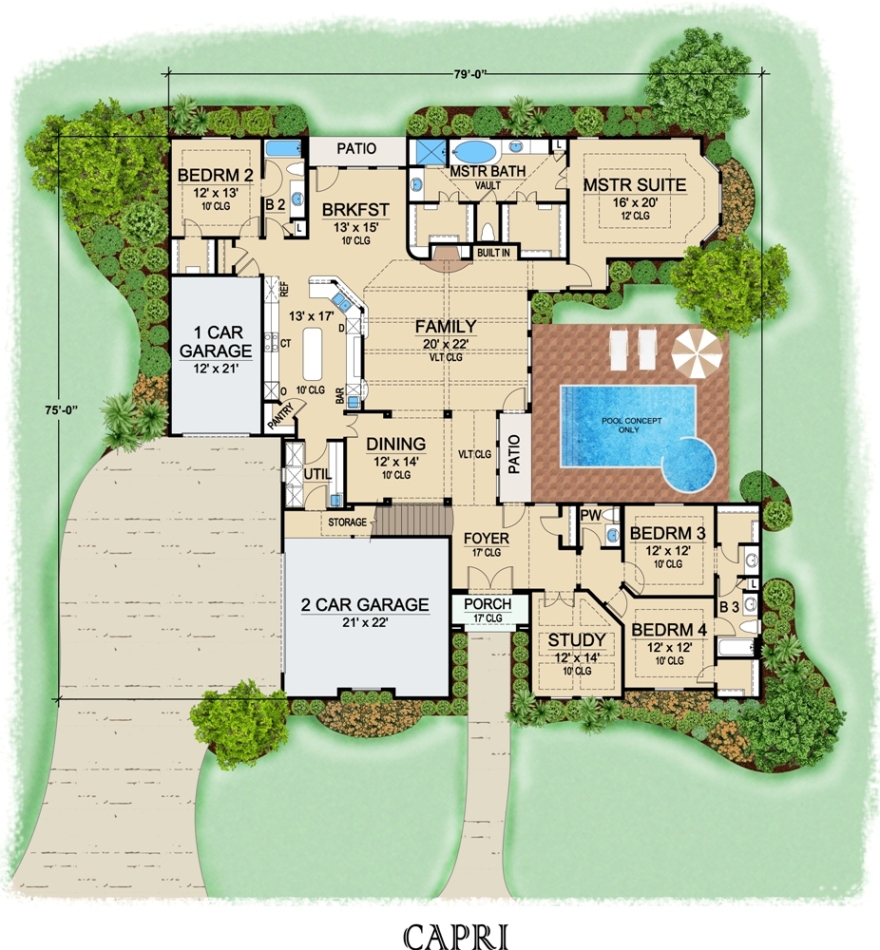

First Floor

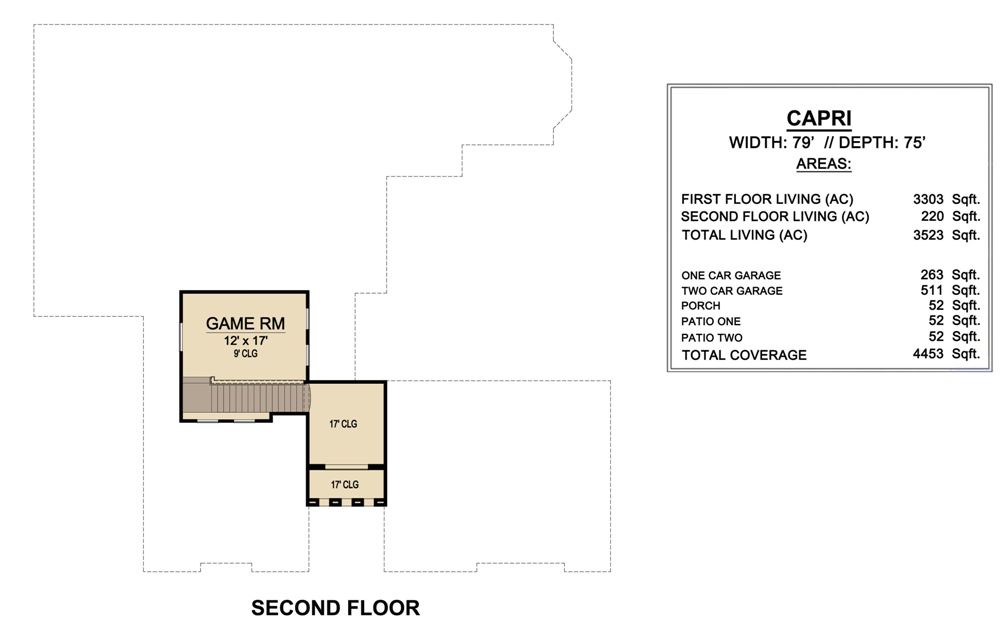

Second Floor

First Floor

Second Floor

About This Plan

This is a stunning Mediterranean luxury house that has a 17' ceiling foyer; to the right is the study and two family bedrooms, both featuring a spacious walk-in-closet and shared a Jack and Jill bathroom. Beyond the Foyer is the elegant dining room, both opened to the family room and its vaulted ceiling. The dining room has access to the utility, pantry and kitchen, making serving dinner for guest easy. The family room, with its built-ins and cozy fireplace is open to the kitchen and breakfast area, separated only by the breakfast bar. A third family bedroom with full bath and trey ceiling has easy access to the one-car garage, making this a good area for a teen, guest or in-law. The master suite boasts a bayed sitting area, trey ceiling, a lavish master bath featuring a separate shower and garden tub, as well as his and hers vanities and walk-in closets. The lone room upstairs is a spacious game room, completing this Mediterranean house plan.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms

Exterior features

Covered Front Porch

Foundation Options

Slab

Lot Options

Suited for corner lot

Additional features

Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl

Garage Location

Front

Garage Options

Attached
Front-entry
Side-entry

4,453 Ft

Total Structure

3,523 Ft

Total Heated

3,303 Ft

1st Floor

220 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

79' 0"

Width

75' 0"

Depth

26' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

774 Ft

Garage

Exterior Styles

Mediterranean

Ranch

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,071

PDF Single Build

~~$1,290~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,071

Sale: $1,594

5 Printed Sets

~~$1,920~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,594

CAD Single Build

~~$1,920~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,594

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Slab

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.

If a foundation isn't listed, please live chat, email or call for availability.

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

Sale Price: $1,070.70
FREE SHIPPING
Savings: $219.30 (17%)

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
