Recently Viewed Plans | Advanced Plan Search

Sq Ft
4,180 FT²

Beds
5

Baths
4.5

Stories
2

Garage
3

Depth
84'

Width
82'

On Sale
$1,303.10
$1,570.00

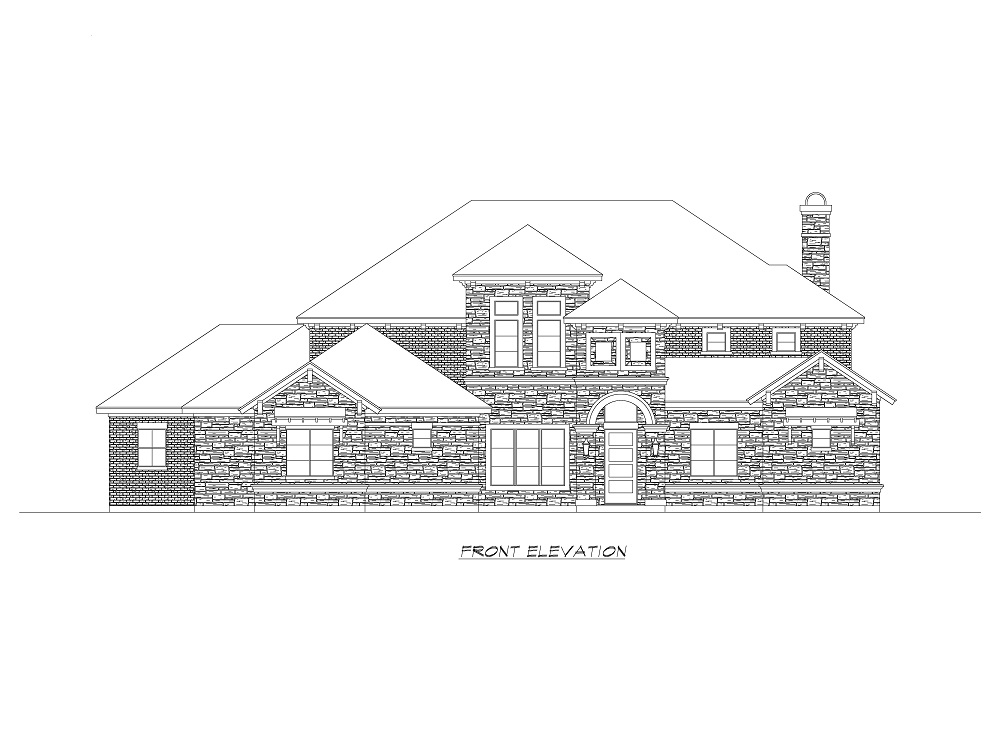

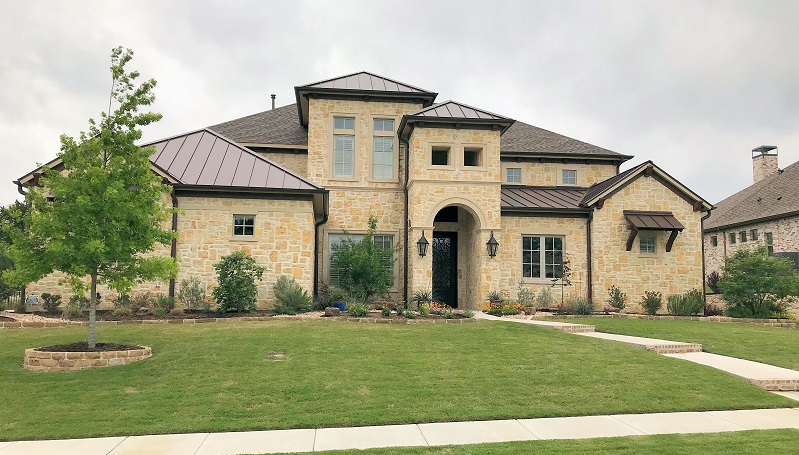

Front

View All 8 Images | Photographs may reflect modified home

Sq Ft

4,180 FT²

From

$1,303.10

Beds

Baths

4.5

Stories

Garage

Depth

84'

Width

82'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

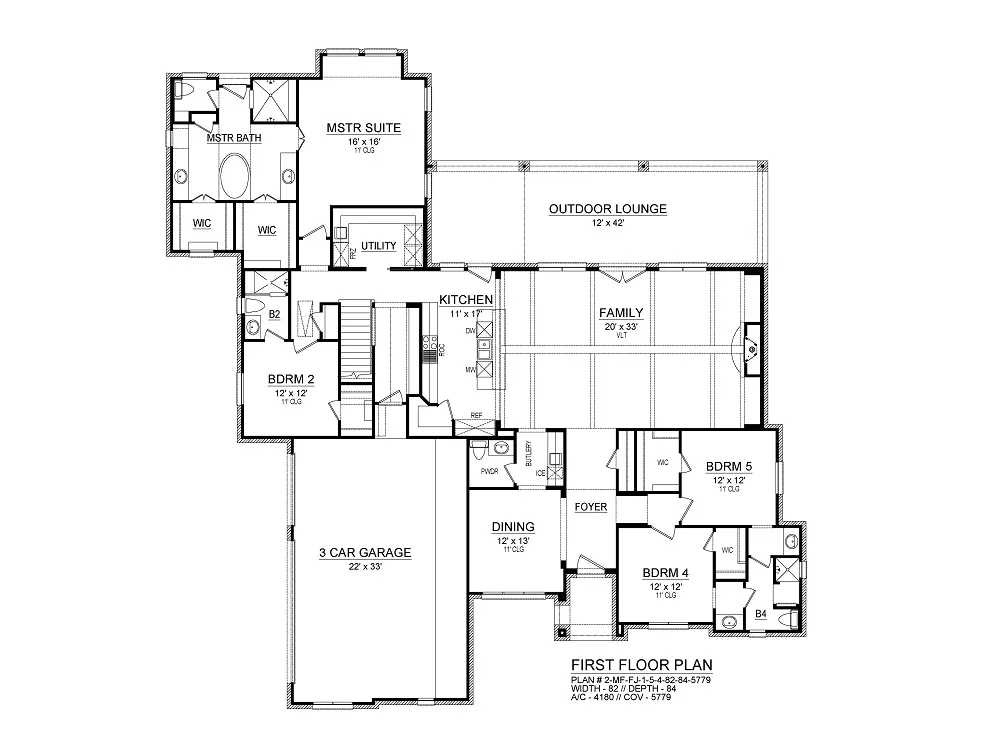

First Floor

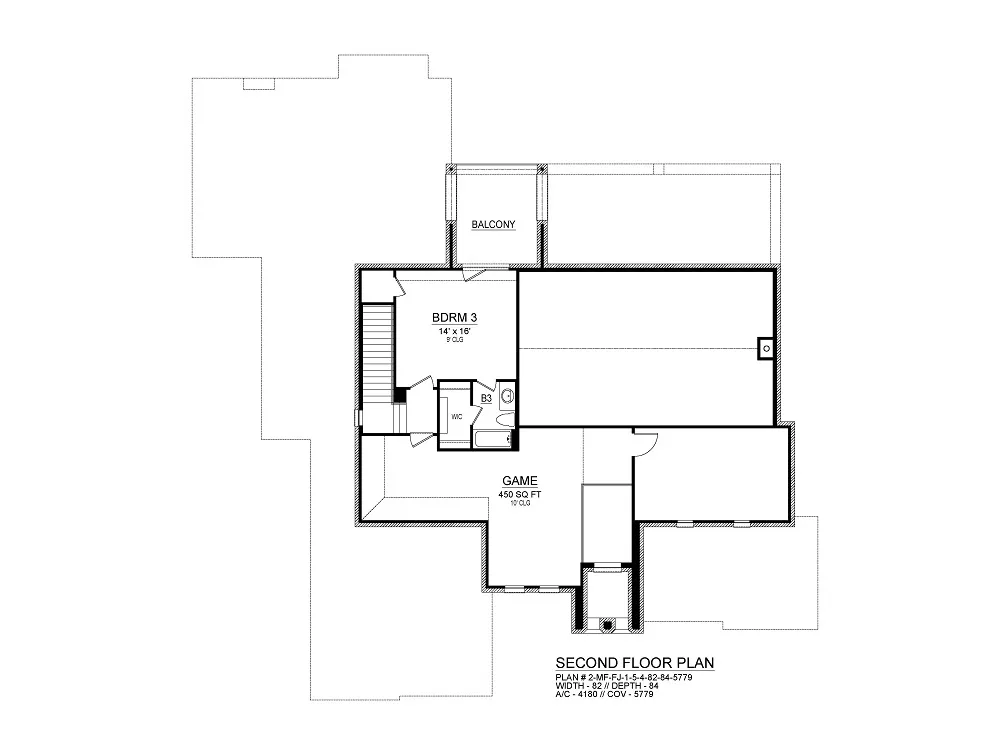

Second Floor

First Floor

Second Floor

About This Plan

The sheer beauty of this Mediterranean style house plan is something that is hard to miss. The spectacular stonework and towering front columns join together in creating a true masterpiece of a home. The interior of this 4,180 square foot plan is just as amazing as the exterior. Every inch of this home has been paid the upmost attention to detail. From the massive family room that is only surpassed in beauty by the state-of-the art kitchen and its large island, this plan defines luxury. The pinnacle of this luxury comes in the form of the stunning master bathroom. With split double vanities and an over-sized soaking tub and walk-in shower, this master bathroom provides the relaxation that you deserve. The 5 bedrooms and 4.5 bathrooms of this house creates plenty of space for a large or growing family and a fast-paced lifestyle.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Butler's Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Rear Porch

Foundation Options

Slab

Additional features

Dining Room
Family Room
Fireplace
Foyer
Laundry 1st Fl

Garage Location

Side

Garage Options

Attached

5,779 Ft

Total Structure

4,180 Ft

Total Heated

3,268 Ft

1st Floor

912 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

82' 0"

Width

84' 0"

Depth

33' 0"

Height

11' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

807 Ft

Garage

Exterior Styles

European

Mediterranean

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,303

PDF Single Build

~~$1,570~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,303

Sale: $1,959

5 Printed Sets

~~$2,360~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,959

CAD Single Build

~~$2,360~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,959

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Slab

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.

If a foundation isn't listed, please live chat, email or call for availability.

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

Sale Price: $1,303.10
FREE SHIPPING
Savings: $266.90 (17%)

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
