Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,830 FT²

Beds
3

Baths
2.5

Stories
2

Garage
3

Depth
51'

Width
68'

On Sale
$1,638.40
$2,048.00

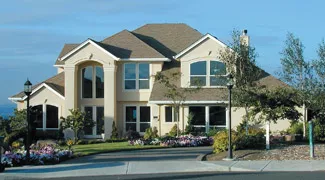

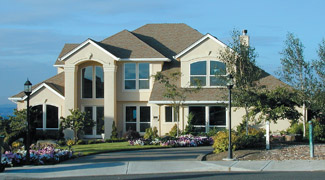

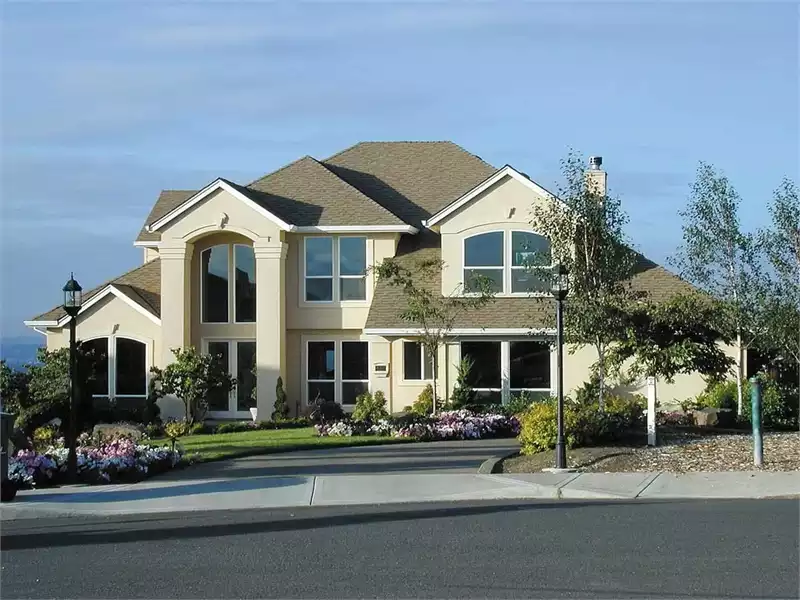

Front Exterior

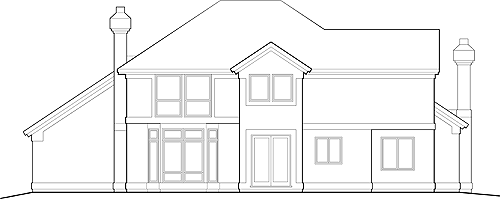

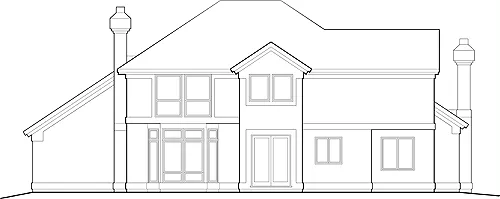

Rear Elevation

View All 3 Images | Photographs may reflect modified home

Sq Ft

2,830 FT²

From

$1,638.40

Beds

Baths

2.5

Stories

Garage

Depth

51'

Width

68'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

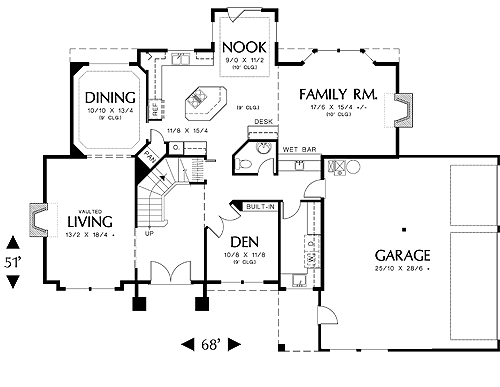

First Floor Plan

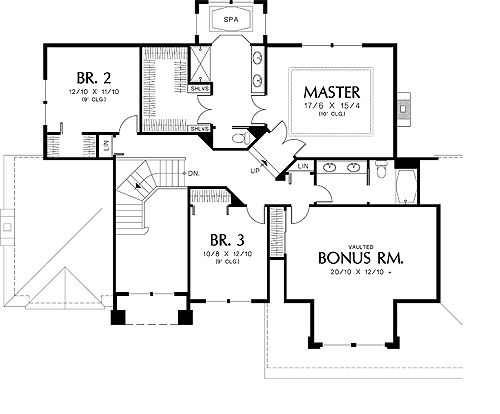

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Bordering on estate-size, this spectacular plan puts on a gorgeous face with arched keystones, a huge transom over the entry, and stucco exterior. The interior plan caters to a family that lives well. For formal occasions, look to the vaulted living room and the dining room with tray ceiling. A fireplace in the living room adds an accent of warmth.
The family room also has a warm hearth and is brightened by a bay window overlooking the backyard. The nook and island kitchen separate formal and informal spaces--a handy built-in desk keeps things organized. For quiet times, there is a den, opening through double doors near the entry. It features a built-in cabinet.

Three bedrooms on the upper level include two family bedrooms with nine-foot ceilings and an elevated master suite with spa-quality bath and walk-in closet. Bonus space over the garage has a vaulted ceiling.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

No Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for view lot

Additional features

2 Story Volume
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Unfinished Space
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry

2,830 Ft

Total Heated

1,618 Ft

1st Floor

1,212 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

68' 0"

Width

51' 0"

Depth

30' 0"

Height

varies' 0"

Main Floor Ceiling

varies' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

764 Ft

Garage

376 Ft

Bonus Room

Exterior Styles

Contemporary

European

Mediterranean

Collections

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$2,048

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,048

$2,248

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,248

$2,298

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,298

$4,096

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,096

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
