Sq Ft
1,987 FT²

Beds
2

Baths
1

Stories
2

Garage
3

Depth
31' 6"

Width
41'

On Sale
$1,000.80
$1,251.00

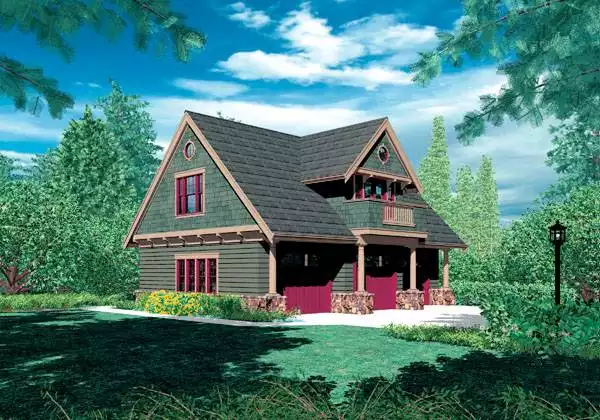

Front Rendering

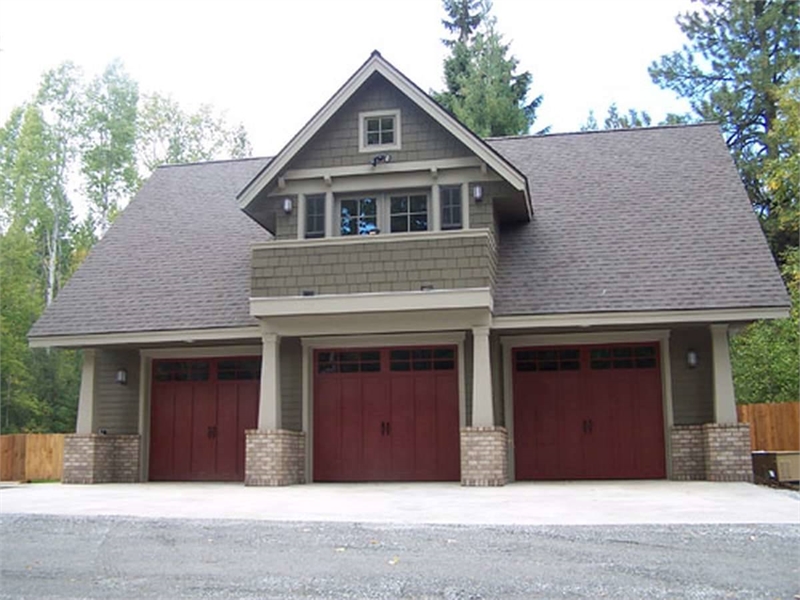

Front Exterior

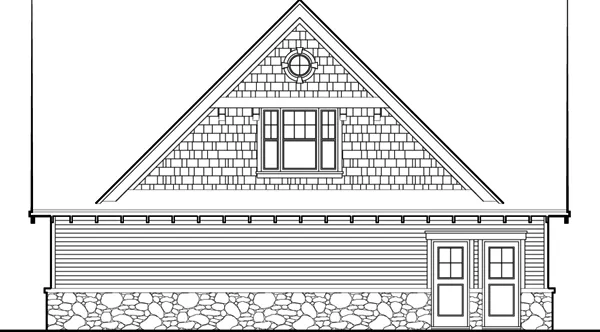

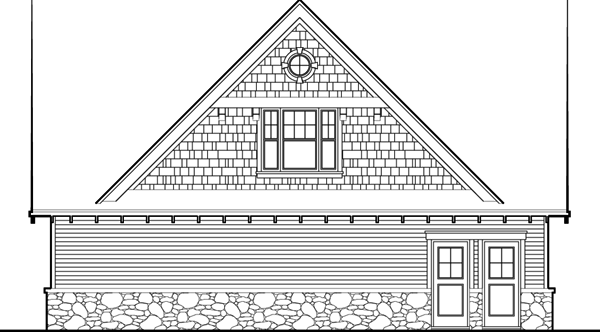

Rear Elevation

View All 3 Images | Photographs may reflect modified home

Sq Ft

1,987 FT²

From

$1,000.80

Beds

Baths

Stories

Garage

Depth

31' 6"

Width

41'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

Second Floor Plan

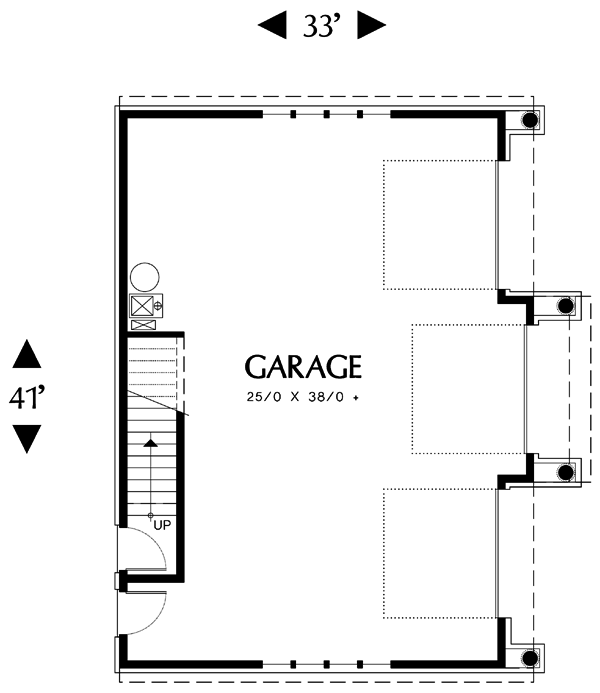

First Floor Plan

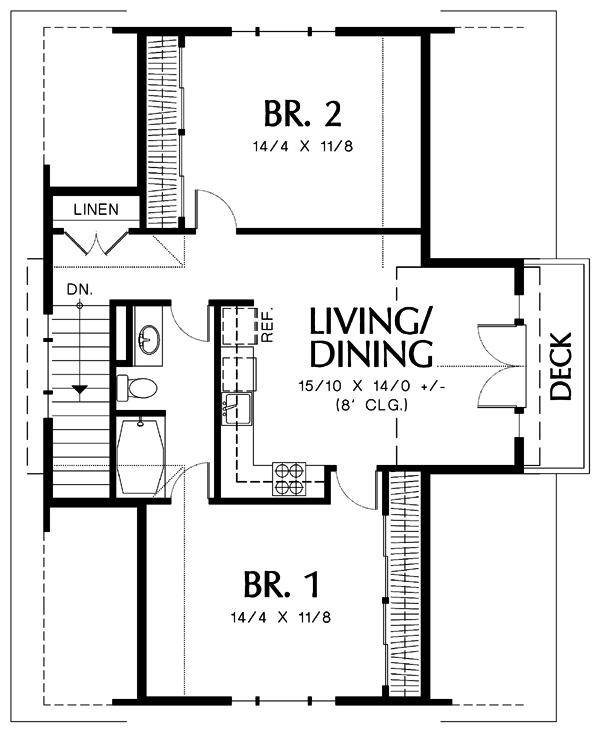

Second Floor Plan

About This Plan

Doing double duty beautifully, this three-car garage offers space for a two-bedroom apartment on its upper level. The exterior is reminiscent of the architecture of the Arts and Crafts movement and features sturdy columns on stone bases, lap siding and cedar shingles. Stairs in the garage lead up to a thoughtfully arranged guest suite with two bedrooms and a large living/dining area. Both bedrooms have roomy closets and wide windows along one wall. Double doors in the living area open to a charming railed deck. An L-shaped kitchen offers a full complement of appliances. The full bath has access at either end and is near a large linen closet.

FEATURES & DETAILS

Kitchen features

Country Kitchen

Bedroom features

Primary Bdrm Upstairs

Exterior features

Deck
No Porch

Foundation Options

Slab

Lot Options

Suited for narrow lot

Additional features

Great Room
Laundry 2nd Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry
With Living Space

1,987 Ft

Total Heated

1,079 Ft

1st Floor

908 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

41' 0"

Width

31' 6"

Depth

26' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

Garage

Dwelling Number

None

Bonus Access

Unheated Living Space

Exterior Styles

Cottage

Craftsman

Traditional

Collections

ADU

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$1,251

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,251

$1,451

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,451

$1,501

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,501

$2,502

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,502

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
