Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,753 FT²

Beds
4

Baths
2.5

Stories
1

Garage
2

Depth
75' 8"

Width
107' 4"

On Sale
$936.00
$1,170.00

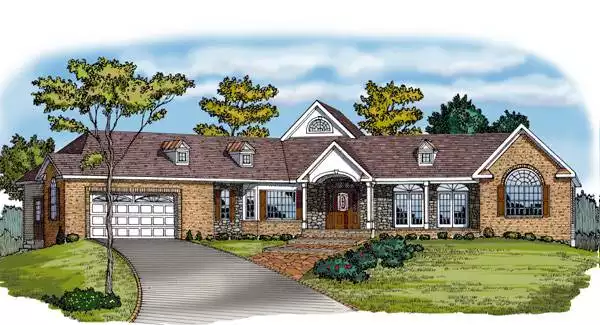

Front Rendering

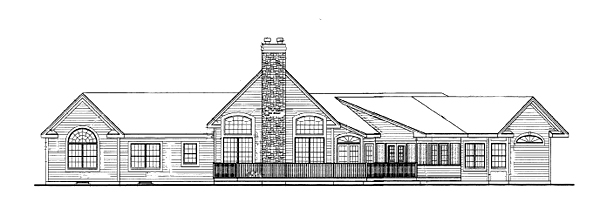

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,753 FT²

From

$936.00

Beds

Baths

2.5

Stories

Garage

Depth

75' 8"

Width

107' 4"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

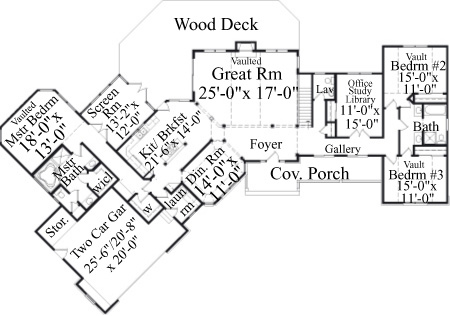

First Floor Plan

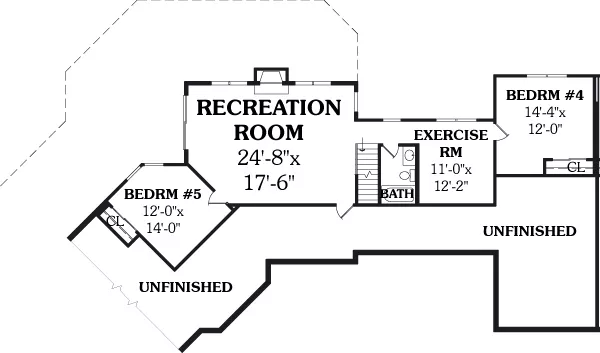

Lower Level

First Floor Plan

Lower Level

About This Plan

The angled plan is designed to allow you to adapt to sloping sites, orient toward a view, or otherwise site your home to perfectly fit the constraints of your lot. This plan is a comfortable 3 or 4 bedroom country styled, traditional, ranch featuring great master privacy and fabulous, exciting living areas. A sensational five sided angled great room is the focal point; it features an elegant 21 foot high vaulted ceiling, and a dramatic half round clearstory window facing front. The spacious, vaulted master suite has private access to the optional screened porch. The two childrens bedrooms share a private bath, and a study can also serve as a guest bedroom, if needed. Volume ceilings are abundant throughout the balance of this great plan. A prominent stair serves as a prominent entry to the basement, a nice feature if the home is built with a finished daylight basement.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms

Exterior features

Covered Rear Porch
Front Porch
Screened Porch/Sunroom

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

Arches
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Workshop

Garage Location

Front

Garage Options

Attached
Front-entry

2,753 Ft

Total Heated

2,753 Ft

1st Floor

1,127 Ft

Lower Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

107' 4"

Width

75' 8"

Depth

27' 0"

Height

9'-1"' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

7/12

Primary Roof Pitch

12: 12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

535 Ft

Garage

209 Ft

Porch

636 Ft

Deck

Exterior Styles

Collections

Old House Classics

Open Floor Plan

Split Bedroom

Plan Package Options

Important info before you buy

Select Plan Package

$925

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$925

$1,170

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,170

$1,280

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,280

$1,355

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,355

$2,195

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,195

Need To Reverse Plan? (Optional)

$350

Readable Reverse

Reverse house plans with readable text and dimensions

$350

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
