Sq Ft
1,768 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
60'

Width
40'

On Sale
$788.50
$950.00

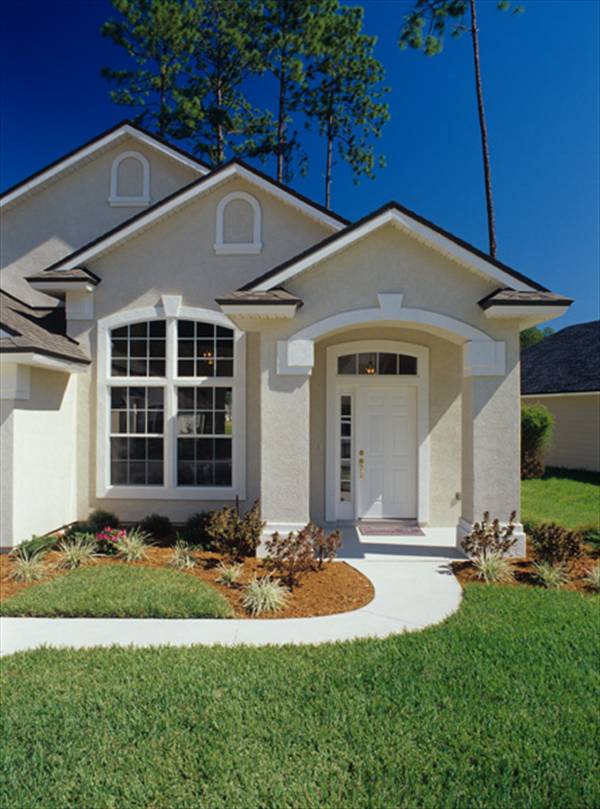

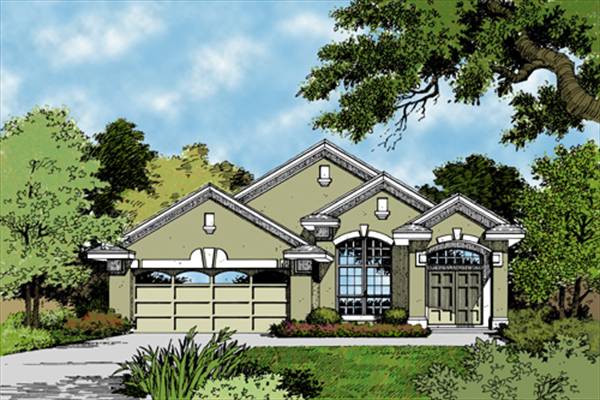

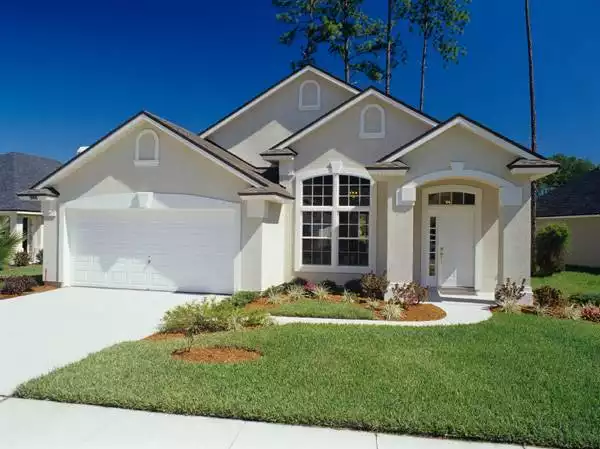

Front Exterior

View All 13 Images | Photographs may reflect modified home

Sq Ft

1,768 FT²

From

$788.50

Beds

Baths

Stories

Garage

Depth

60'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

About This Plan

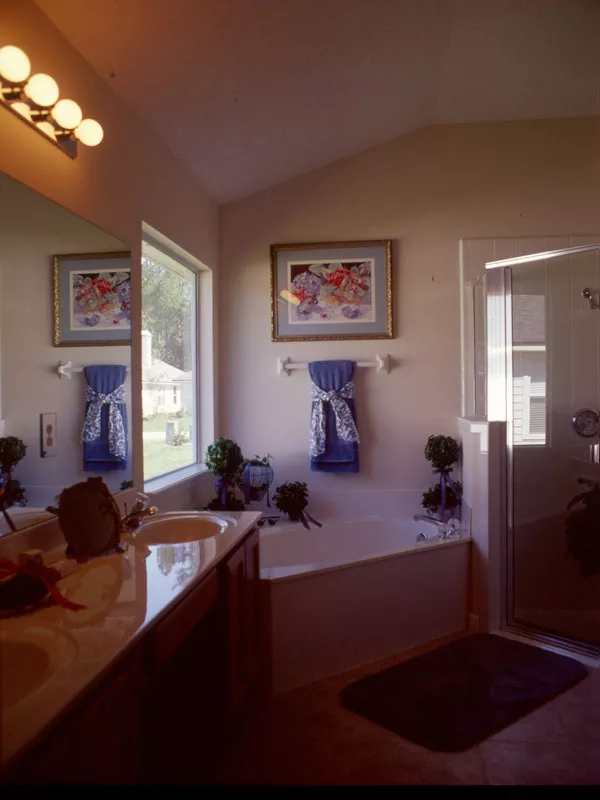

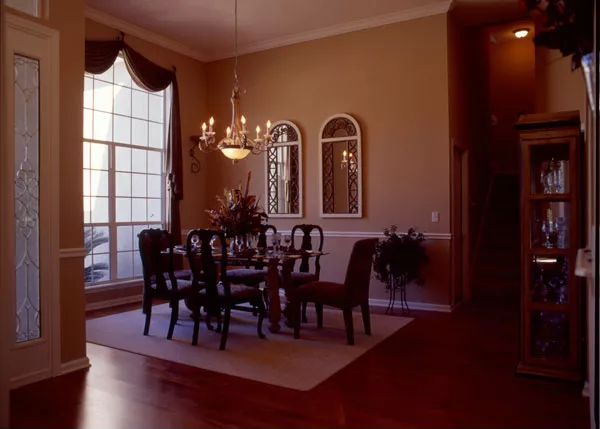

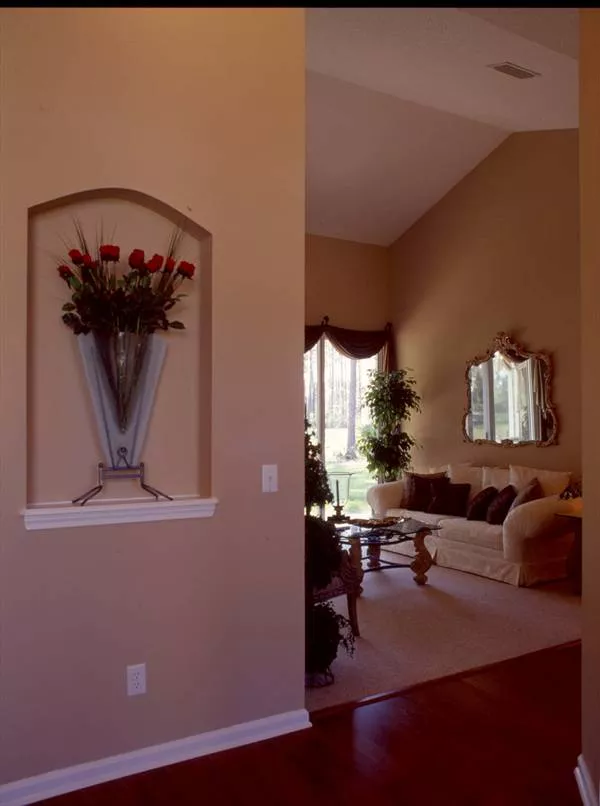

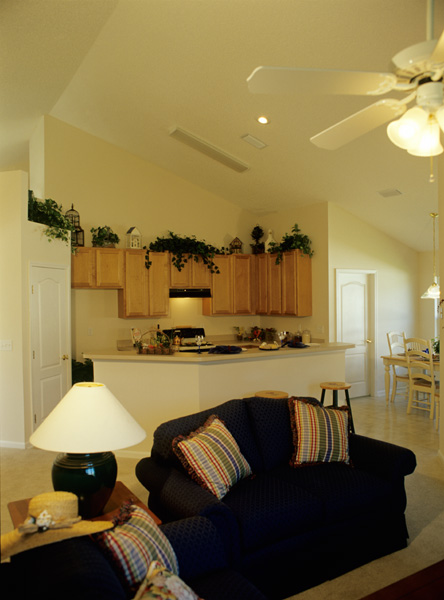

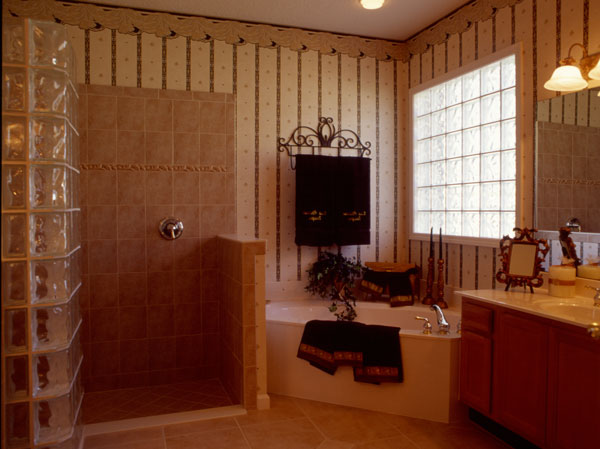

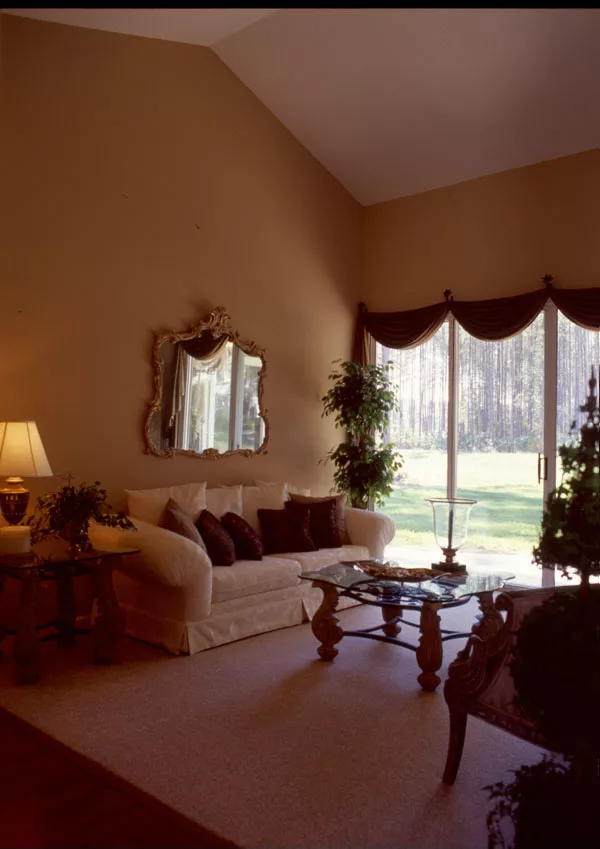

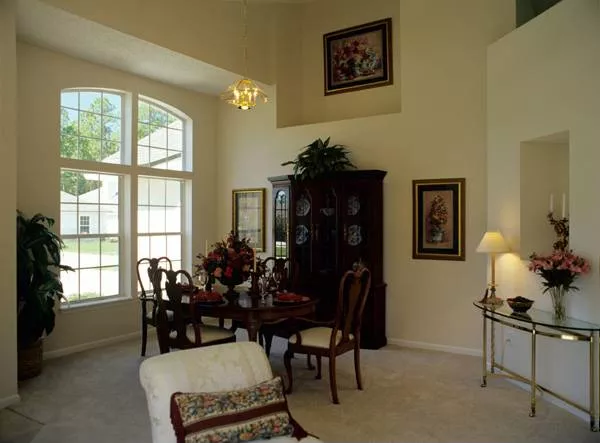

All of the negatives of a narrow house have been overcome in this ingenious design. All entrances to a major spaces of this home are at an angle to give a feeling of spaciousness. The living/dining room is entered by a distinct foyer, complete with decorative niche and low walls which define, but do not restrict. An angled archway next to another niche brings you into the family center. This space brings family room, kitchen and nook together in a new way, by allowing for a naturally lighted nook to the side of the kitchen. The master suite, with panoramic views, boasts a generous bath with corner soaking tub, large shower, private toilet chamber with book shelf and walk-in closet. The covered patio is shared by the master suite and one of the two large secondary bedrooms.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot
Suited for view lot

Additional features

2 Story Volume
Arches
Dining Room
Family Room
Formal LR
Foyer
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,768 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

60' 0"

Depth

21' 4"

Height

8' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

7/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

374 Ft

Garage

65 Ft

Porch

123 Ft

Patio

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $498

PDF Bid Set

~~$600~~

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $498

Sale: $788

PDF Single Build

~~$950~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $788

Sale: $954

5 Printed Sets

~~$1,150~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $954

Sale: $1,079

5 Printed Sets + PDF

~~$1,300~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,079

Sale: $1,577

CAD Single Build

~~$1,900~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,577

Select Foundation Option

Slab

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.

If a foundation isn't listed, please live chat, email or call for availability.

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

Sale Price: $788.50
FREE SHIPPING
Savings: $161.50 (17%)

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
