Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,432 FT²

Beds
3

Baths
2.5

Stories
2

Garage
1

Depth
24'

Width
37' 10"

On Sale
$763.60
$920.00

View All 6 Images | Photographs may reflect modified home

Sq Ft

1,432 FT²

From

$763.60

Beds

Baths

2.5

Stories

Garage

Depth

24'

Width

37' 10"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

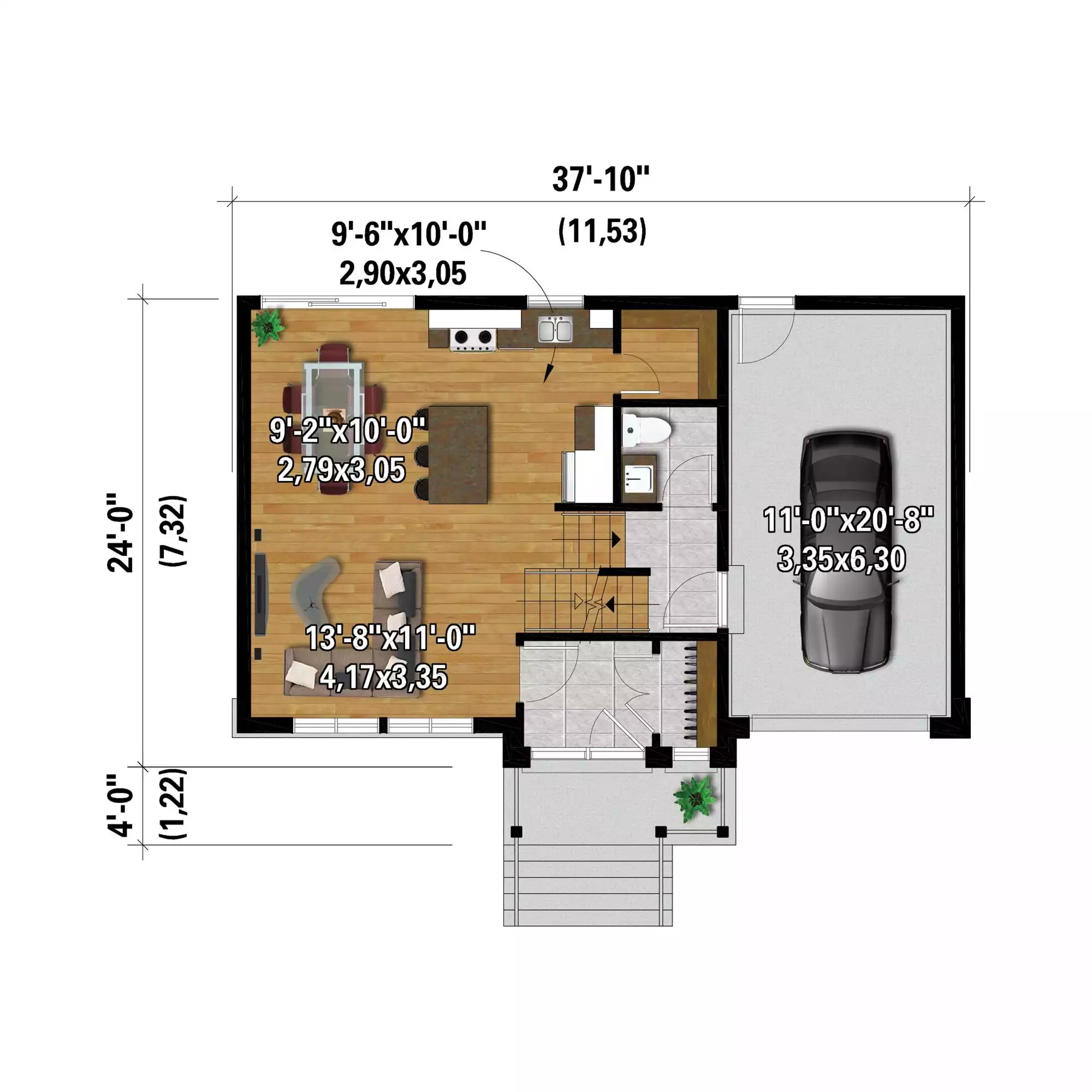

1st Floor

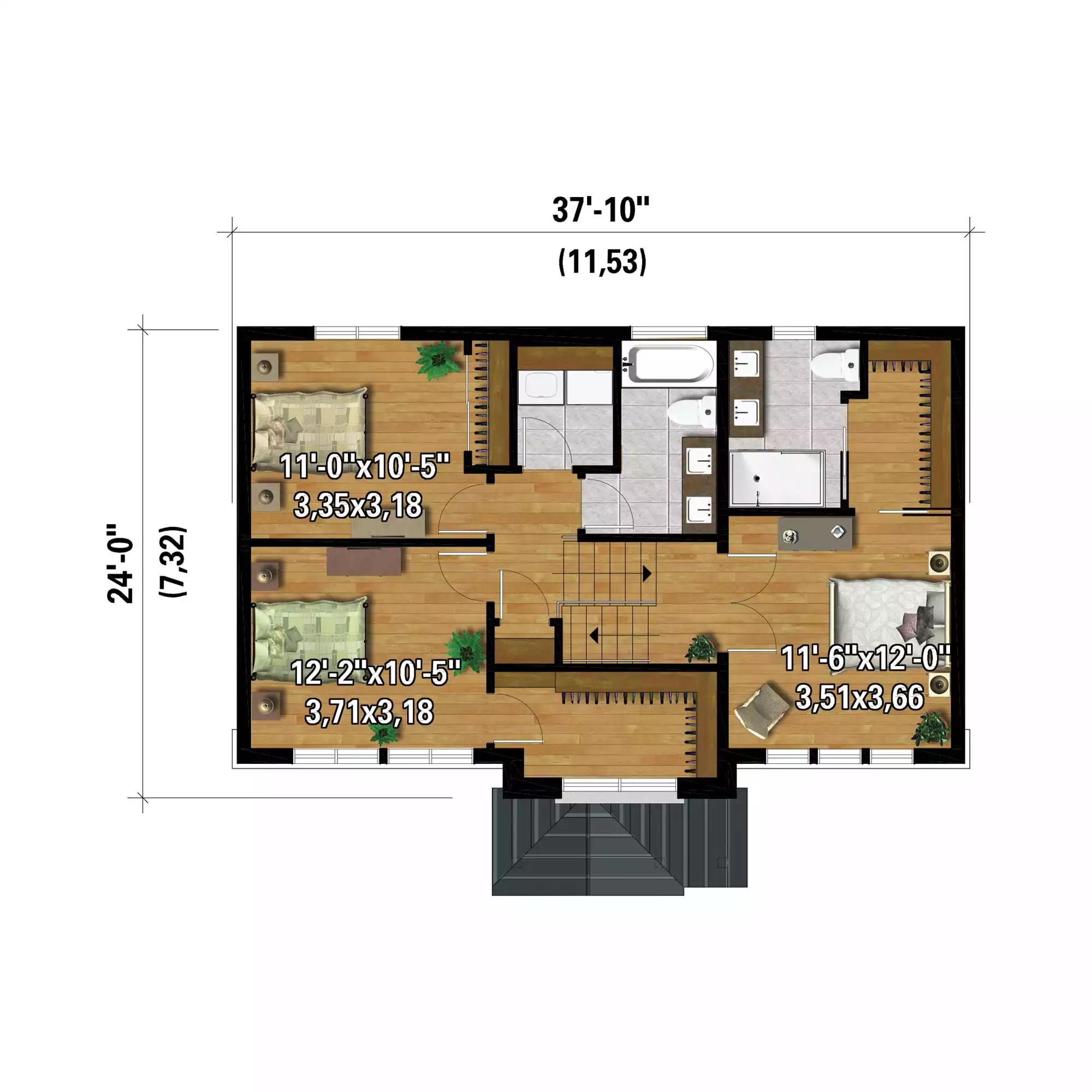

2nd Floor

1st Floor

2nd Floor

About This Plan

Looking for a smaller home with chic transitional style? Perhaps a modest, affordable one with a boosted floor plan to make the most of views? That's just what you'll get with House Plan 10473! Take the steps up to this two-story design and you'll find 1,432 square feet, three bedrooms, and two-and-a-half bathrooms inside. There's an airlock foyer to help keep the household tidy, and then the open-concept great room fills out the rest of the main floor. The living area is in front and the island kitchen and dining area are in back. Take the stairs on the side down to the powder room and door to the one-car garage or up to the bedrooms on the second level. The primary suite is on its own plane over the garage and has a four-piece bath accessible through the walk-in closet. The other two bedrooms, laundry room, and a four-piece hall bath are placed up another short staircase to help create some privacy between the sleeping quarters!

See All Plan Options

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Walk-in Pantry

Bedroom features

Double Vanity Sink
Family Style
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch

Lot Options

Suited for narrow lot
Suited for view lot

Additional features

Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry

1,702 Ft

Total Structure

1,432 Ft

Total Heated

581 Ft

1st Floor

851 Ft

2nd Floor

581 Ft

Lower Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

37' 10"

Width

24' 0"

Depth

32' 6"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

9' 0"

Living/Great Room Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

8/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

270 Ft

Garage

Exterior Styles

Contemporary

Modern Farmhouse

Transitional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $764

PDF Single Build

~~$920~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $764

Sale: $801

5 Printed Sets

~~$965~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $801

Sale: $876

5 Printed Sets + PDF

~~$1,055~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $876

Sale: $1,610

CAD Single Build

~~$1,940~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,610

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
