Sq Ft
3,037 FT²

Beds
5

Baths
3.5

Stories
2

Garage
3

Depth
35' 9"

Width
73' 8"

On Sale
$1,215.20
$1,519.00

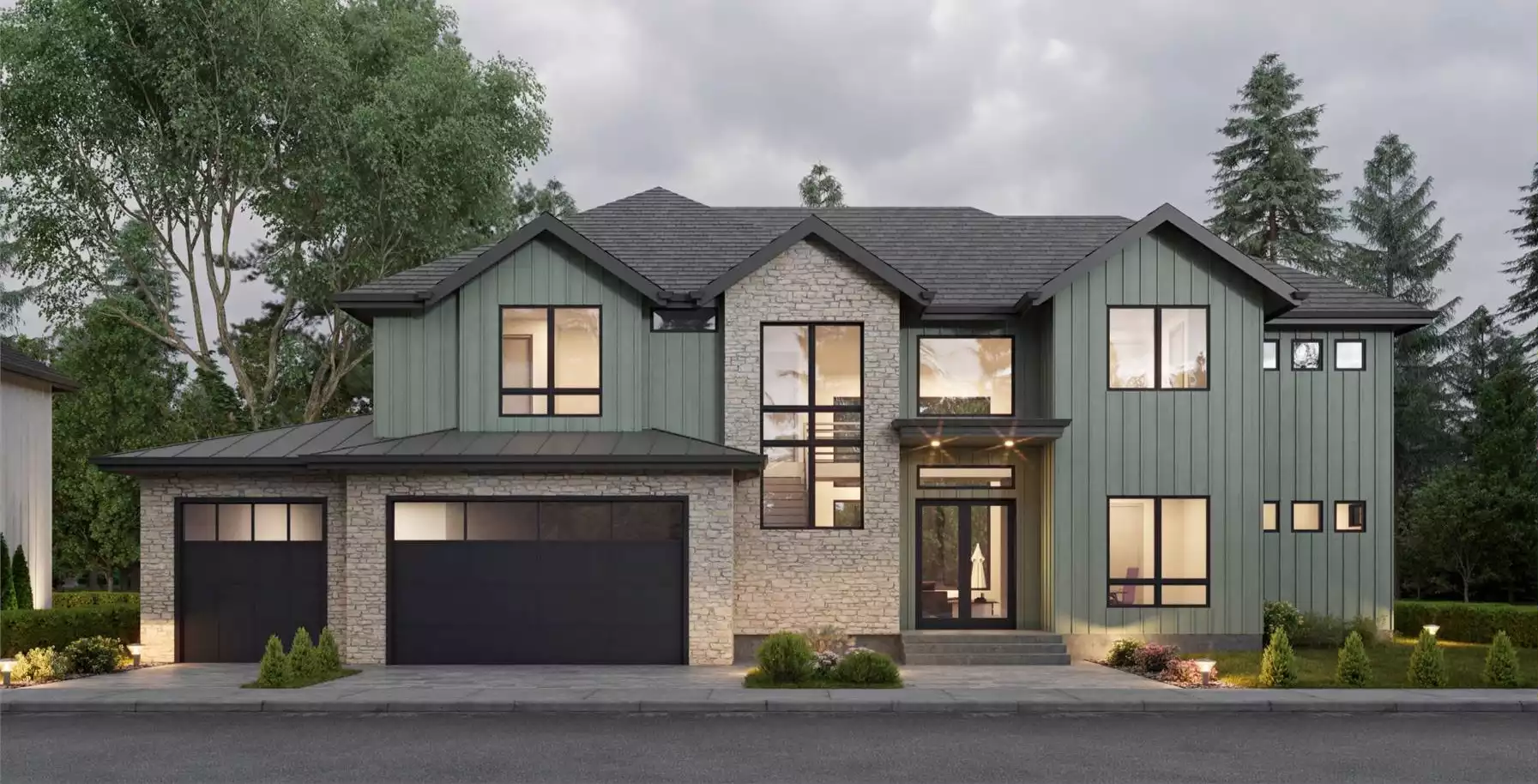

Front View

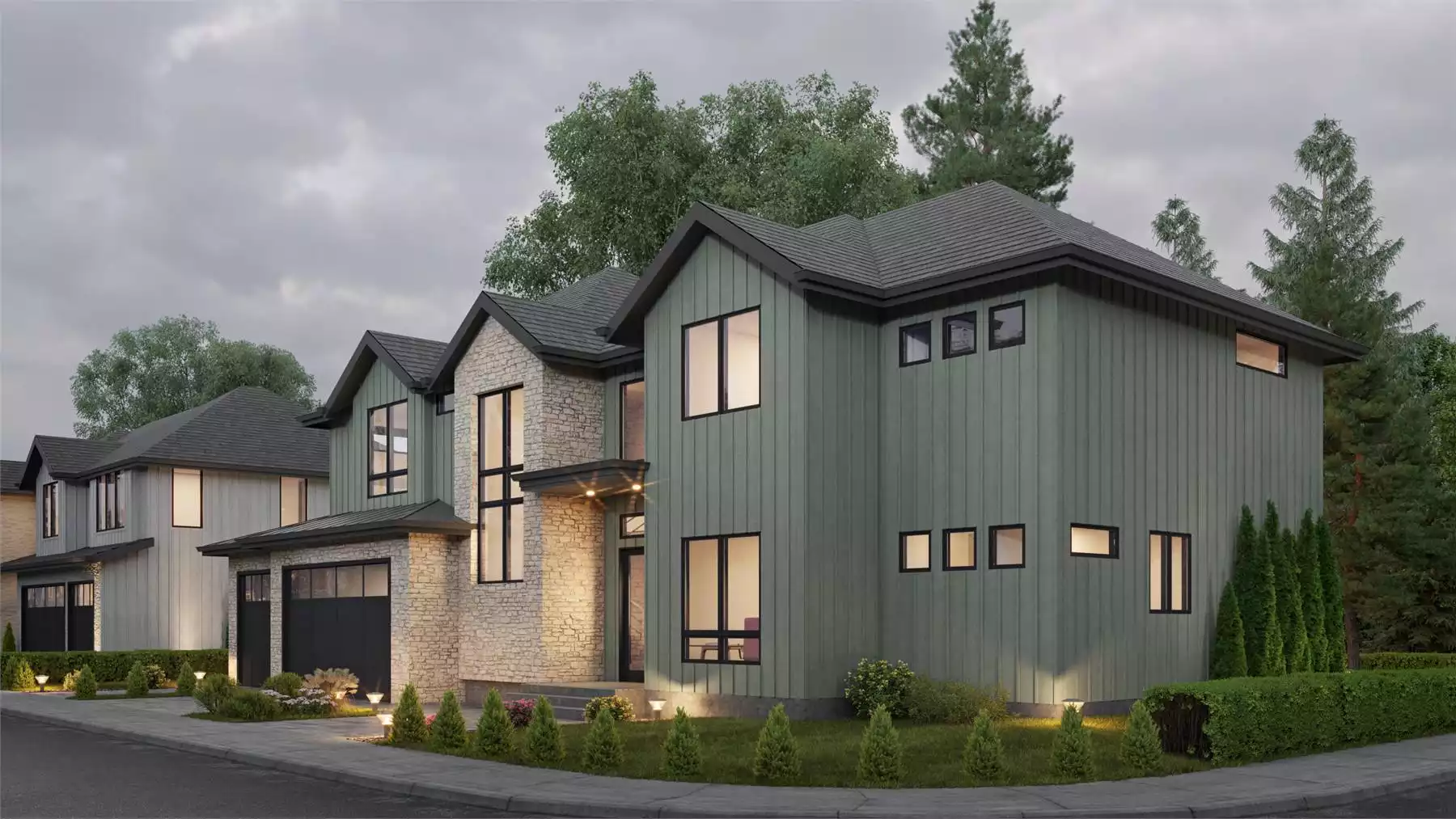

Left View

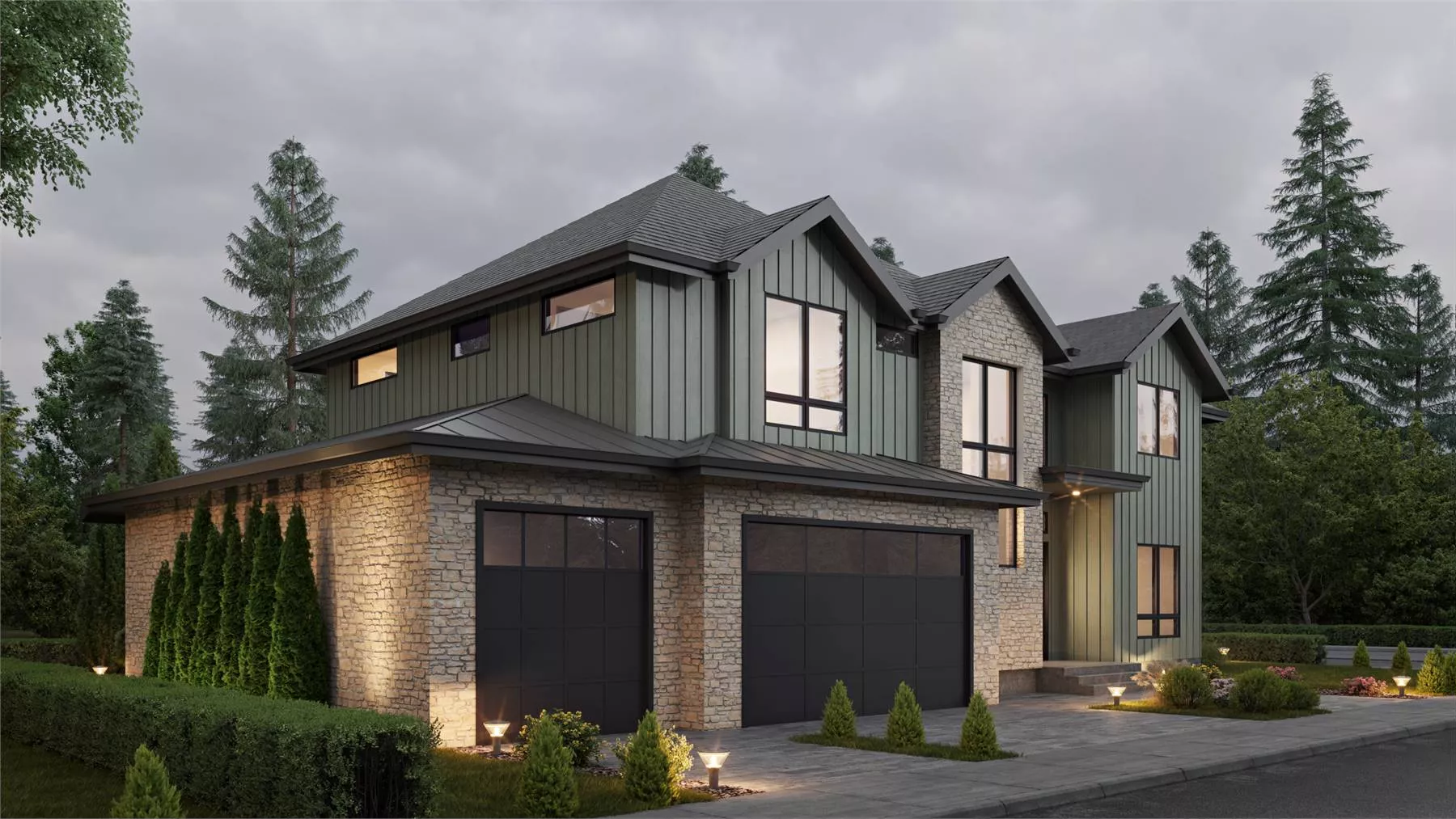

Right View

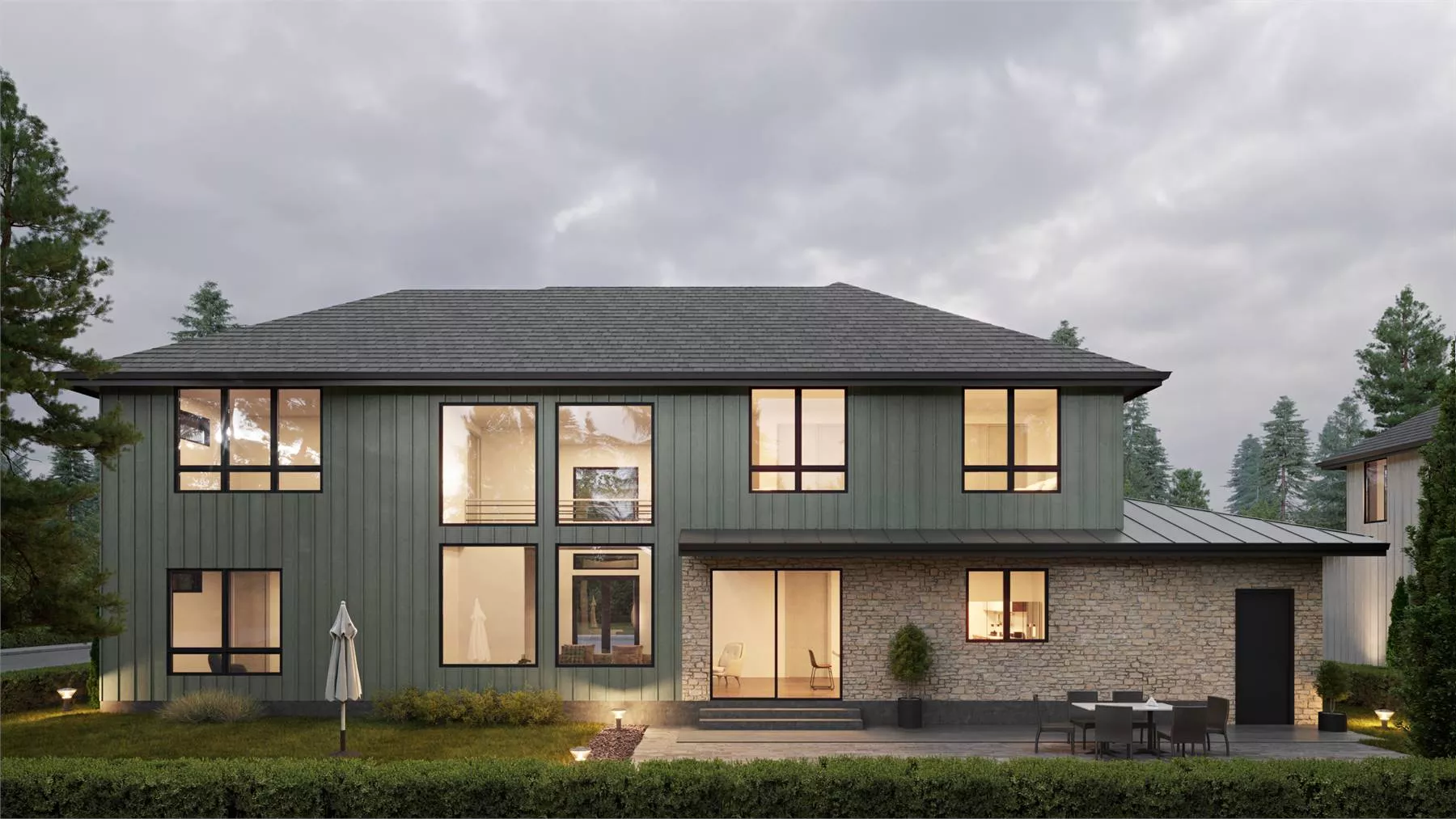

Rear View

View All 4 Images | Photographs may reflect modified home

Sq Ft

3,037 FT²

From

$1,215.20

Beds

Baths

3.5

Stories

Garage

Depth

35' 9"

Width

73' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

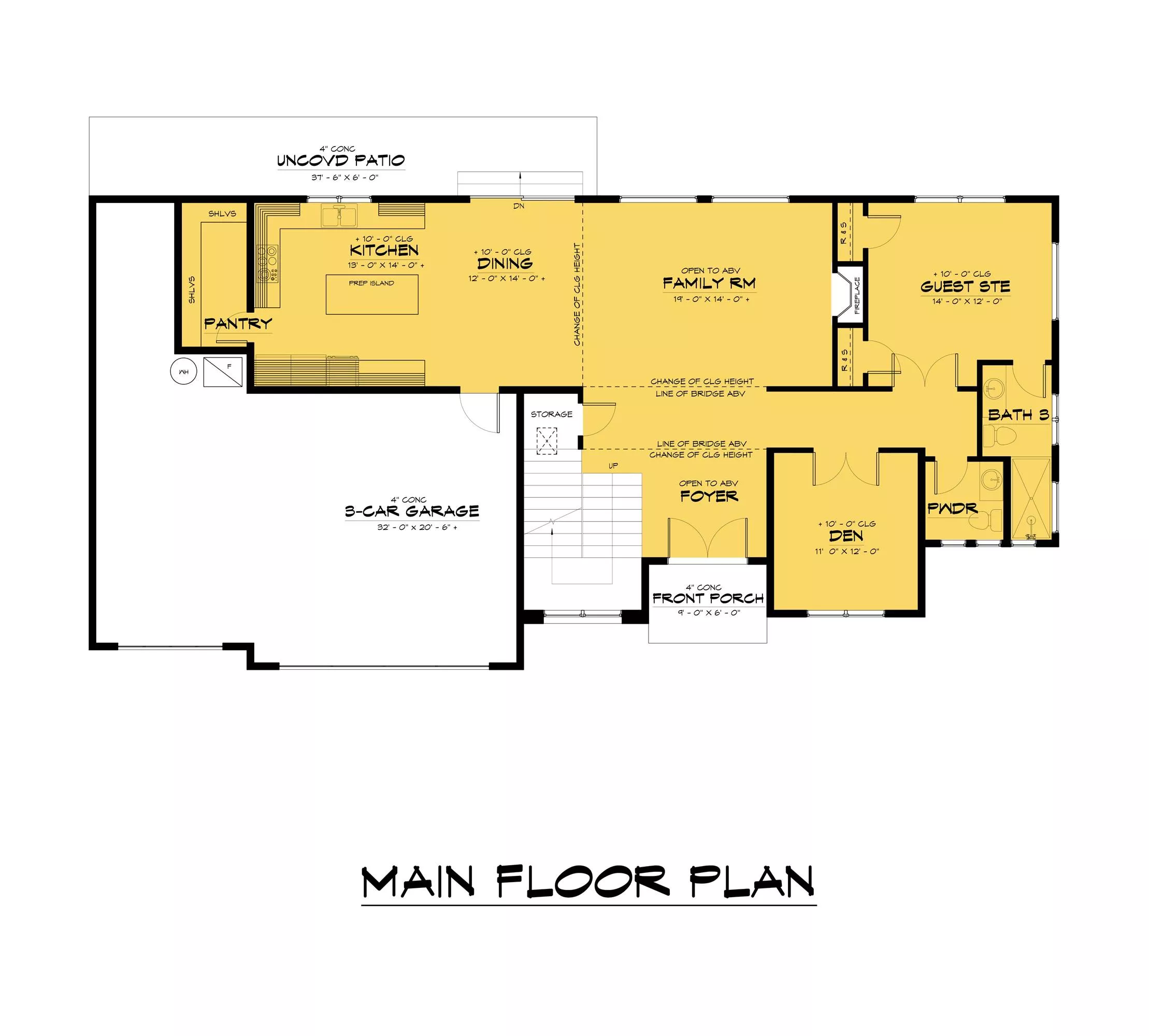

1st Floor

2nd Floor

1st Floor

2nd Floor

About This Plan

This transitional 5-bedroom house plan provides a spacious 3,037 square feet of heated living space, featuring five bedrooms, with four of them conveniently located upstairs, along with the laundry facilities. Additionally, the main floor includes a well-appointed guest suite, and there's also a dedicated den behind elegant French doors, making it an excellent work-from-home space. As you enter through the French doors into the foyer, you're greeted by the open and airy two-story family room. Large windows offer scenic views across the rear of the property, and a fireplace positioned on the right wall is visible from the kitchen, creating a cozy and inviting ambiance that extends throughout the home. The kitchen boasts a sizable island and a genuine walk-in pantry, providing ample space for culinary pursuits and storage needs. To the left, the 3-car garage offers extra depth, allowing for additional storage space. Conveniently accessed from the dining room, it features sliding doors leading to the backyard, enhancing both functionality and connectivity to outdoor spaces.

FEATURES & DETAILS

Kitchen features

Kitchen Island
U-Shaped
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Rear Porch

Lot Options

Suited for view lot

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Home Office
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Storage Space
Vaulted Great Room/Living

Garage Location

Front

Garage Options

Attached
Front-entry

3,954 Ft

Total Structure

3,037 Ft

Total Heated

1,636 Ft

1st Floor

1,401 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

73' 8"

Width

35' 9"

Depth

32' 1"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

20' 0"

Living/Great Room Ceiling

20' 0"

Foyer Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

4/12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

716 Ft

Garage

54 Ft

Porch

147 Ft

Deck

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,519

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,519

$1,819

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,819

$1,969

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,969

$2,885

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,885

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
