Sq Ft
1,643 FT²

Beds
3

Baths
1.5

Stories
2

Garage
1

Depth
40'

Width
28' 5"

On Sale
$805.10
$970.00

Front View

View All 7 Images | Photographs may reflect modified home

Sq Ft

1,643 FT²

From

$805.10

Beds

Baths

1.5

Stories

Garage

Depth

40'

Width

28' 5"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

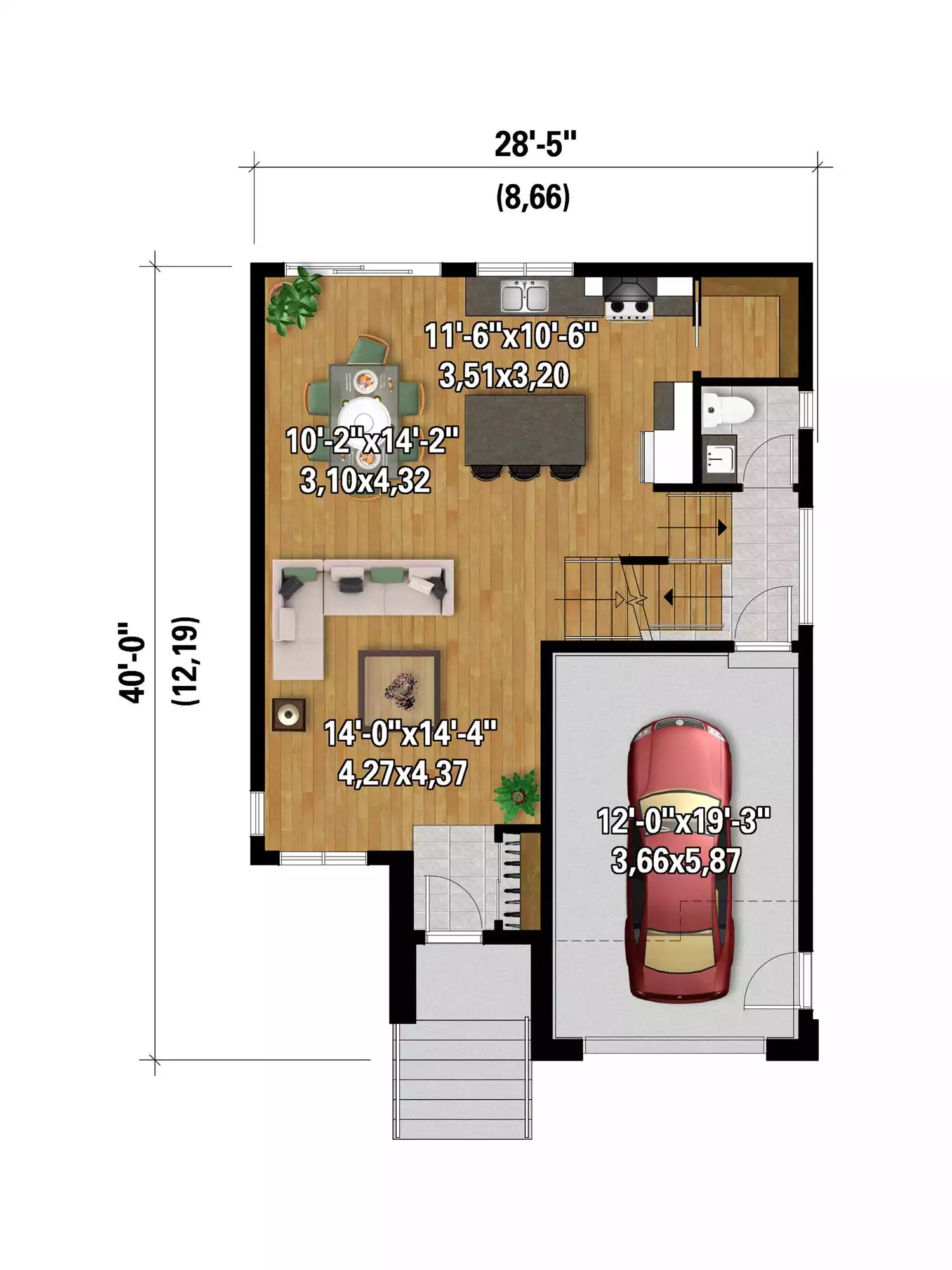

1st Floor

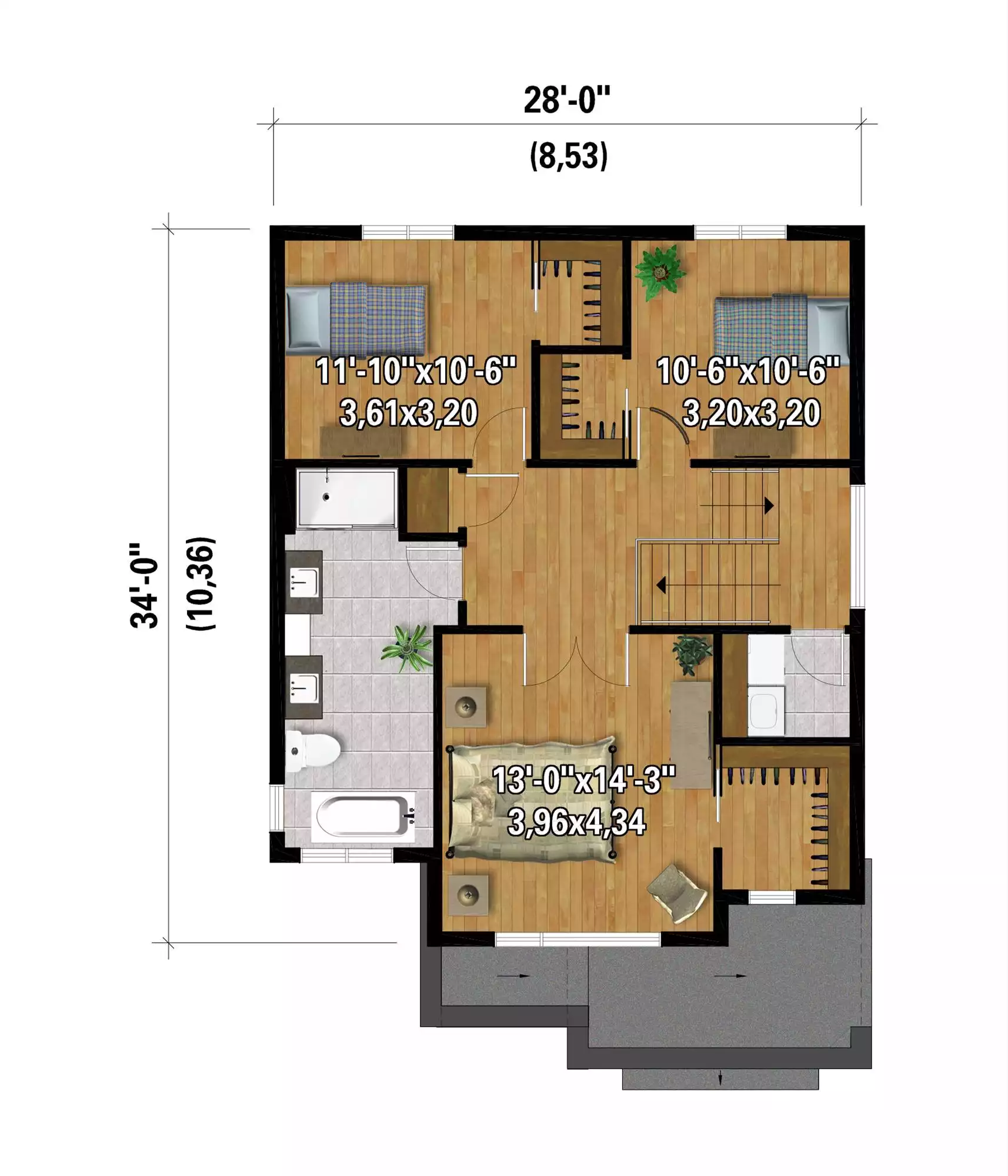

2nd Floor

1st Floor

2nd Floor

About This Plan

With chic transitional farmhouse style and a compact footprint, House Plan 10482 is ready to fit right into an up-and-coming neighborhood! This balanced design is also affordable at 1,643 square feet with three bedrooms and one-and-a-half bathrooms. The layout places all the common spaces on the main level, with a foyer to welcome you in, a living area in front, and the island kitchen open to the dining area in back. You'll find the powder room down the steps that bring you to the garage level. Head upstairs and the laundry is located off the landing of the U-shaped staircase. The largest bedroom sits at the front of the second story while the others are in back. They all have walk-in closets and share a spacious five-piece hall bath to give everybody a touch of luxury without breaking the bank!

See All Plan Options

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Walk-in Pantry

Bedroom features

Double Vanity Sink
Family Style
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch

Lot Options

Suited for narrow lot

Additional features

Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry

1,917 Ft

Total Structure

1,643 Ft

Total Heated

734 Ft

1st Floor

909 Ft

2nd Floor

734 Ft

Lower Floor

Bedrooms

1.5

Bathrooms

Garage

Stories

28' 5"

Width

40' 0"

Depth

39' 6"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

9' 0"

Living/Great Room Ceiling

2x6

Framing

Truss

Roof Framing

12/12

Primary Roof Pitch

14/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

274 Ft

Garage

Exterior Styles

Farmhouse

Modern Farmhouse

Transitional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $805

PDF Single Build

~~$970~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $805

Sale: $842

5 Printed Sets

~~$1,015~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $842

Sale: $921

5 Printed Sets + PDF

~~$1,110~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $921

Sale: $1,652

CAD Single Build

~~$1,990~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,652

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Basement

Ideal for level lots, lower level of home will be partially or fully underground.

If a foundation isn't listed, please live chat, email or call for availability.

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

Sale Price: $805.10
FREE SHIPPING
Savings: $164.90 (17%)

Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
