Recently Viewed Plans | Advanced Plan Search

Sq Ft
5,717 FT²

Beds
5

Baths
5.5

Stories
2

Garage
2

Depth
65' 10"

Width
49'

On Sale
$2,287.20
$2,859.00

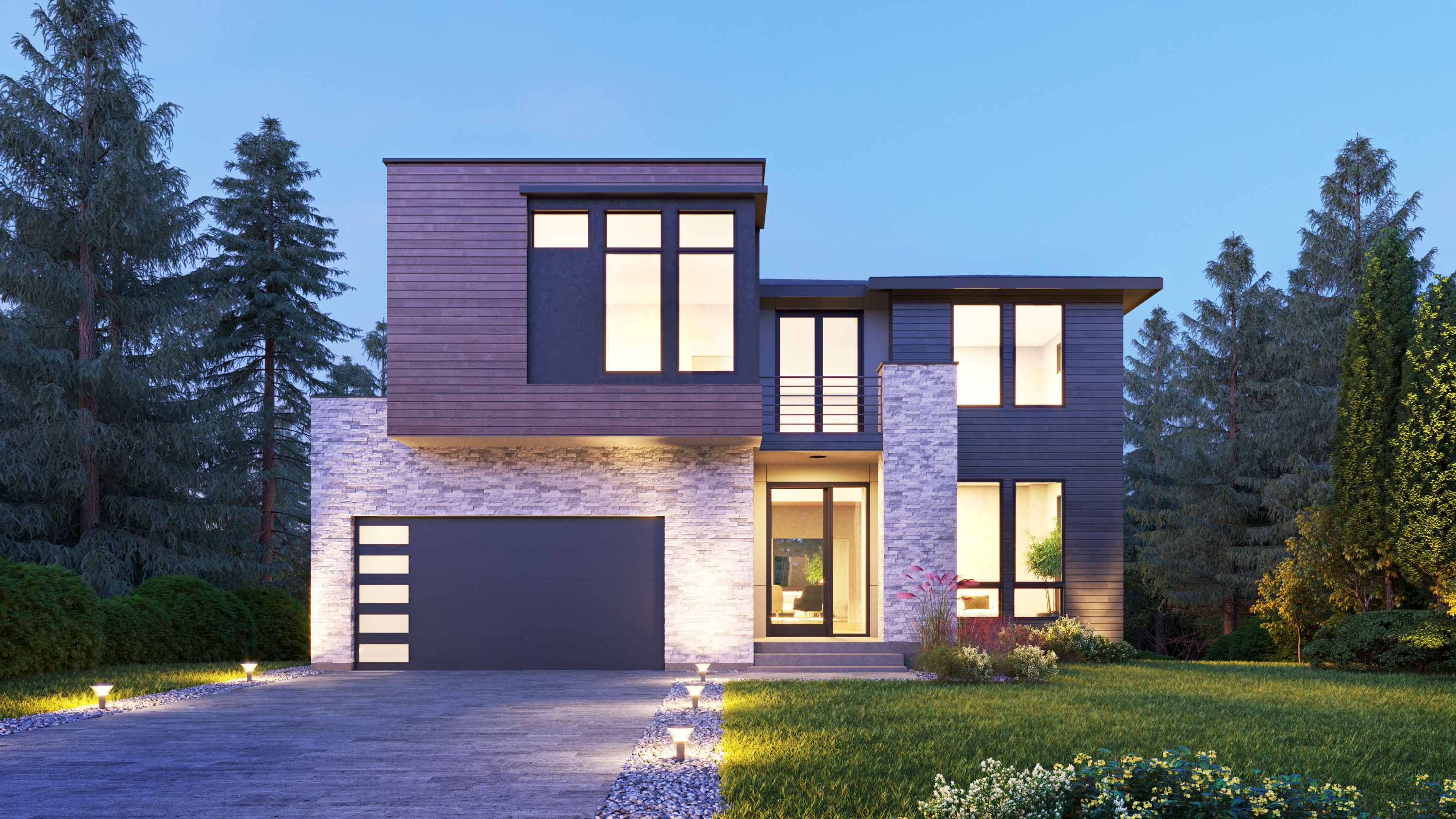

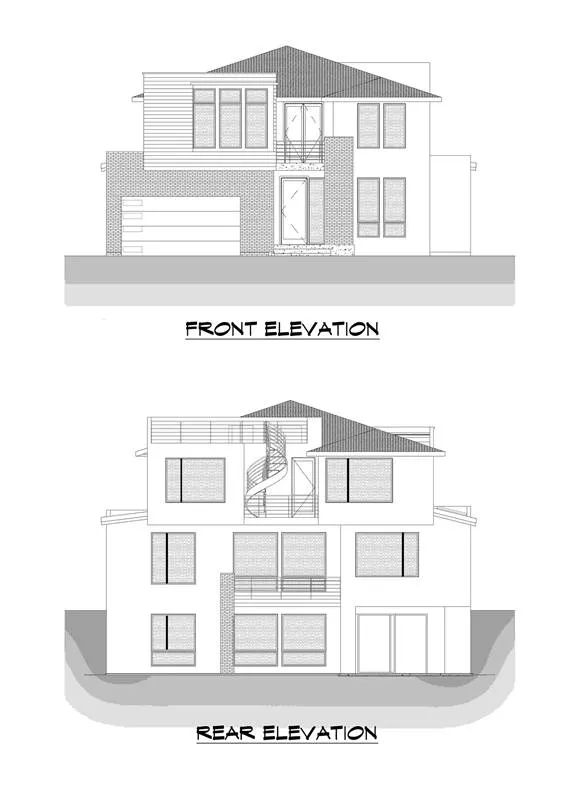

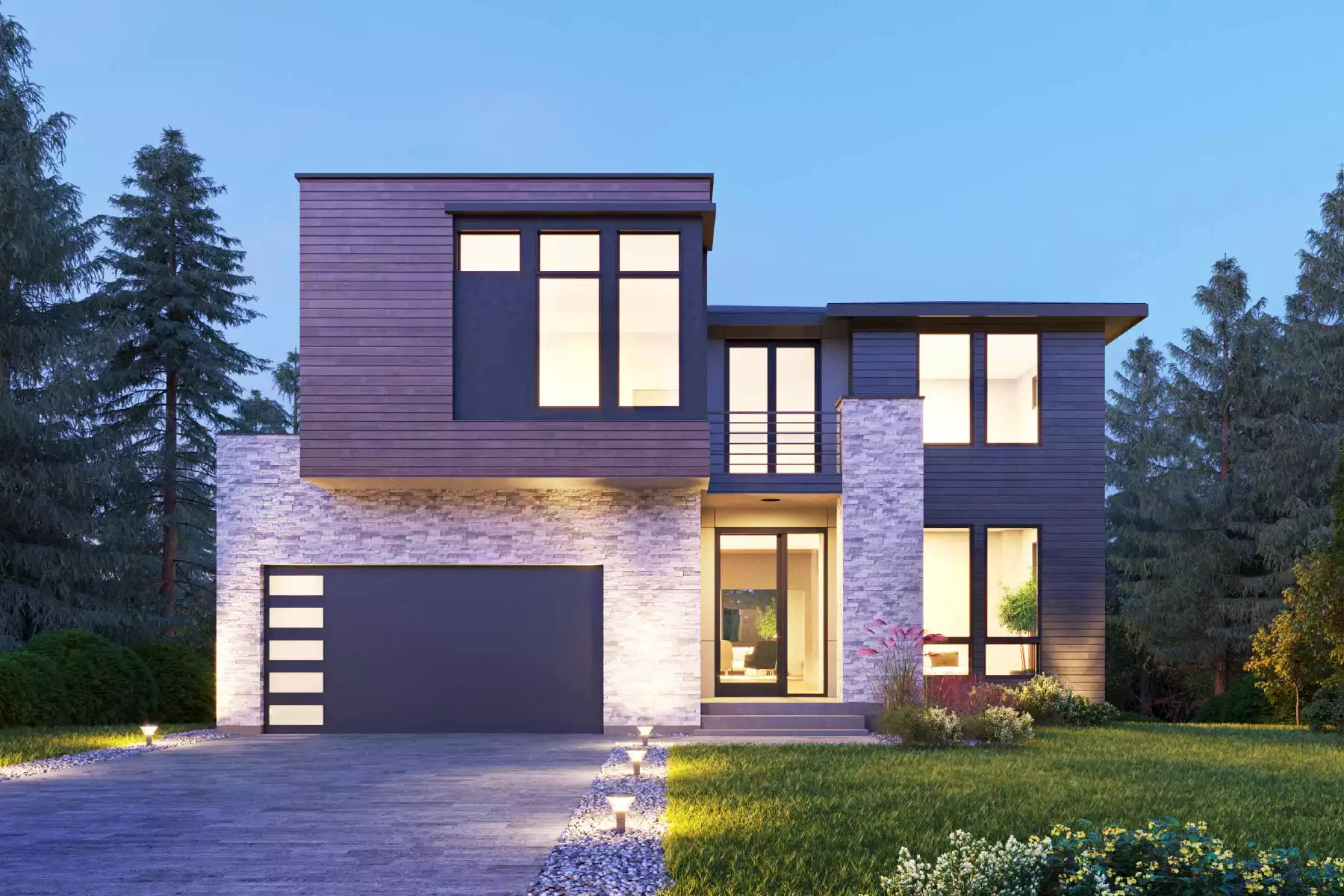

Front View

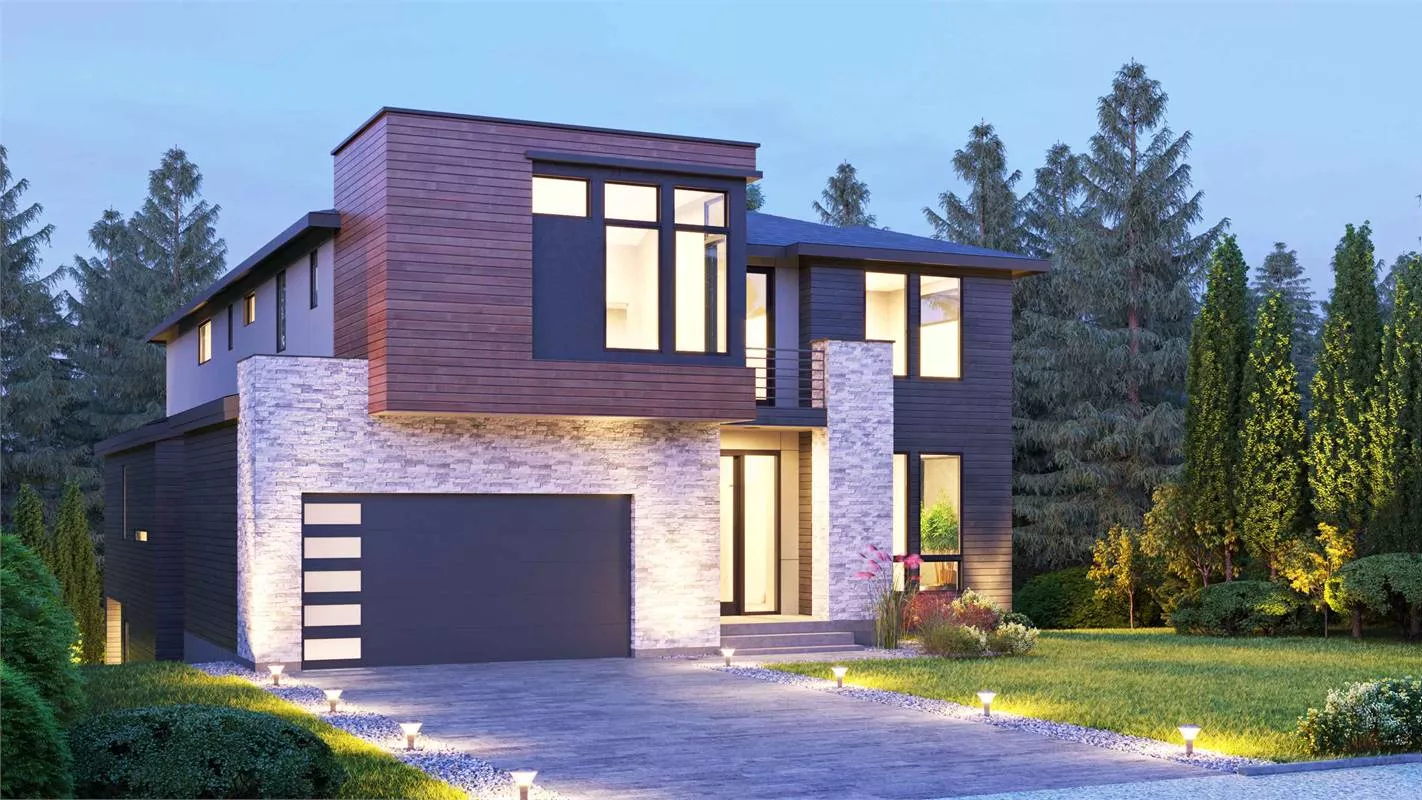

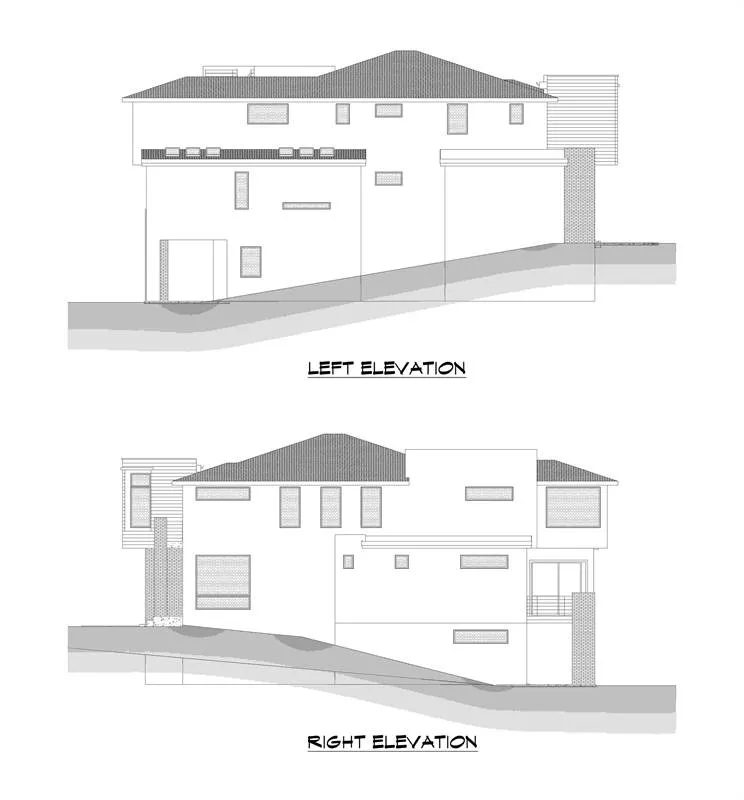

Left View

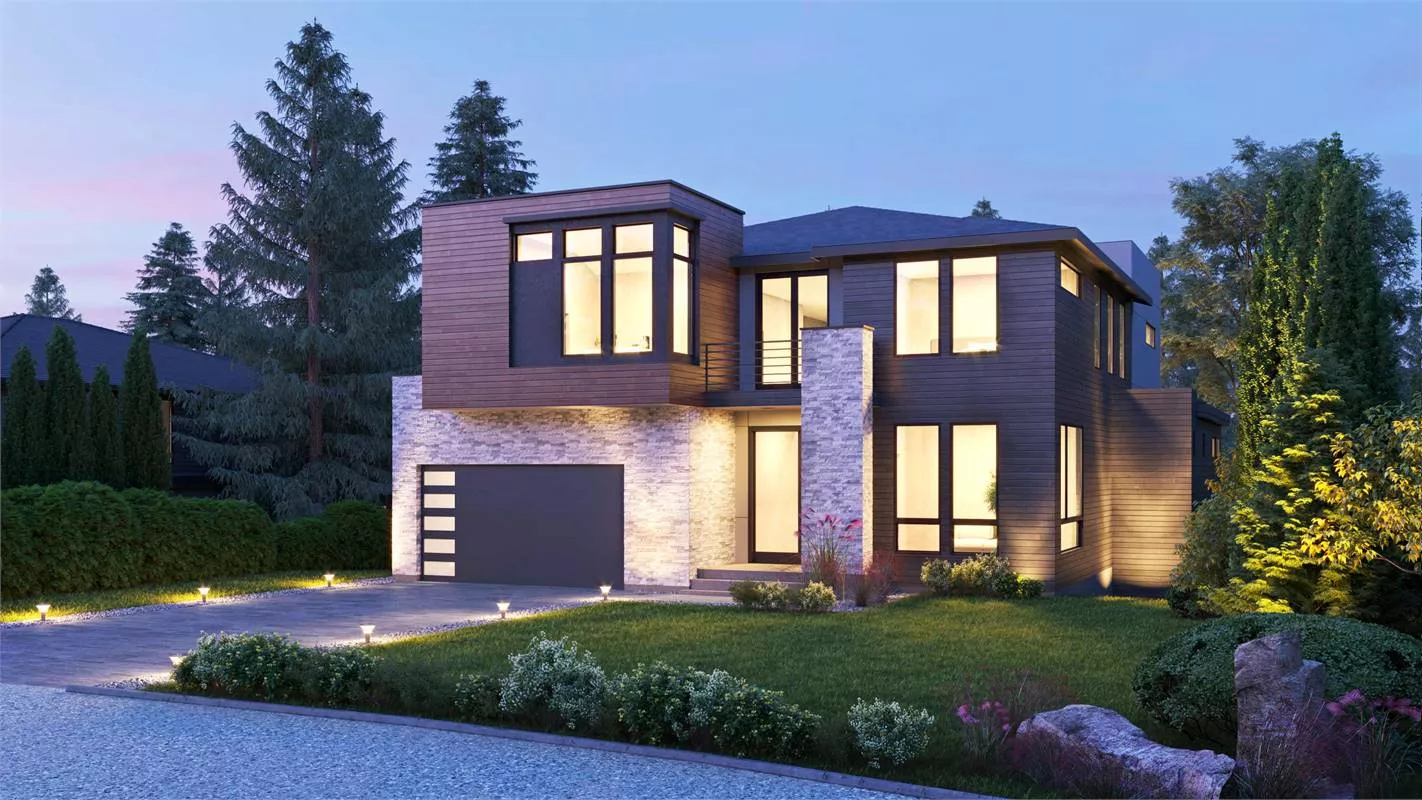

Right View

Rear View

Side View

View All 6 Images | Photographs may reflect modified home

Sq Ft

5,717 FT²

From

$2,287.20

Beds

Baths

5.5

Stories

Garage

Depth

65' 10"

Width

49'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

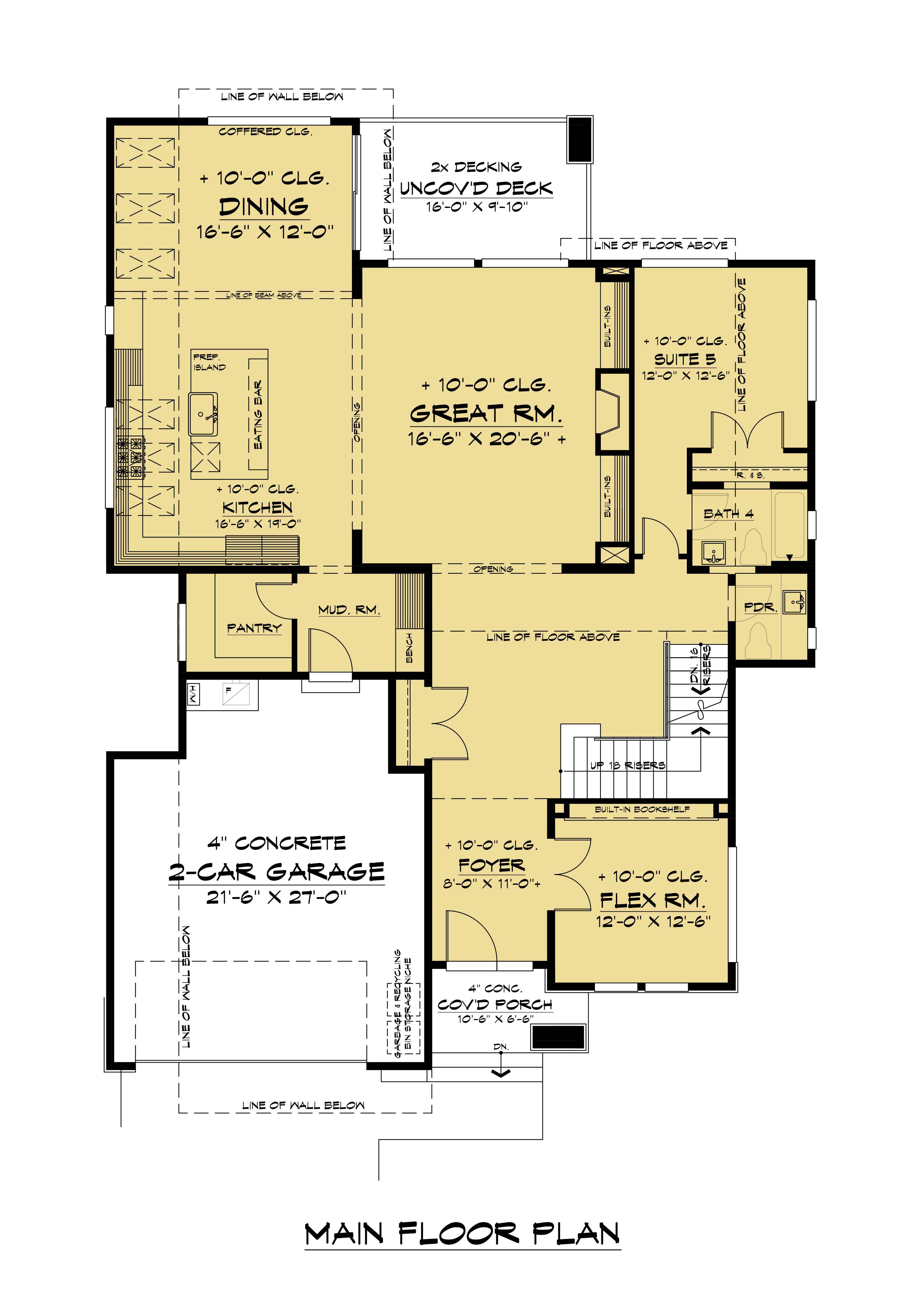

1st Floor

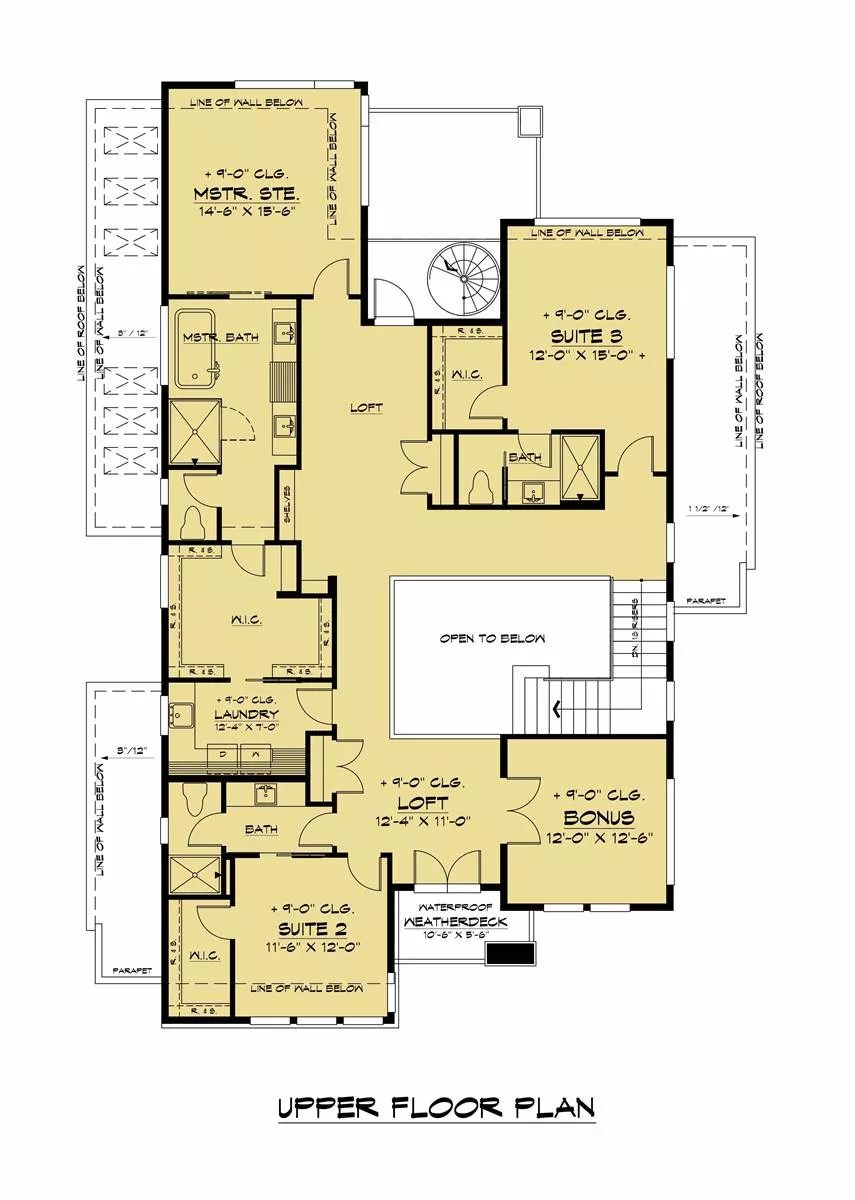

2nd Floor

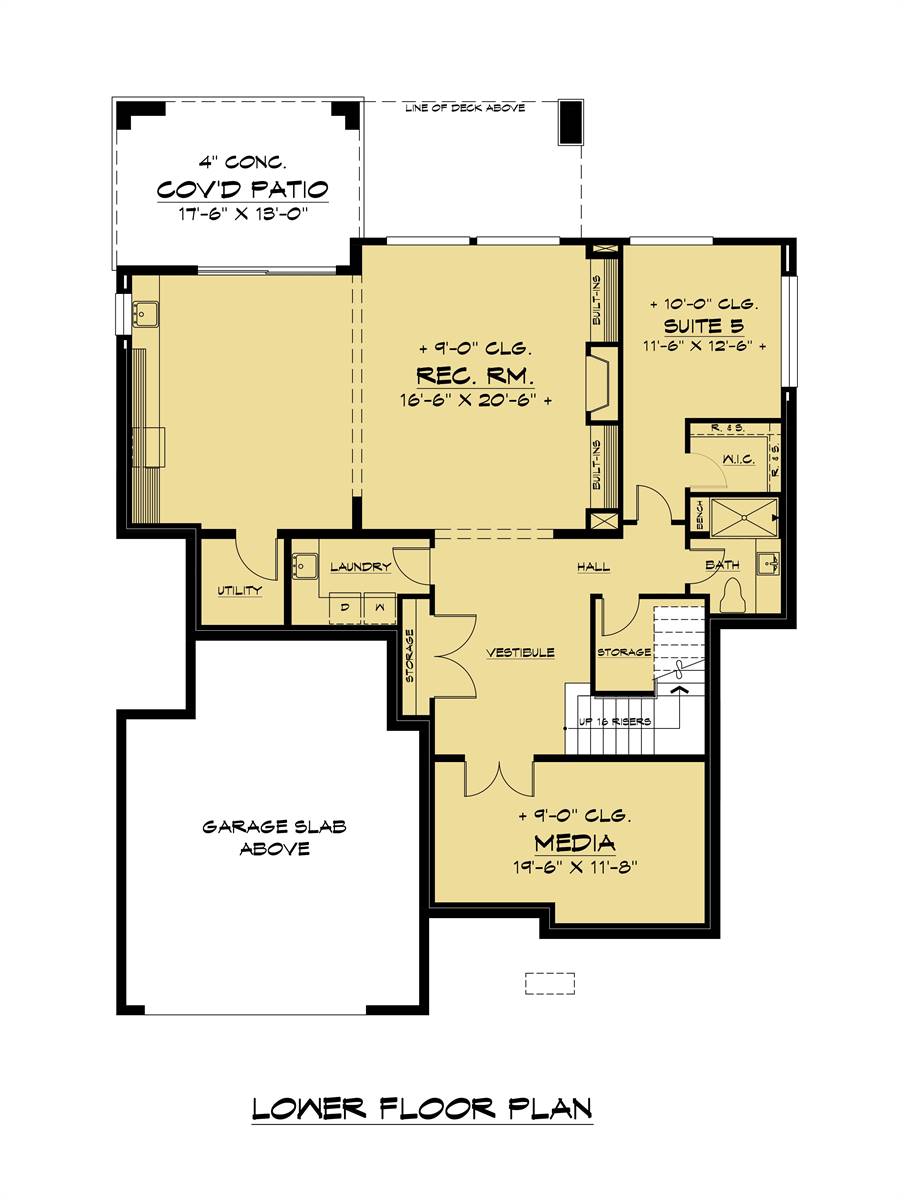

Lower Level Plan

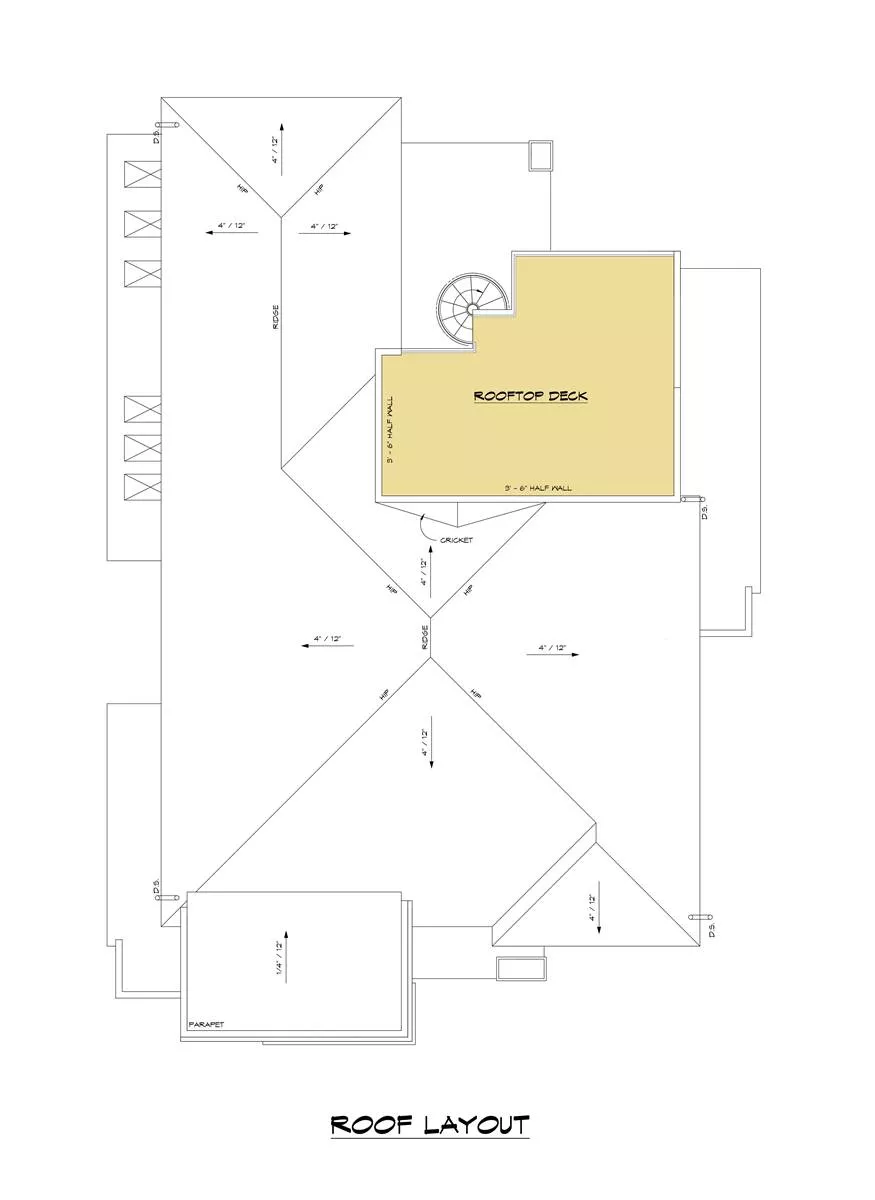

Rooftop Deck

About This Plan

This modern home plan is a stunning two-story house with a walkout basement and a rooftop deck. Featuring 5,717 square feet of living space with 5 bedrooms, 5.5 bathrooms, and a 2-car garage this luxury design is perfect for a large family. The great room, dining area, and kitchen seamlessly flow into each other, creating a perfect space for entertaining guests. The L-shaped kitchen is equipped with a large center island with an eating bar and plenty of storage space. On the second level, you will find the master suite, 2 additional bedrooms, large loft, bonus room and laundry room. The basement level of the house provides additional living space with a spacious rec room and media room, perfect for hosting gatherings. The basement also includes a guest suite. A highlight of this home is the rooftop deck which provides panoramic views of the rear property.

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

2 Story Volume
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Mud Room
Open Floor Plan
Rec Room
Storage Space
Vaulted Foyer

Garage Location

Front

Garage Options

Attached
Front-entry

7,207 Ft

Total Structure

5,717 Ft

Total Heated

2,018 Ft

1st Floor

1,981 Ft

2nd Floor

1,718 Ft

Lower Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

49' 0"

Width

65' 10"

Depth

37' 1"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

9' 0"

Lower Floor Ceiling

2x6

Framing

4/12

Primary Roof Pitch

1.5/12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

556 Ft

Garage

59 Ft

Porch

219 Ft

Deck

385 Ft

Bonus Room

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,859

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,859

$3,159

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,159

$3,309

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$3,309

$5,431

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,431

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
