Sq Ft
5,183 FT²

Beds
5

Baths
4.5

Stories
2

Garage
5

Depth
68' 4"

Width
77' 6"

On Sale
$1,883.20
$2,354.00

Sq Ft

5,183 FT²

From

$1,883.20

Beds

Baths

4.5

Stories

Garage

Depth

68' 4"

Width

77' 6"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

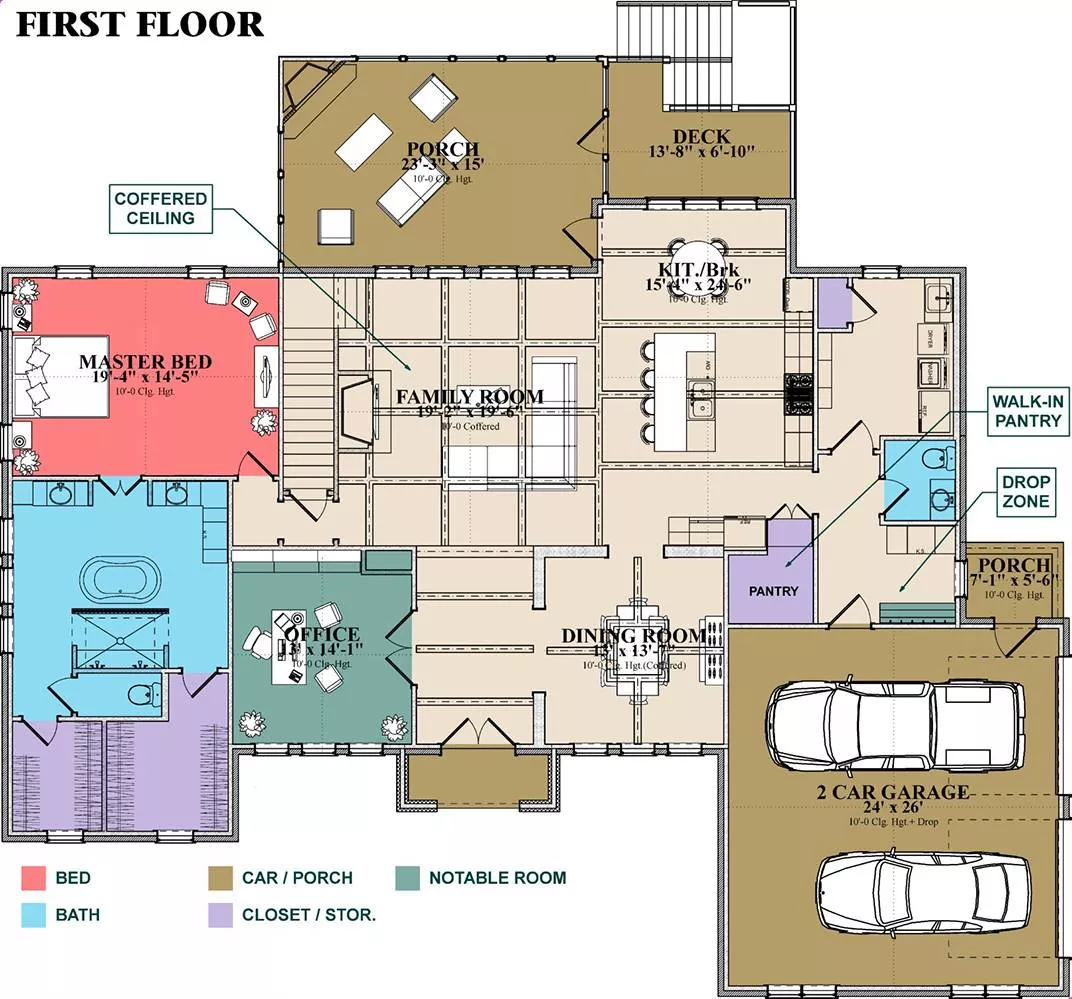

1st Floor Plan

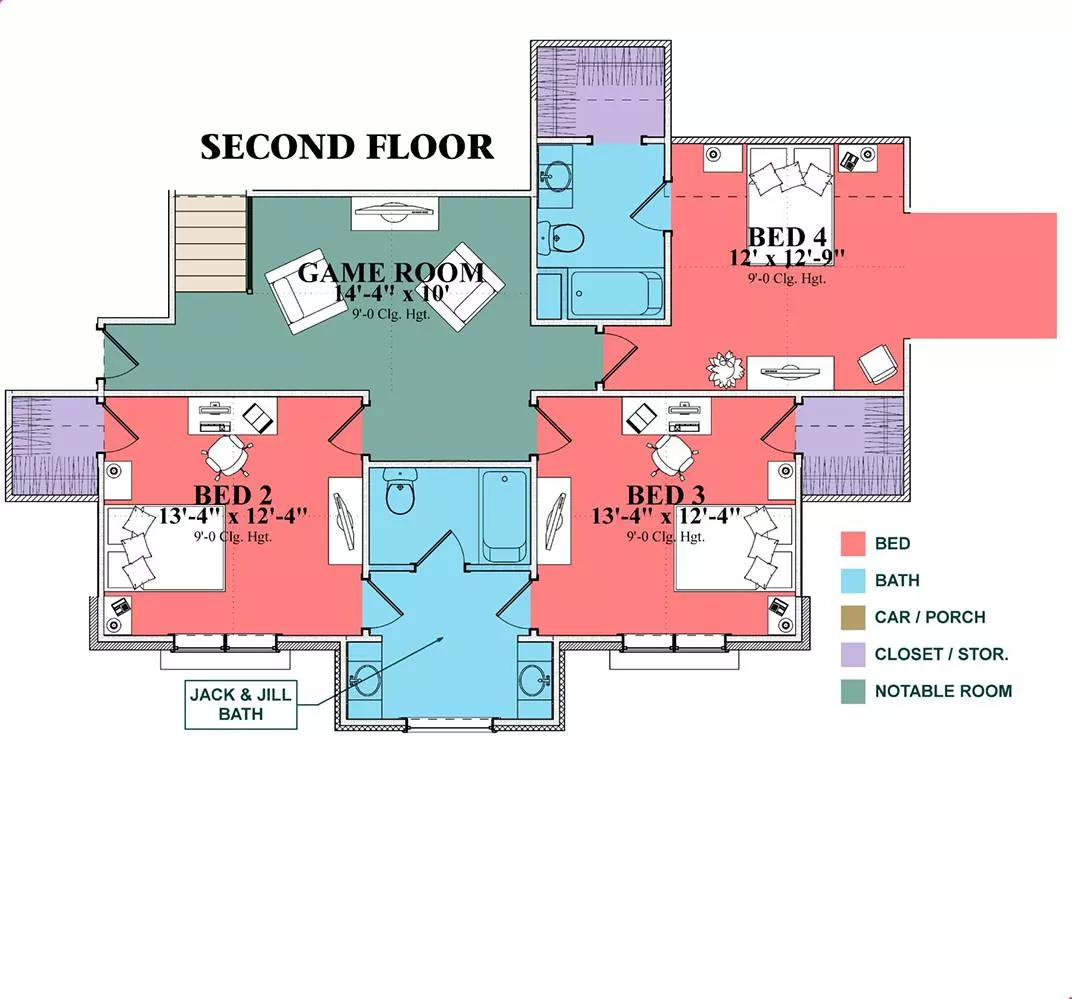

2nd Floor Plan

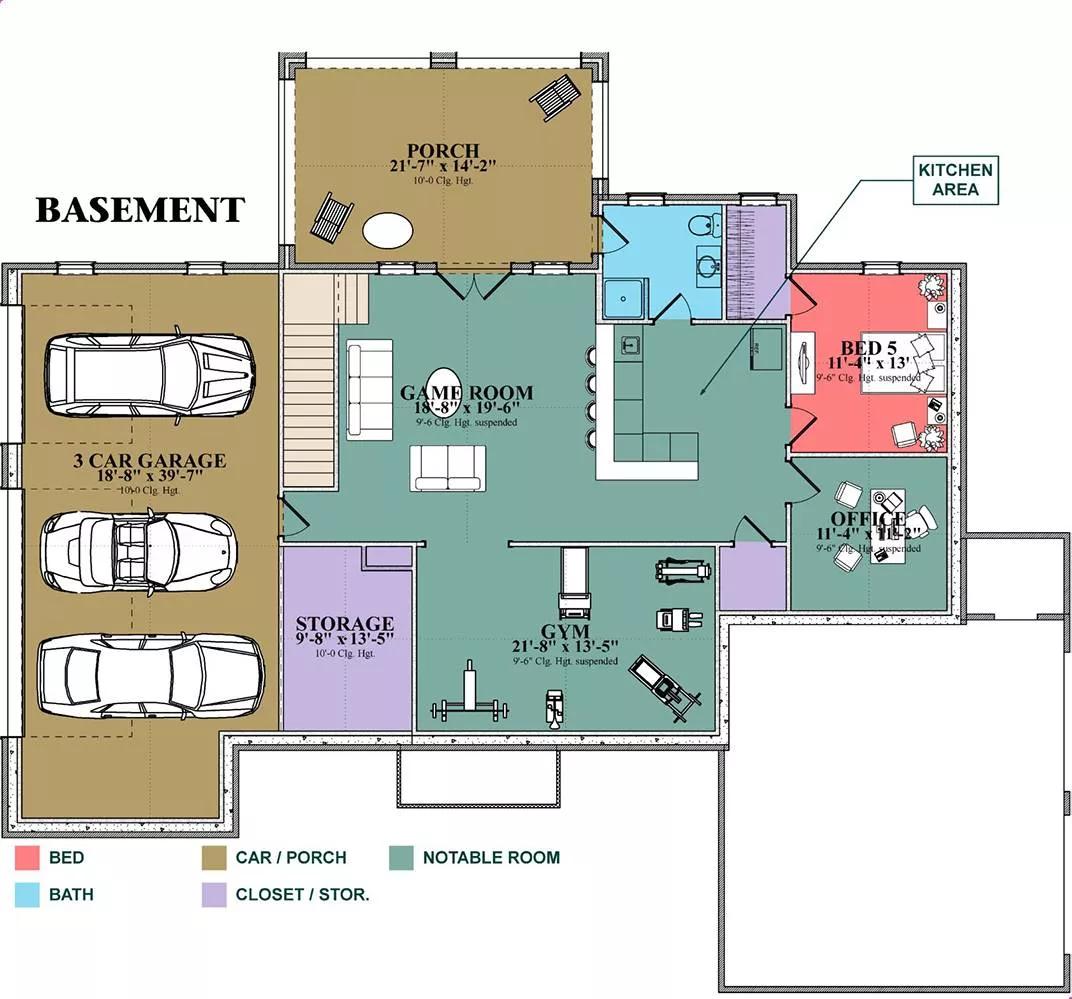

Basement Floor Plan

1st Floor Plan

2nd Floor Plan

Basement Floor Plan

About This Plan

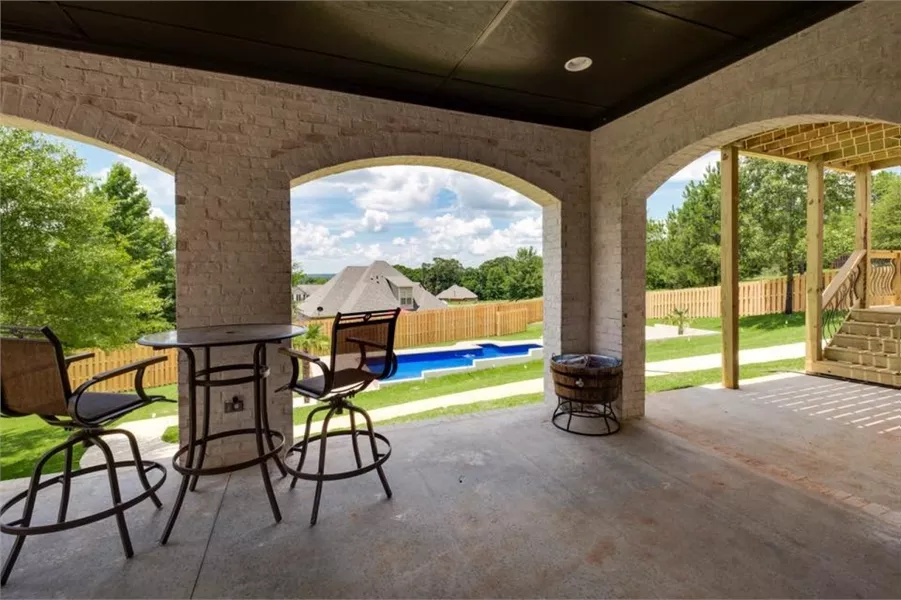

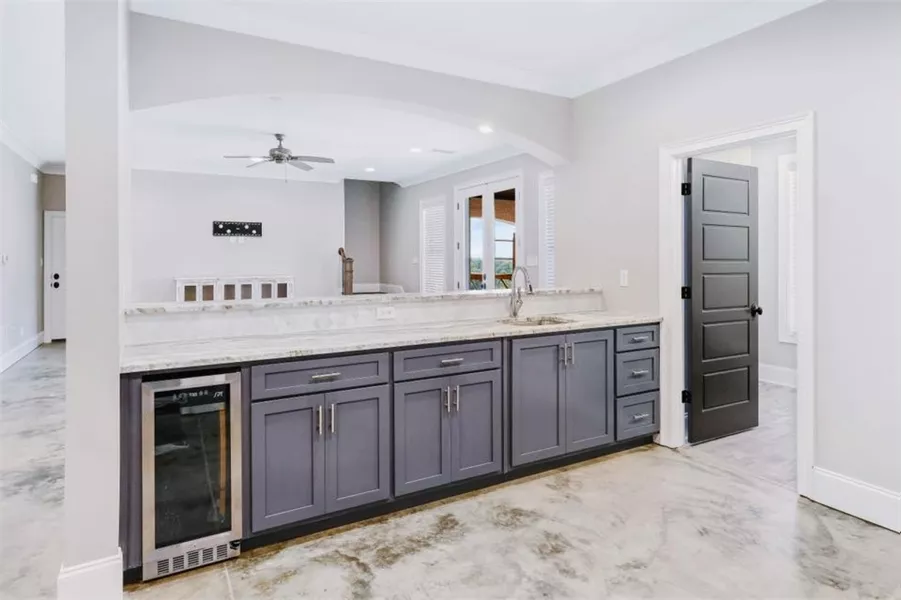

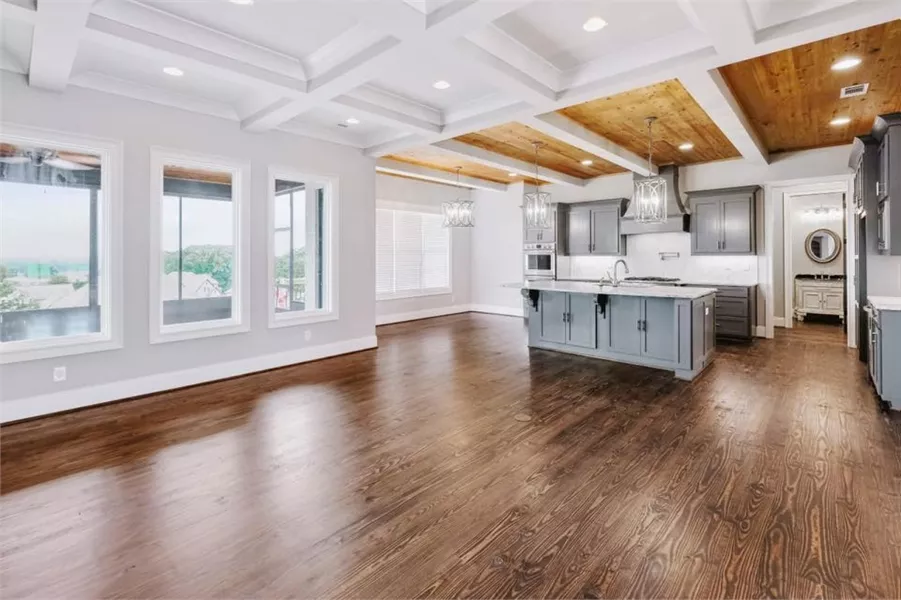

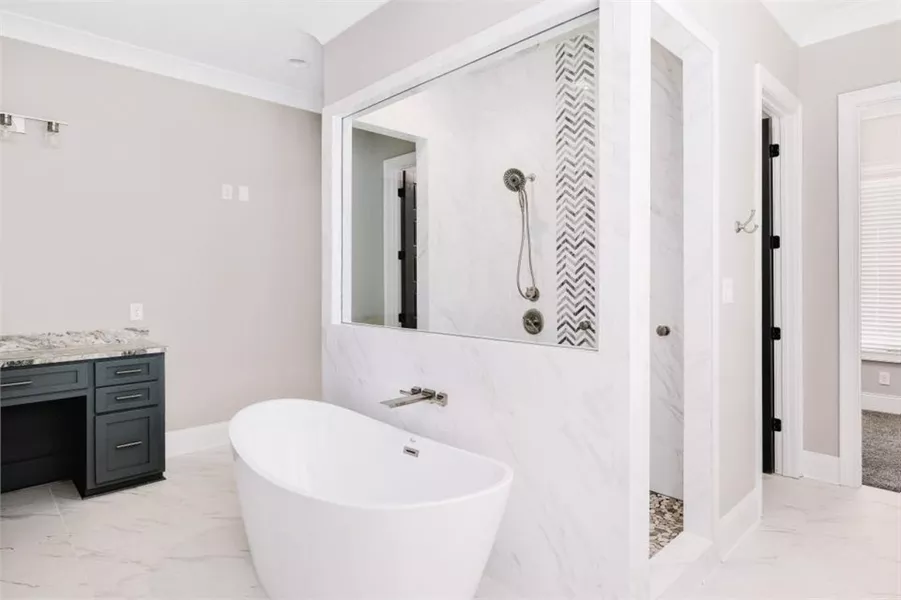

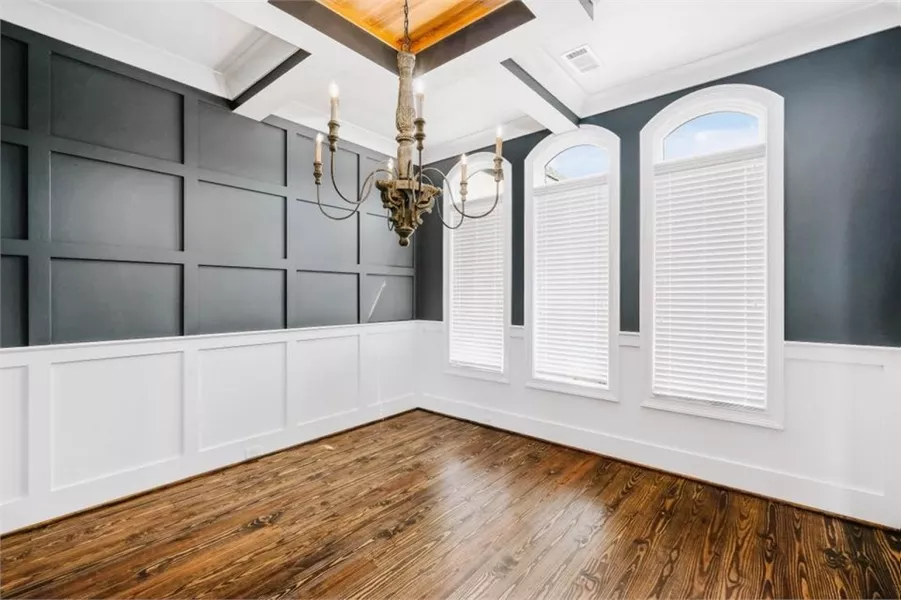

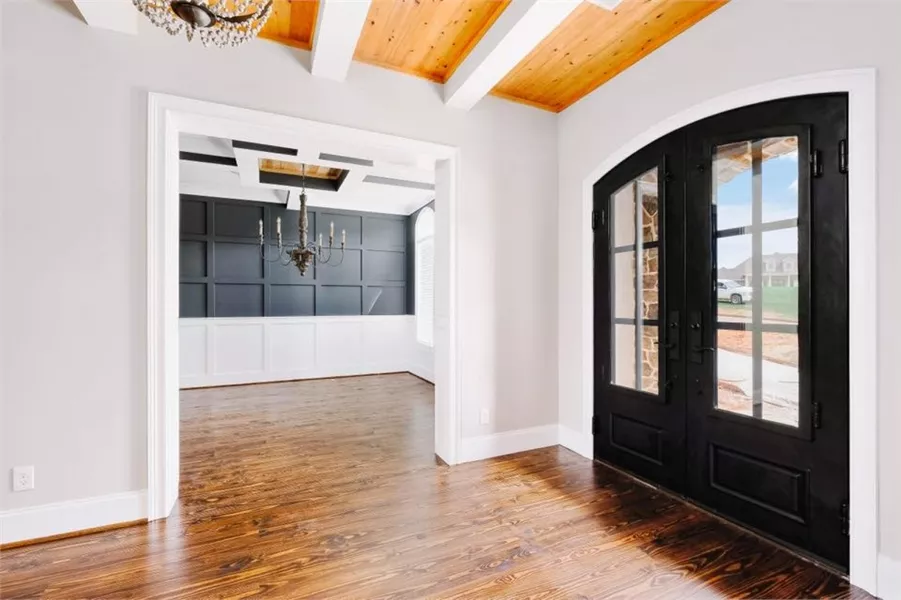

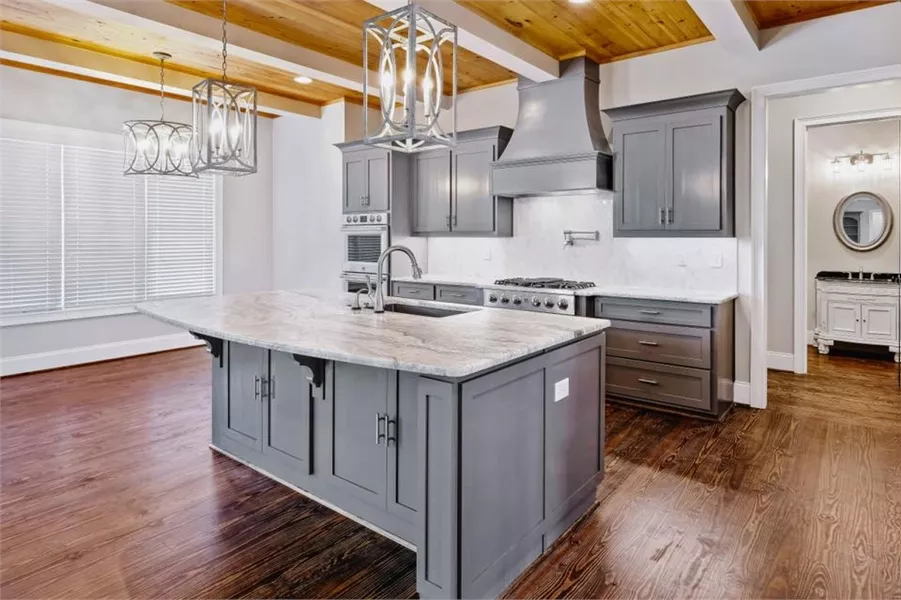

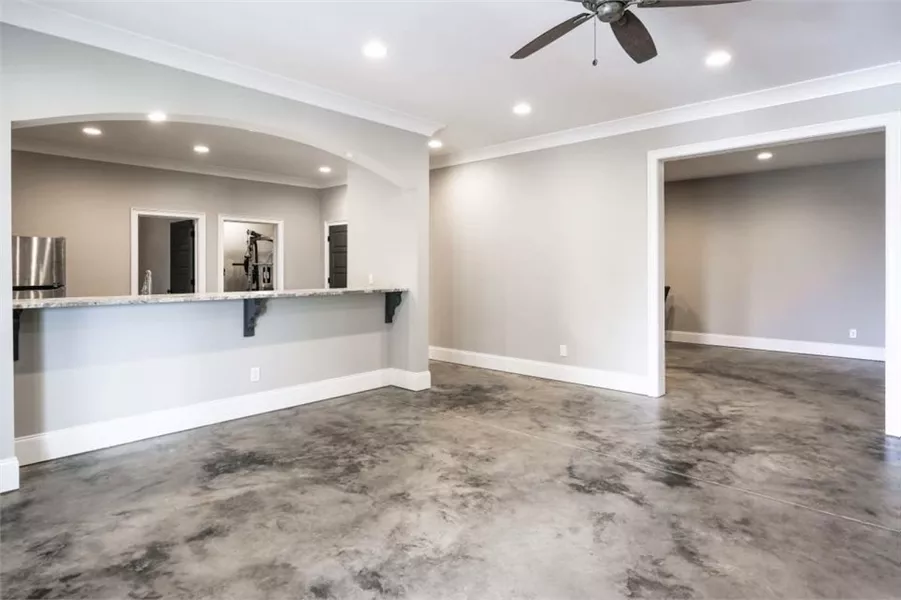

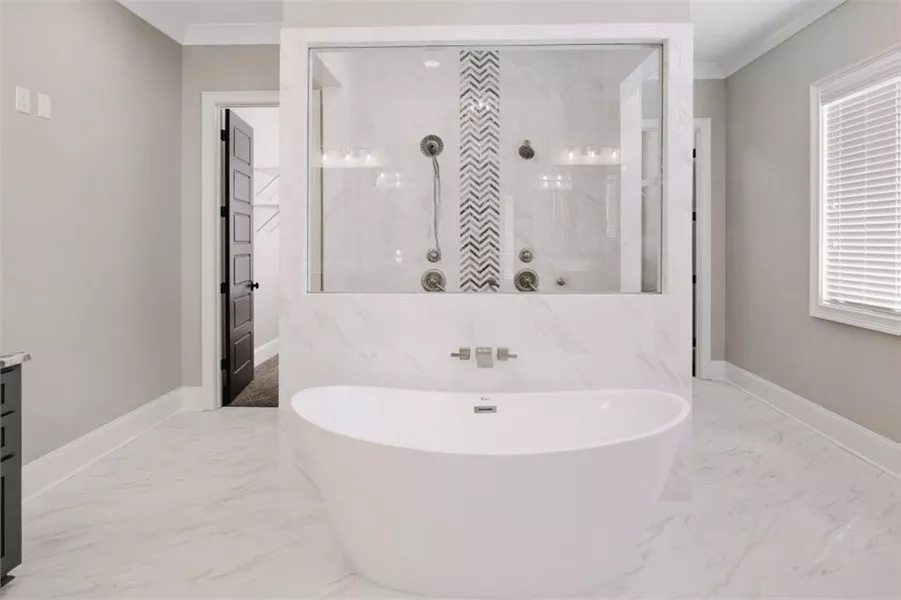

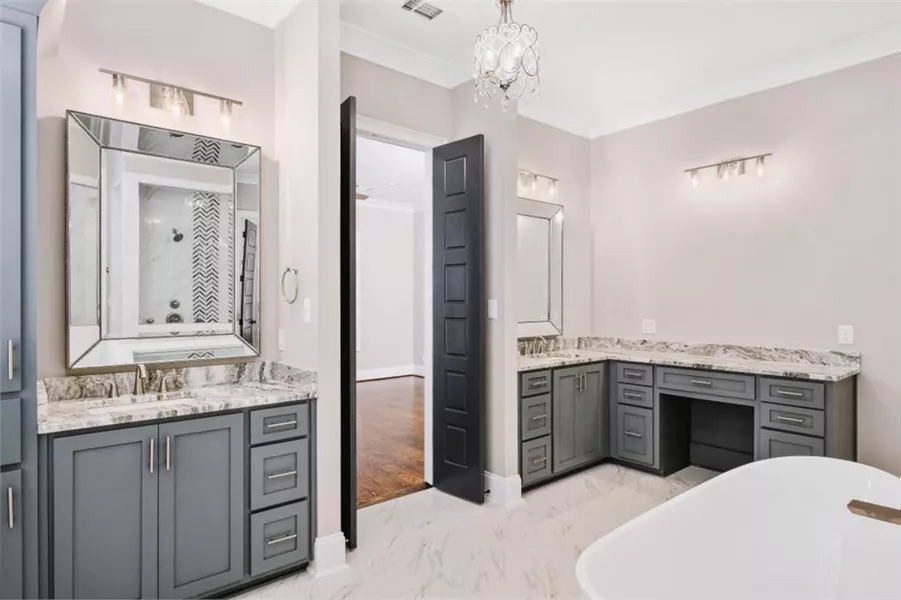

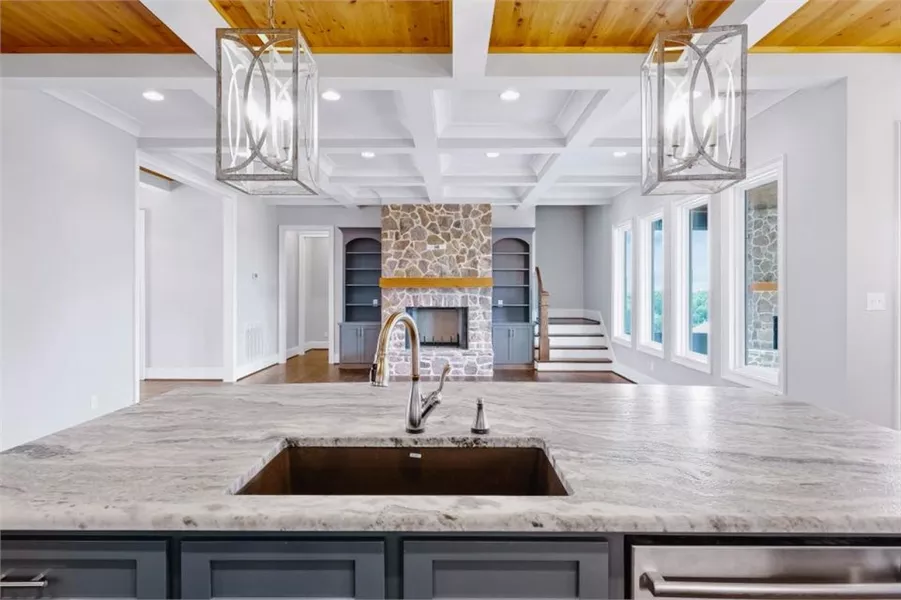

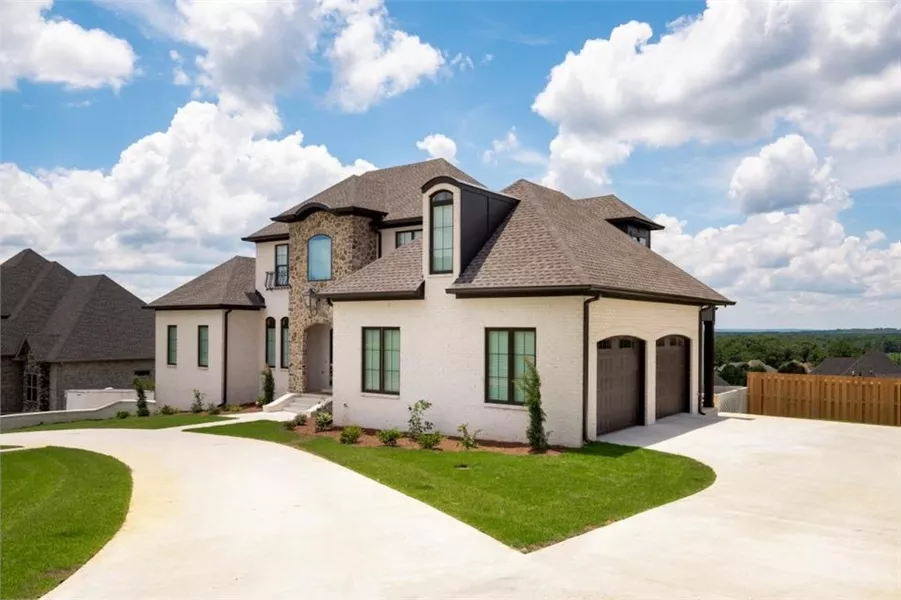

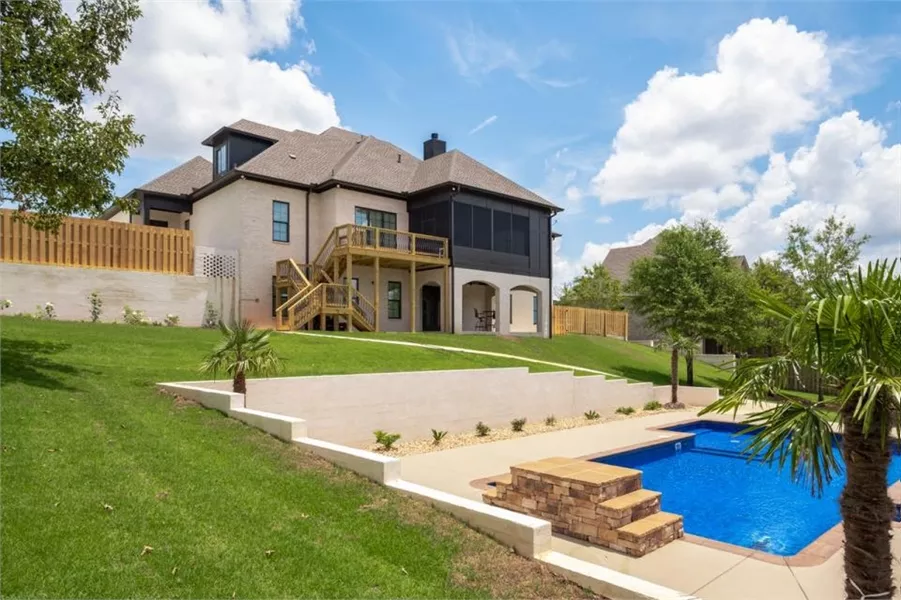

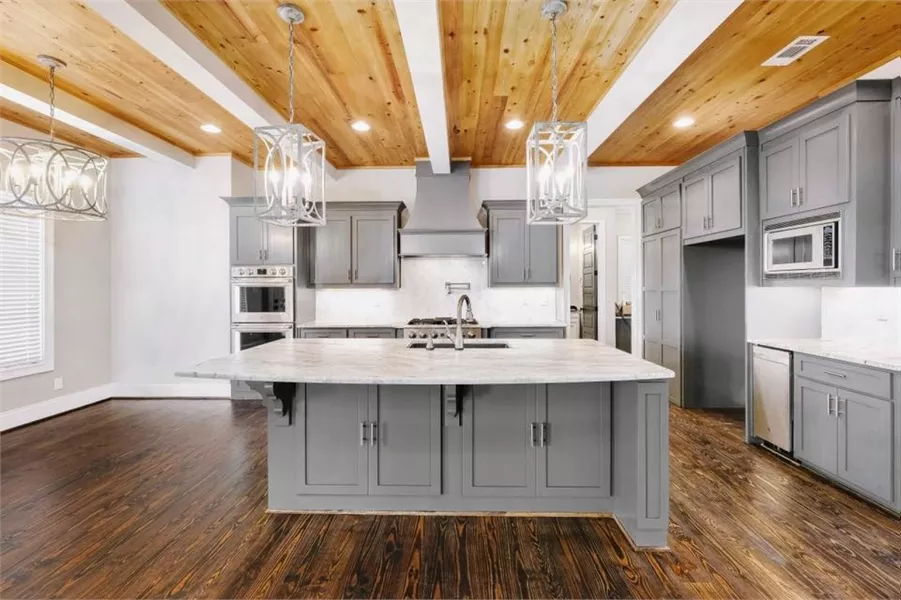

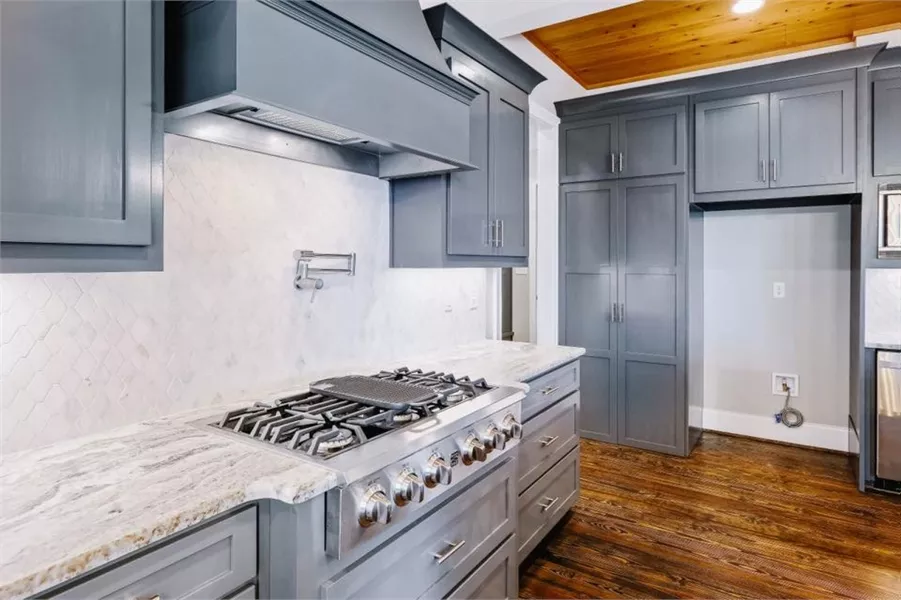

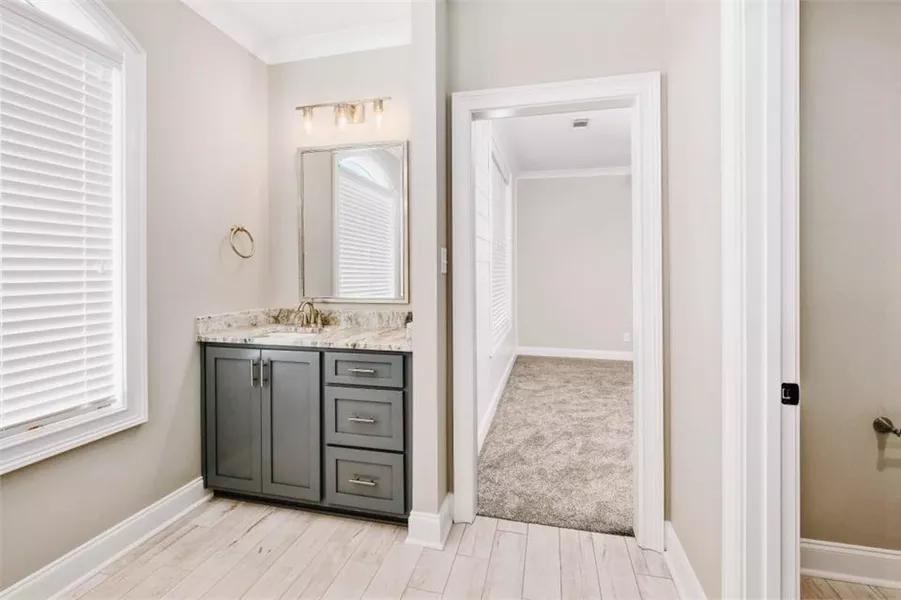

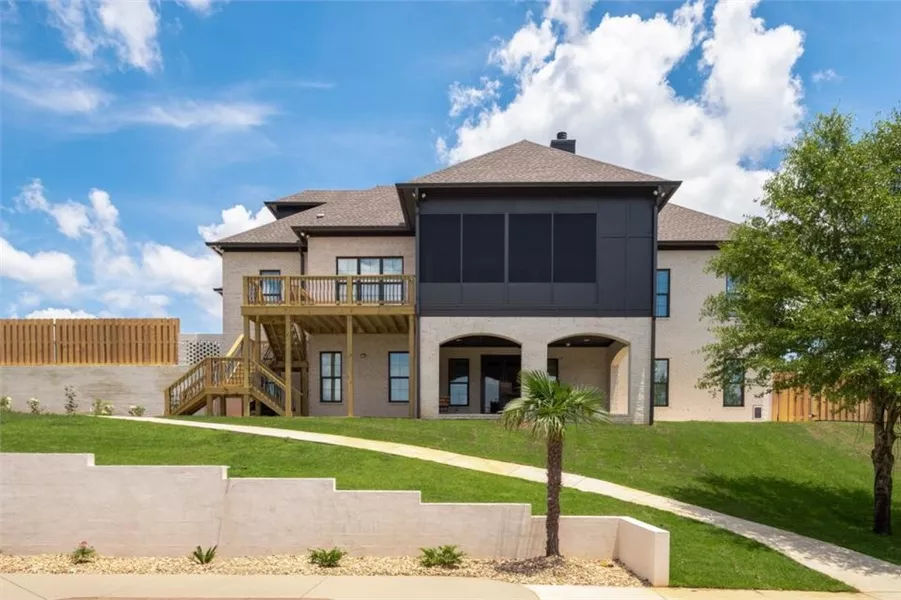

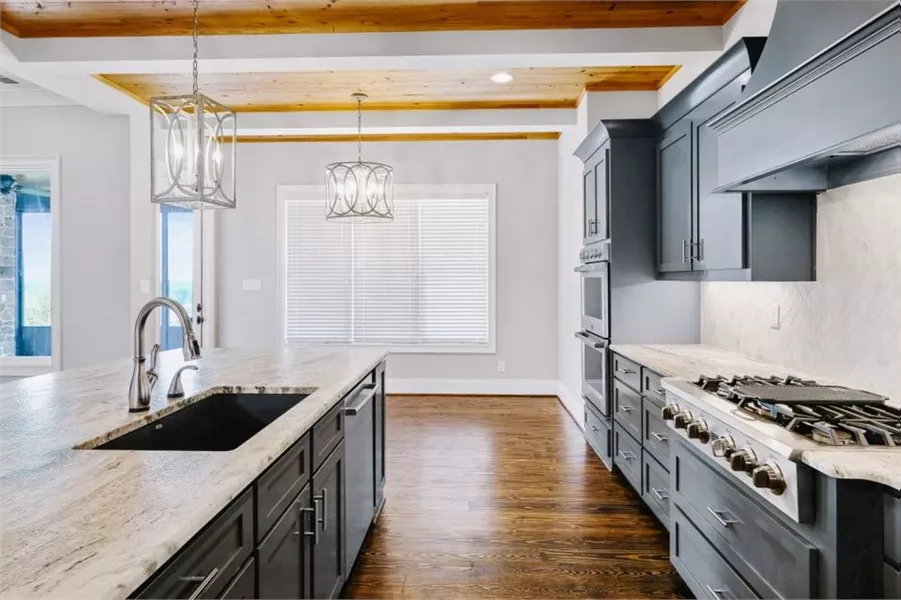

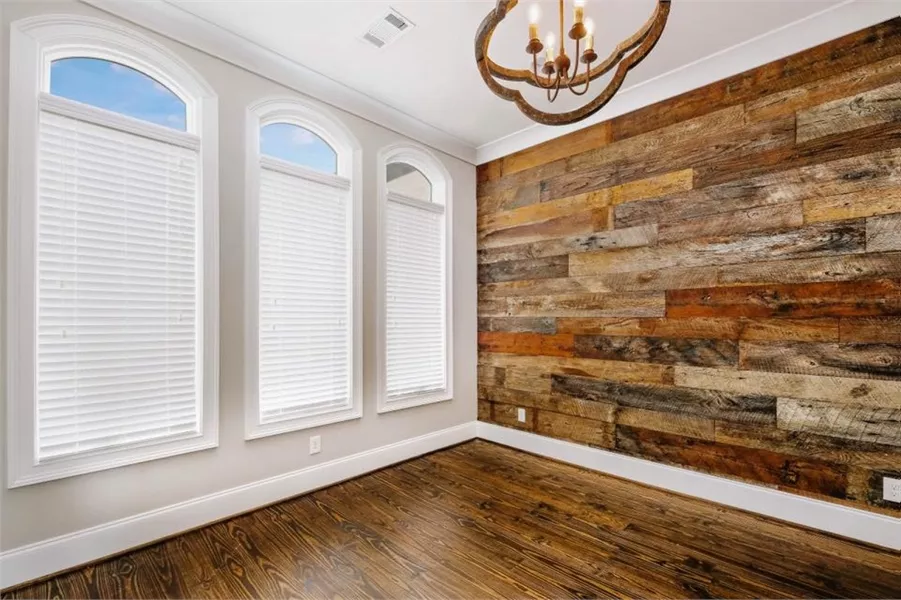

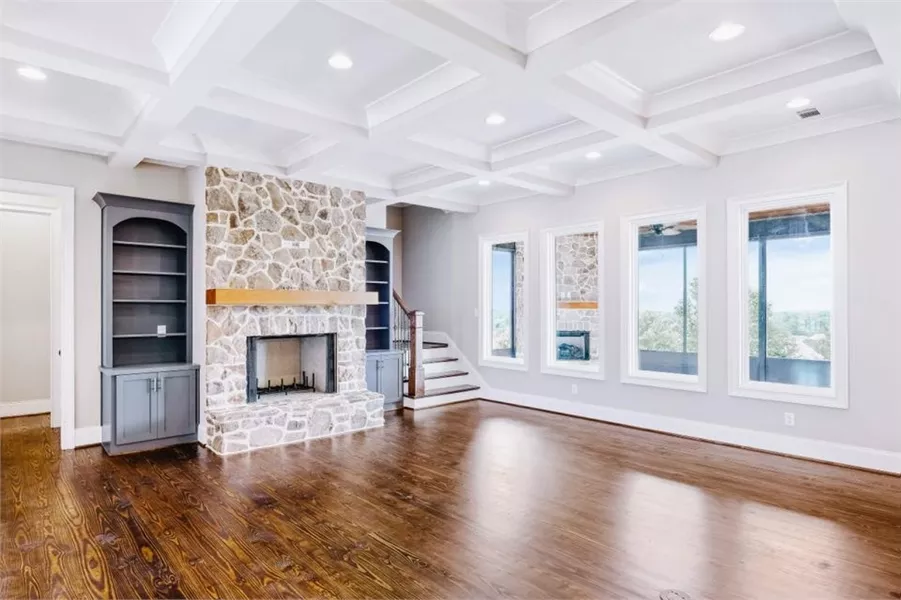

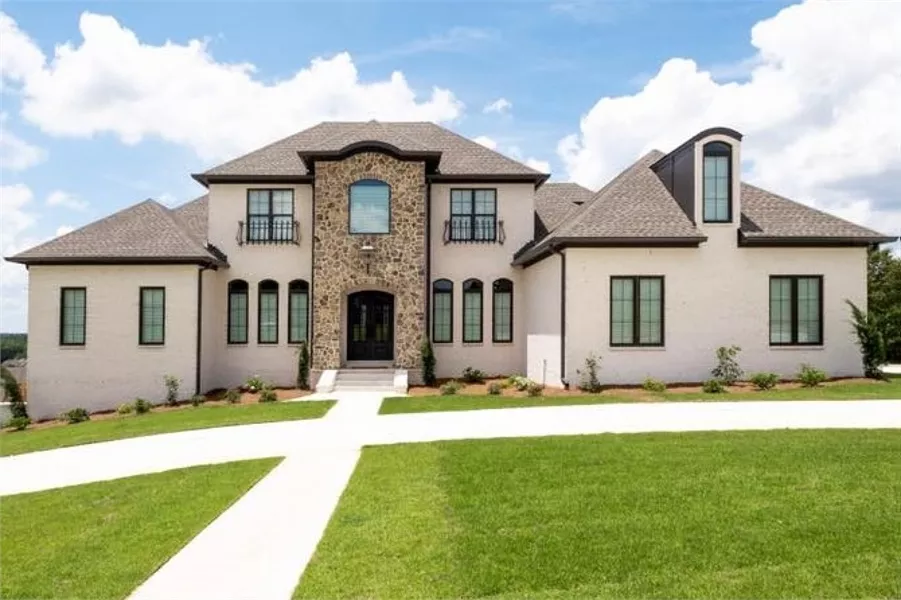

Need a stunning Mediterranean home and have a sloped lot to work with? Consider all the amazing potential in House Plan 7704! This 5,183-square-foot design spreads across two stories plus the finished basement. You'll find it offers plenty of garage parking, with a side-entry two-car garage on the main level and a side-entry three-car garage in the basement on the opposite side. When you enter through the front door, the dining room and office flank the foyer while the island kitchen overlooks the family room and breakfast nook in back. This space also connects to a screened porch! The primary suite on the main level offers a luxe experience with a five-piece bath and dual walk-in closets. Upstairs, you'll find a pair of Jack-and-Jill bedrooms as well as a smaller suite suitable for guests off the game room. Head down to the basement and there's another game room beside a bar/kitchen, a gym, another office, and the final bedroom and bathroom. Make sure not to overlook the patio/porch space on this level. This home has so much to appreciate in its adaptable design!

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

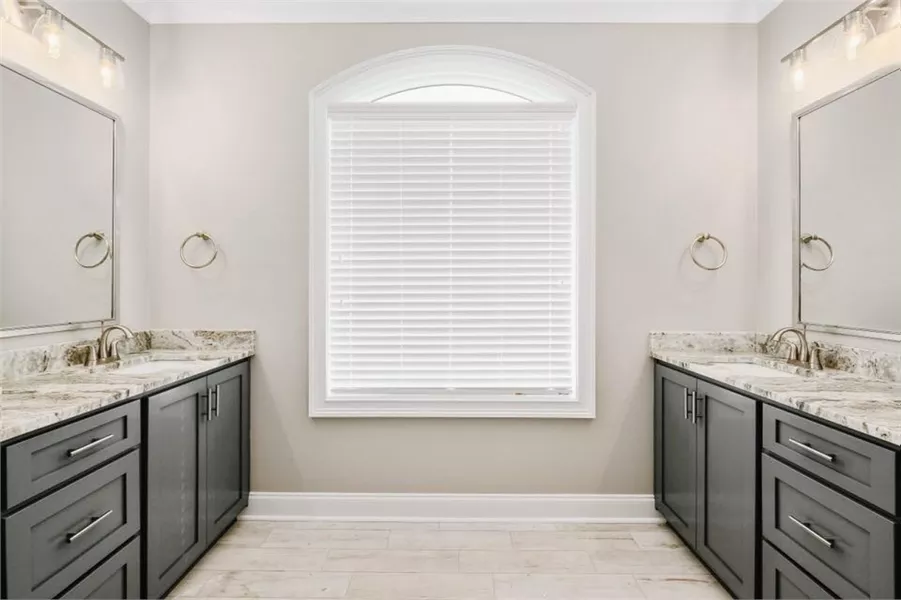

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Outdoor Living Space
Screened Porch/Sunroom

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite

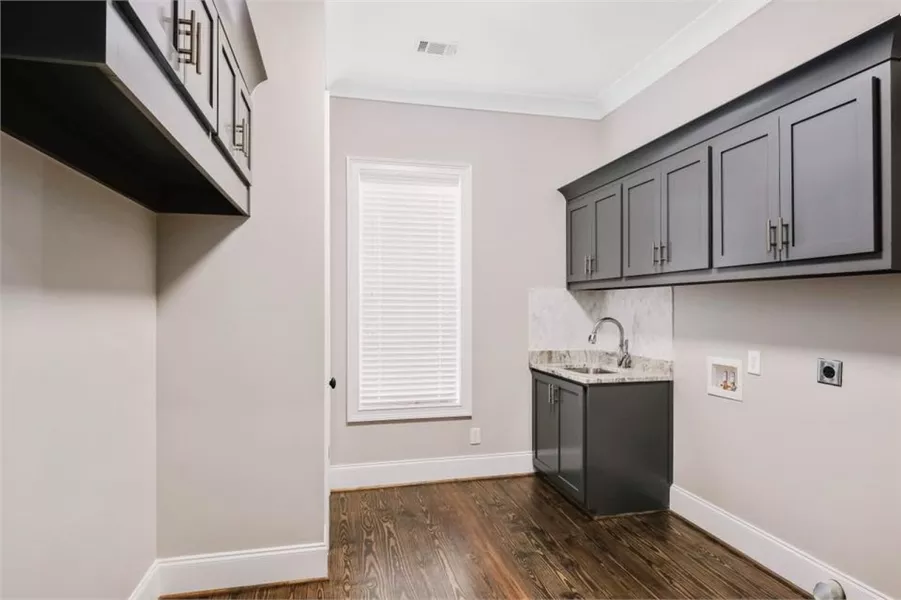

Laundry 1st Fl
Mud Room
Open Floor Plan
Rec Room
Storage Space

Garage Location

Side

Garage Options

Attached
Drive-under
Side-entry

6,674 Ft

Total Structure

5,183 Ft

Total Heated

2,504 Ft

1st Floor

1,132 Ft

2nd Floor

1,547 Ft

Lower Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

77' 6"

Width

68' 4"

Depth

30' 10"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

9' 6"

Lower Floor Ceiling

2x4

Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

681 Ft

Garage

810 Ft

Porch

Exterior Styles

European

Mediterranean

Tuscan

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,354

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,354

$2,398

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$2,398

$2,442

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$2,442

$2,574

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,574

$2,882

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,882

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
