Sq Ft
2,578 FT²

Beds
3

Baths
3

Stories
2

Garage
2

Depth
60'

Width
40'

On Sale
$1,742.50
$2,050.00

Sq Ft

2,578 FT²

From

$1,742.50

Beds

Baths

Stories

Garage

Depth

60'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

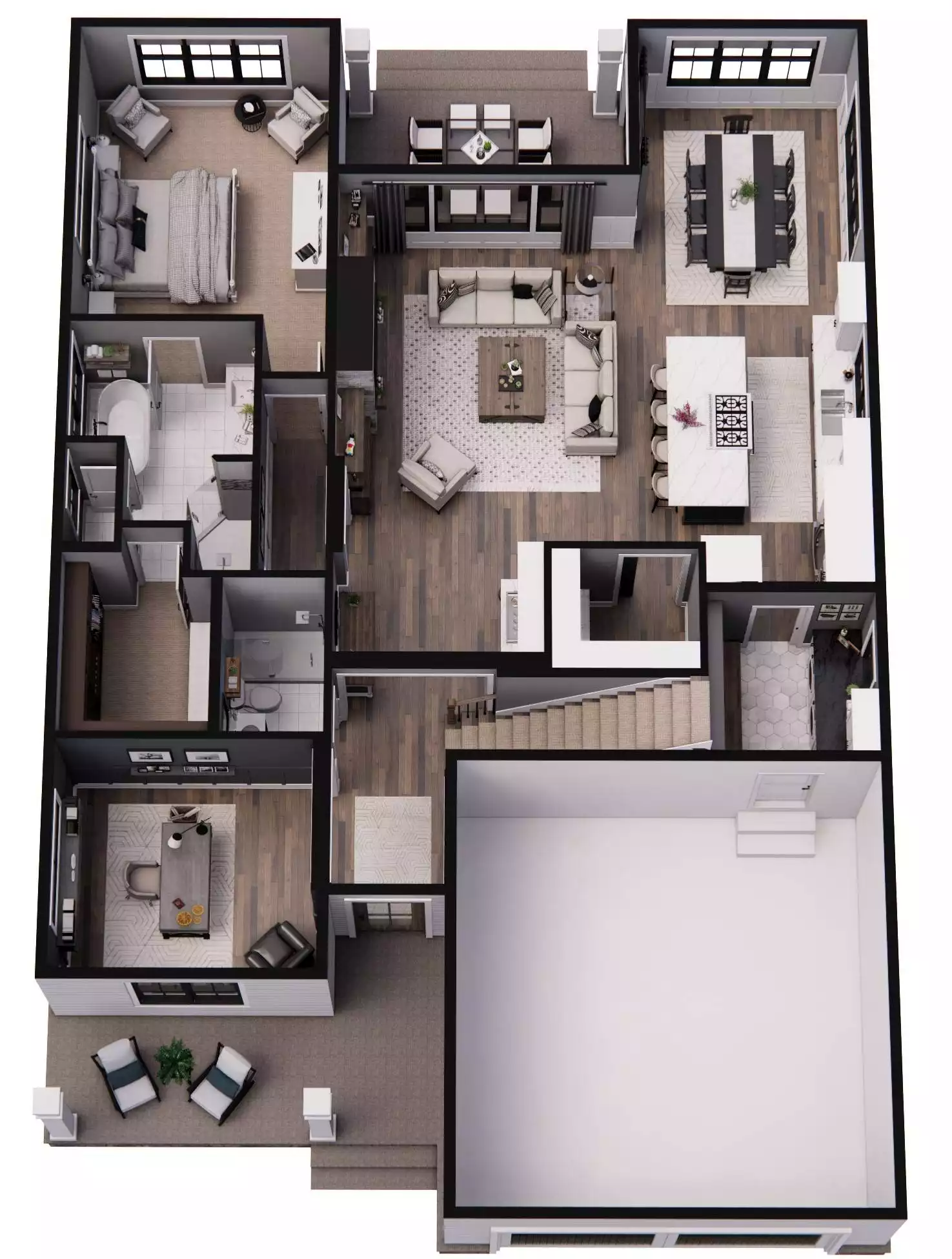

1st Floor

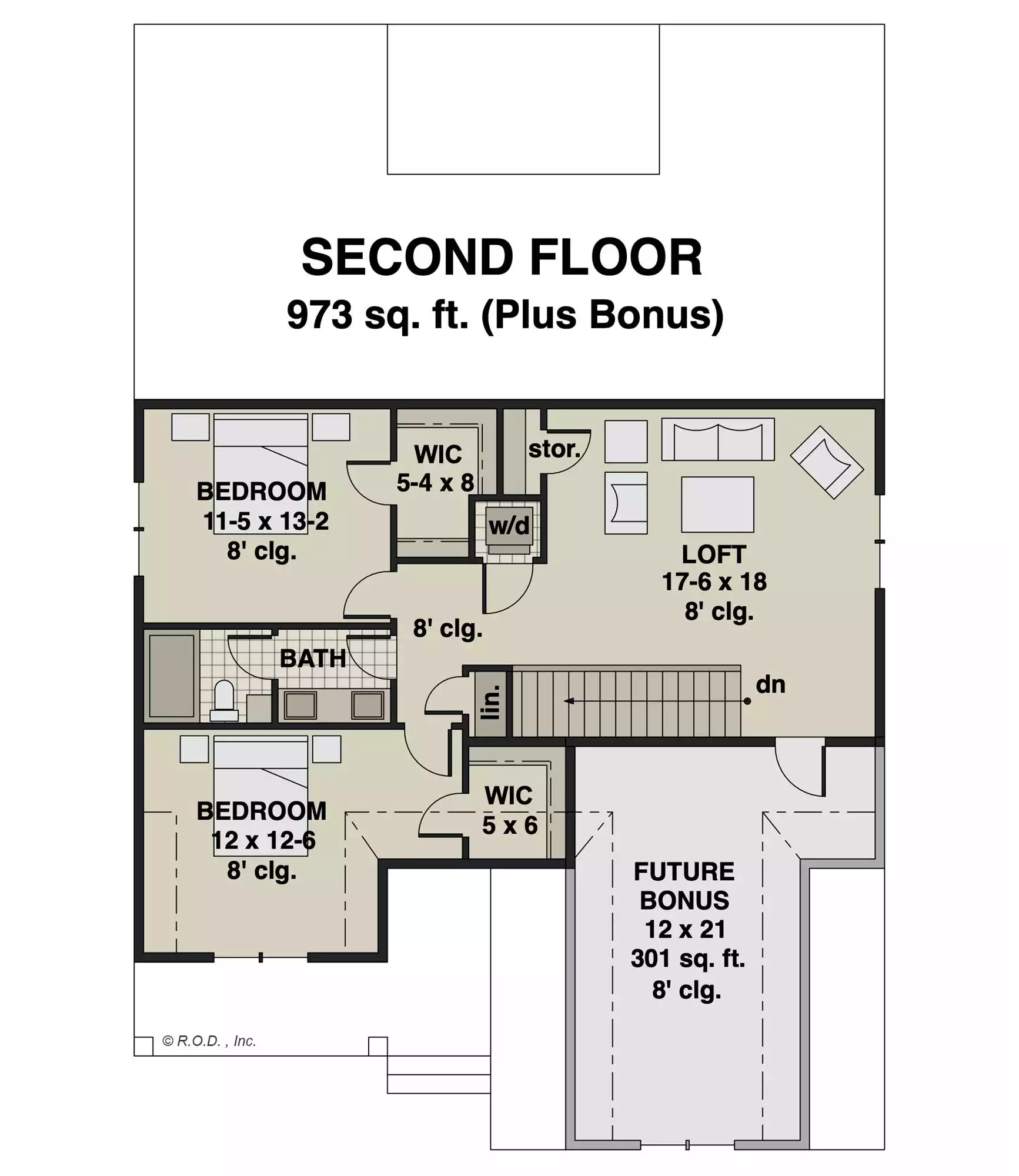

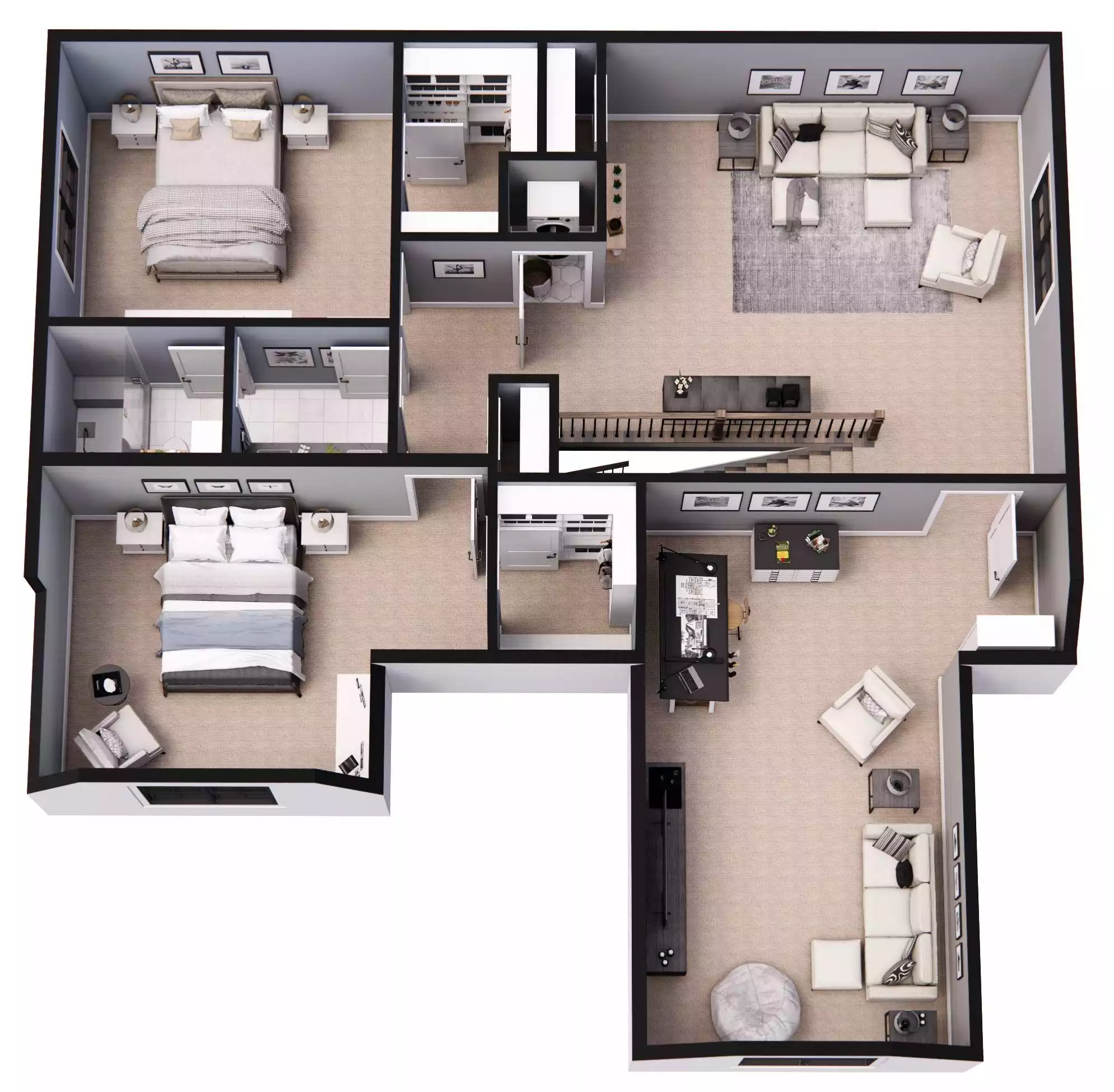

2nd Floor

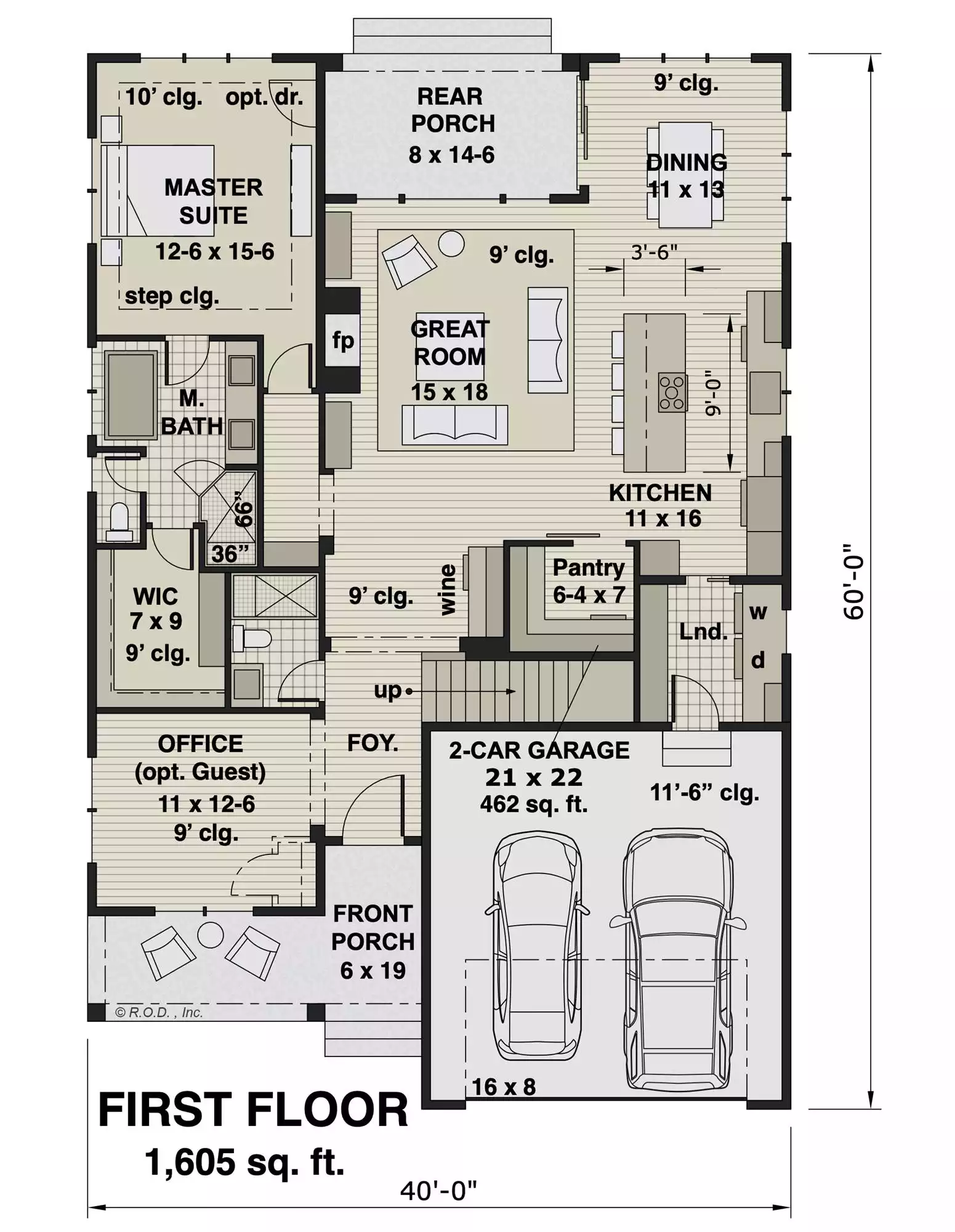

1st Floor

2nd Floor

About This Plan

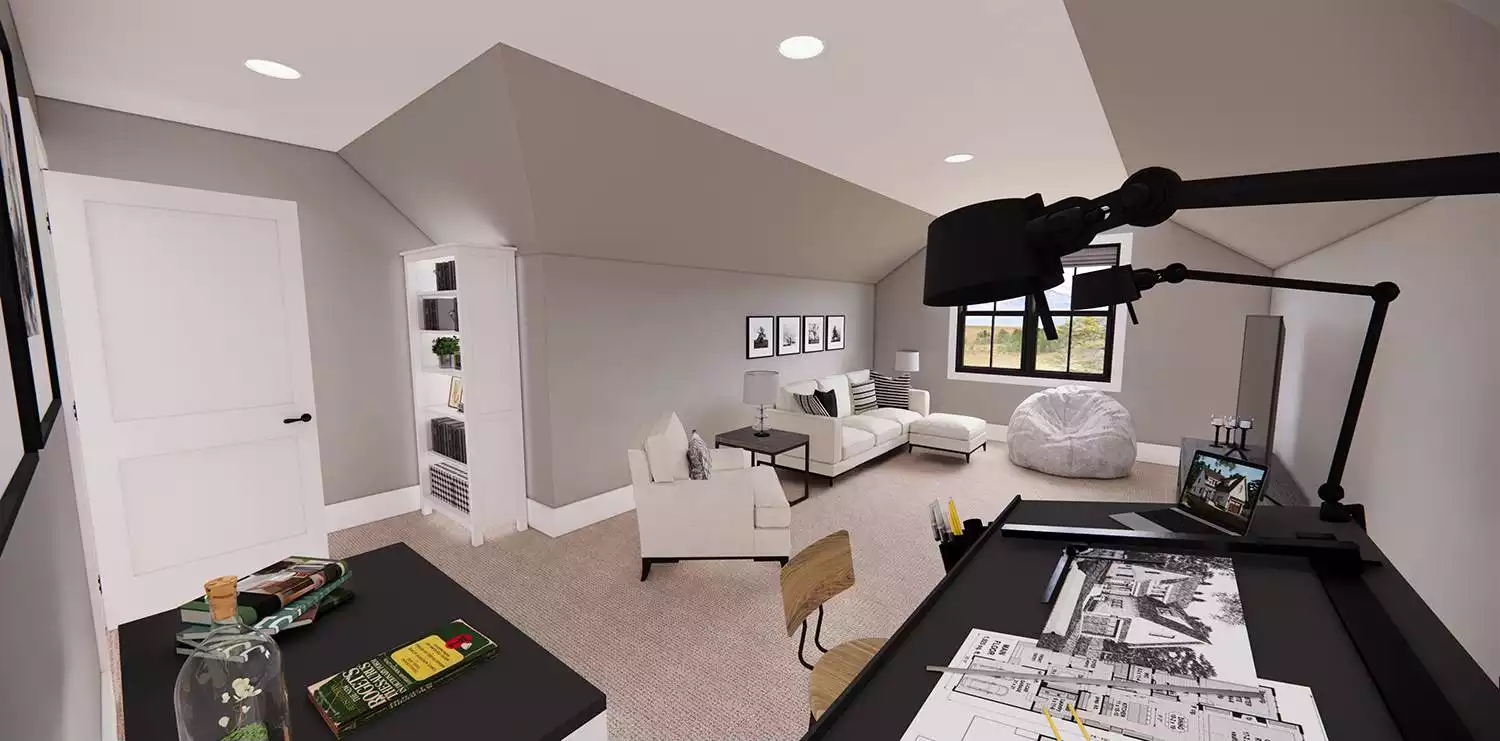

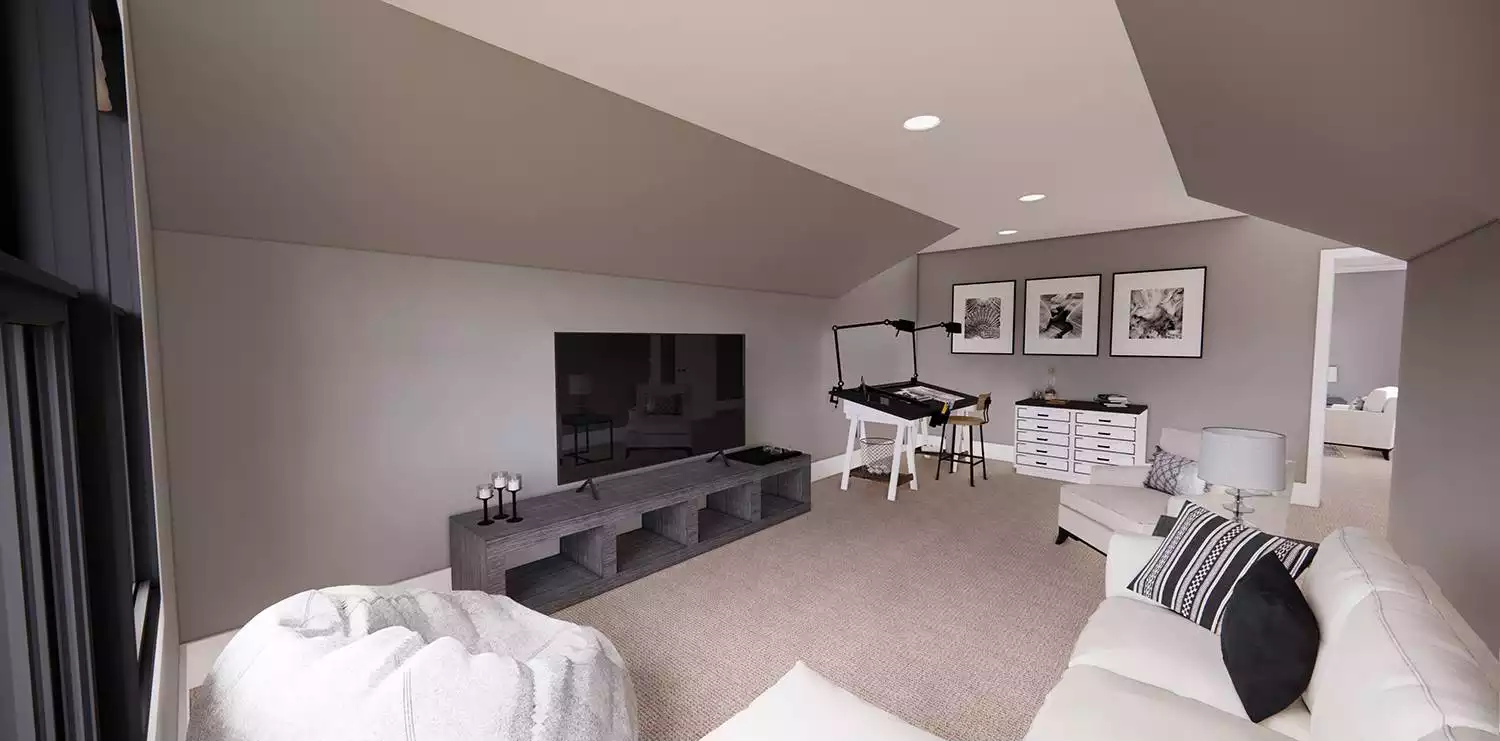

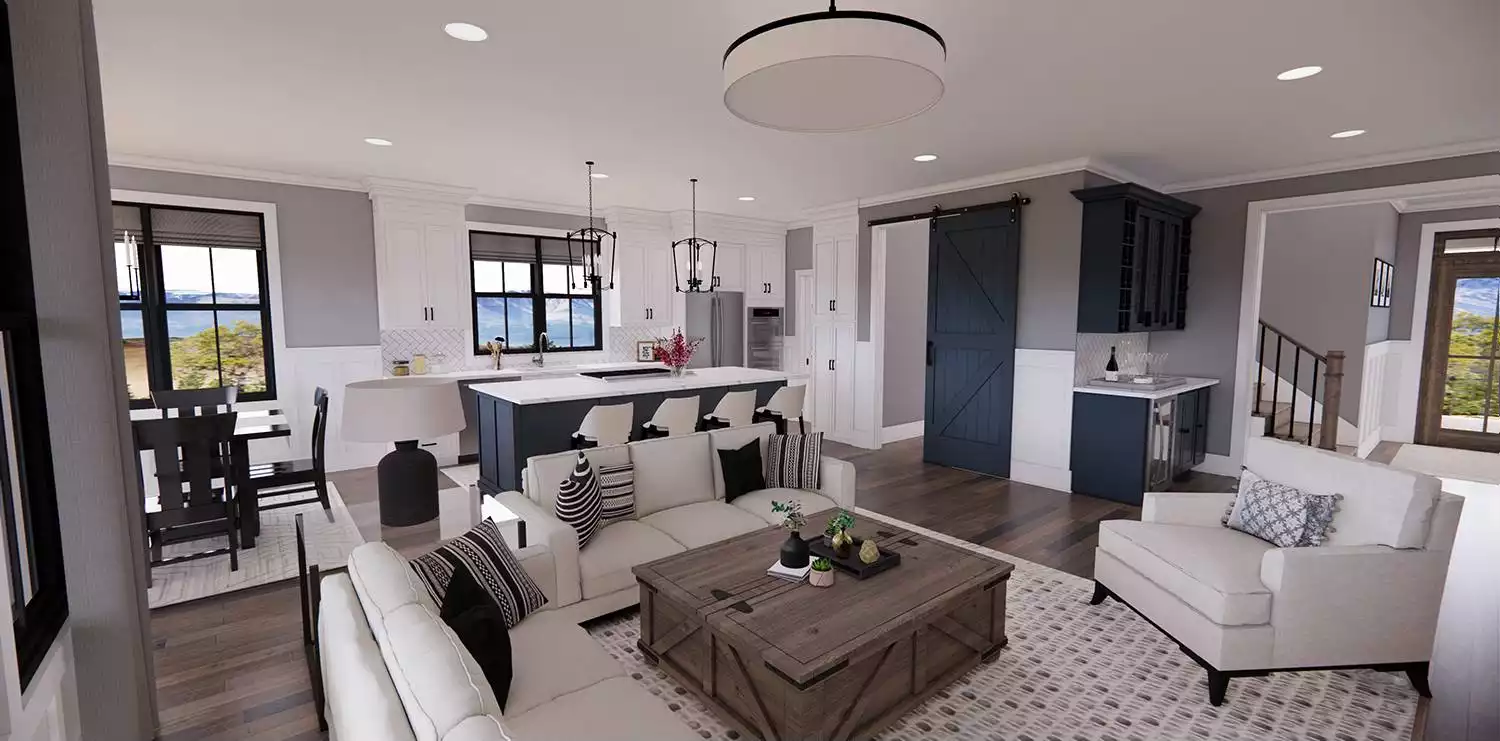

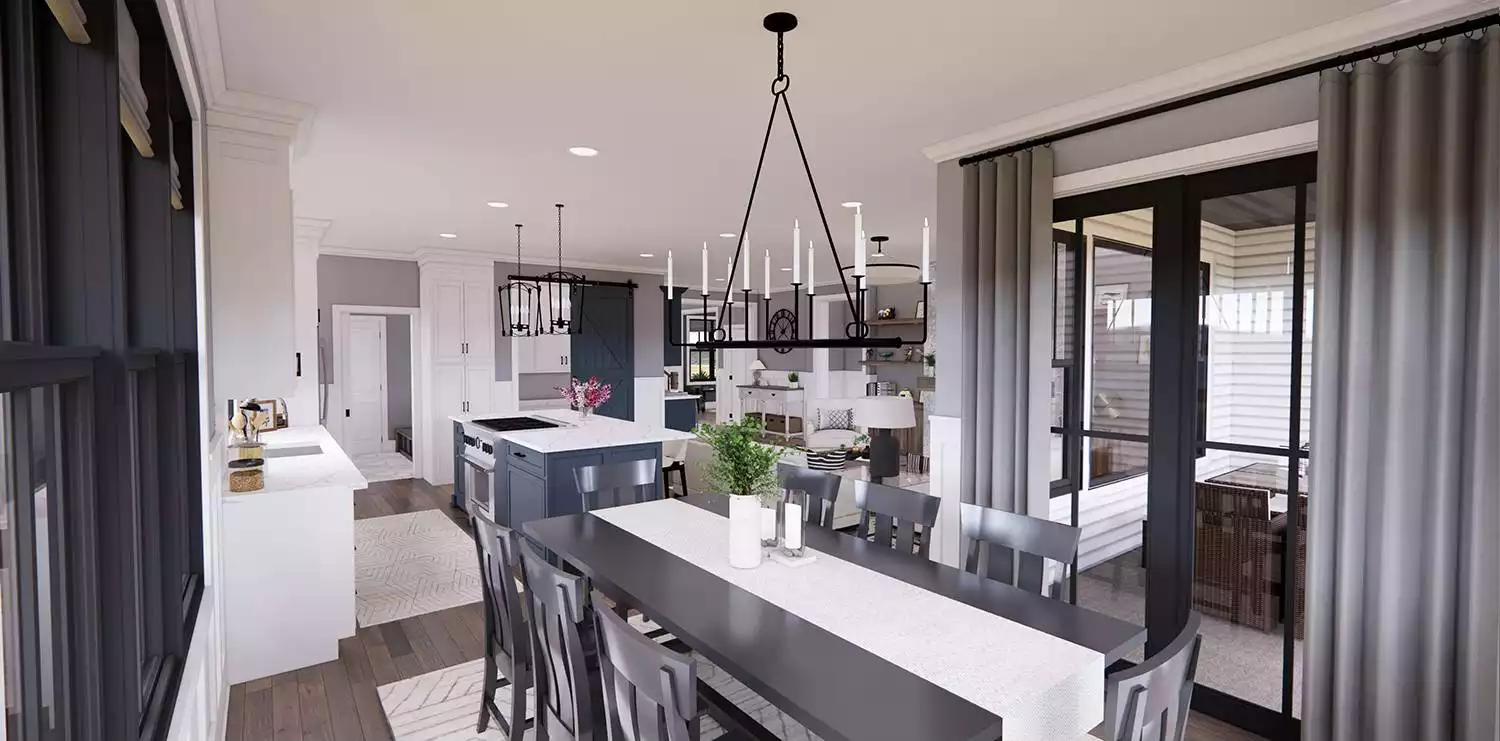

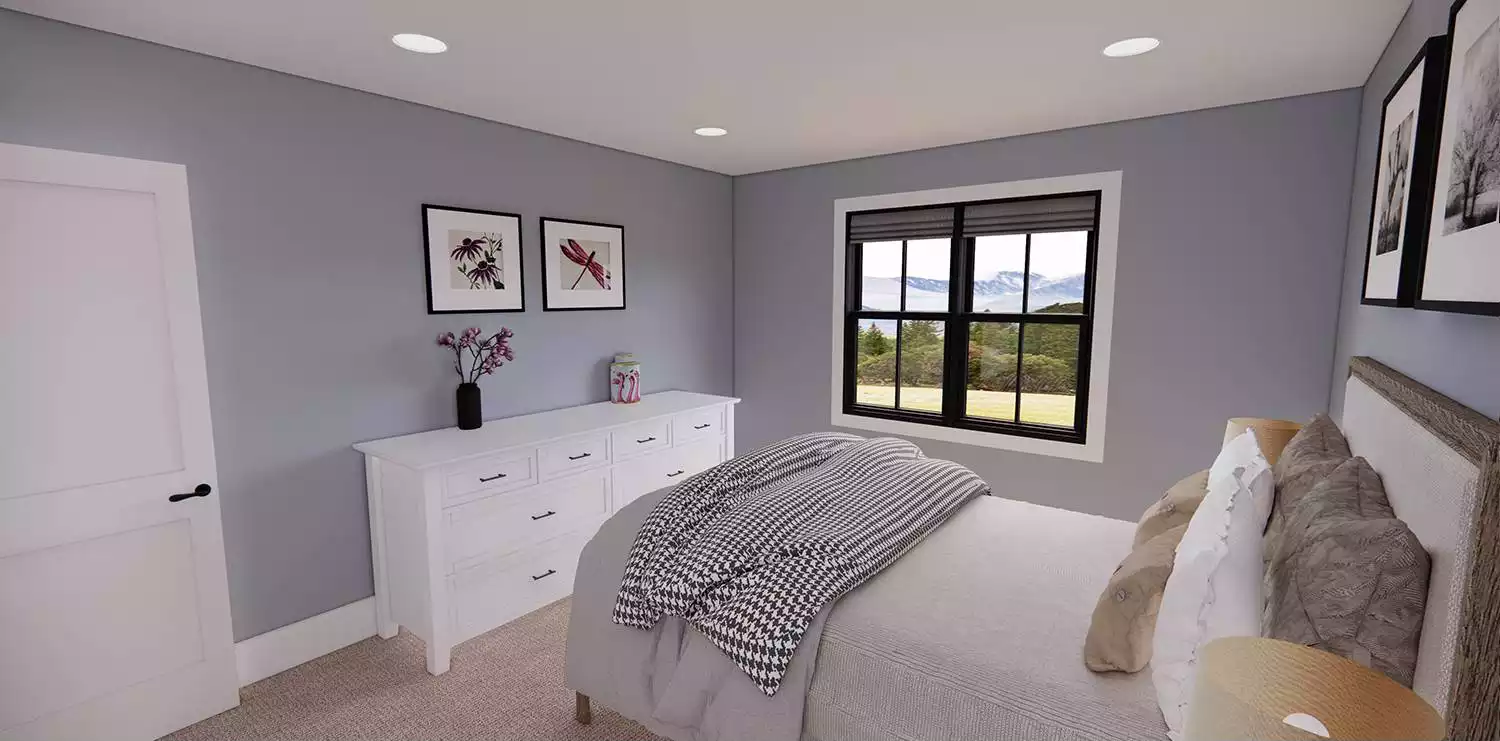

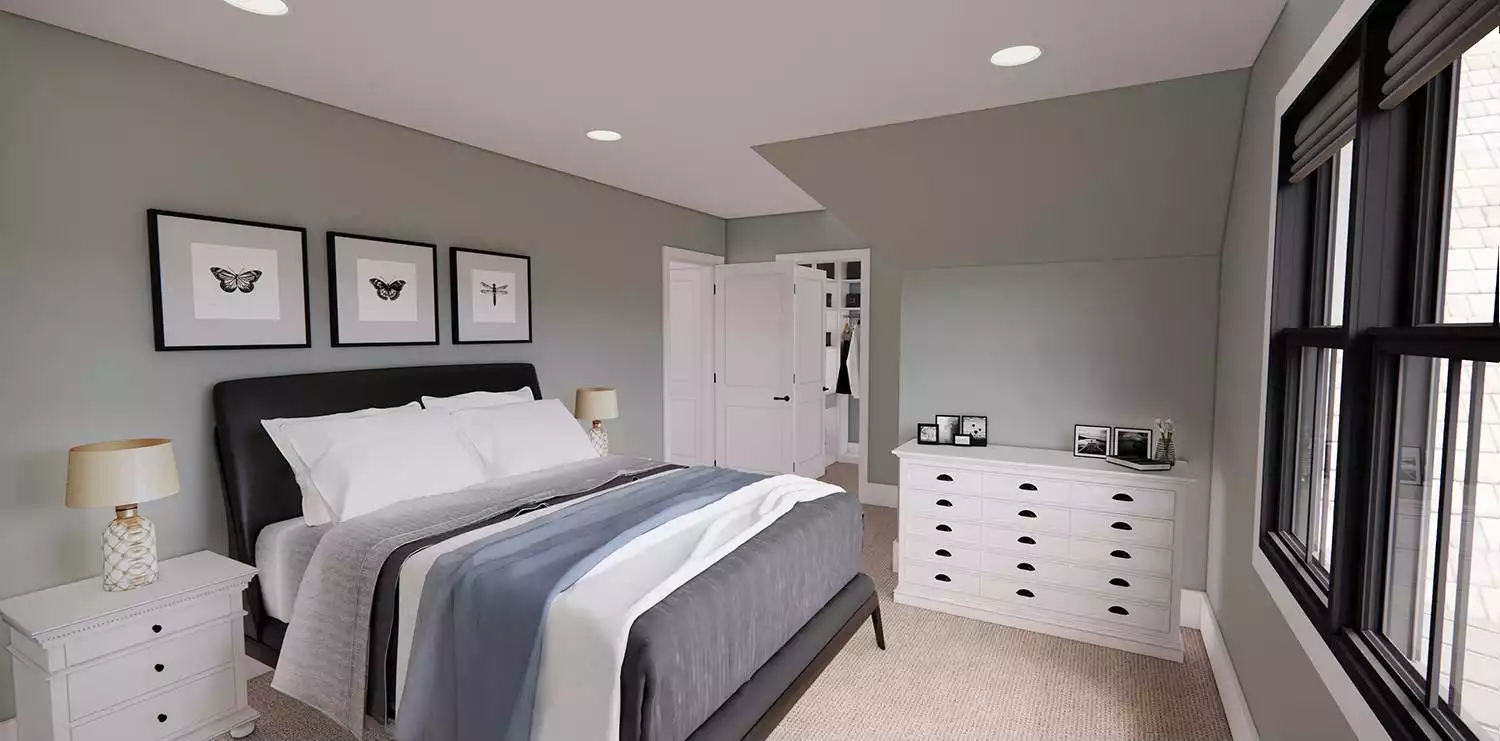

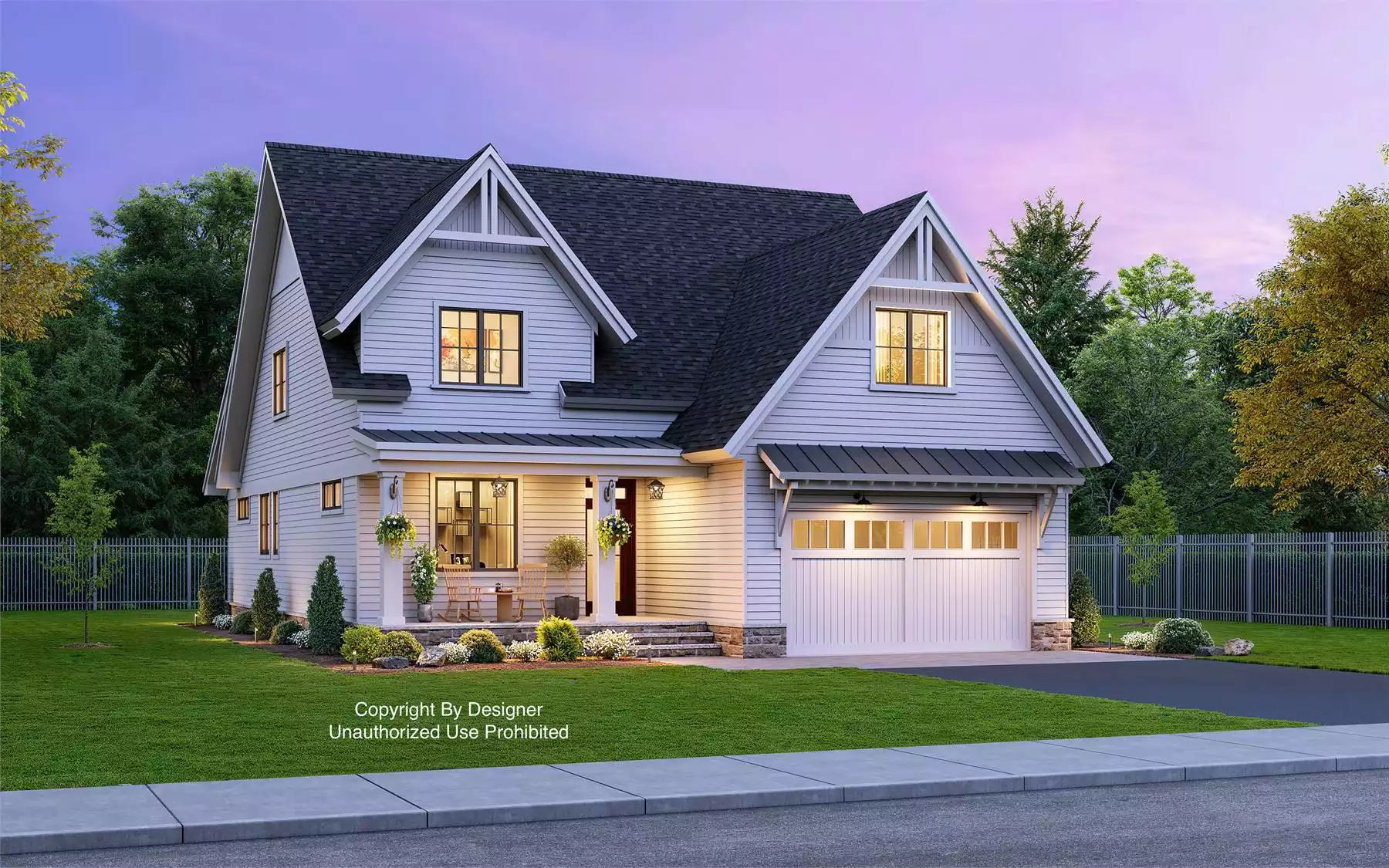

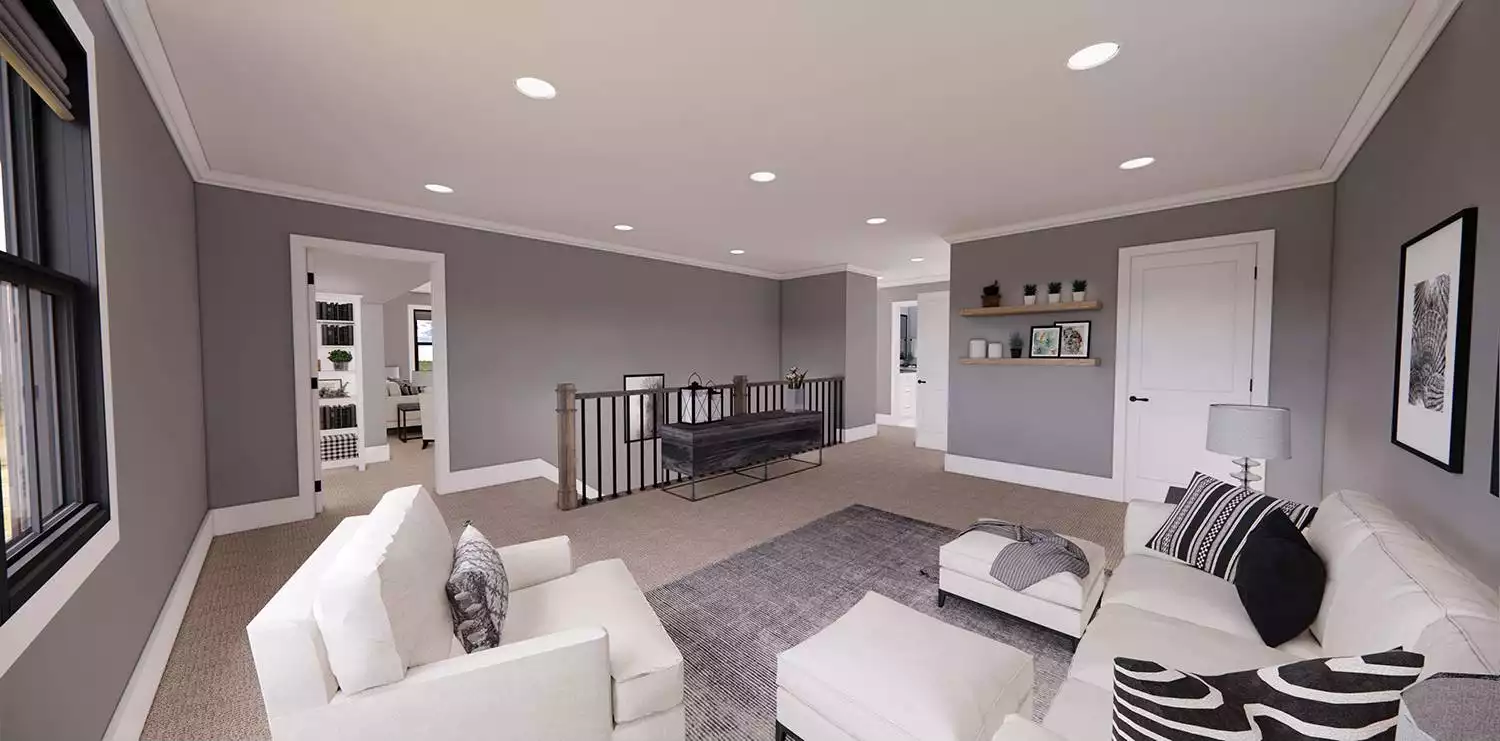

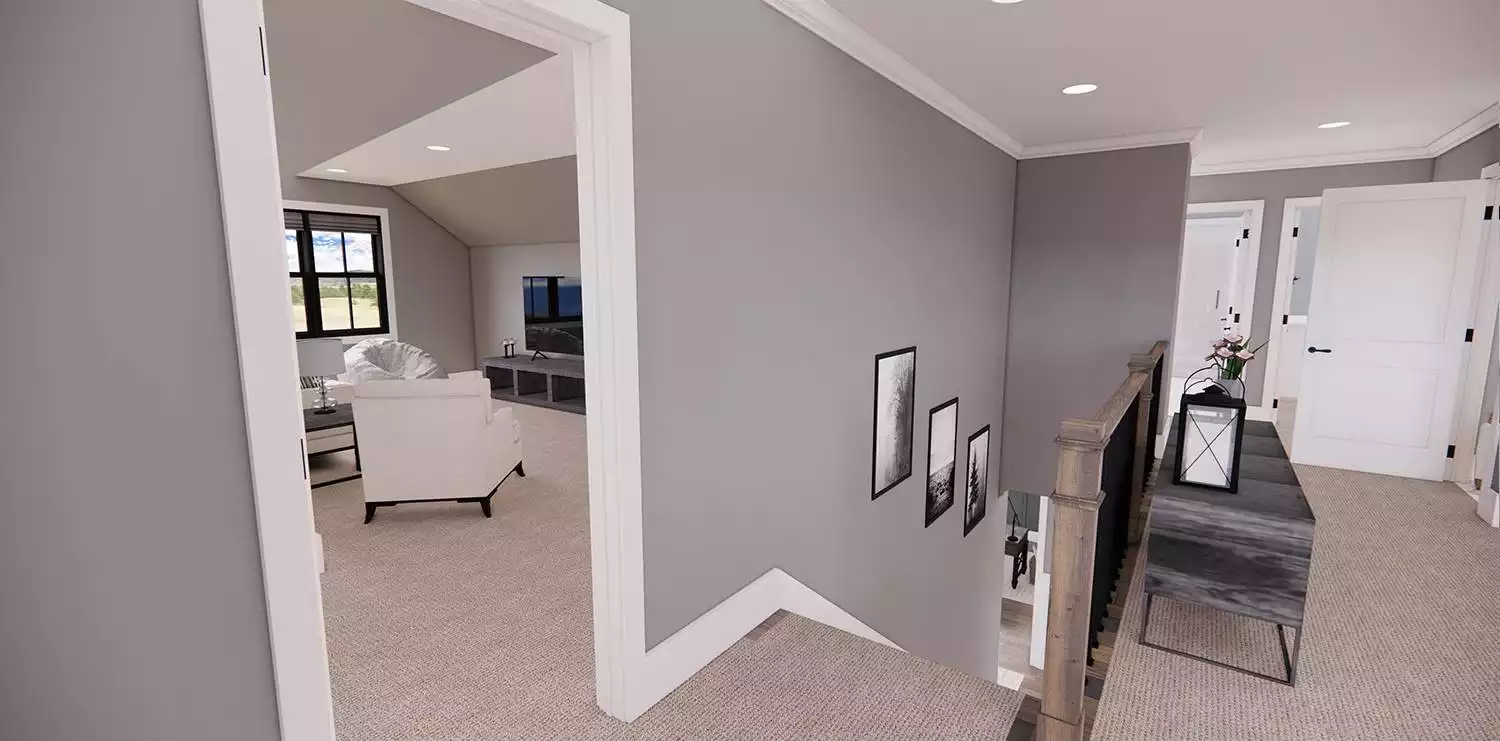

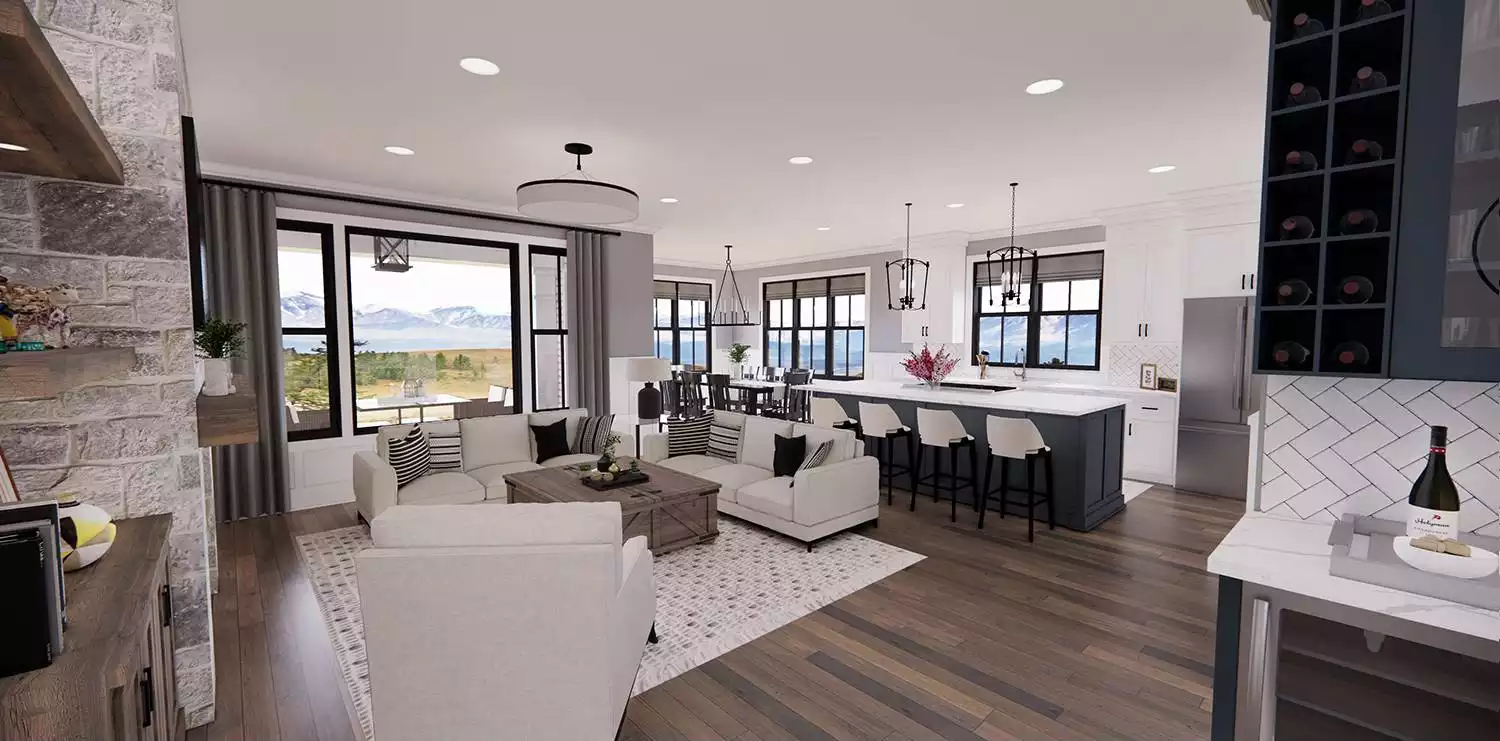

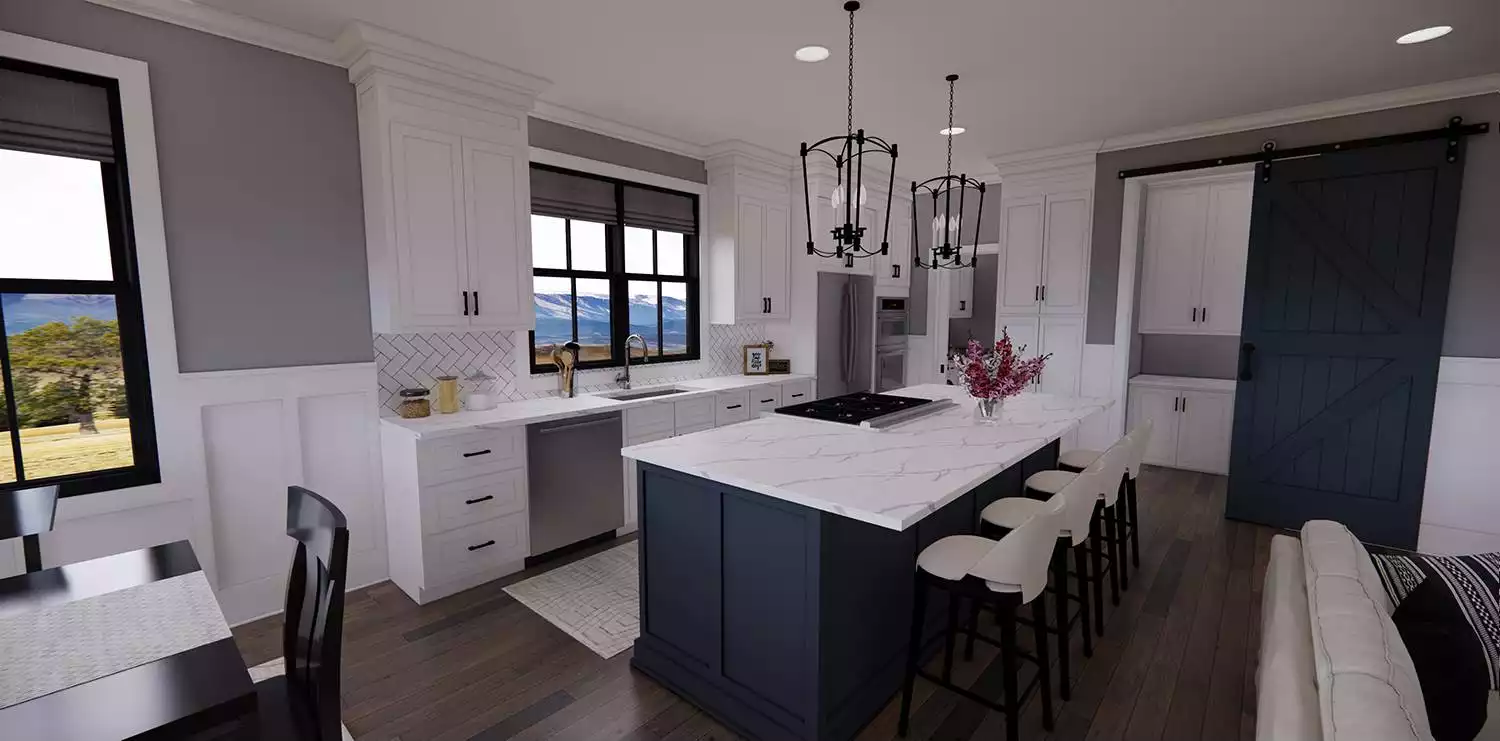

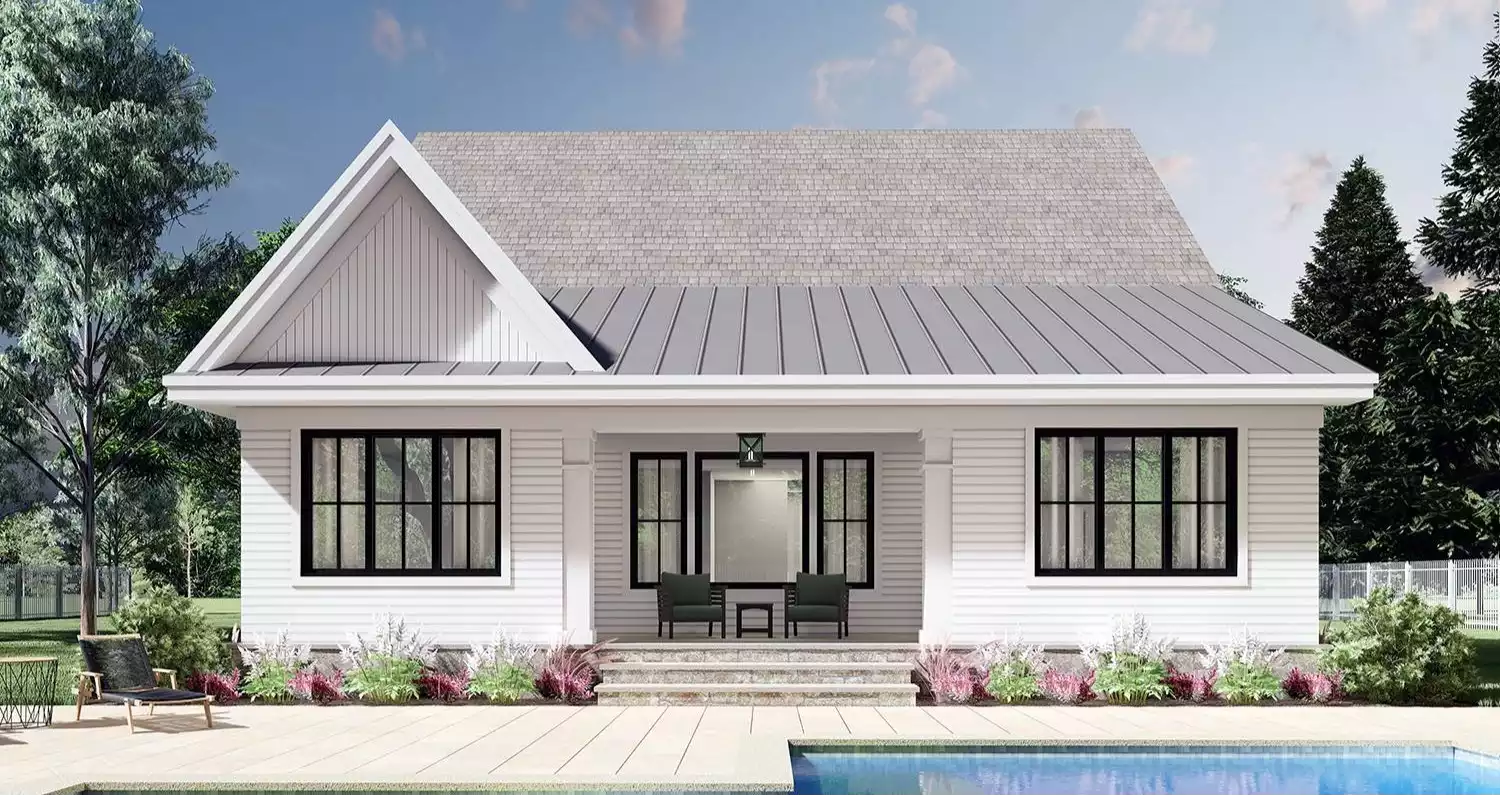

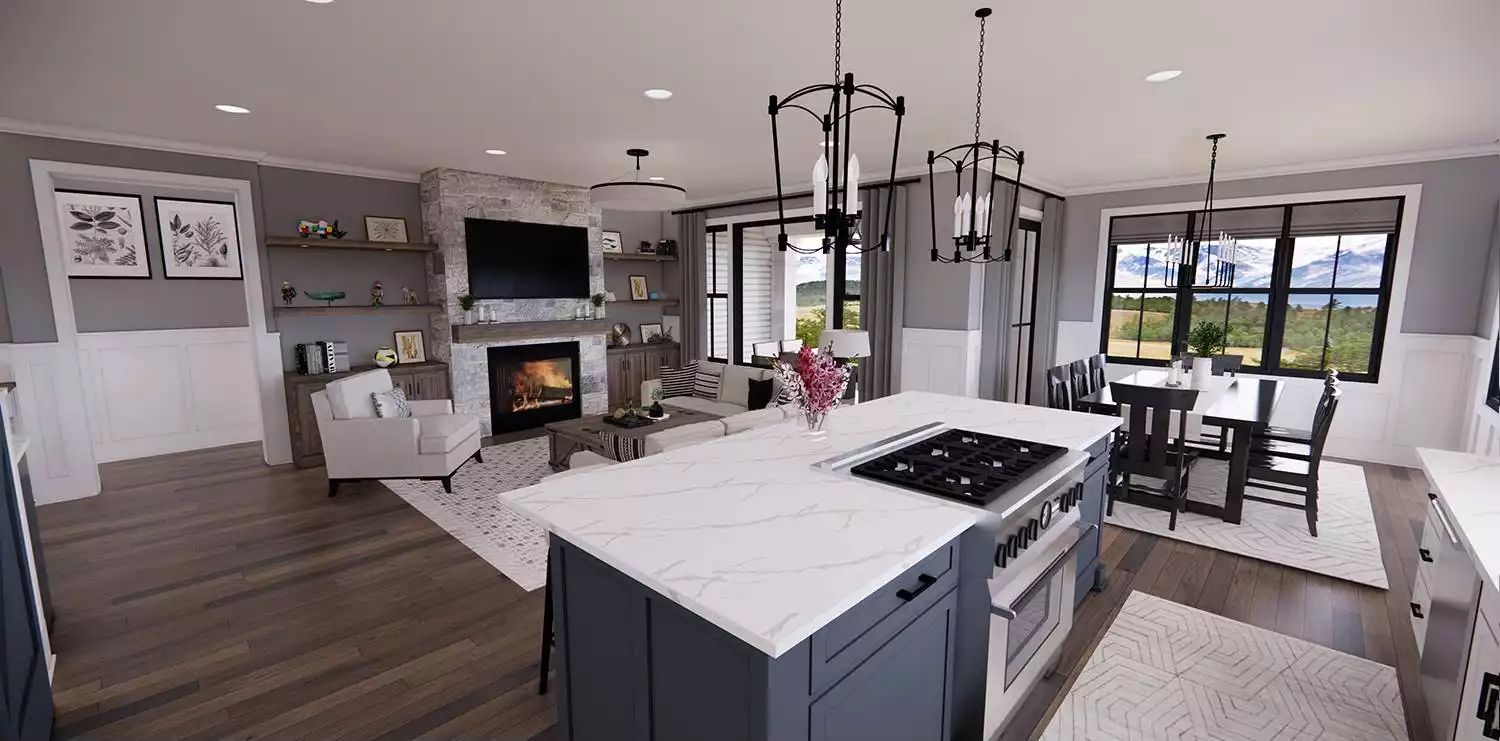

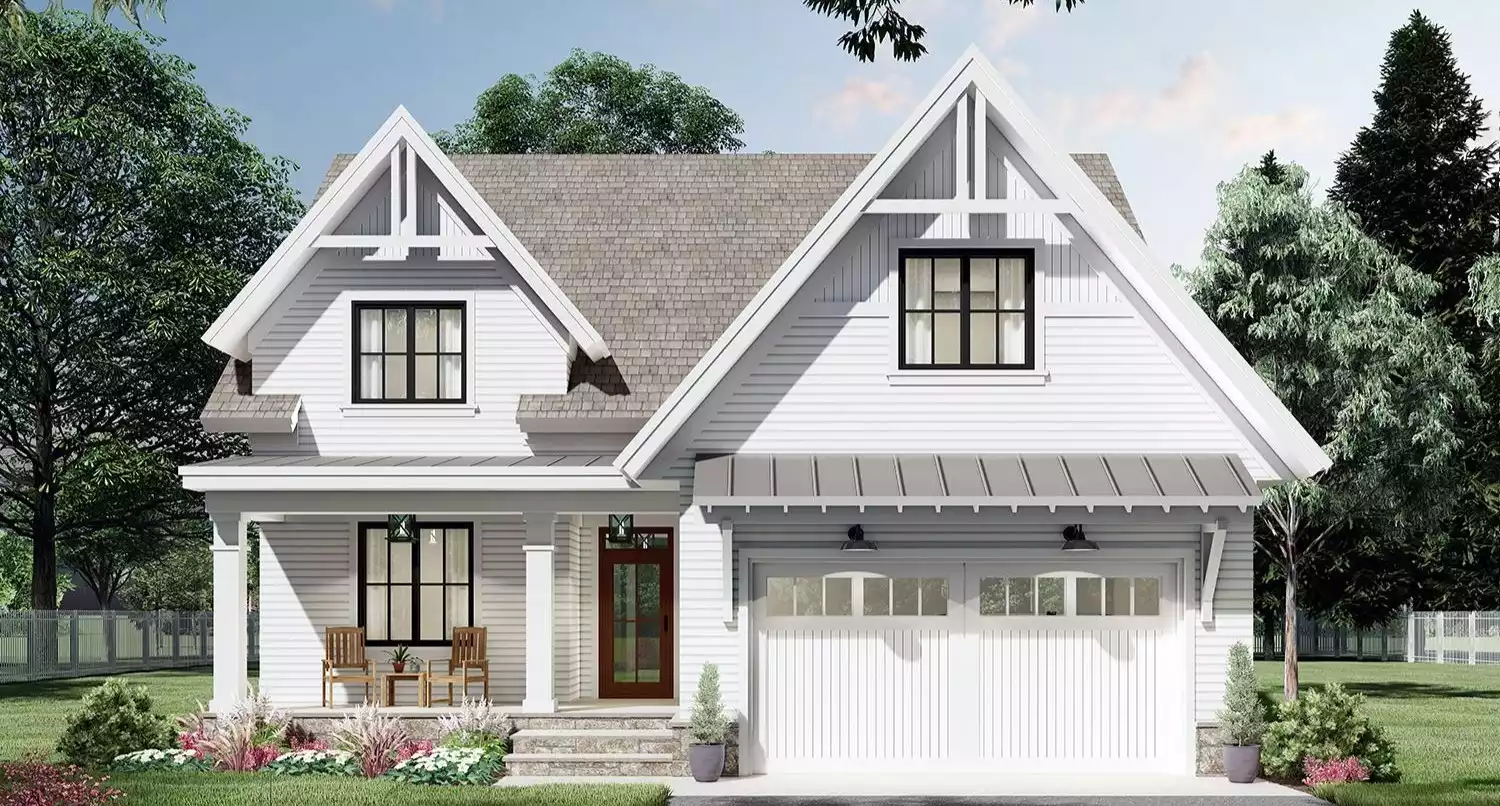

This compact house plan, Westmount, is ideal for a narrow lot, offering an open floor plan that allows you to enjoy the fireplace from the great room, kitchen, and dining area, with seamless indoor-outdoor living thanks to the covered rear porch. The large kitchen island, expansive walk-in pantry, and laundry room connecting the garage and kitchen add practical convenience, while the home office and relaxing front porch offer dedicated spaces for work and leisure. Upstairs, a spacious loft serves as a versatile media or game room, with two bedrooms featuring large walk-in closets and a bonus room that provides future expansion potential or extra storage.

FEATURES & DETAILS

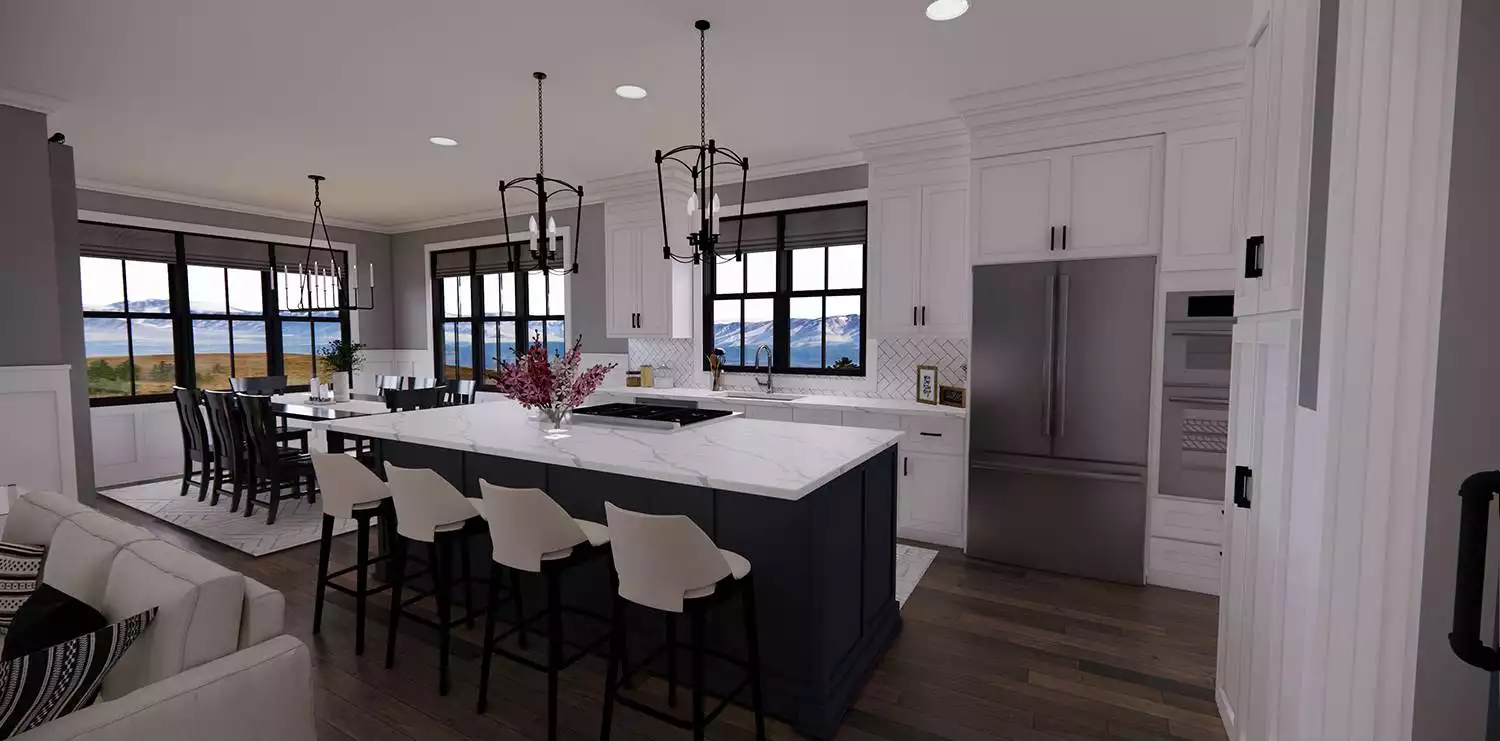

Kitchen features

Kitchen Island
L-Shaped
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

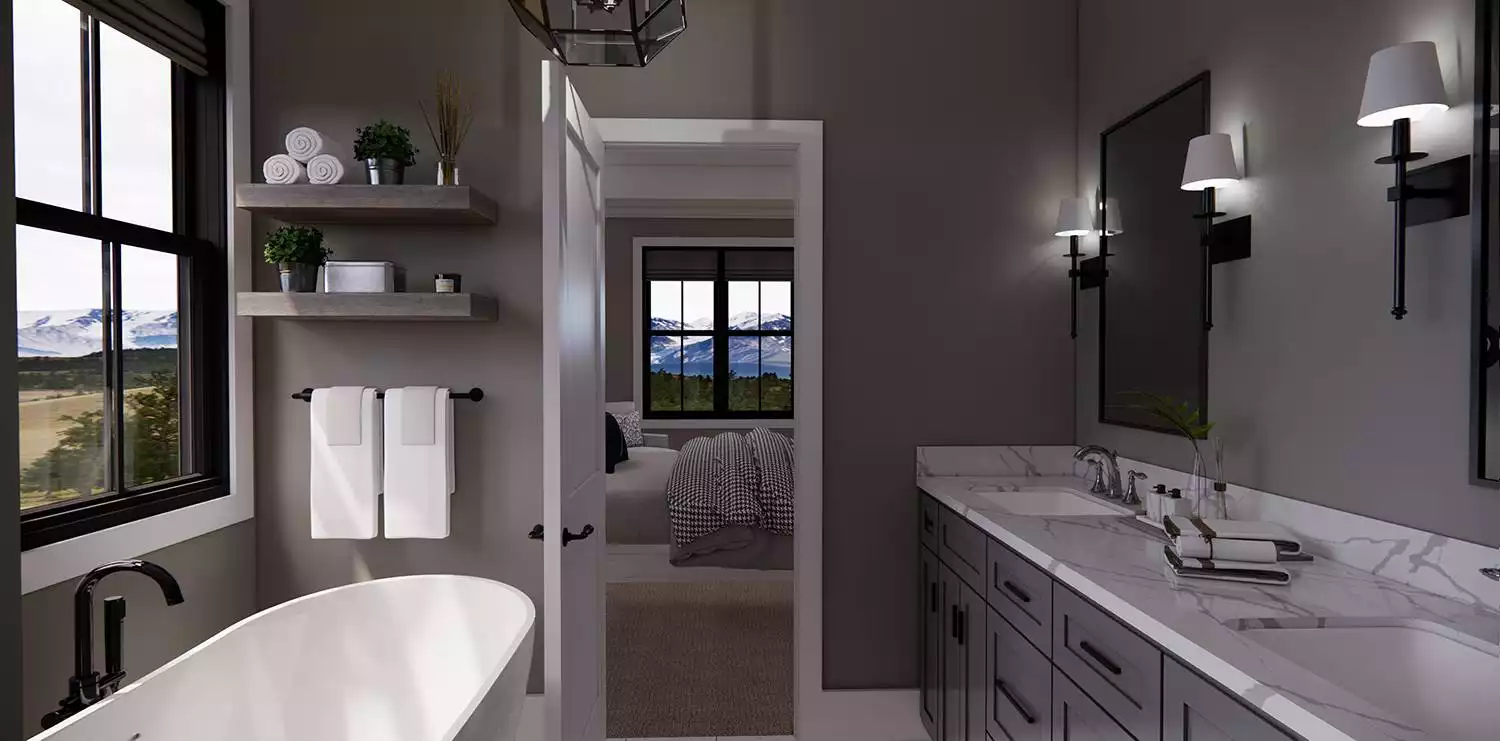

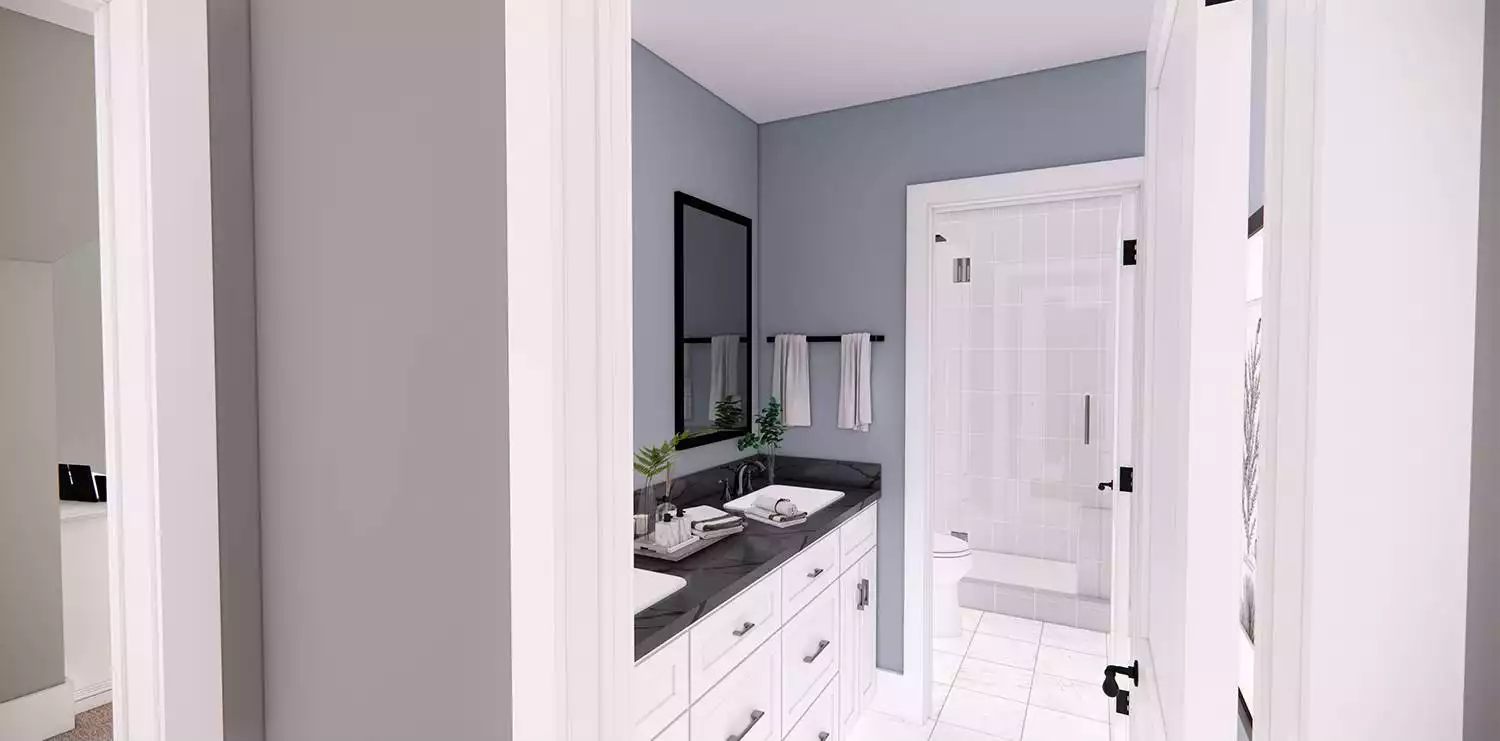

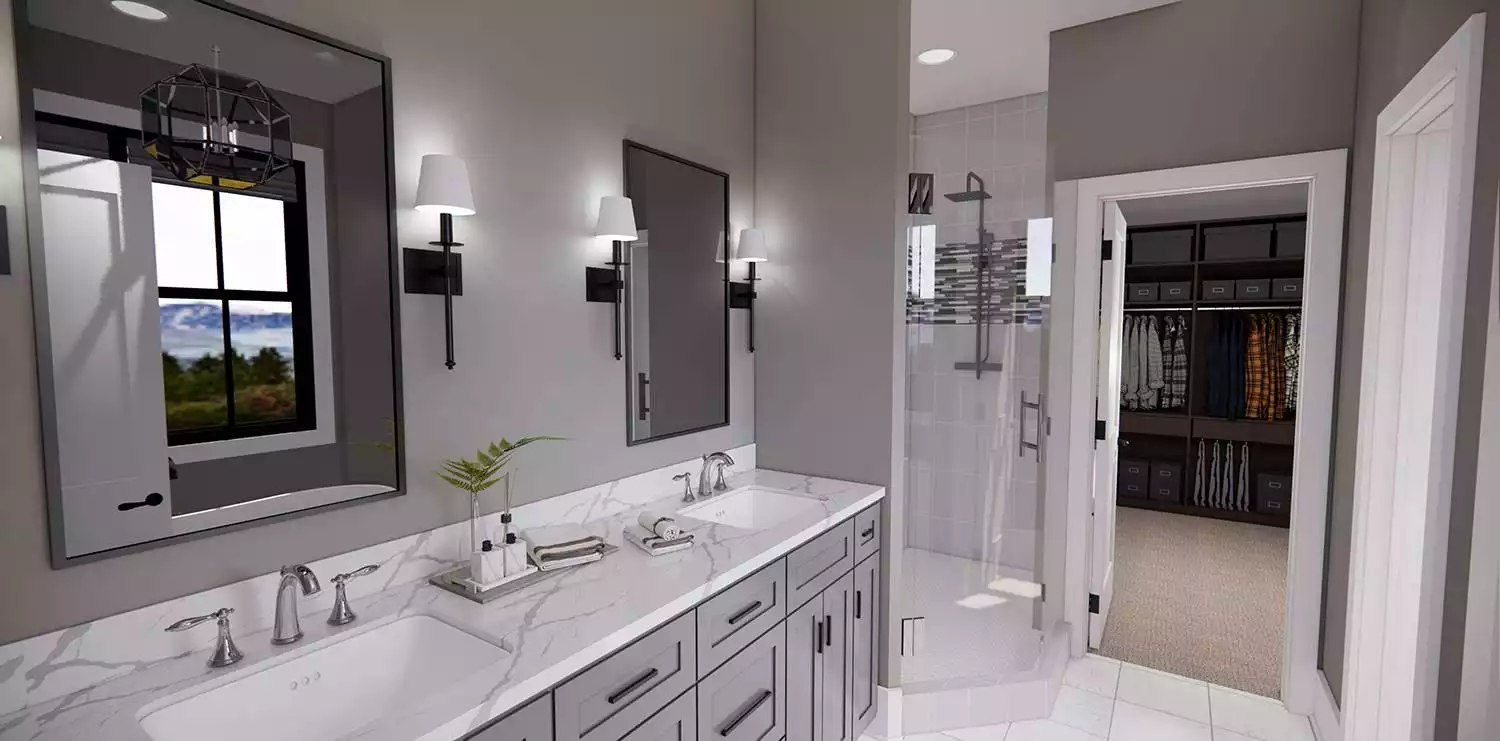

Double Vanity Sink
Primary Bdrm Main Floor
Split Bedrooms
Walk-in Closet

Exterior features

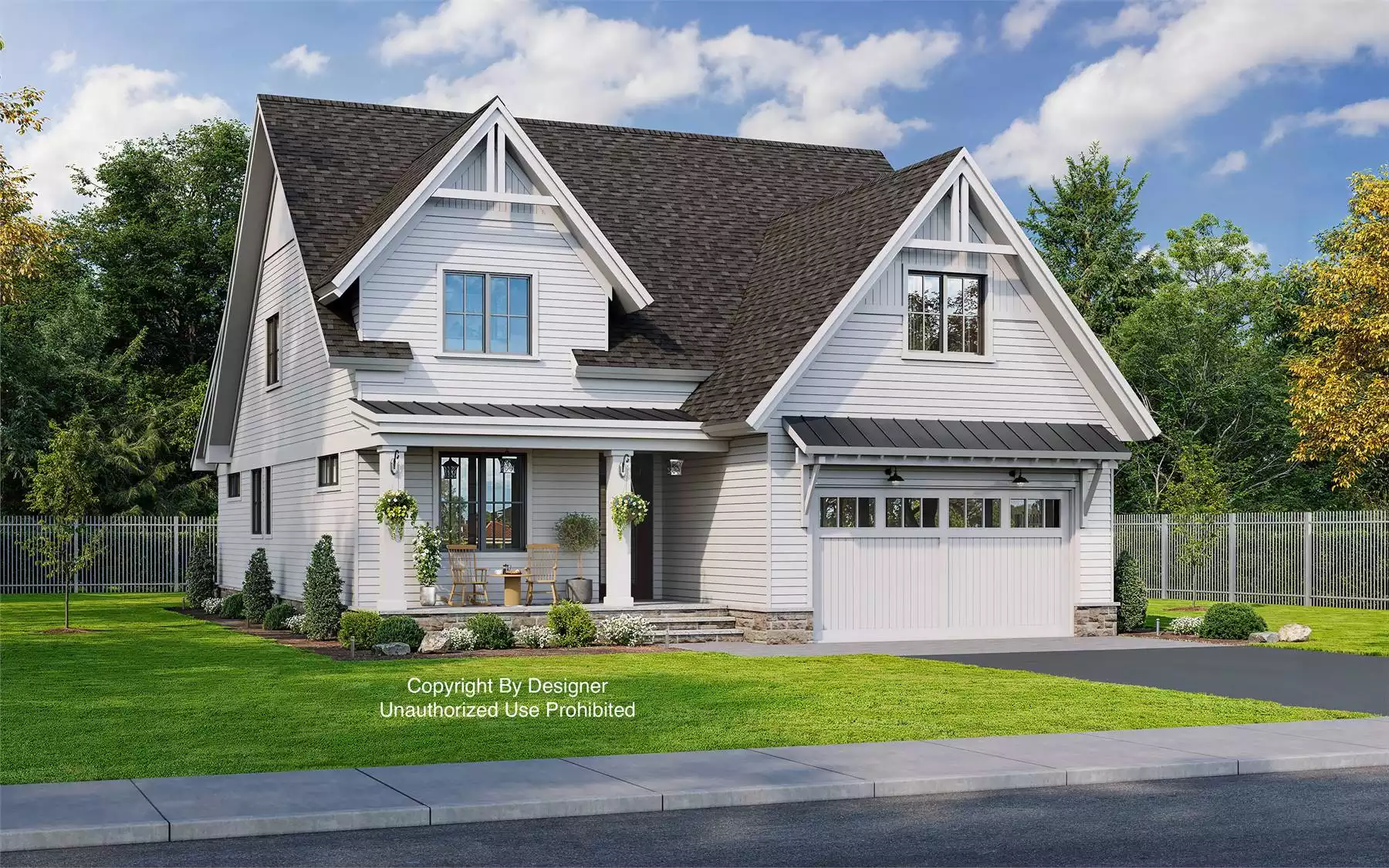

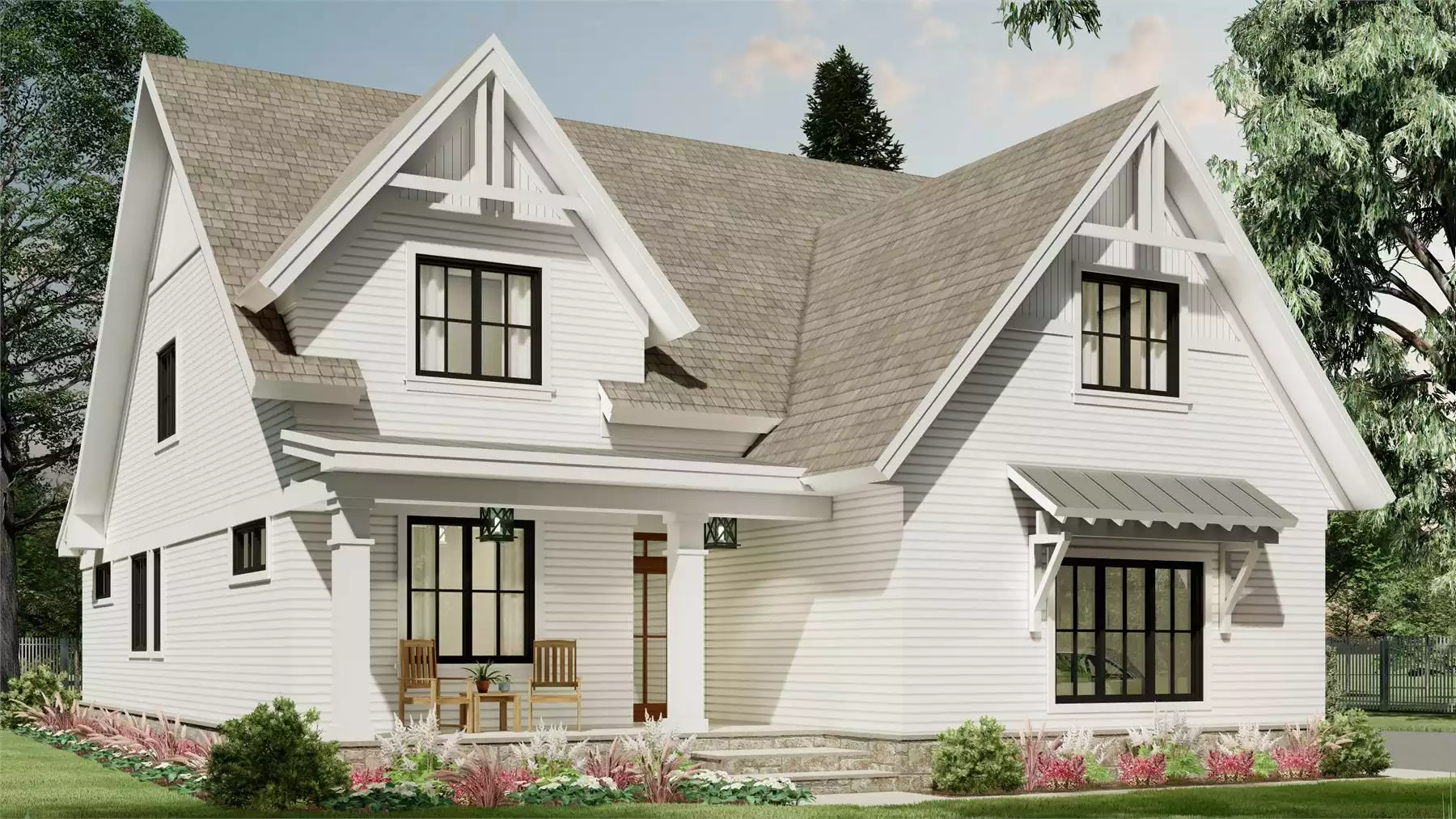

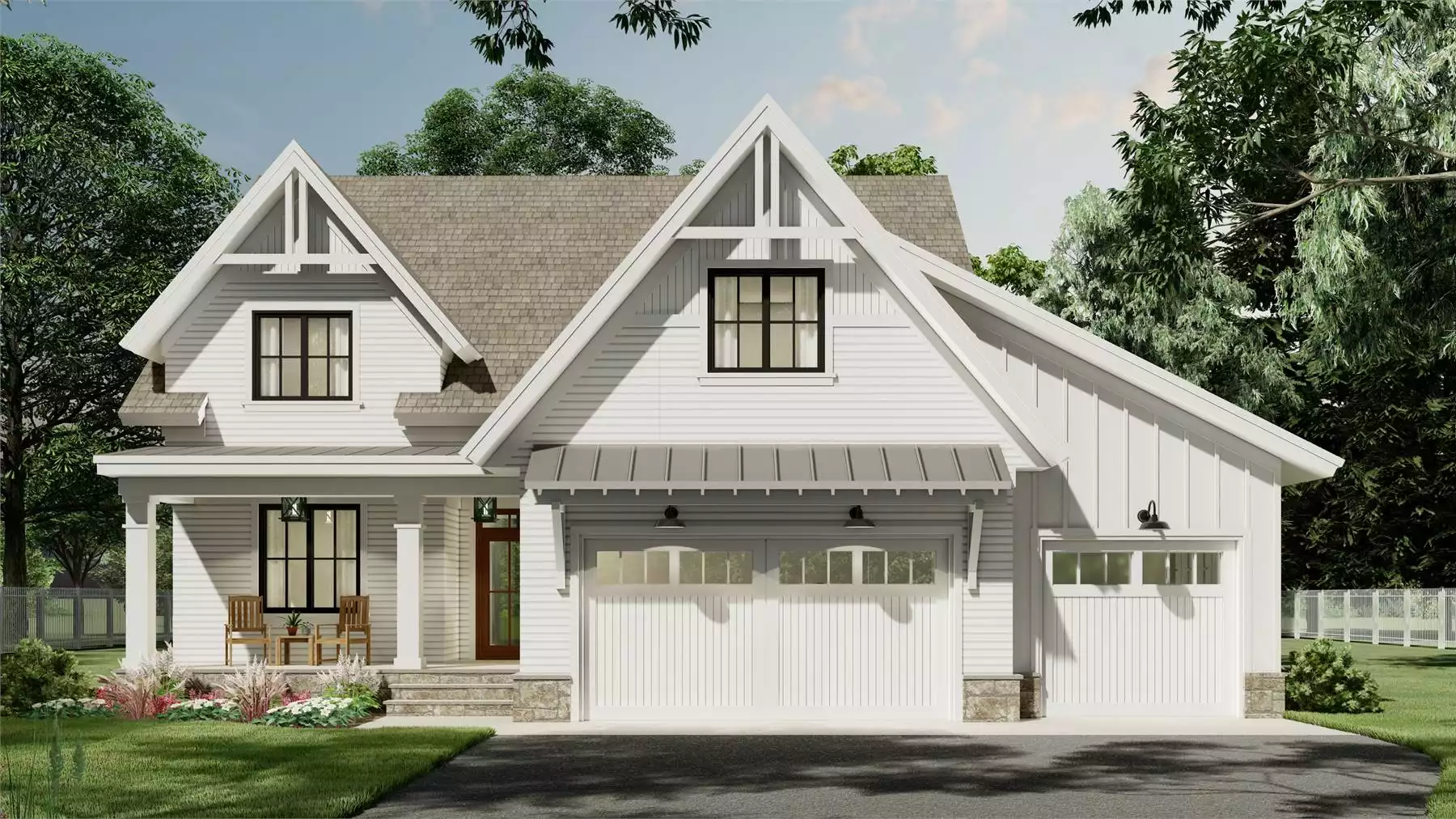

Covered Front Porch

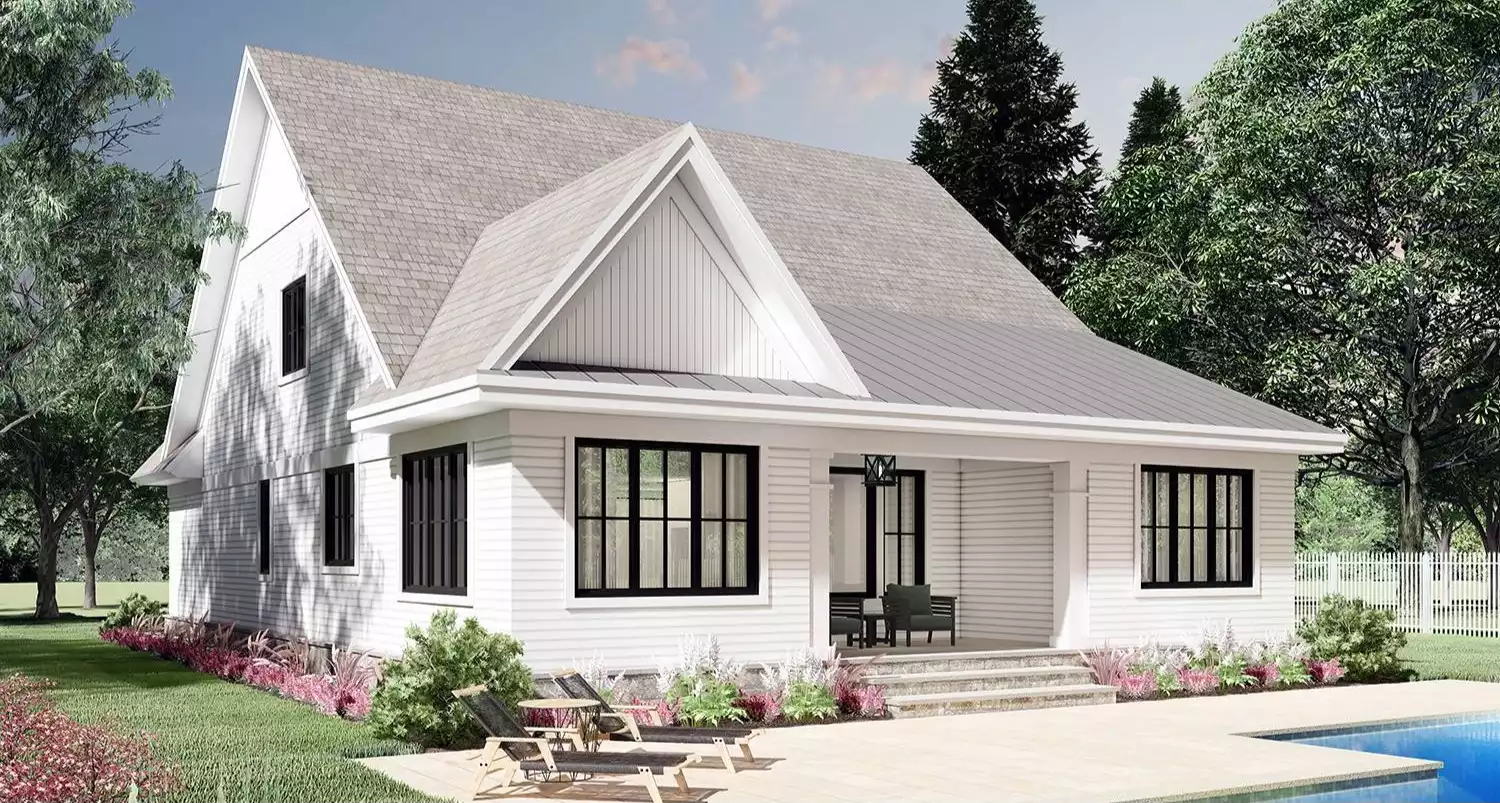

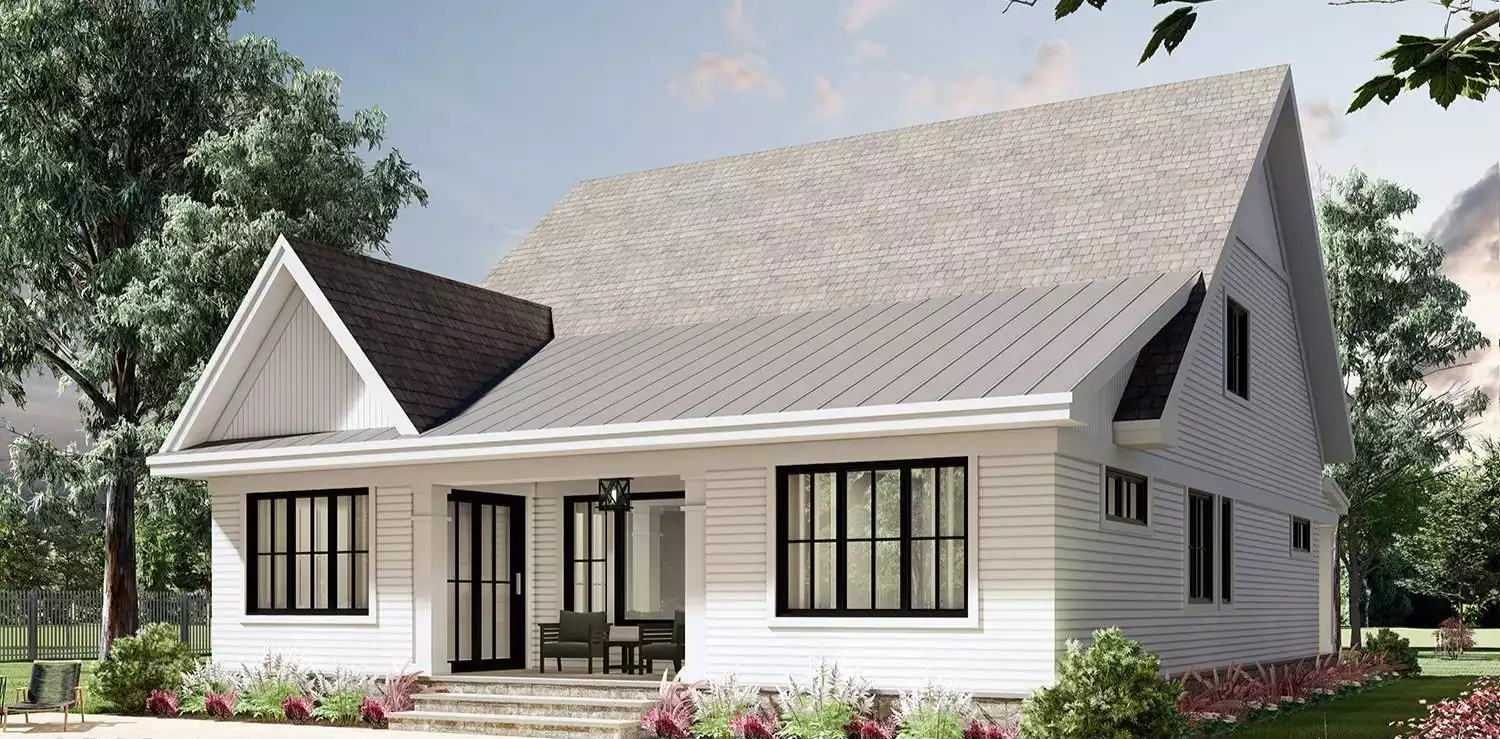

Covered Rear Porch

Lot Options

Suited for corner lot
Suited for view lot

Additional features

Bonus Room
Dining Room
Fireplace

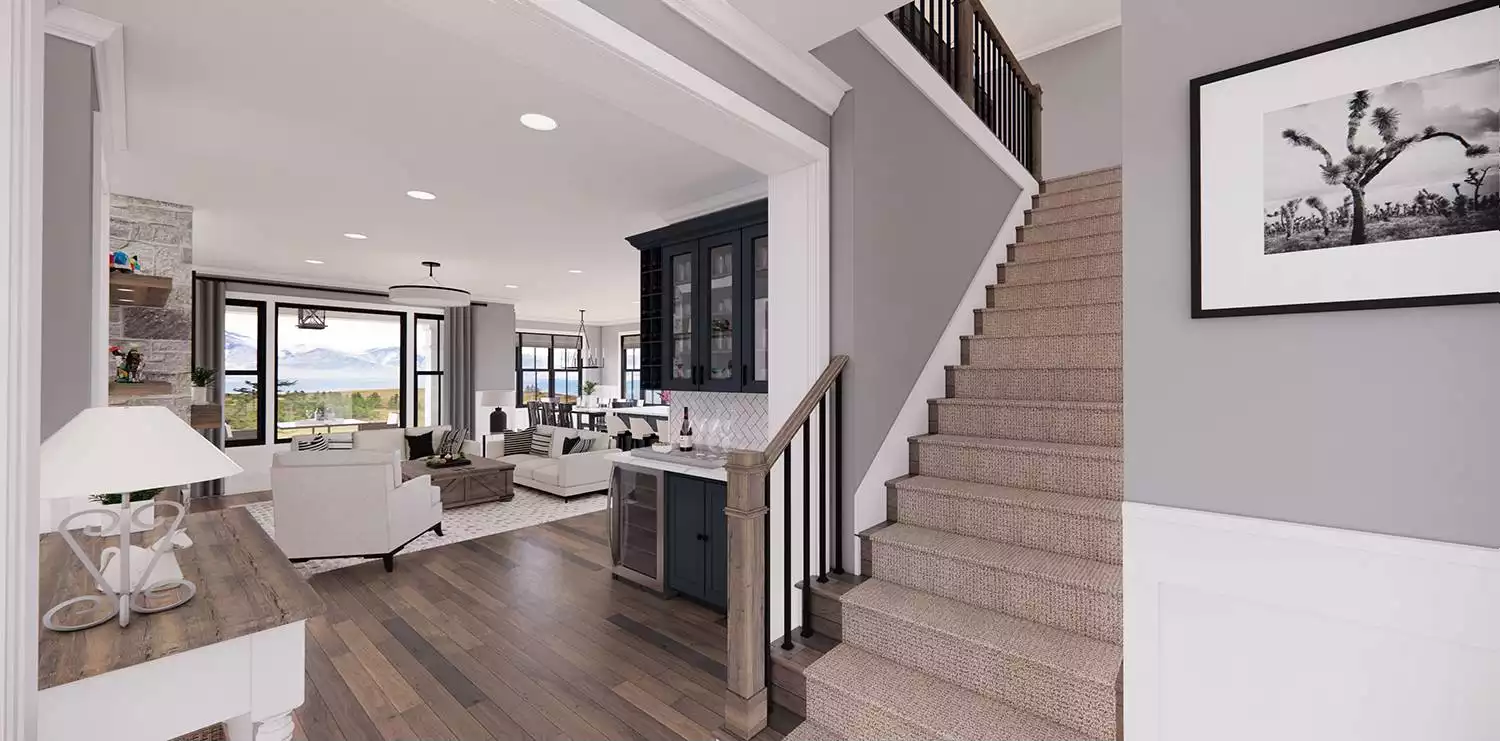

Foyer

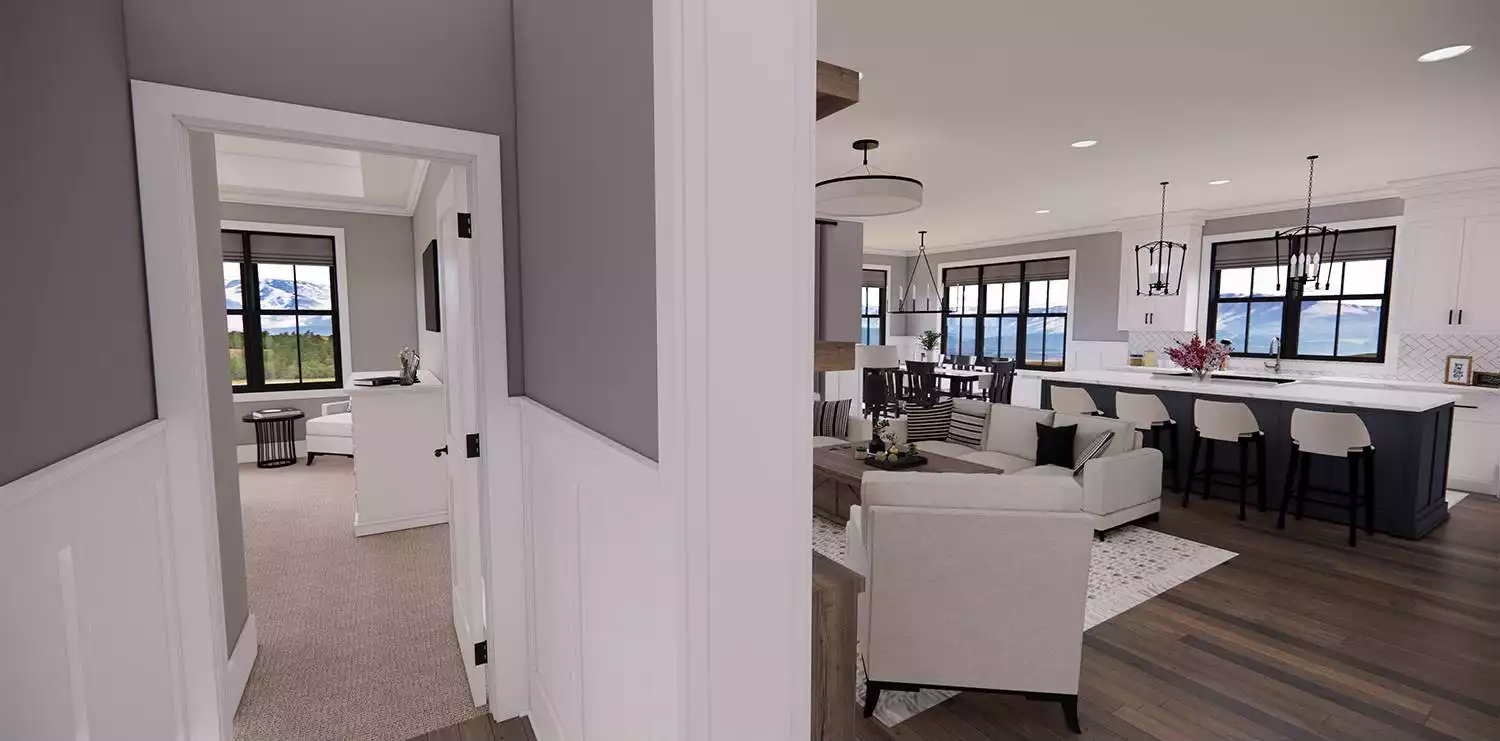

Great Room

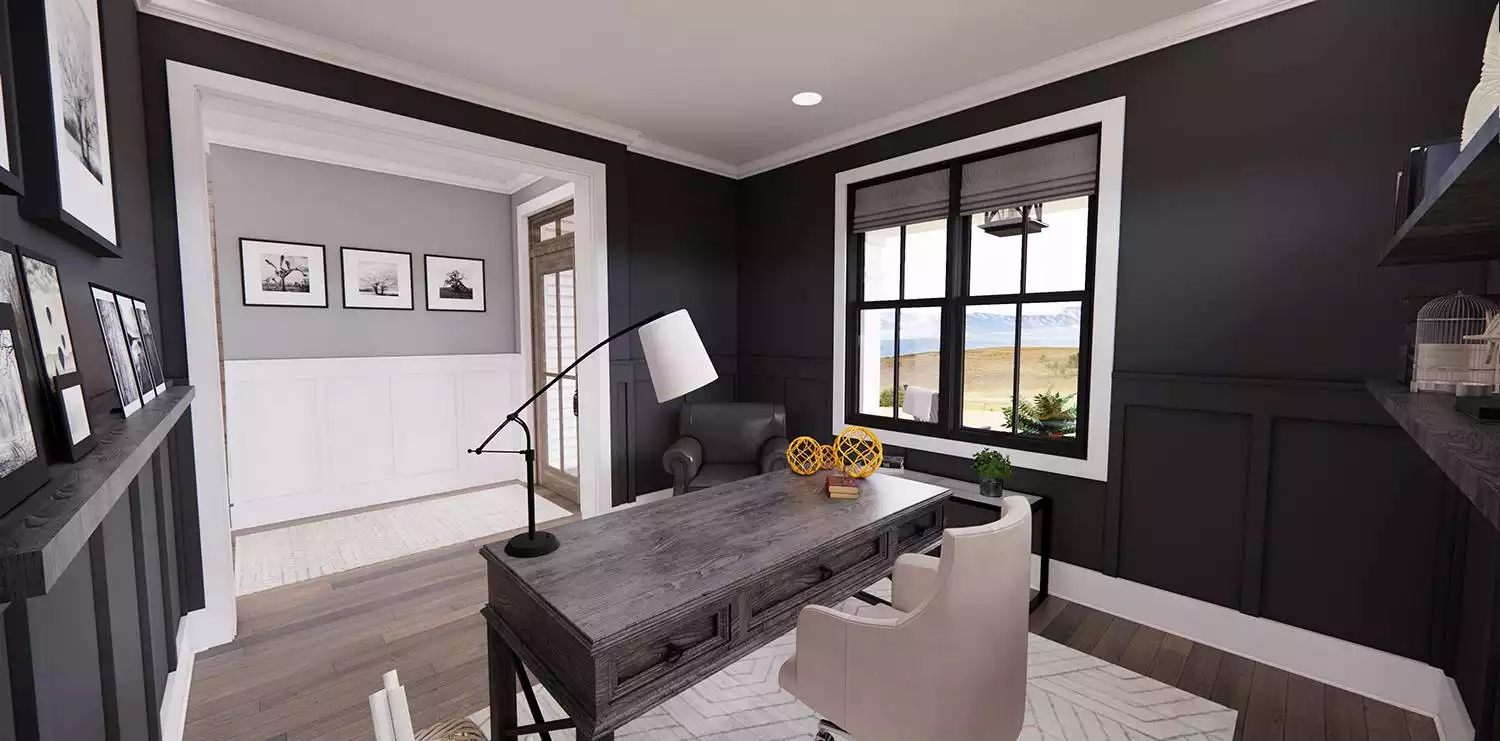

Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Unfinished Space
Vaulted Primary

Garage Location

Front

Garage Options

Attached
Front-entry

2,578 Ft

Total Heated

1,605 Ft

1st Floor

973 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

60' 0"

Depth

30' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

10' 0"

Primary Ceiling

2x6

Framing

Truss

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

462 Ft

Garage

114 Ft

Front Porch

117 Ft

Rear Porch

301 Ft

Bonus Room

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,742

PDF Single Build

~~$2,050~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,742

Sale: $1,912

5 Printed Sets

~~$2,250~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,912

Sale: $1,998

8 Printed Sets

~~$2,350~~

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

Sale: $1,998

5 Printed Sets + PDF

~~$2,350~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,998

Sale: $2,295

CAD Single Build

~~$2,700~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $2,295

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
