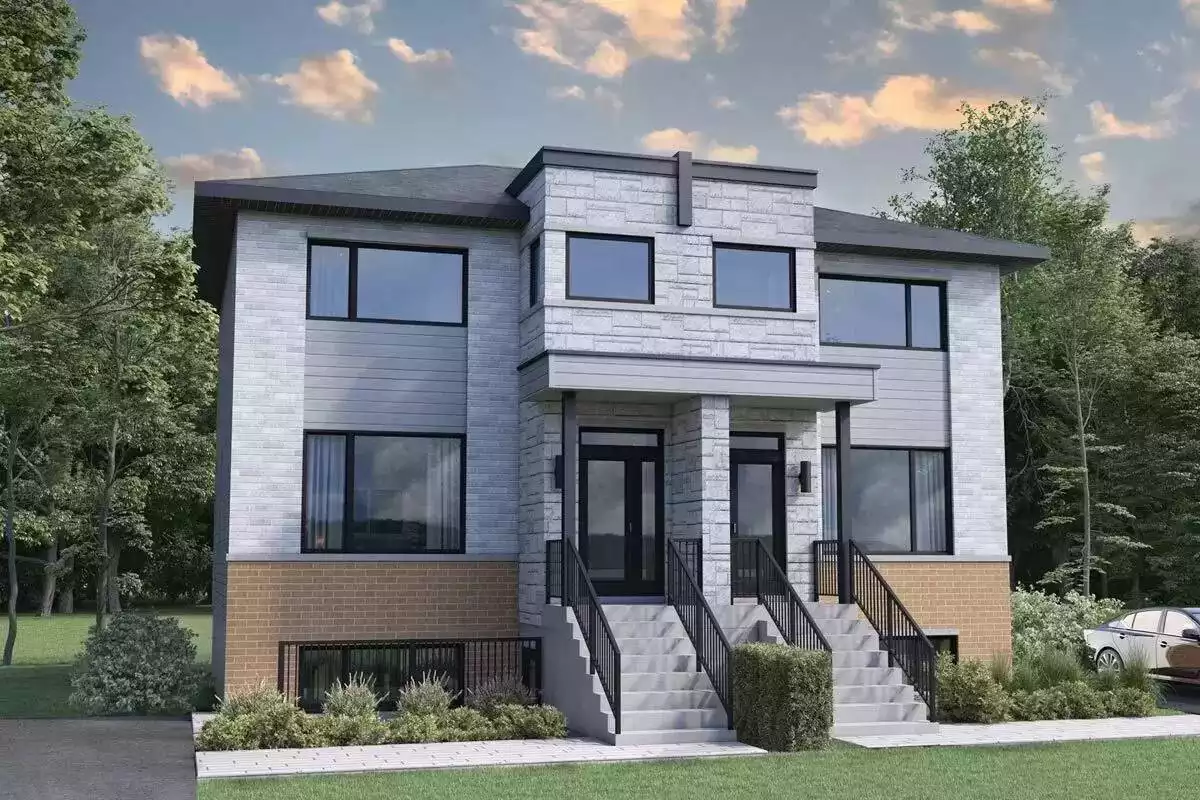

Unique Contemporary Triplex with Lower Level Unit

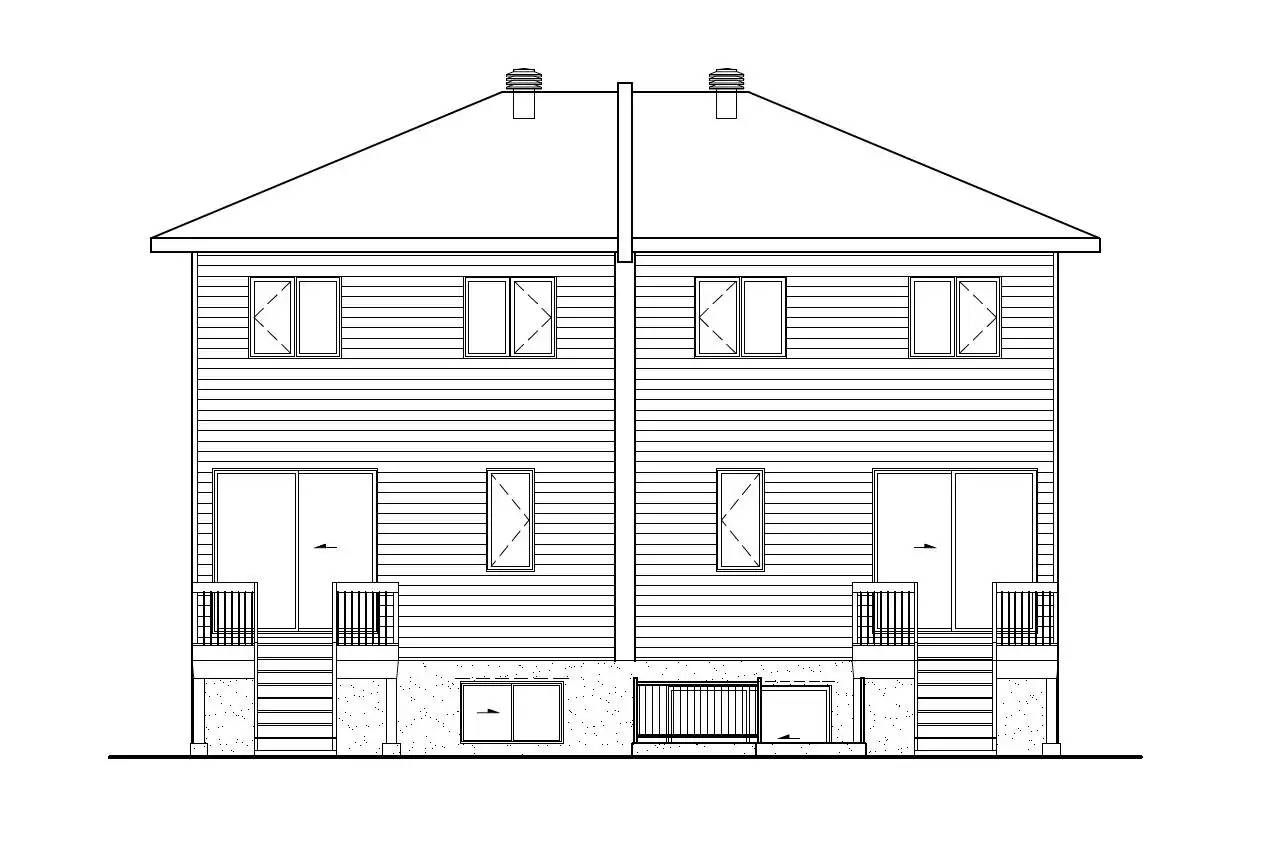

Rear View

View All 2 Images | Photographs may reflect modified home

Sq Ft

3,990 FT²

From

$1,350.00

Bed

Bath

Stories

Garage

Depth

35'

Width

42'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

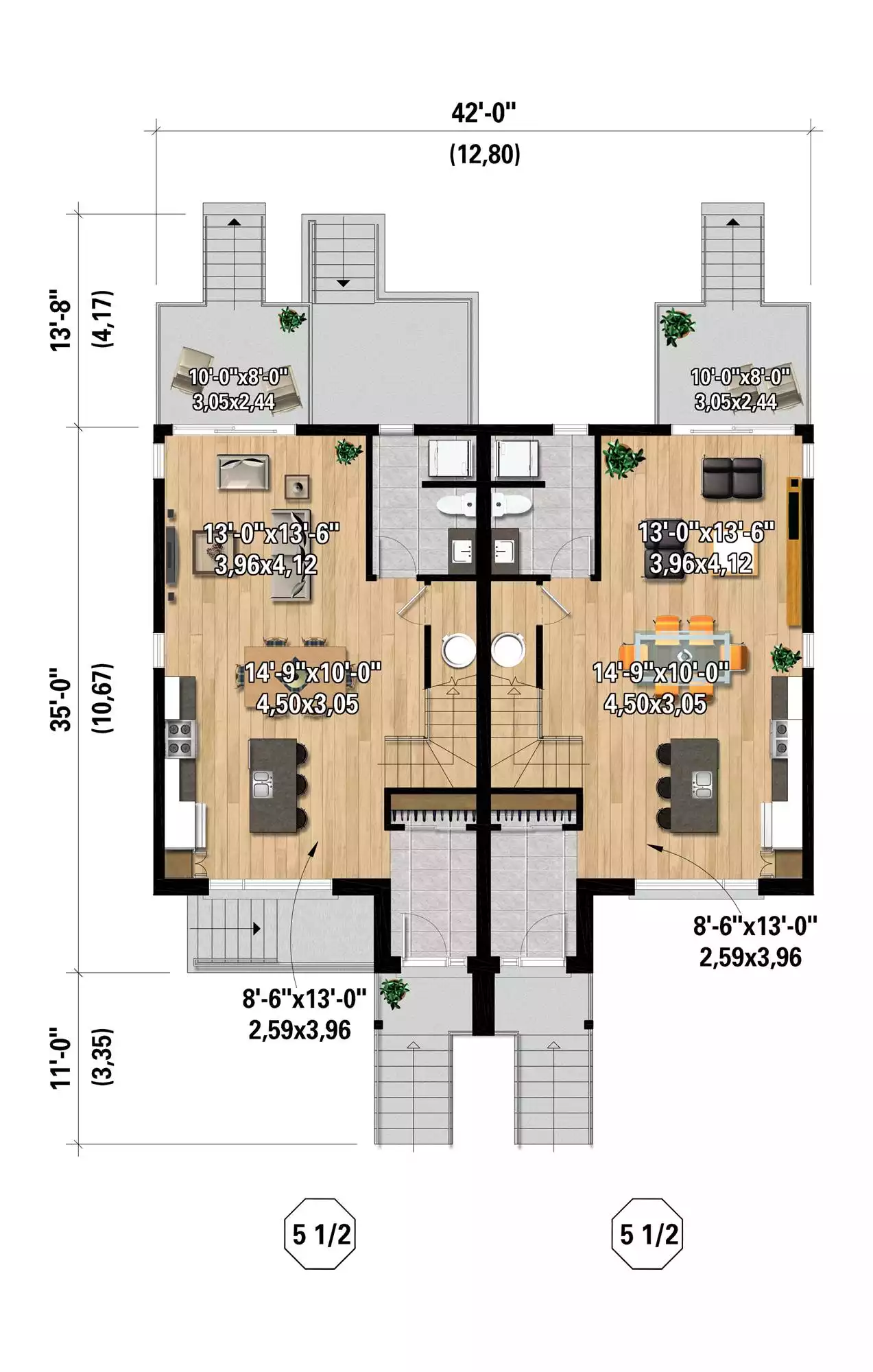

1st Floor

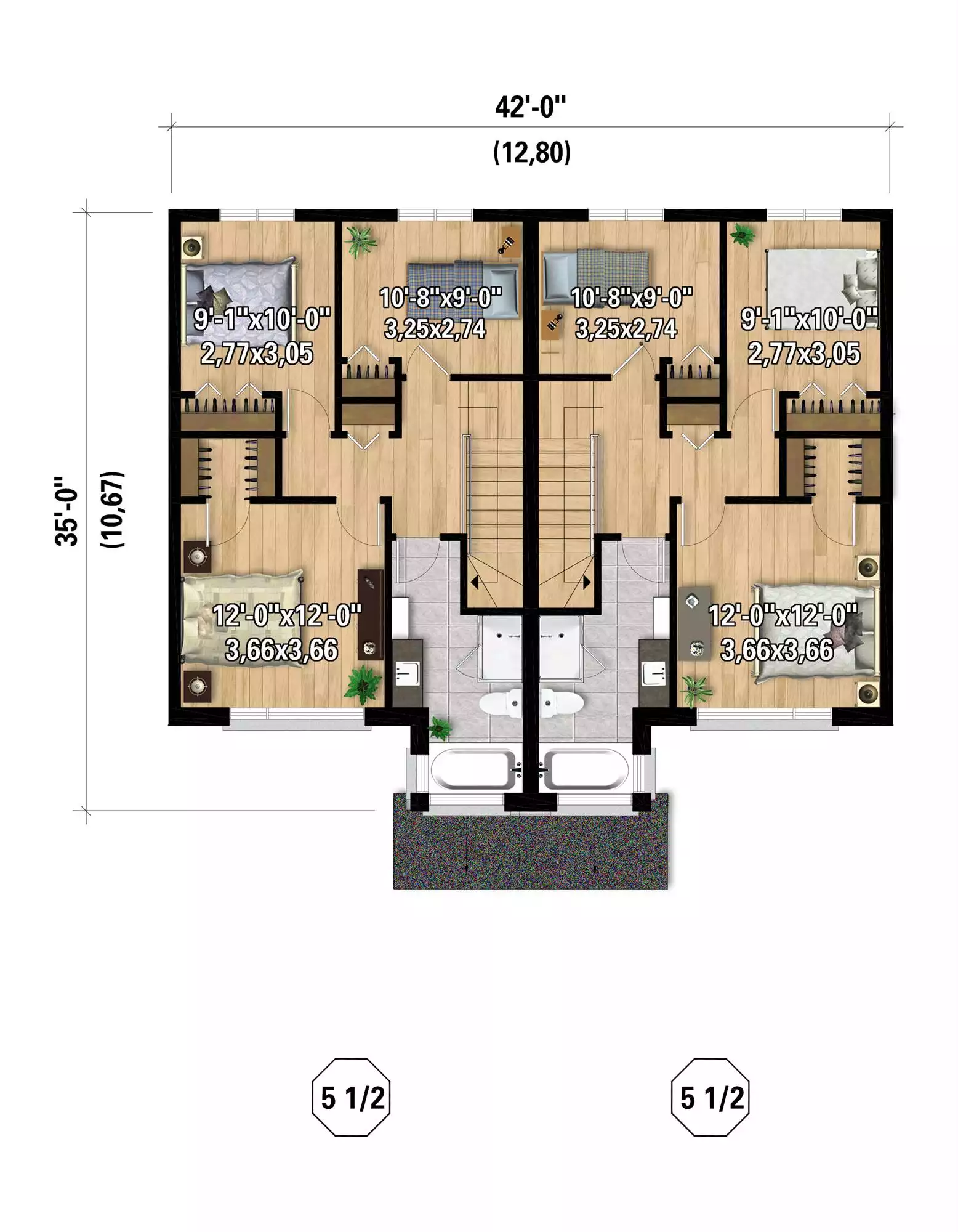

2nd Floor

Lower Level Plan

1st Floor

2nd Floor

Lower Level Plan

About This Plan

This contemporary triplex house plan features 2 two-story units and one lower level unit, each offering 1,330 square feet of livable space. The lower level unit includes three bedrooms and a family bathroom. The living room, dining room, and kitchen with a three-person island are designed with an open concept layout. The two-story units have their common areas and a washroom on the ground floor, while the second floor houses three bedrooms and a family bathroom. Each floor in these units provides 665 square feet, totaling 1,330 square feet of living space.

FEATURES & DETAILS

Kitchen features

Kitchen Island

Bedroom features

Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Rear Porch

Lot Options

Suited for narrow lot

Additional features

Formal LR
Foyer
Laundry 1st Fl
Open Floor Plan

Garage Options

None

3,990 Ft

Total Structure

3,990 Ft

Unit Heated

1,330 Ft

1st Floor

1,330 Ft

2nd Floor

1,330 Ft

Lower Floor

1,330 Ft

Left Unit

1,330 Ft

Right Unit

1,330 Ft

Lower Level

Bedrooms

Bathrooms

Garage

Stories

42' 0"

Width

35' 0"

Depth

32' 3"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

8' 0"

Lower Floor Ceiling

2x6

Framing

Truss

Roof Framing

5:12

Primary Roof Pitch

5:12

Secondary Roof Pitch

Multi-Family

Dwelling Number

None

Bonus Access

Unheated Living Space

80 Ft

Deck

Exterior Styles

Contemporary

Modern

Transitional

Collections

Builders

Canada

Open Floor Plan

Plan Package Options

Important info before you buy

Select Plan Package

$1,350

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,350

$1,395

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,395

$1,540

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,540

$2,370

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,370

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
