Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,568 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
54'

Width
40'

From
$1,000.00

Front Elevation with white exterior

View All 8 Images | Photographs may reflect modified home

Sq Ft

1,568 FT²

From

$1,000.00

Beds

Baths

2.5

Stories

Garage

Depth

54'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

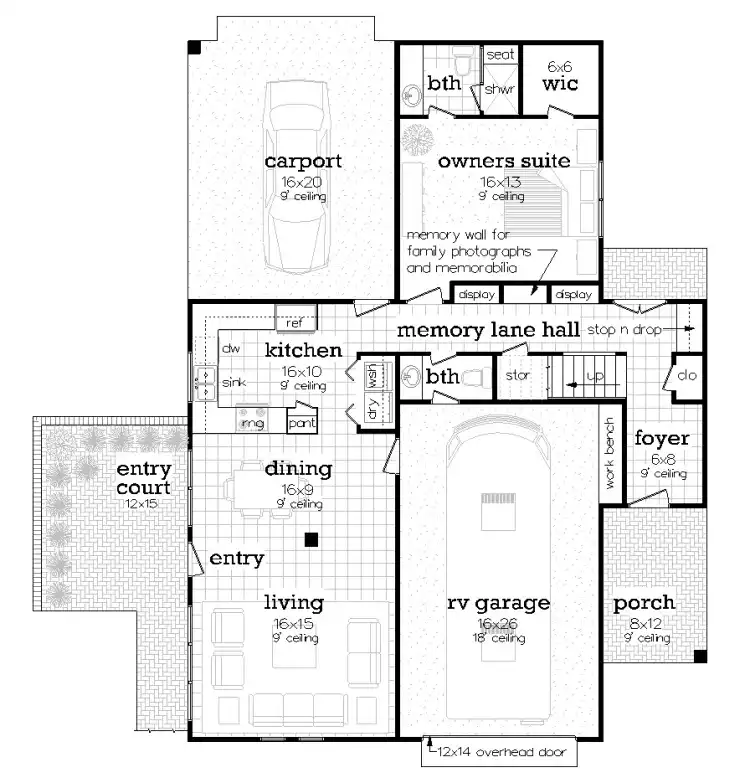

Main Level Floor Plan

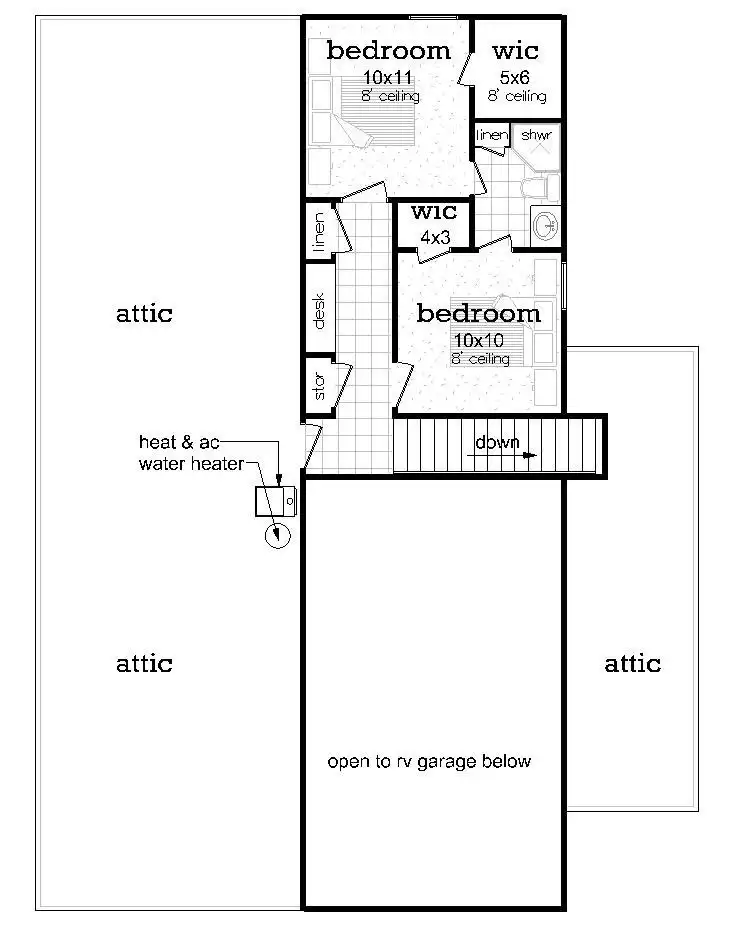

Upper Level Floor Plan

Main Level Floor Plan

Upper Level Floor Plan

About This Plan

It may look like a barn, but House Plan 10154 actually makes a wonderful family home with 1,568 square feet, three bedrooms, and two-and-a-half bathrooms on two stories. Up front, that large barn door actually conceals an RV garage with a workbench. Enter from the front door to the right of that and the foyer includes storage space and access from the back as well. The hallway then turns around the RV garage and you'll find the primary suite on one side and the while the common areas sit around another turn, complete with a peninsula kitchen overlooking the dining and living areas. Make sure not to miss the carport parking in back, the courtyard on the side that allows direct entry to the great room, the convenient laundry closet in the kitchen, or the powder room that has interior and garage access! The final two bedrooms are placed upstairs and share a Jack-and-Jill bathroom. There's also a built-in desk in the hallway. This is a perfectly balanced design for a home or additional unit on an existing property!

See All Plan Options

FEATURES & DETAILS

Kitchen features

Pantry
Peninsula / Eating Bar
U-Shaped

Bedroom features

Primary Bdrm Main Floor
Split Bedrooms
Walk-in Closet

Exterior features

Courtyard
Covered Front Porch

Lot Options

Suited for corner lot
Suited for narrow lot

Additional features

Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Workshop

Garage Options

Attached
Carport
Front-entry
Rear-entry
RV Garage

2,400 Ft

Total Structure

1,568 Ft

Total Heated

1,120 Ft

1st Floor

448 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

40'

Width

54'

Depth

28'

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

9' 0"

Living/Great Room Ceiling

9' 0"

Foyer Ceiling

9' 0"

Primary Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

6/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

736 Ft

Garage

96 Ft

Front Porch

Exterior Styles

Barndominium

Country

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

Note: D

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
