Recently Viewed Plans | Advanced Plan Search

Sq Ft
877 FT²

Beds
2

Baths
1

Stories
3

Garage
5

Depth
26'

Width
45'

On Sale
$807.50
$950.00

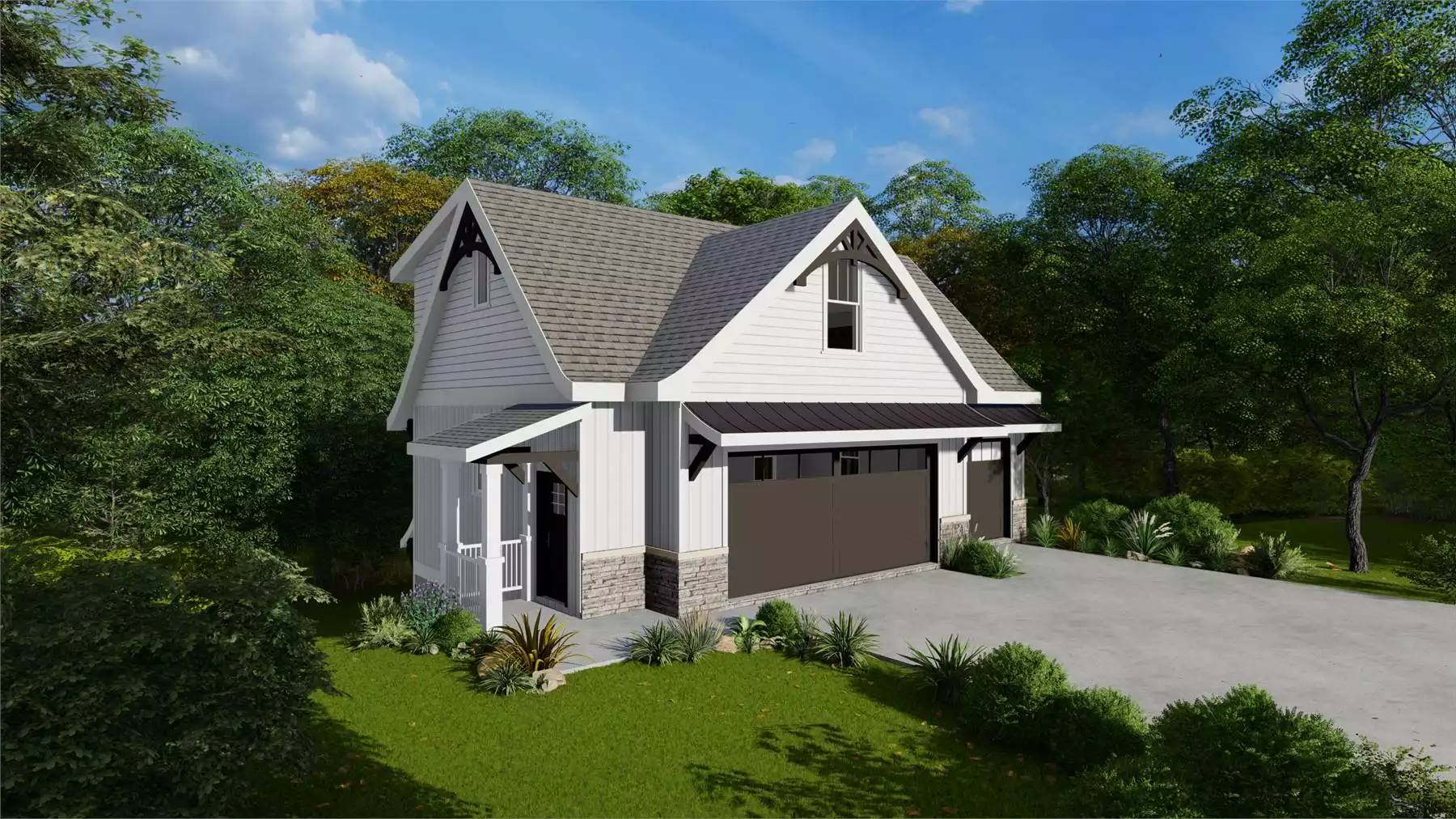

Front View

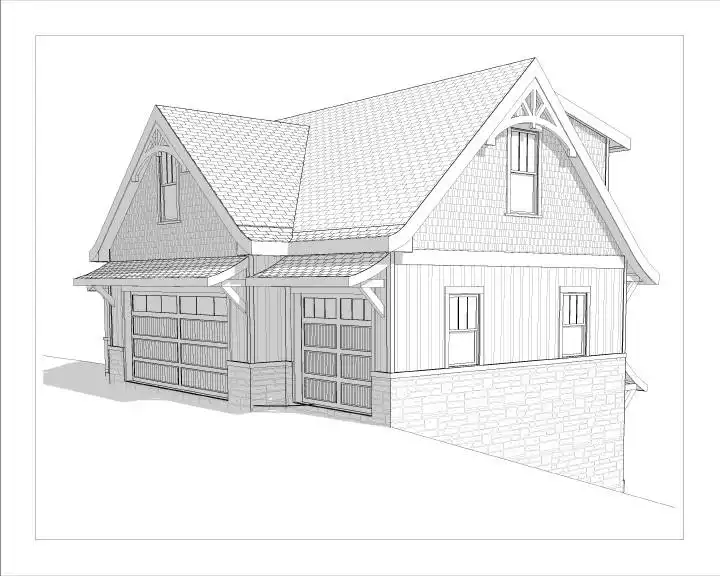

Front Right

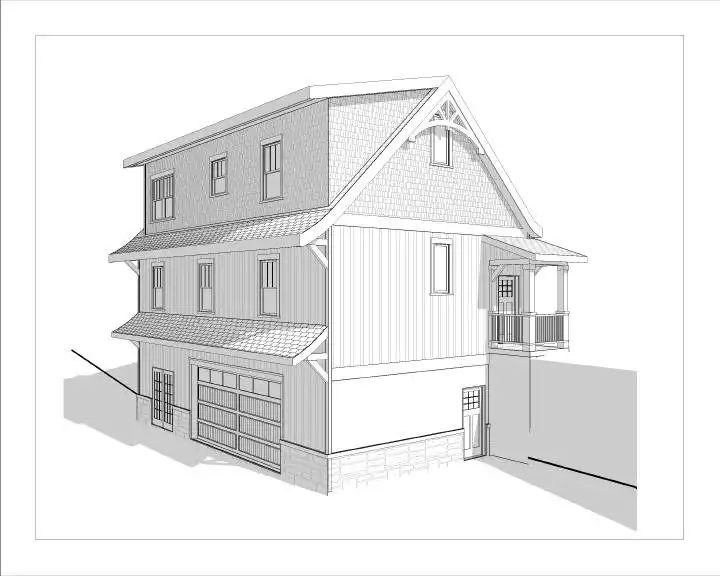

Rear Left

View All 4 Images | Photographs may reflect modified home

Sq Ft

877 FT²

From

$807.50

Beds

Baths

Stories

Garage

Depth

26'

Width

45'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

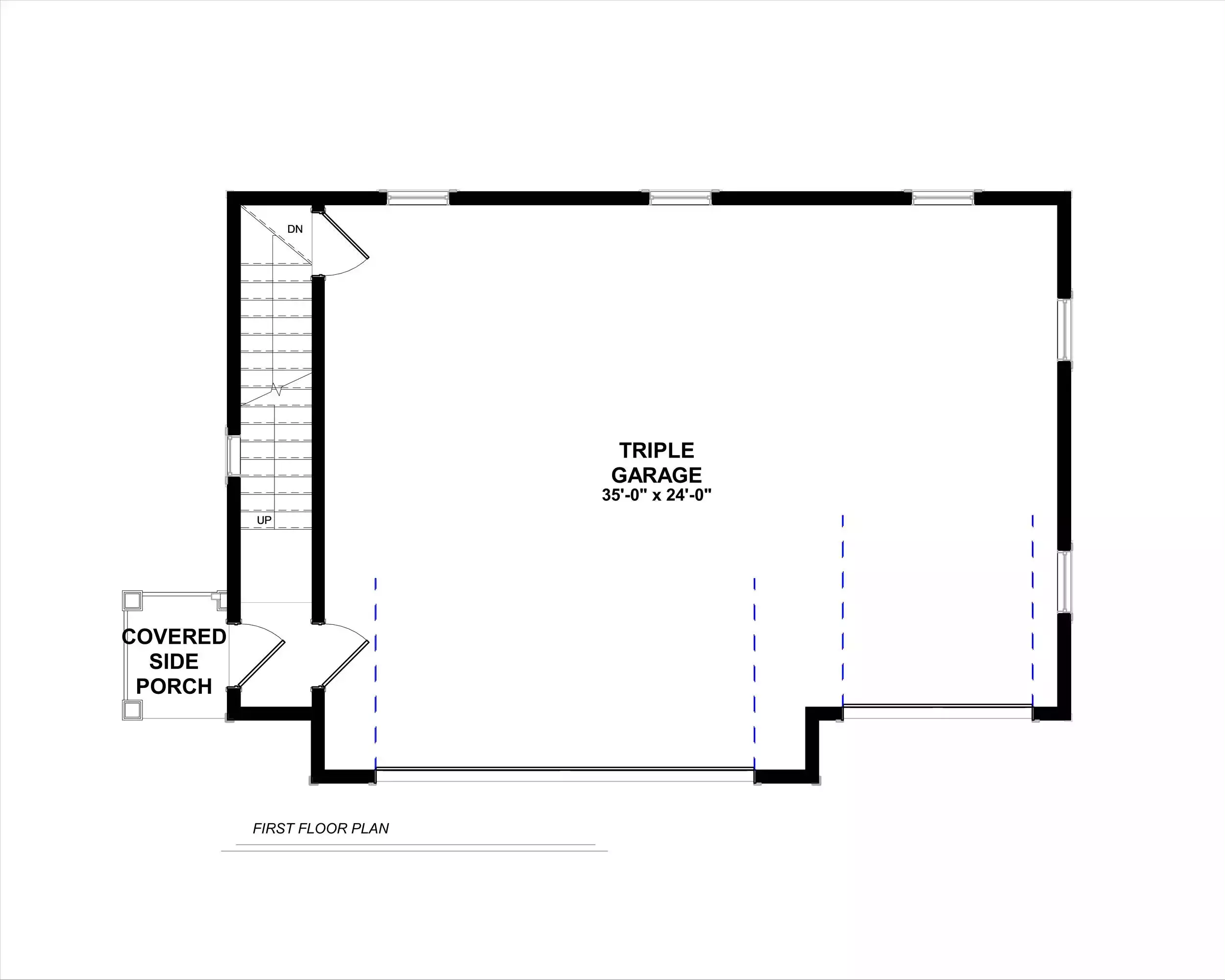

1st Floor

2nd Floor

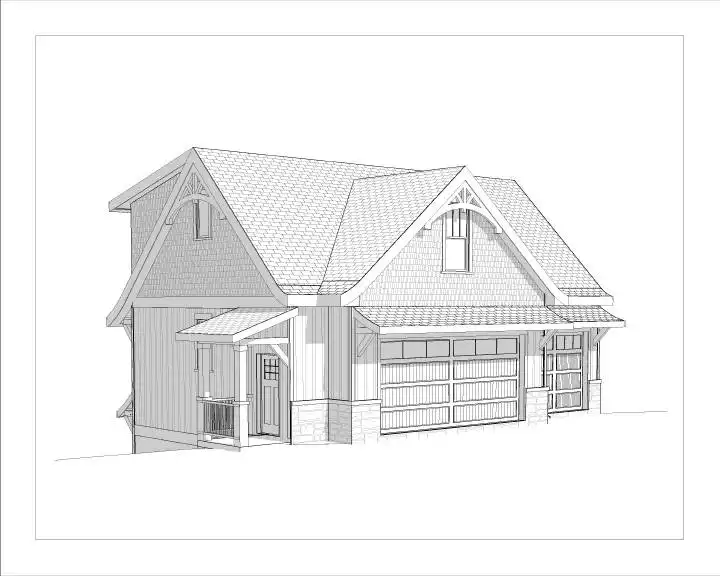

Front Left

1st Floor

2nd Floor

Front Left

About This Plan

With plenty of parking and ADU potential in a flexible package for a sloped lot, House Plan 4253 is an amazing solution for unique needs! This nifty garage design offers front-entry bays for three cars on the main level, but take a look in back and you'll see the walk-out basement has room for two more vehicles. Head up the side staircase and you'll come to a wonderful apartment with 877 square feet, two bedrooms, and one bathroom. It's perfect for in-laws, guests, or renting out! The apartment offers an island kitchen, vaulted living space, and a split arrangement for the bedrooms. One is a bunk room to maximize sleeping quarters potential while the bedroom on the opposite side is large and comfortable. The bathroom and laundry are located near this bedroom for convenience!

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Pantry

Bedroom features

Split Bedrooms

Exterior features

No Porch

Lot Options

Suited for sloping lot

Additional features

Fireplace
Great Room
Laundry 2nd Fl
Open Floor Plan
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
Vaulted Primary

Garage Location

Front

Garage Options

Detached
Drive-under
Front-entry
Oversized
Rear-entry
With Living Space

2,974 Ft

Total Structure

877 Ft

Total Heated

1,072 Ft

1st Floor

877 Ft

2nd Floor

1,025 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

45' 0"

Width

26' 0"

Depth

35' 2"

Height

10' 0"

Main Floor Ceiling

9' 6"

Upper Floor Ceiling

9' 0"

Lower Floor Ceiling

13' 0"

Living/Great Room Ceiling

10' 0"

Primary Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

3/12

Secondary Roof Pitch

12/12

Gable Roof Pitch

2/12

Porch Roof Pitch

Garage

Dwelling Number

None

Bonus Access

Unheated Living Space

2,097 Ft

Garage

Exterior Styles

Cottage

Southern

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $510

PDF Bid Set

~~$600~~

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $510

Sale: $808

PDF Single Build

~~$950~~

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $808

Sale: $850

5 Printed Sets

~~$1,000~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $850

Need To Reverse Plan? (Optional)

$650

Readable Reverse

Reverse house plans with readable text and dimensions

$650

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
