Farnsworth Vaulted Mid-Century Modern Style House, Plan 10275


Sq Ft
1,664 FT²

Beds
3

Baths
2

Stories
1

Garage
0

Depth
46'

Width
55'
On Sale
$1,174.70
$1,382.00

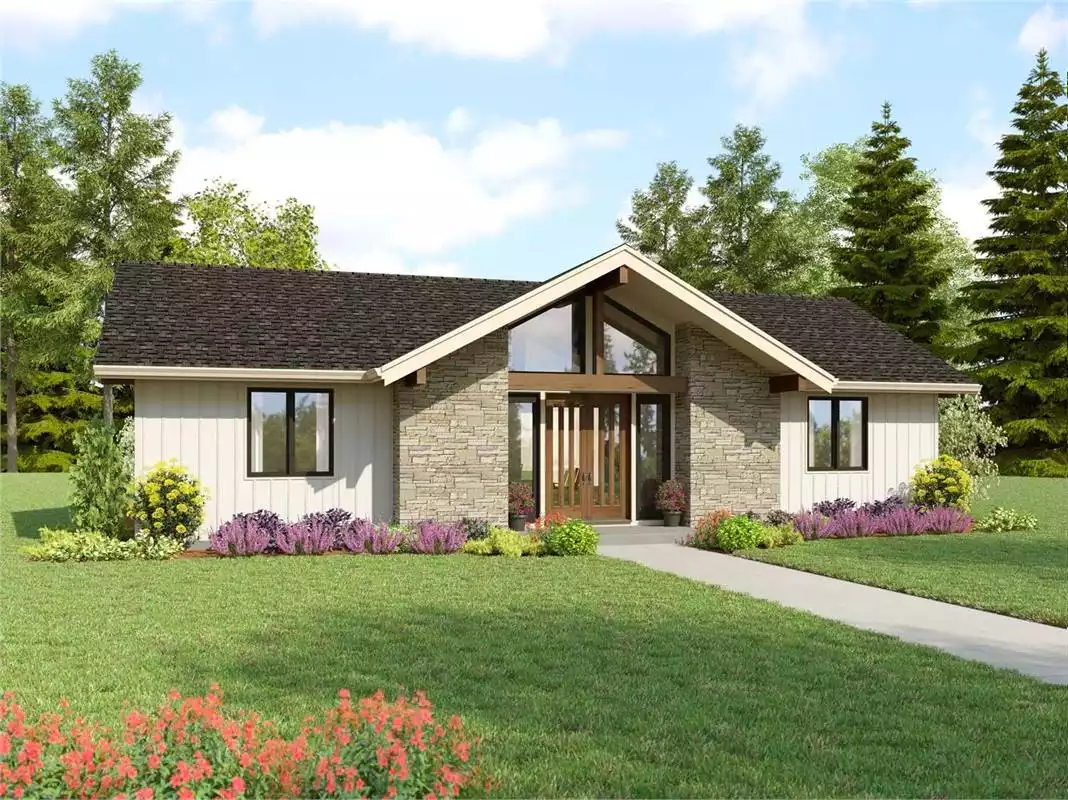

Front View
© copyright by designer
View All 3 Images | Photographs may reflect modified home
Sq Ft
1,664 FT²
Beds
3
Baths
2
Stories
1
Garage
0
Depth
46'
Width
55'

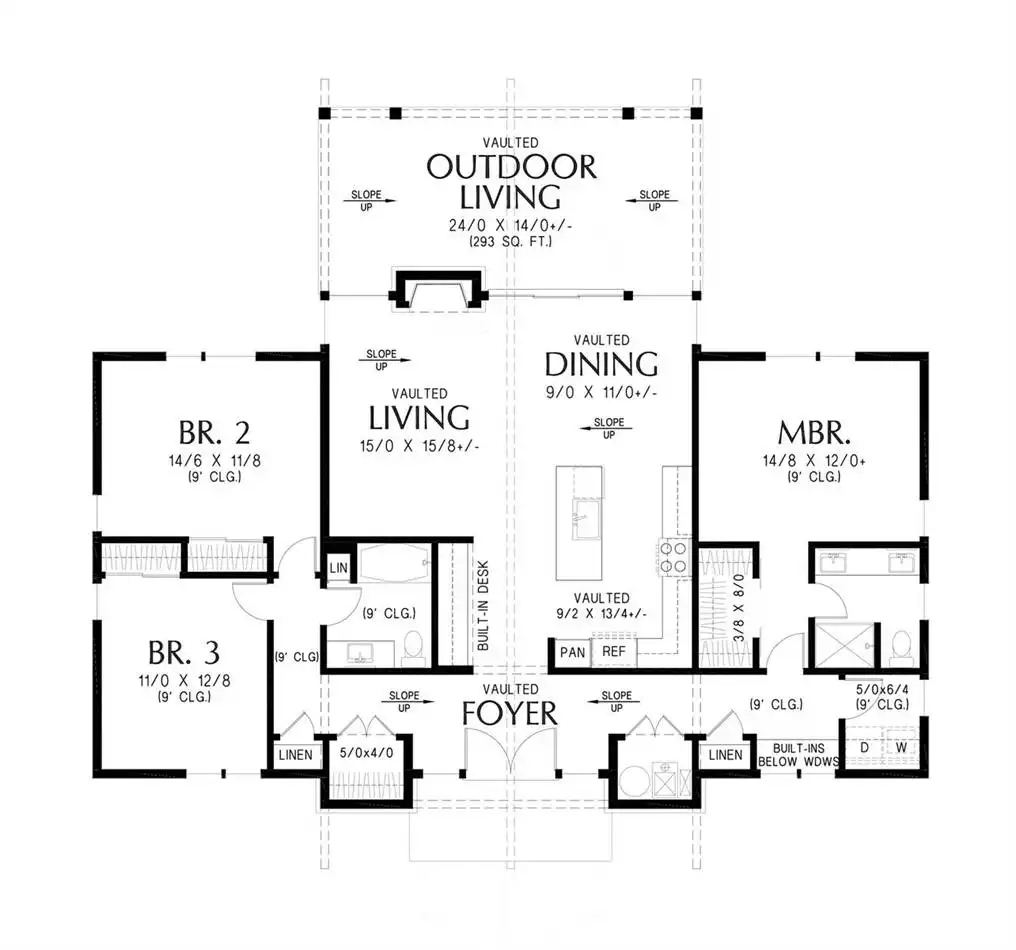

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

If you're a fan of mid-century modern design, House Plan 10275 packs a ton of it into a modest 1,664-square-foot ranch floor plan. The footprint has a relatively simple shape to keep costs down, but this plan is far from basic with that dramatic roofline--the center gable sits over a vaulted ceiling that carries from the foyer, through the main living areas, to the outdoor living in back! Step inside and the foyer is bathed in natural light from all the windows around the French doors. A gallery hallway stretches to the left and right, with the primary suite and the laundry on one side and the secondary bedrooms and their hall bath to share on the other. Continue straight back and you'll find the L-shaped island kitchen overlooking the living and dining areas, complete with a fireplace for ambiance. Again, tons of windows at the back of the house naturally brighten this space. Make sure not to miss the charming built-in desk by the kitchen and window bench in the front hall--these touches add even more appeal to an already striking home!

See All Plan Options


FEATURES & DETAILS

Kitchen features
Kitchen Island
L-Shaped
Walk-in Pantry
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Exterior features
Outdoor Living Space
Lot Options
Suited for view lot
Additional features
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Vaulted Foyer
Vaulted Great Room/Living
Vaulted Kitchen
Garage Location
None
Garage Options
None
2,000 Ft
2
Total Structure
1,664 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
0
Garage
1
Stories
55' 0"
Width
46' 0"
Depth
16' 11"
Height
9' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
336 Ft
2
Rear Porch


Plan Package Options

 Select Plan Package
Sale: $1,175
PDF Single Build
$1,382

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,175
Sale: $1,430
5 Printed Sets + PDF
$1,682

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,430
Sale: $2,349
CAD Single Build
$2,764

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $2,349
 Need To Reverse Plan? (Optional)
$275
Readable Reverse

Reverse house plans with readable text and dimensions

$275
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
