Somero | 4 Bedroom Transitional Vacation House, Plan 10489


Sq Ft
2,030 FT²

Beds
4

Baths
2.5

Stories
2

Garage
0

Depth
32'

Width
40'
On Sale
$888.10
$1,070.00

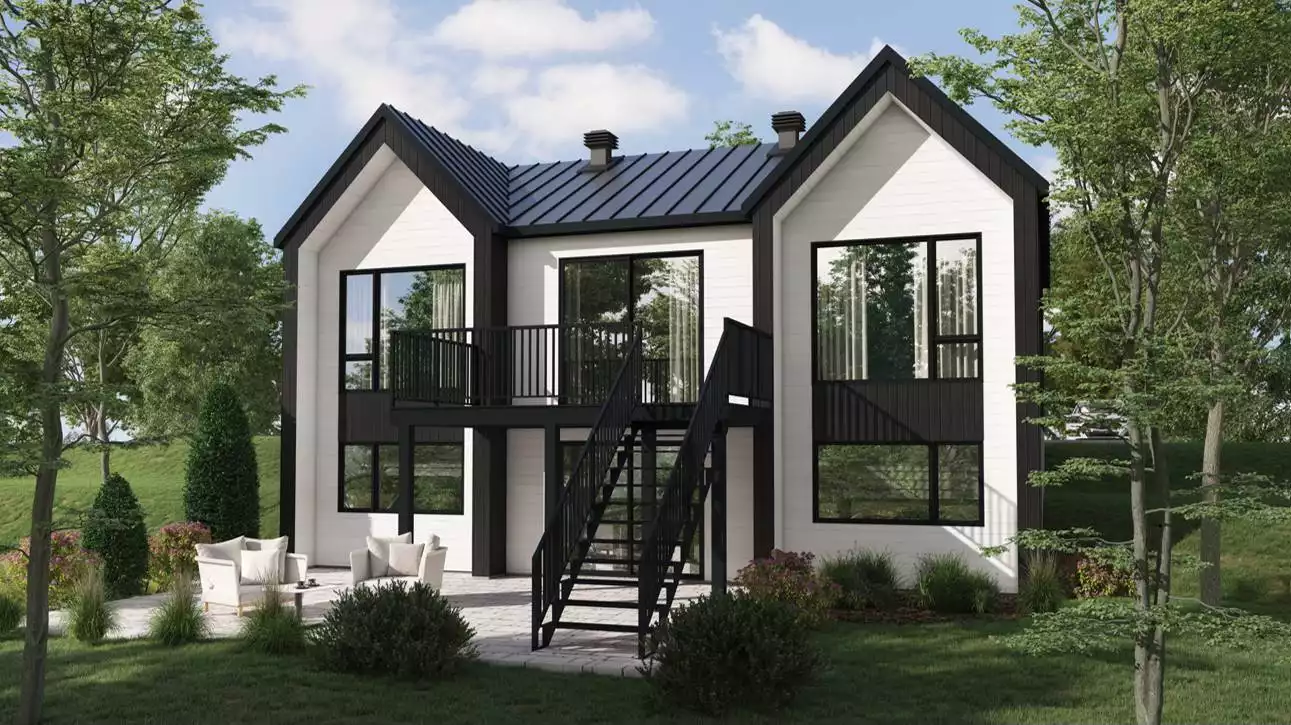

Rear View
© copyright by designer
View All 7 Images | Photographs may reflect modified home
Sq Ft
2,030 FT²
Beds
4
Baths
2.5
Stories
2
Garage
0
Depth
32'
Width
40'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

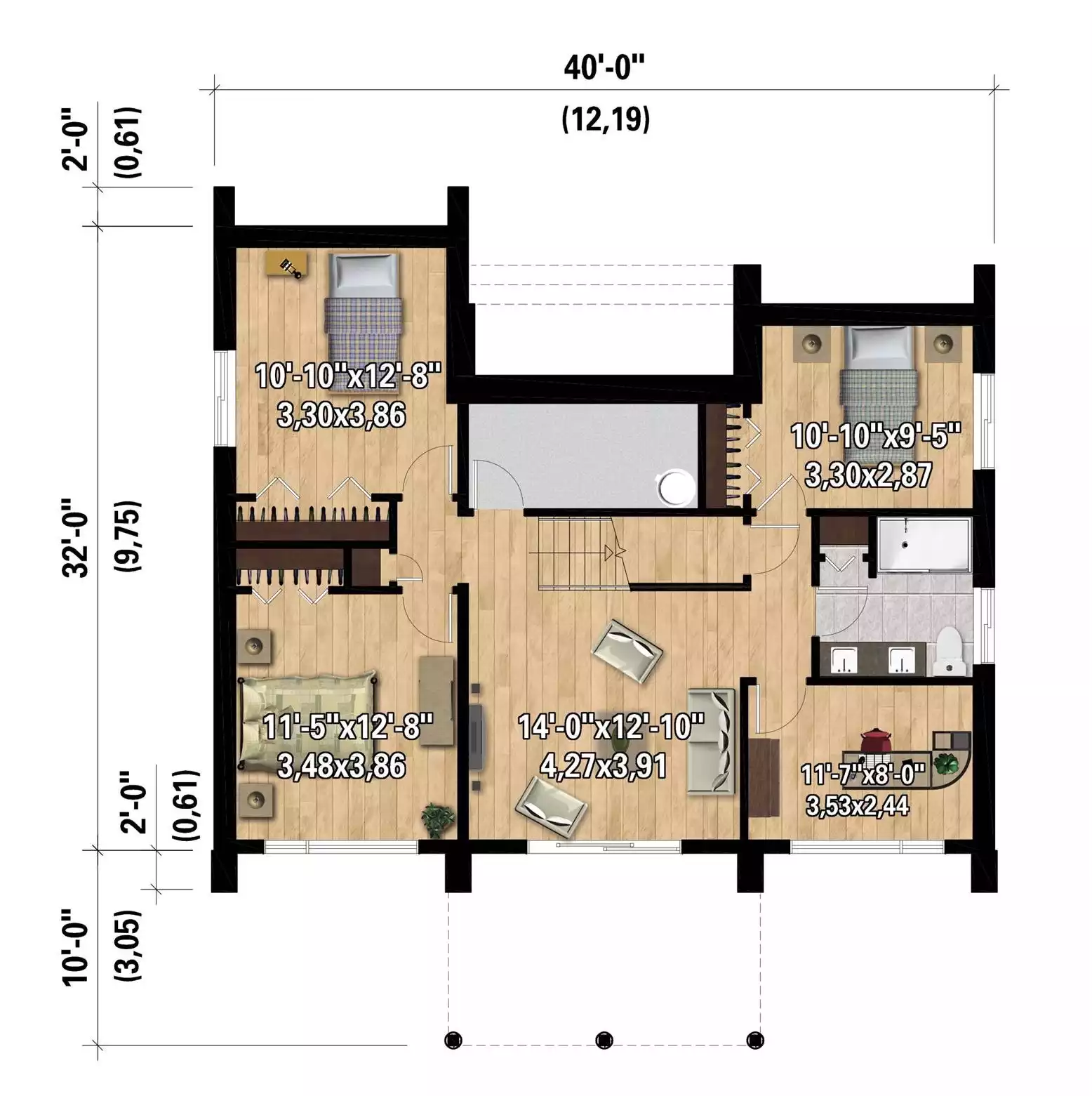

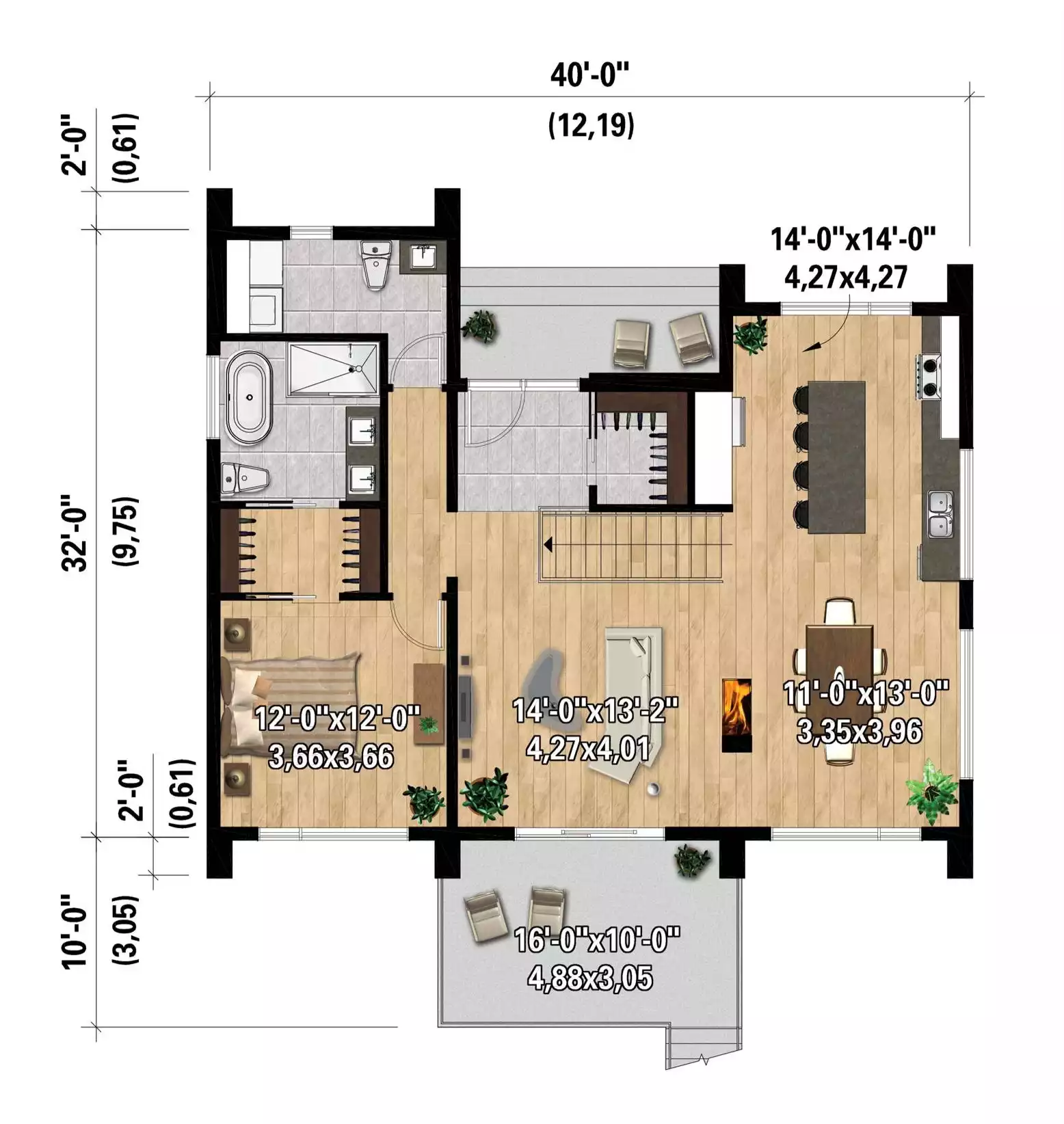

Got a sloping lot and a great view? House Plan 10489 could be a great fit! This sleek transitional-style vacation home offers 2,030 square feet between the main level and the finished walkout basement, complete with four bedrooms and two bathrooms. Step inside from the front and there's a coat closet in the foyer for convenience. The hallway on the side is where you'll find the primary suite situated for rear views in the bedroom. It has a walk-through closet to a private five-piece bath. The combined laundry/powder room is also located in this hallway. The rest of the main level is comprised of the great room, with an island kitchen beside dining space against the side wall and the living area in the center of the floor plan, connecting to the back deck. Make sure not to miss the fireplace between the living and dining! Head downstairs for the other three bedrooms that share a four-piece hall bath. The office and family room are also in the basement, and you have patio access as well!

See All Plan Options


FEATURES & DETAILS

Kitchen features
Kitchen Island
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Rear Porch
Lot Options
Suited for sloping lot
Suited for view lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Garage Options
None
2,030 Ft
2
Total Heated
914 Ft
2
1st Floor
1,116 Ft
2
2nd Floor
4
Bedrooms
2.5
Bathrooms
0
Garage
2
Stories
40' 0"
Width
32' 0"
Depth
26' 0"
Height
9' 0"
Main Floor Ceiling
9' 0"
Living/Great Room Ceiling
9' 0"
Primary Ceiling
2x6
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
12/12
Secondary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space


Plan Package Options

 Select Plan Package
Sale: $888
PDF Single Build
$1,070

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $888
Sale: $925
5 Printed Sets
$1,115

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $925
Sale: $1,008
5 Printed Sets + PDF
$1,215

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,008
Sale: $1,735
CAD Single Build
$2,090

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,735
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
