Desert Pines Luxury Country Ranch Style House, Plan 5129


Sq Ft
6,610 FT²

Beds
4

Baths
4

Stories
1

Garage
3

Depth
120'

Width
162'
On Sale
$2,372.00
$2,965.00
© copyright by designer
View All 15 Images | Photographs may reflect modified home
Sq Ft
6,610 FT²
From
$2,372.00
Beds
4
Baths
4
Stories
1
Garage
3
Depth
120'
Width
162'

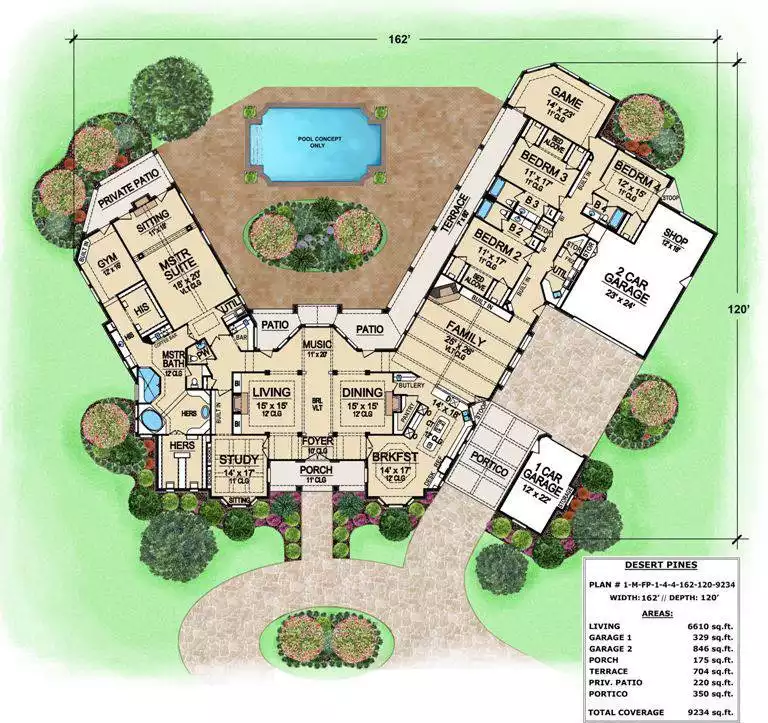

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This luxury chateau home plan has varied interested ceilings. A gorgeous master suite boasts a large sitting area with fireplace, doors to the private patio, an elegant master bath with his and hers vanities, separate shower, garden tub, large his and hers wardrobes, and a gym. Centrally located are the family gathering rooms, separated by large decorative pillars. The living and dining rooms have fireplaces, built-ins and trey ceilings, and the music room, located between them, flaunts a barrel vaulted ceiling. There are two doors from this area to the patios and the terrace beyond. The dining room is open to the butlery and kitchen for ease in serving, with the breakfast area nestled off the dining room and kitchen. The family room offers dramatic vaulted ceilings, built-ins and a corner fireplace. Enjoy the view onto the terrace through the large bank of windows. Three family bedrooms, each with a walk-in closet, full bath and bed alcove share the right wing with the game room. The two-car garage offers a 12 x 16 shop, completing this one-story chateau home plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
Arches
Dining Room
Exercise Room
Fireplace
Formal LR
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Workshop
Garage Location
Side
Garage Options
Attached
Side-entry
9,234 Ft
2
Total Structure
6,610 Ft
2
Total Heated
4
Bedrooms
4
Bathrooms
3
Garage
1
Stories
162' 0"
Width
120' 0"
Depth
27' 0"
Height
10' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
8
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,175 Ft
2
Garage
175 Ft
2
Porch
704 Ft
2
Deck
220 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer Binder

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
