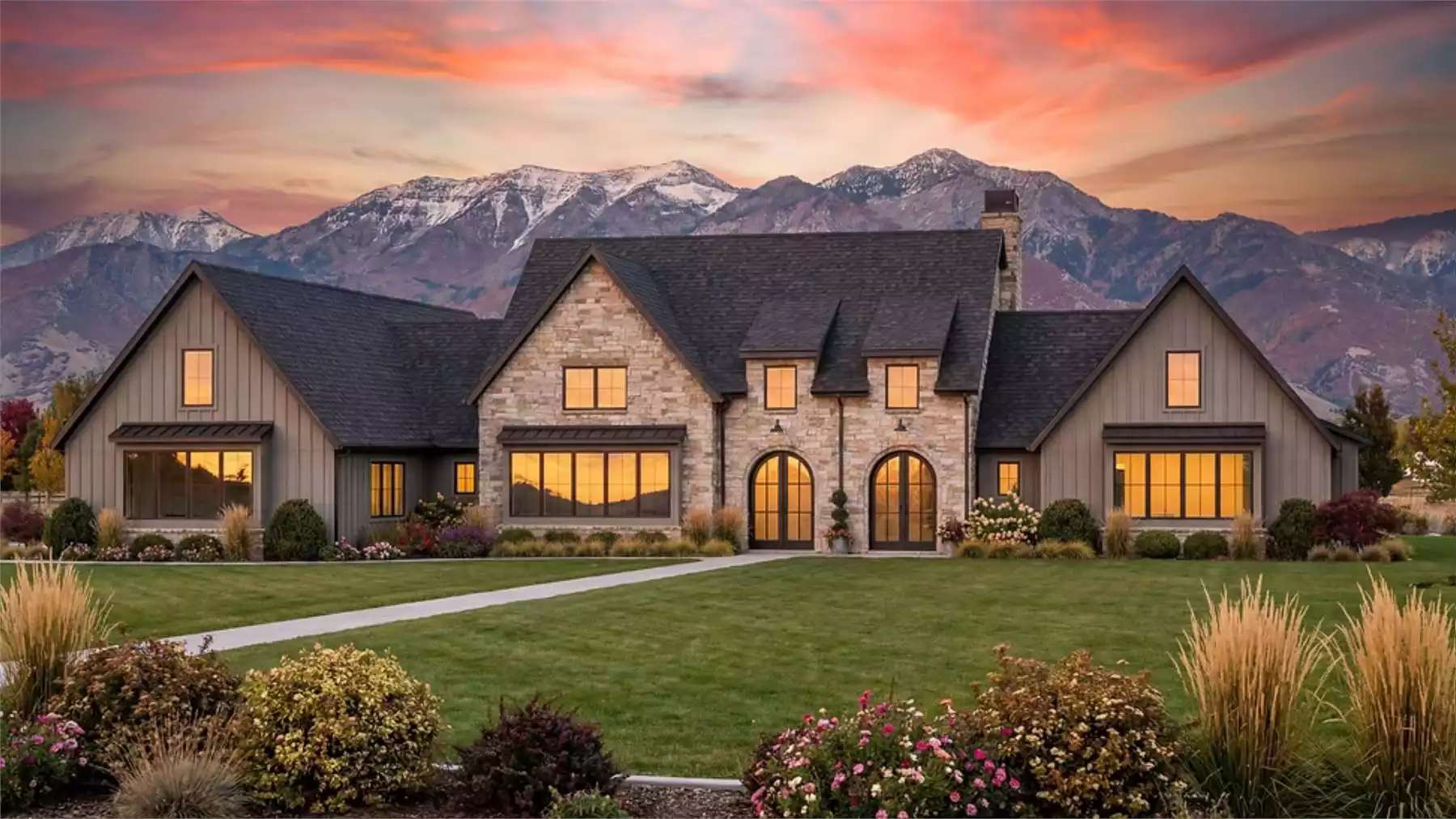

Sprawling European Ranch with Tudor Styling

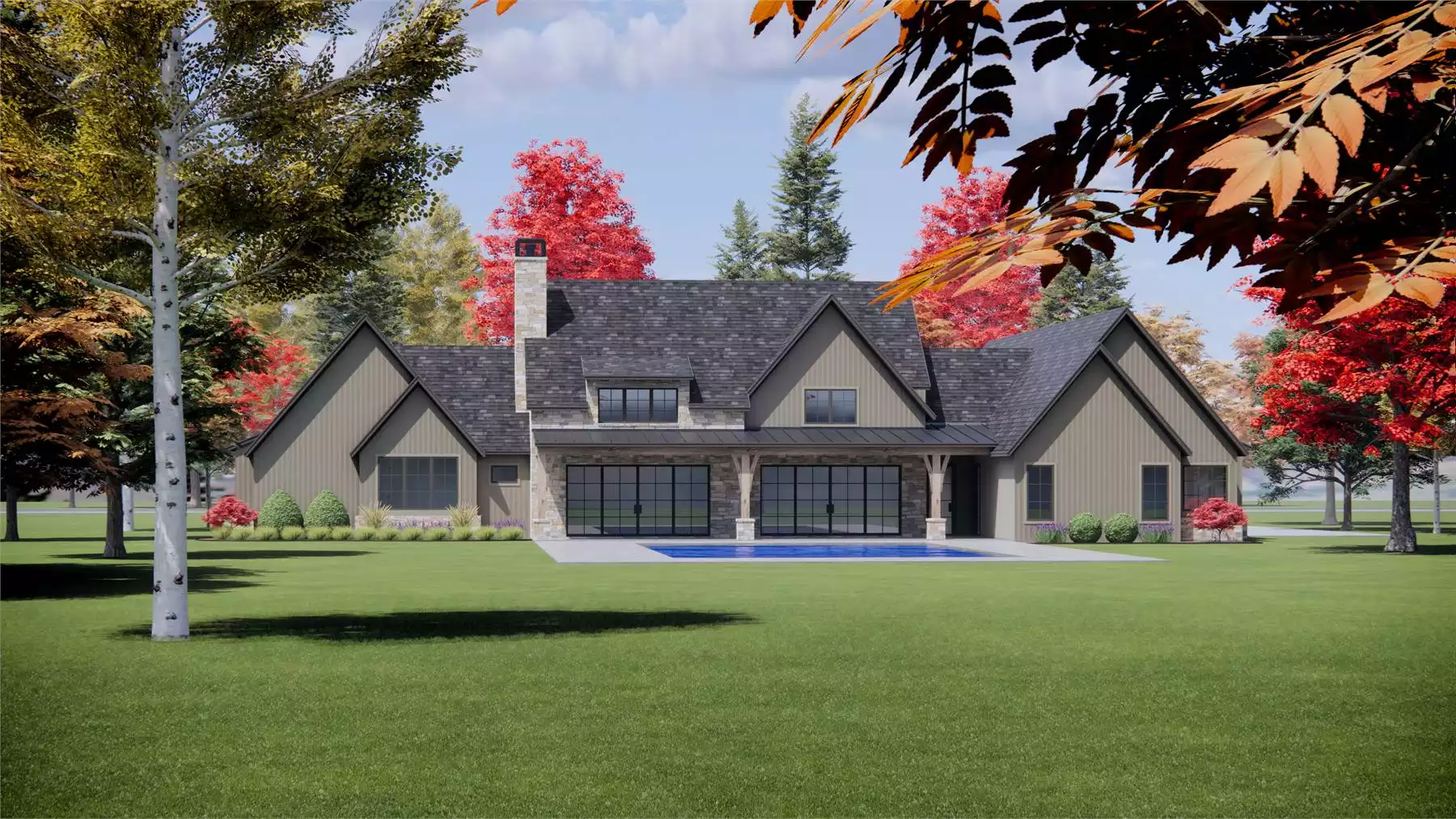

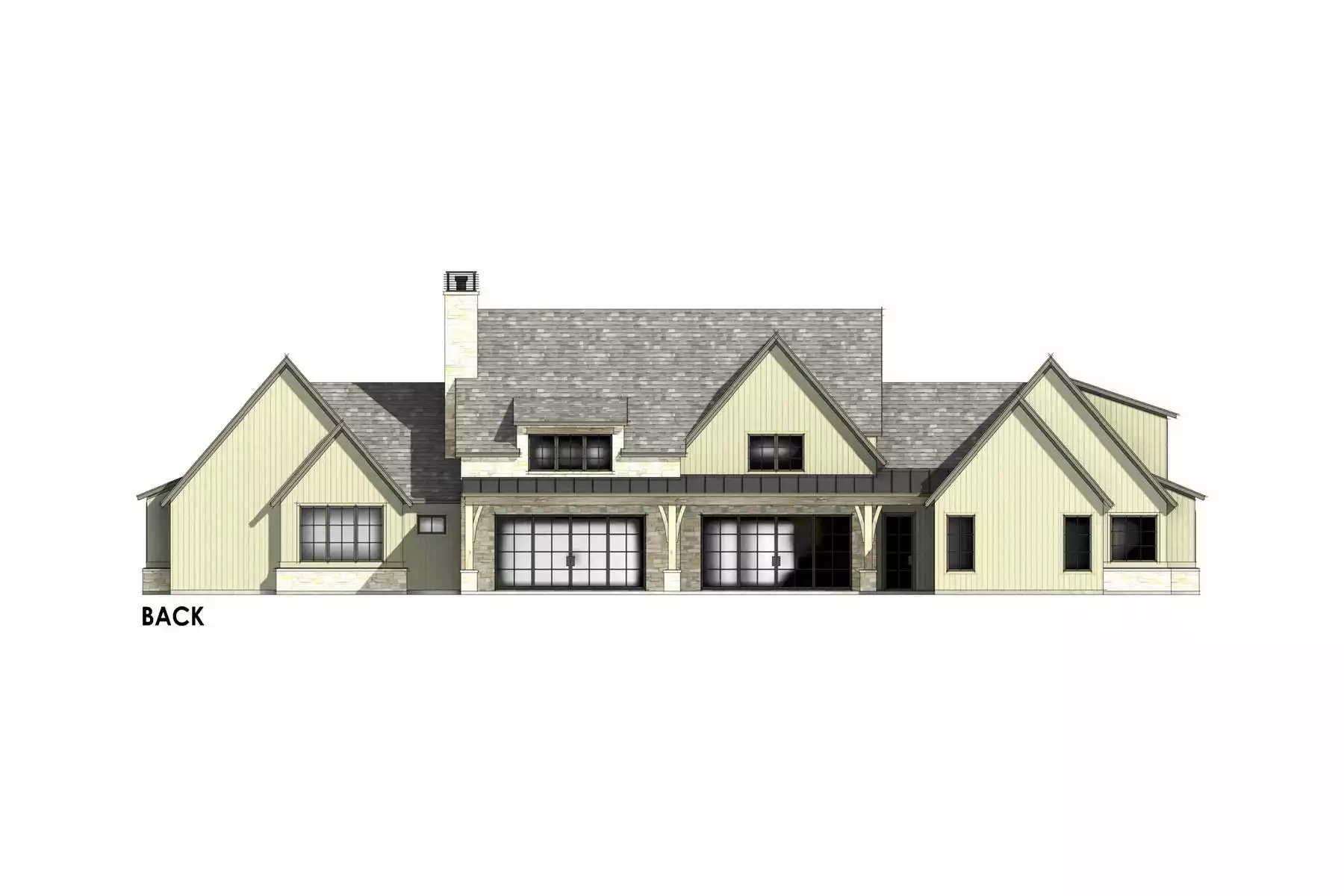

Rear View

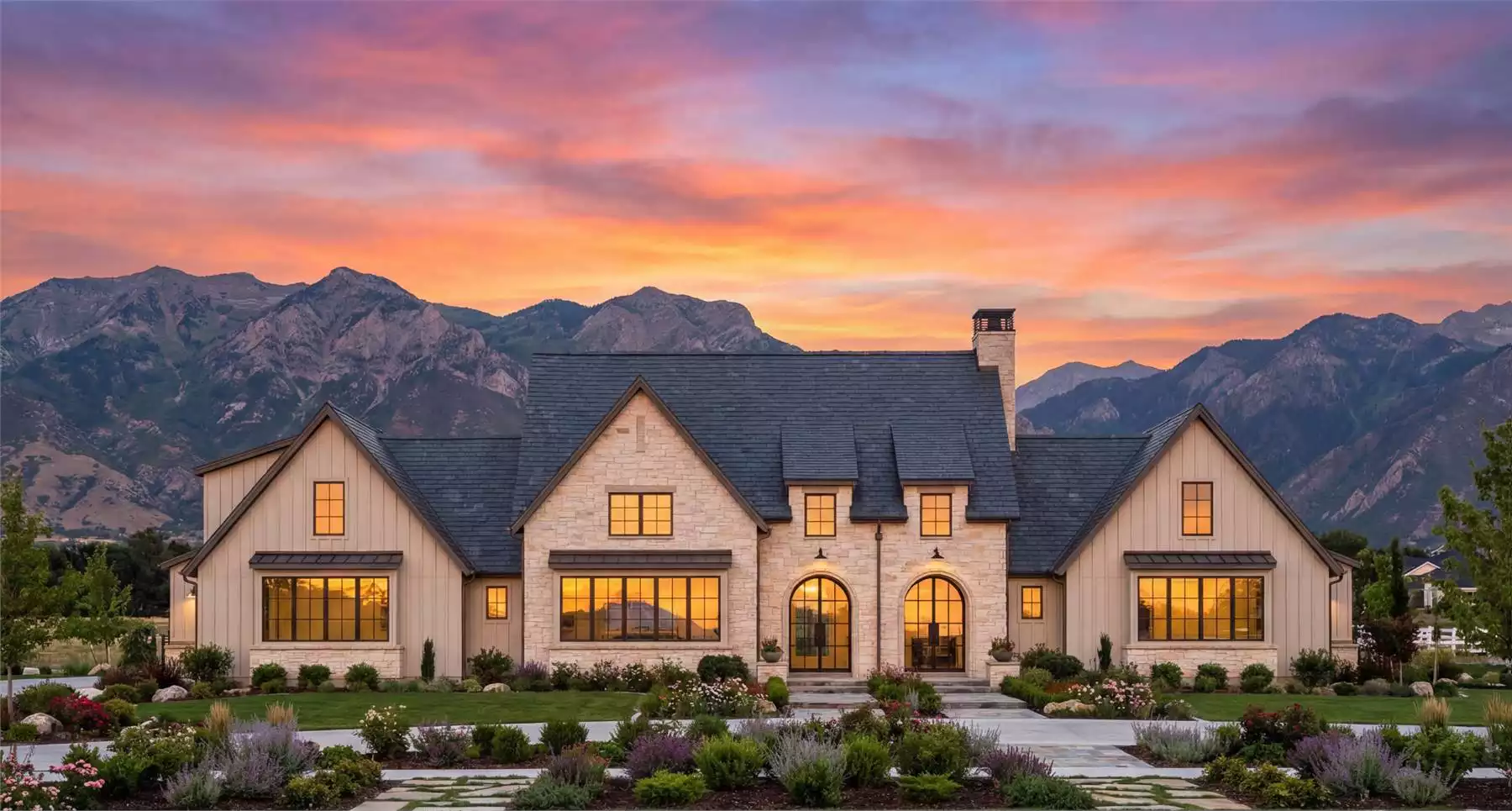

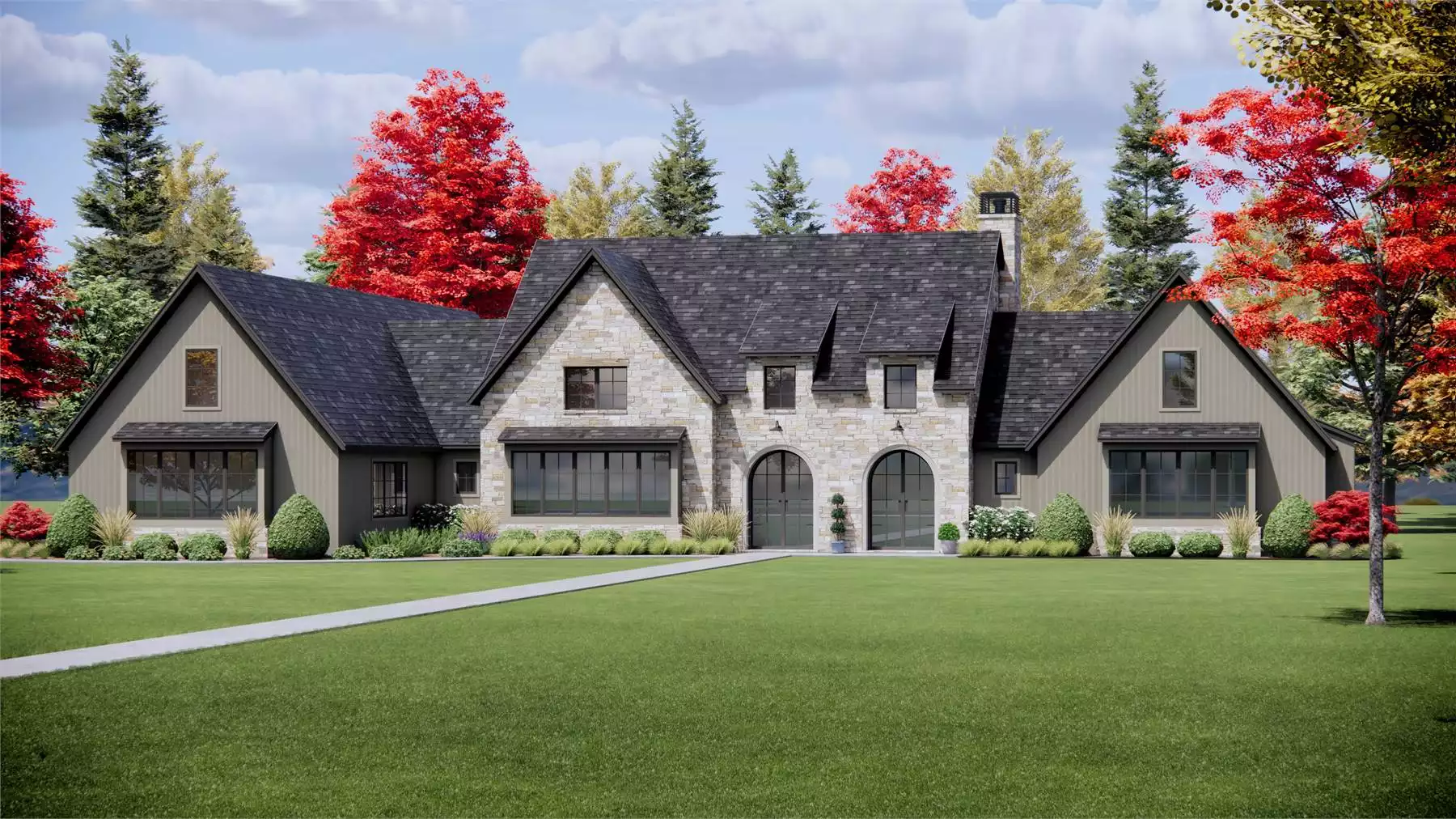

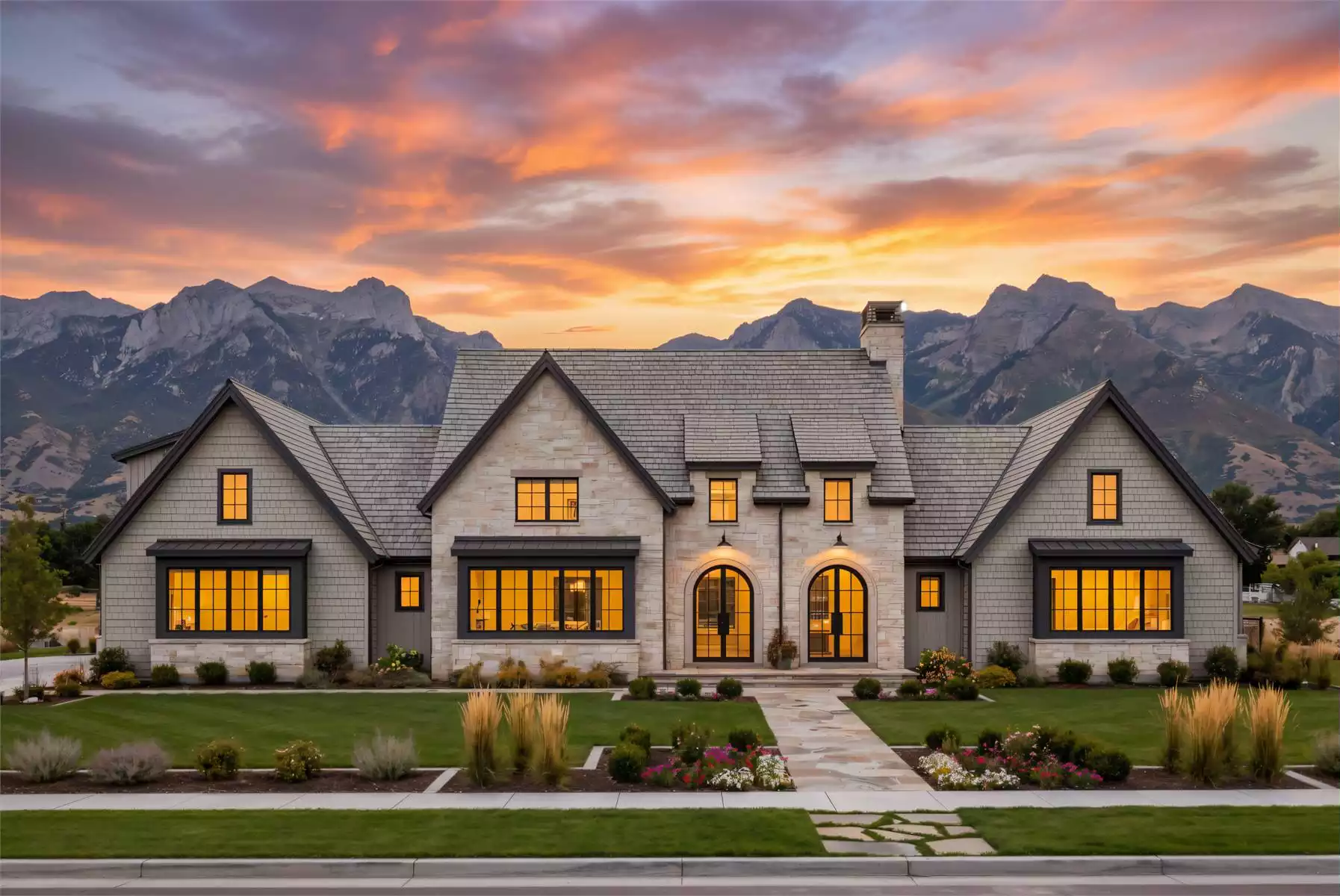

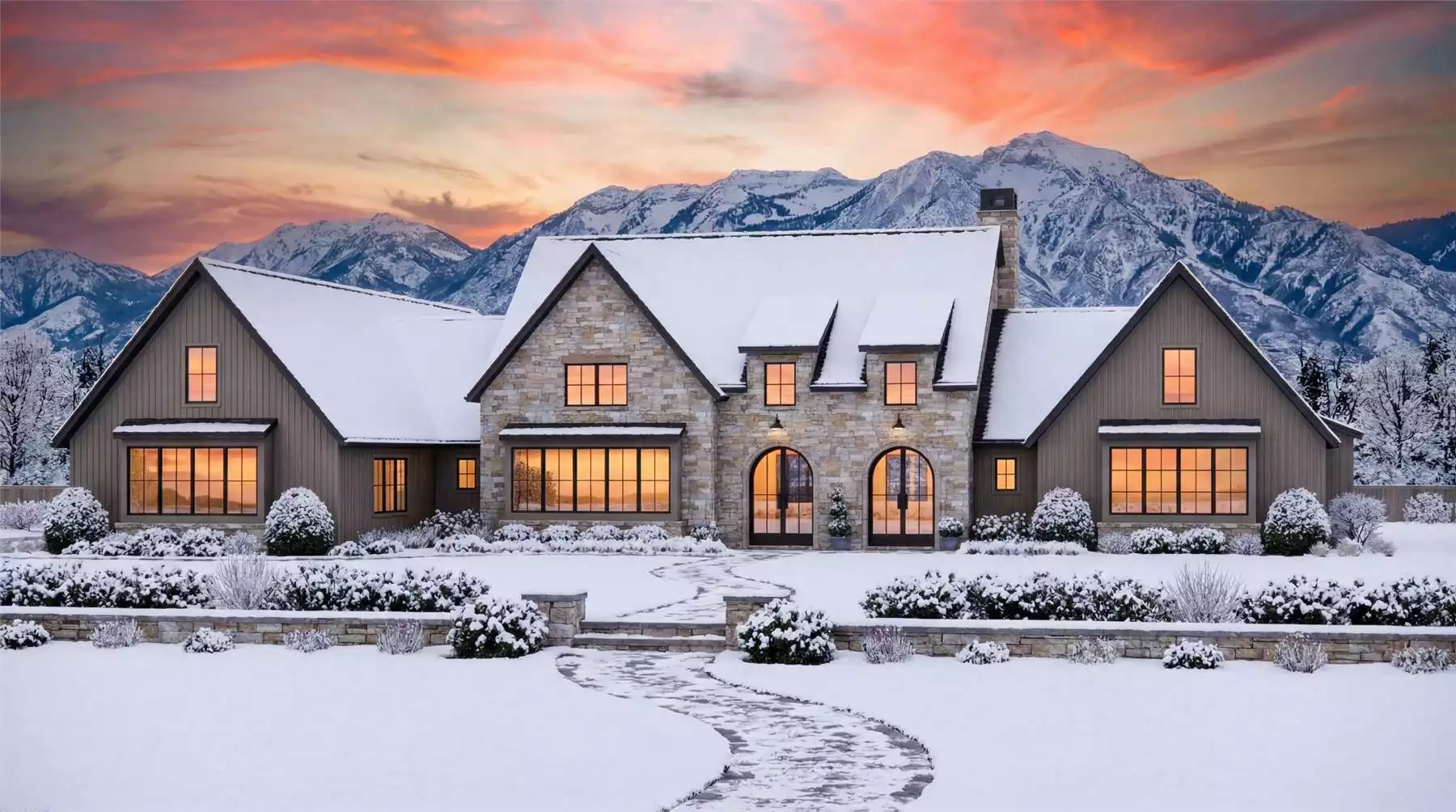

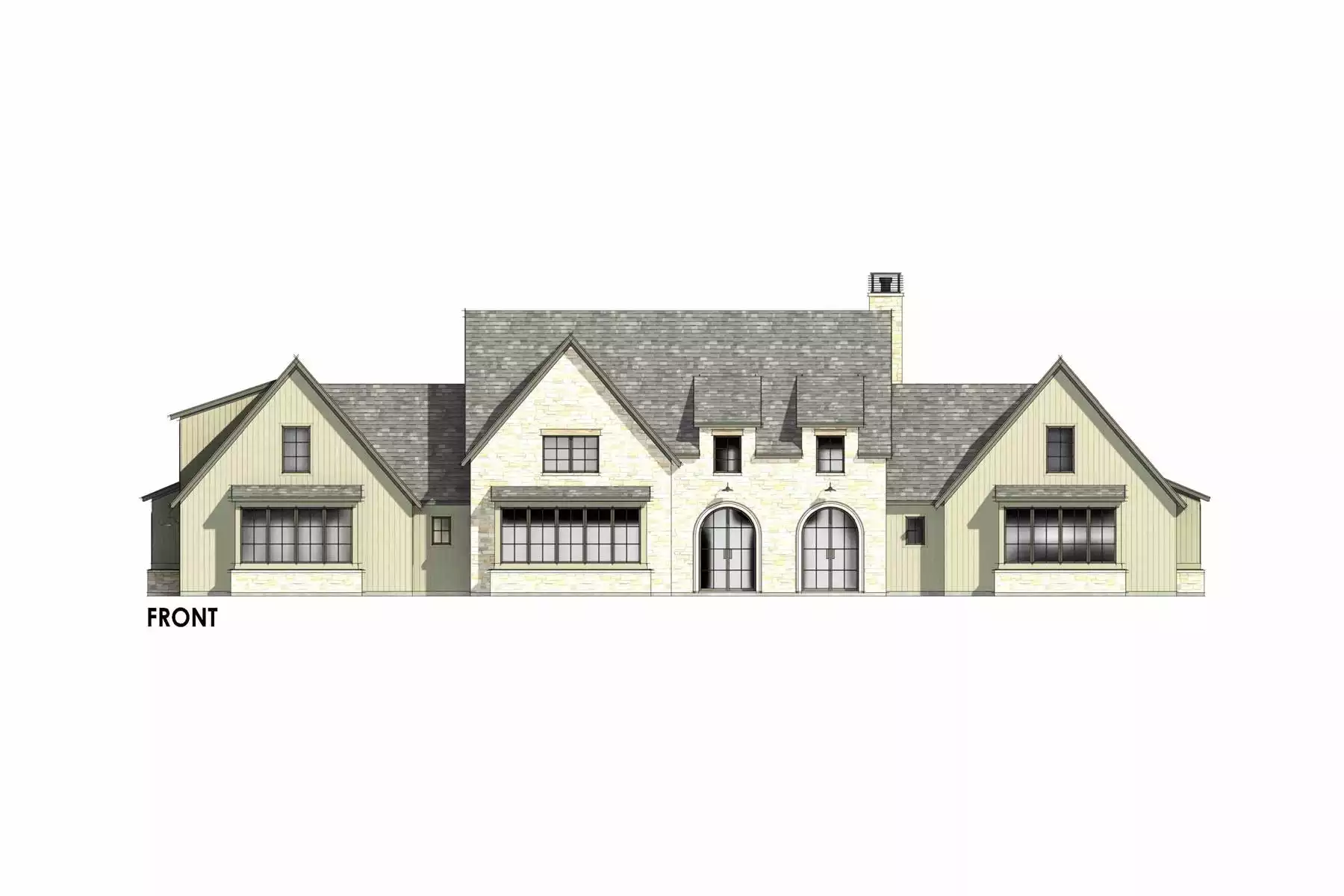

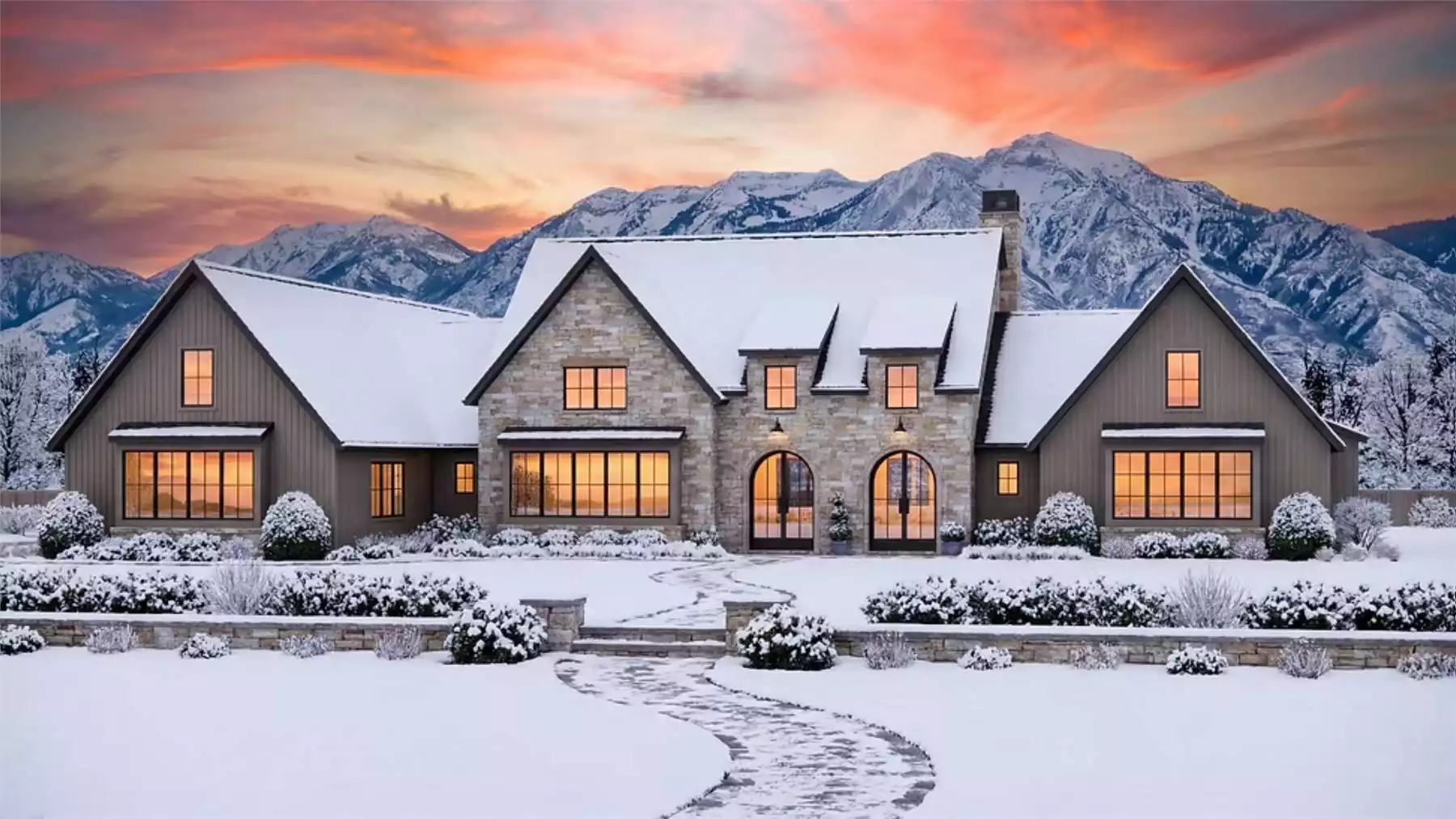

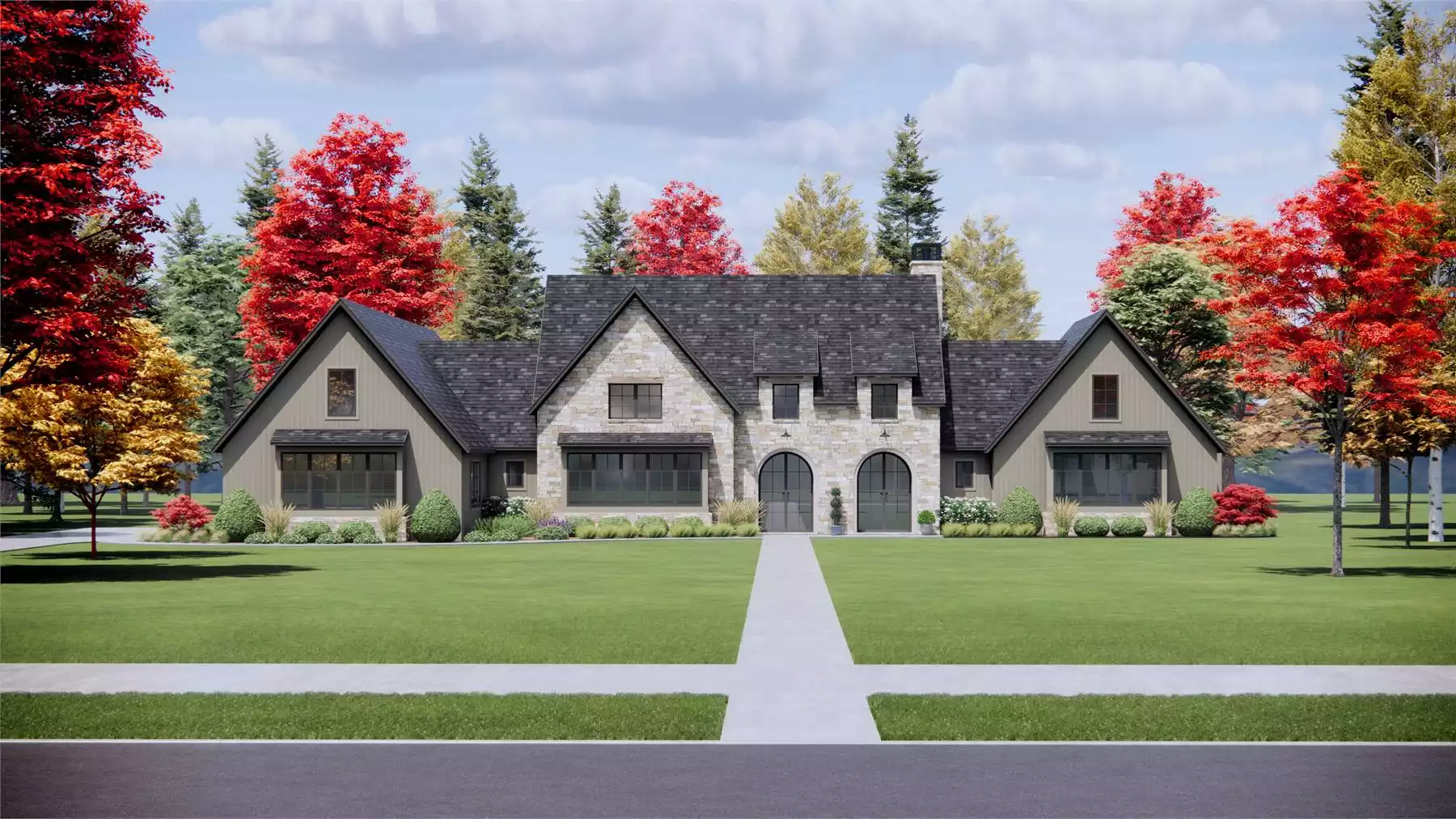

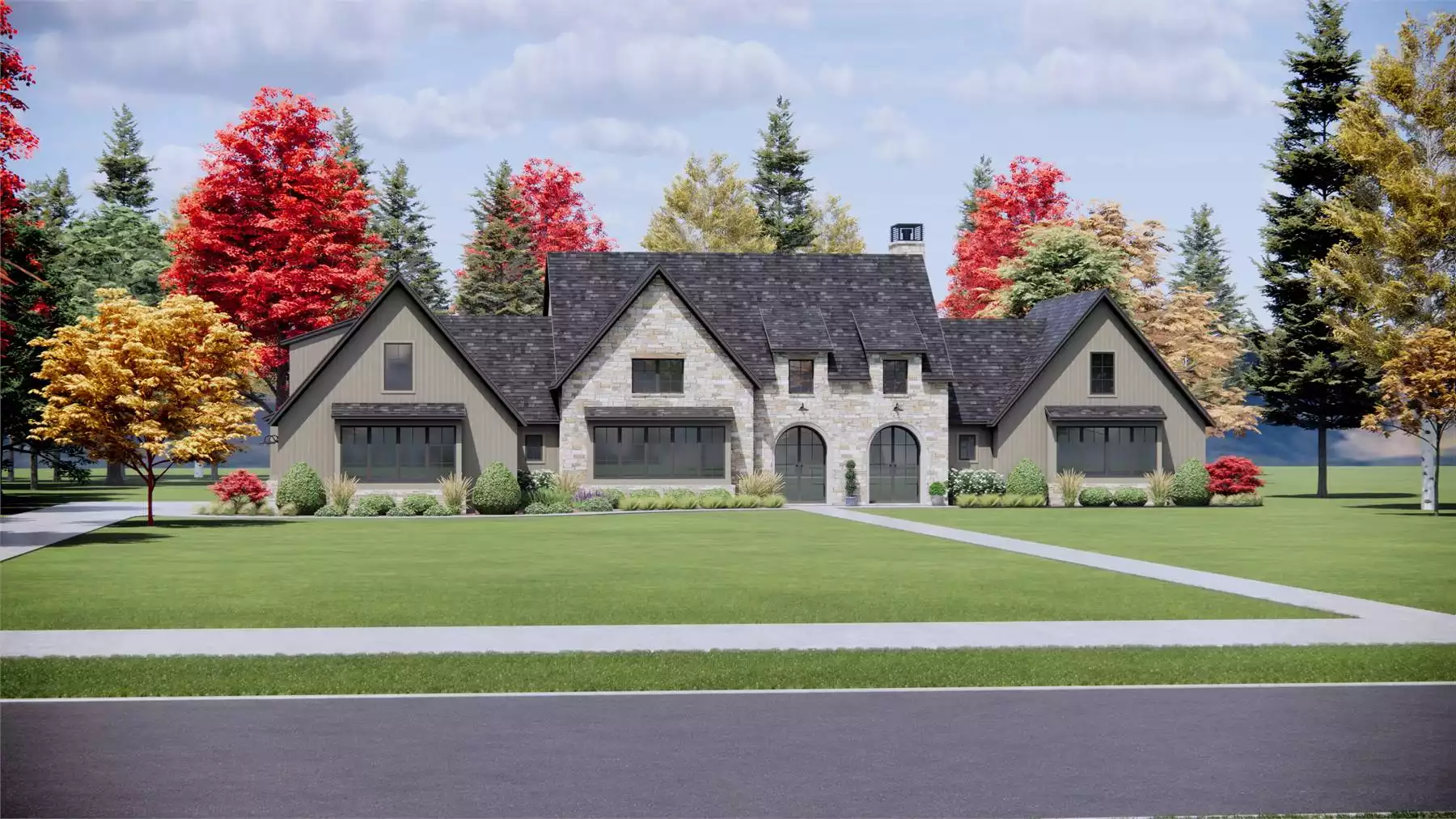

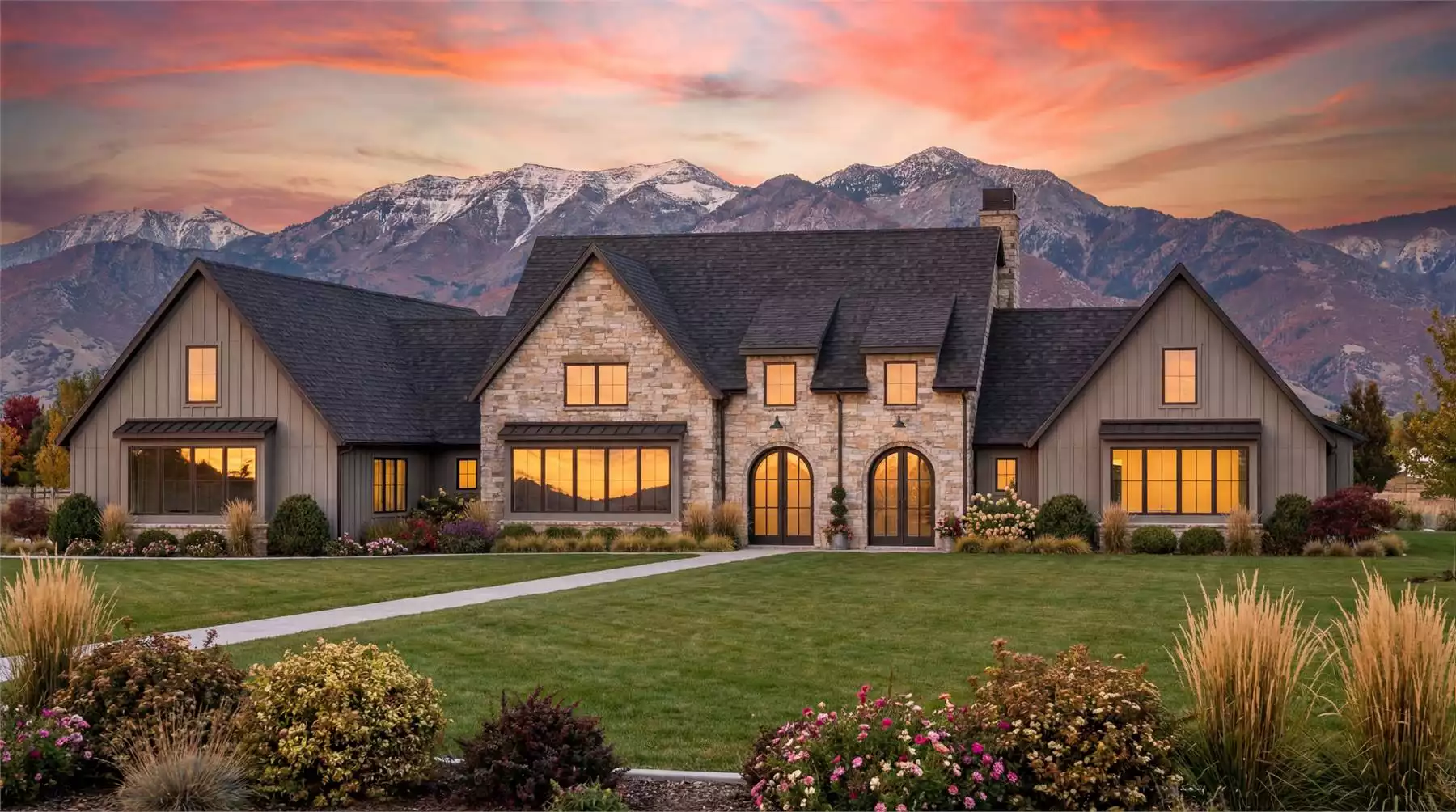

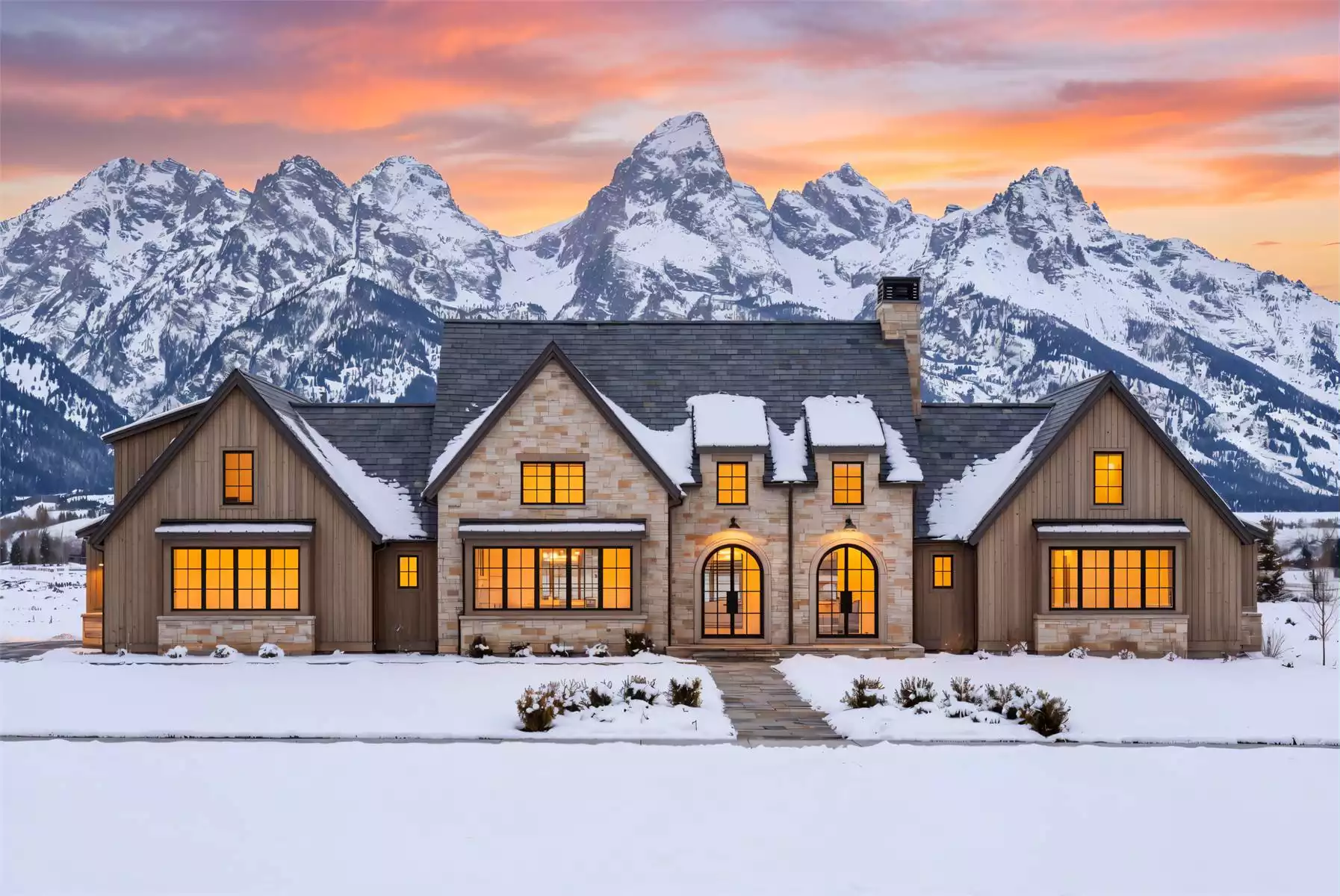

Front View

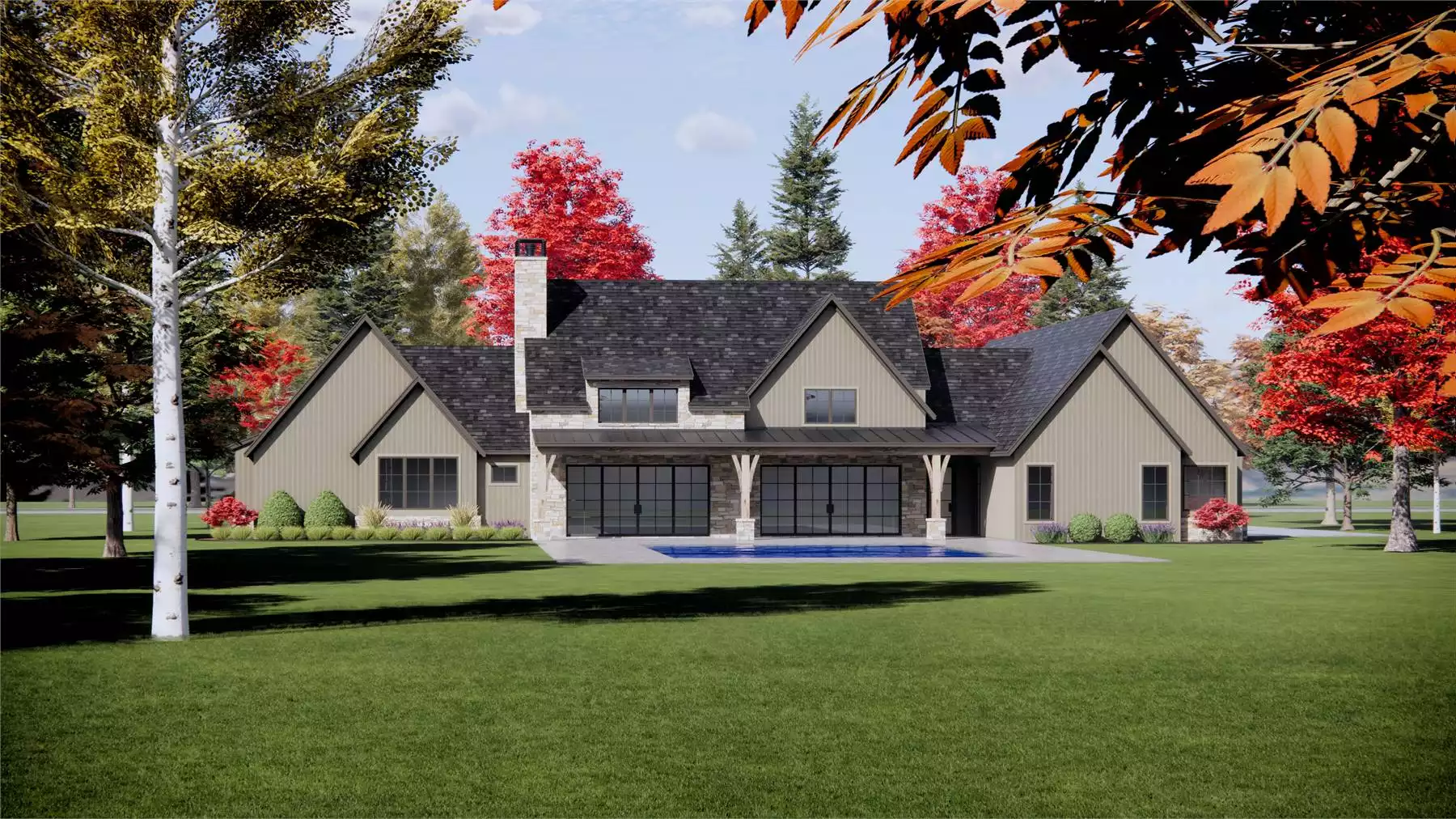

Rear View

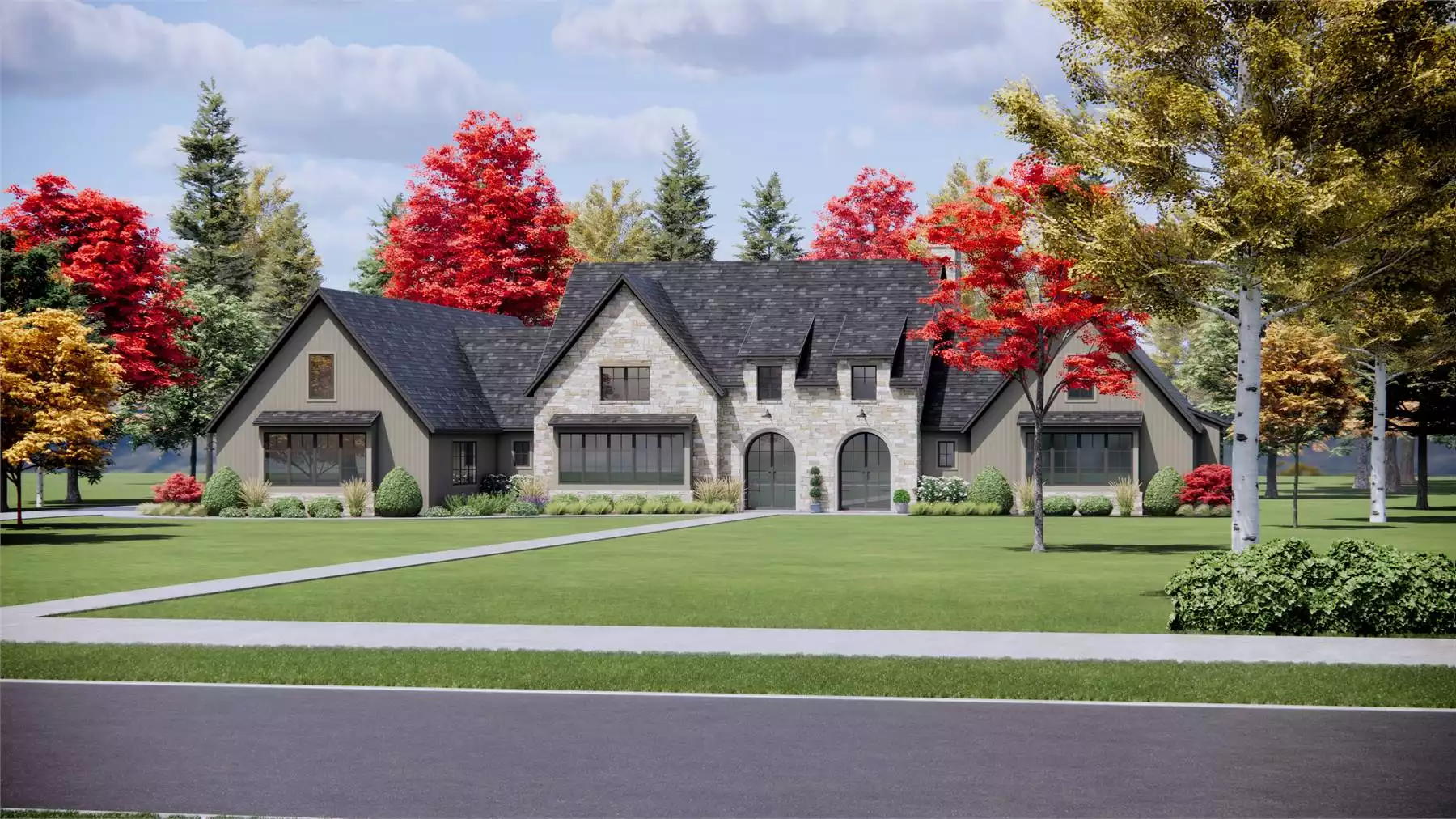

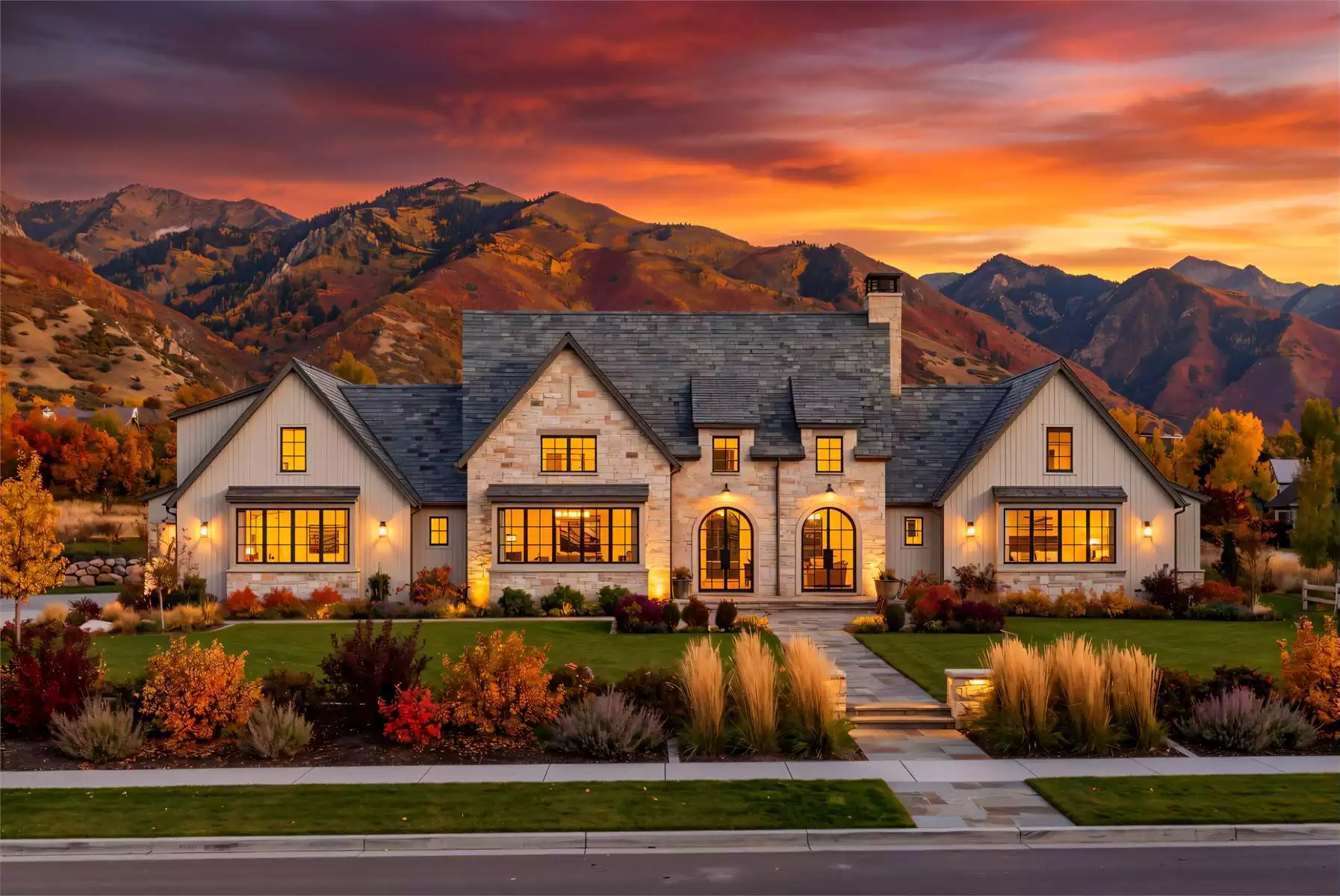

Front View

Rear View

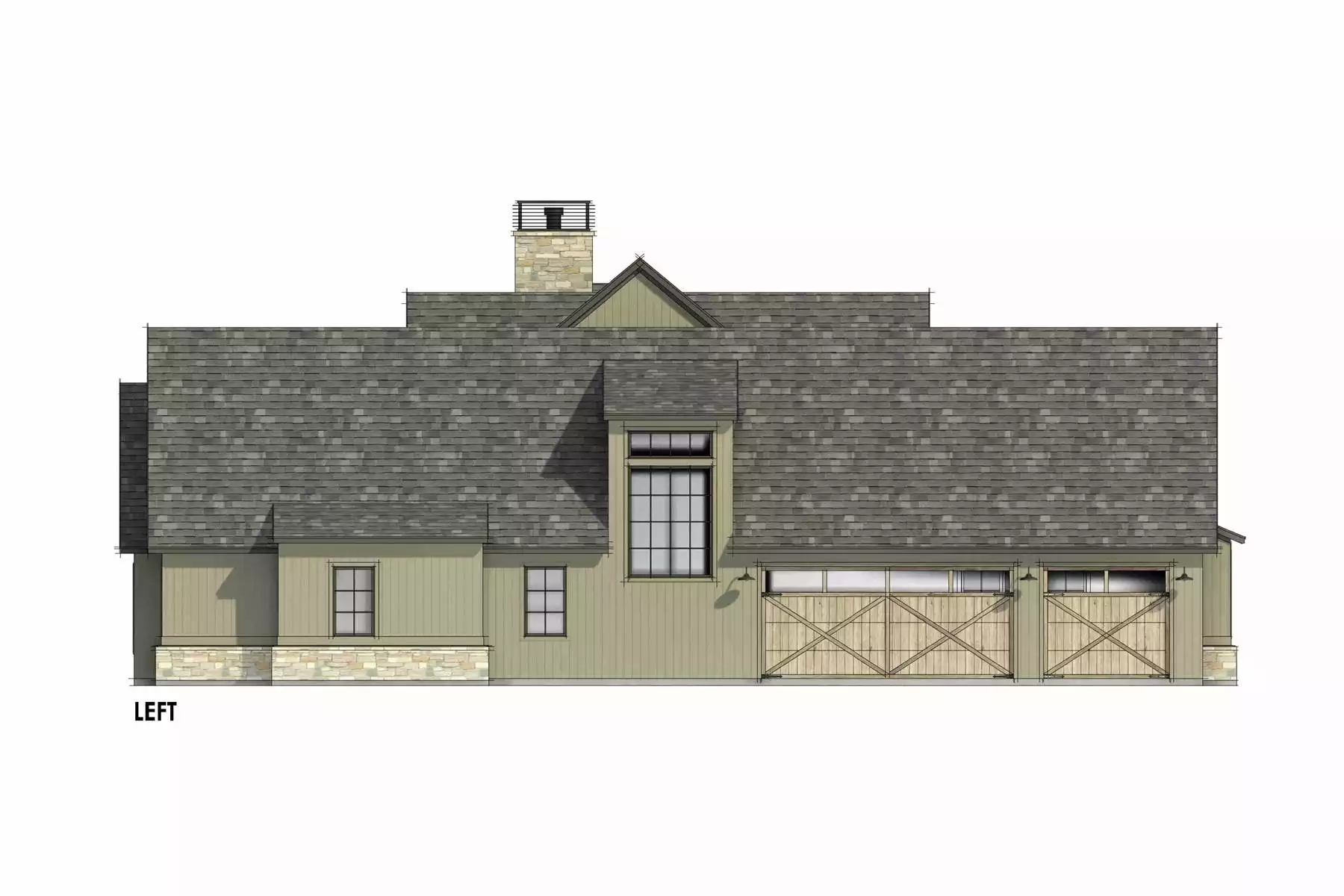

Left View

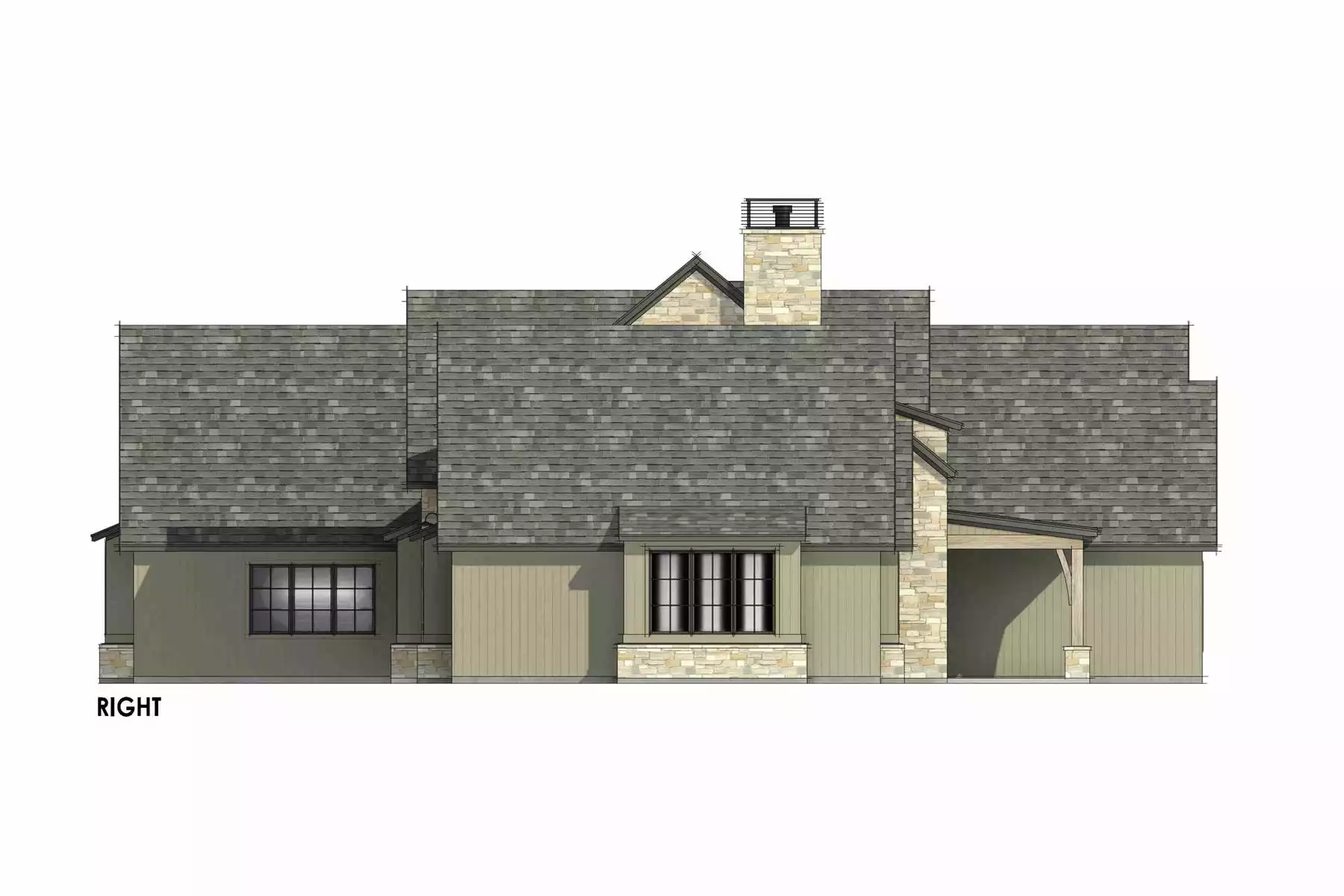

Right View

View All 10 Images | Photographs may reflect modified home

Sq Ft

3,856 FT²

From

$1,995.00

Beds

Baths

4.5

Stories

Garage

Depth

78' 9"

Width

113' 1"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

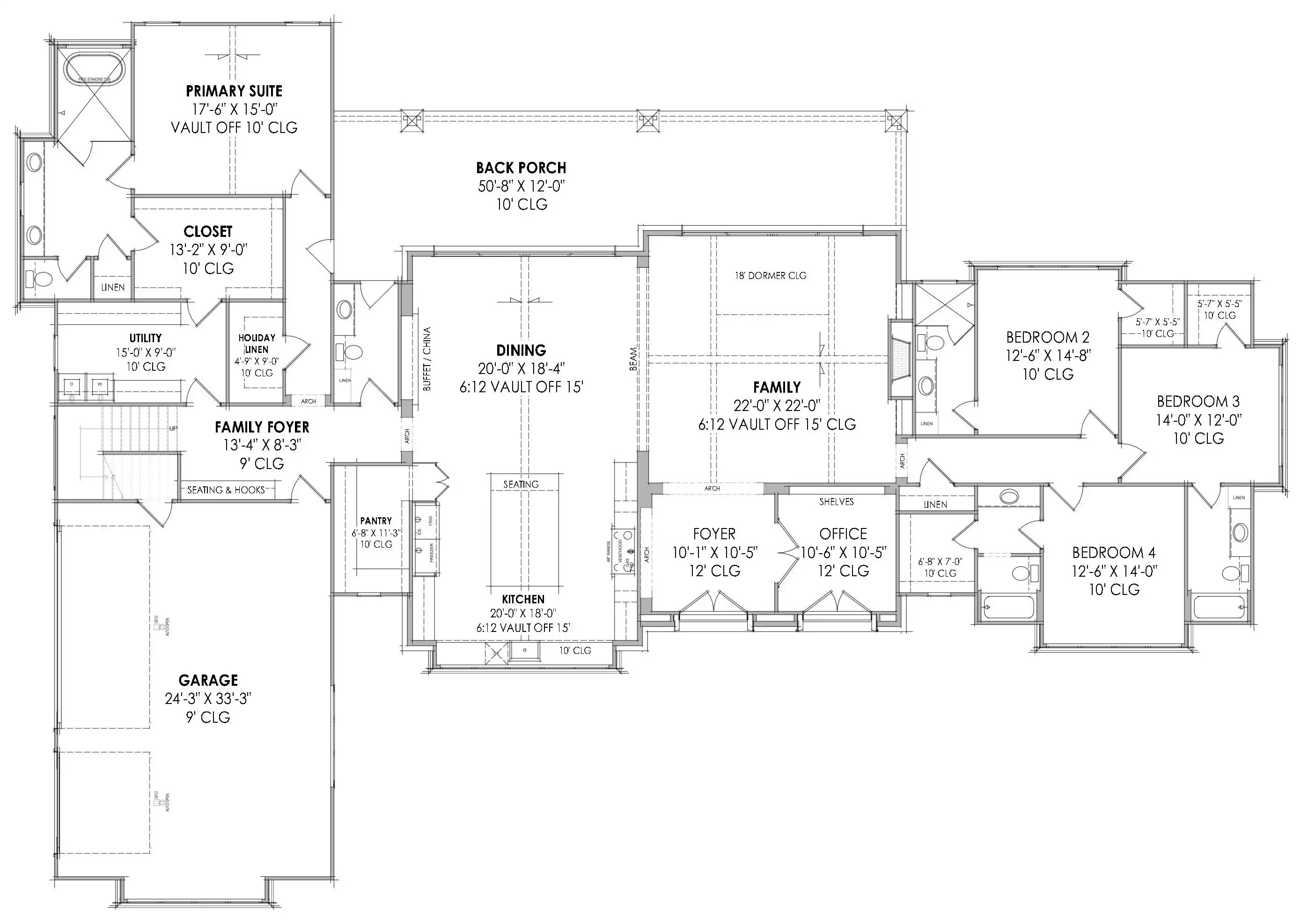

1st Floor

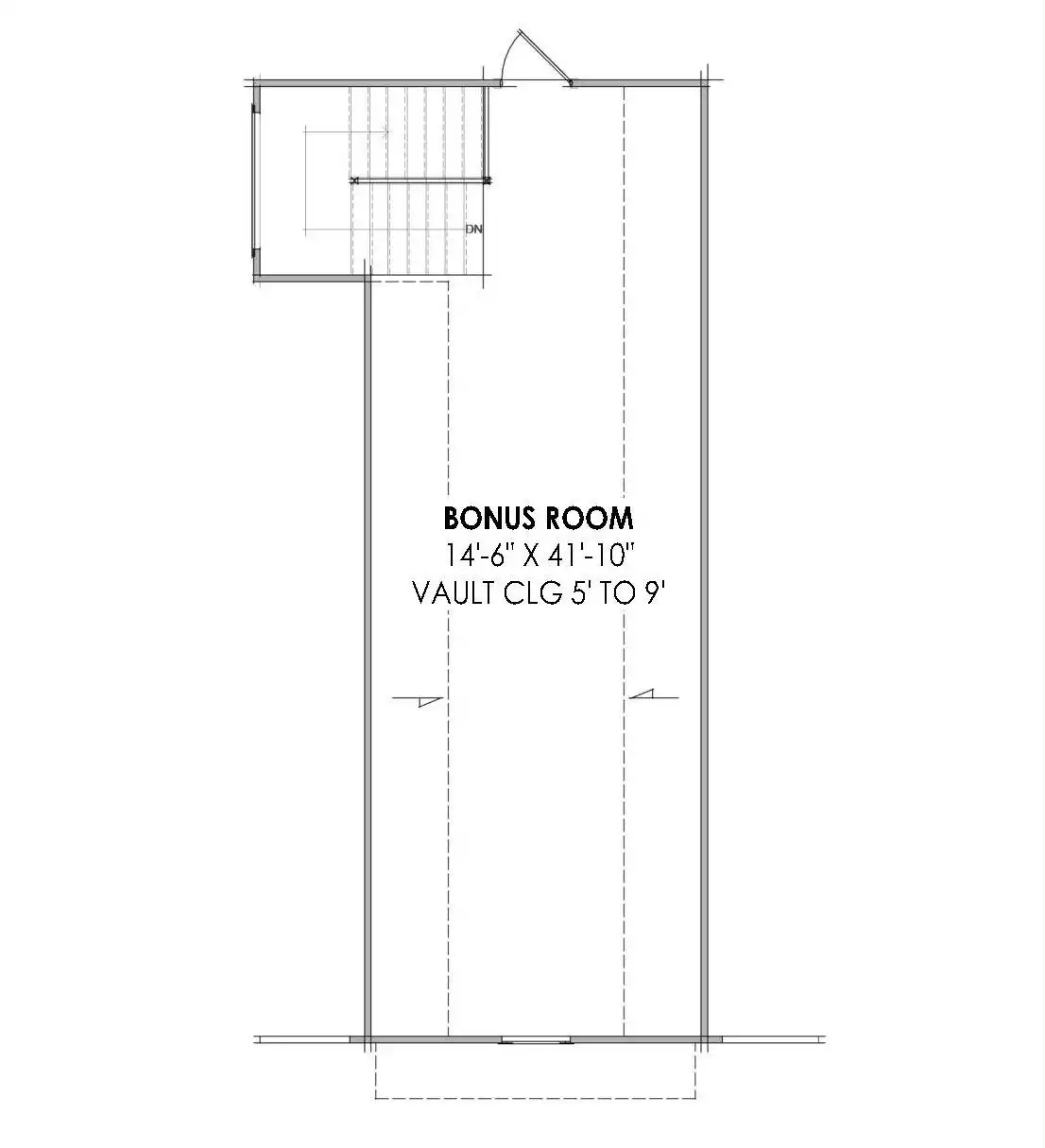

2nd Floor

1st Floor

2nd Floor

About This Plan

A sprawling one-story design with traditional architectural appeal, House Plan 4978 offers 3,856 square feet wrapped up in a Tudor-inspired exterior. It's perfect if you're looking for a home to make your own estate! The open-concept living areas make up the center of the floor plan, with a vaulted ceiling spanning the U-shaped island kitchen and dining area and another vault spanning the great room. The primary bedroom suite is privately located in the hallway off the family foyer that connects to the three-car garage while the other three bedrooms--all suites with their own baths--are on the opposite side of the house. If you need more than this, House Plan 4978 also offers an office off the foyer and a bonus room over the garage that you can make your own!

FEATURES & DETAILS

Kitchen features

Kitchen Island
U-Shaped
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch

Lot Options

Suited for view lot

Additional features

Bonus Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
Vaulted Primary

Garage Location

Side

Garage Options

Attached
Side-entry

5,298 Ft

Total Structure

3,856 Ft

Total Heated

Bedrooms

4.5

Bathrooms

Garage

Stories

113' 1"

Width

78' 9"

Depth

30' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

15' 0"

Living/Great Room Ceiling

12' 0"

Foyer Ceiling

10' 0"

Primary Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

858 Ft

Garage

584 Ft

Rear Porch

592 Ft

Bonus Room

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,995

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,995

$2,695

PDF Unlimited Build

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

$2,695

$2,995

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,995

Need To Reverse Plan? (Optional)

$245

Readable Reverse

Reverse house plans with readable text and dimensions

$245

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
