Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,646 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
65' 4"

Width
40'

On Sale
$1,598.85
$1,881.00

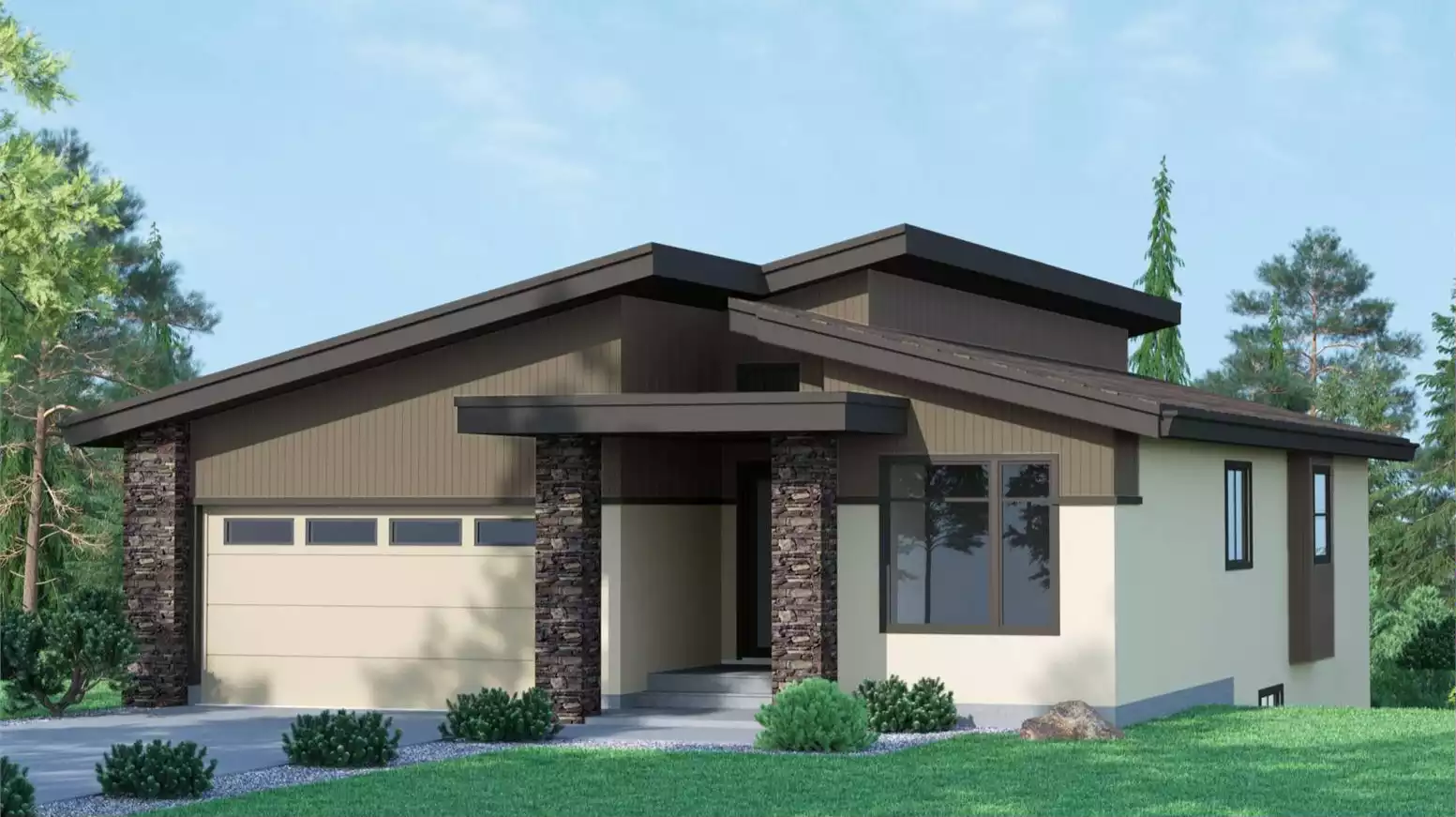

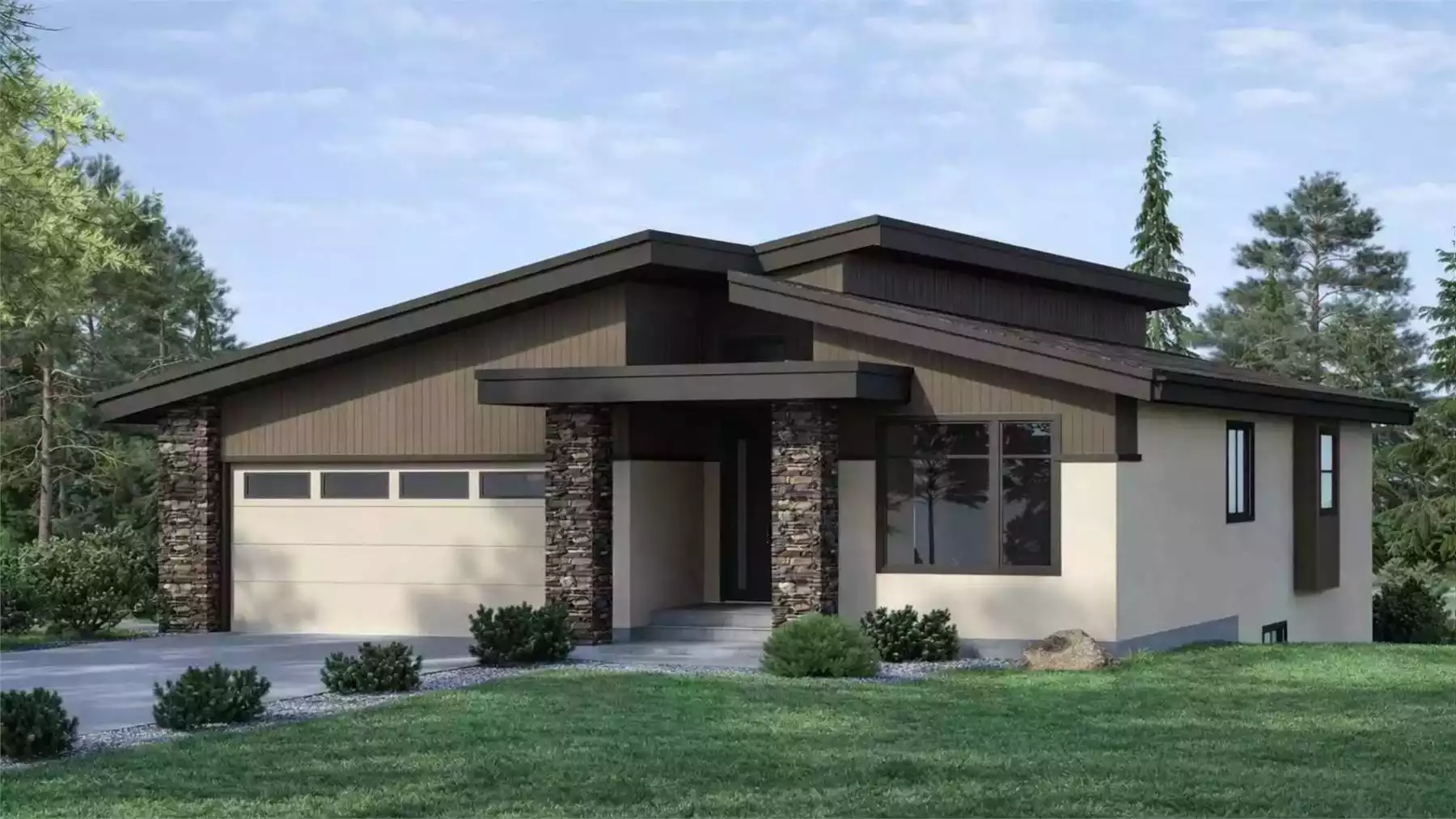

Front View

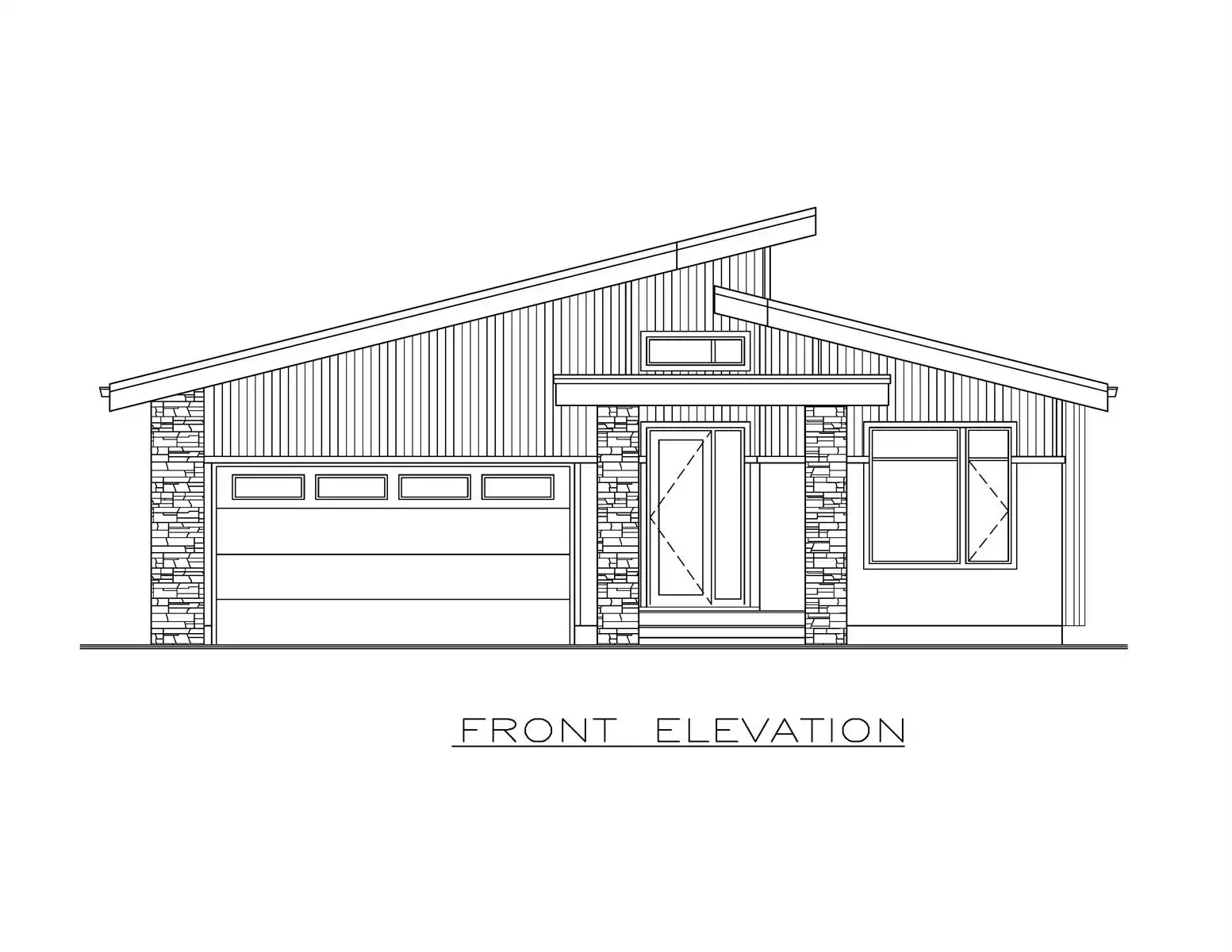

Front Elevation

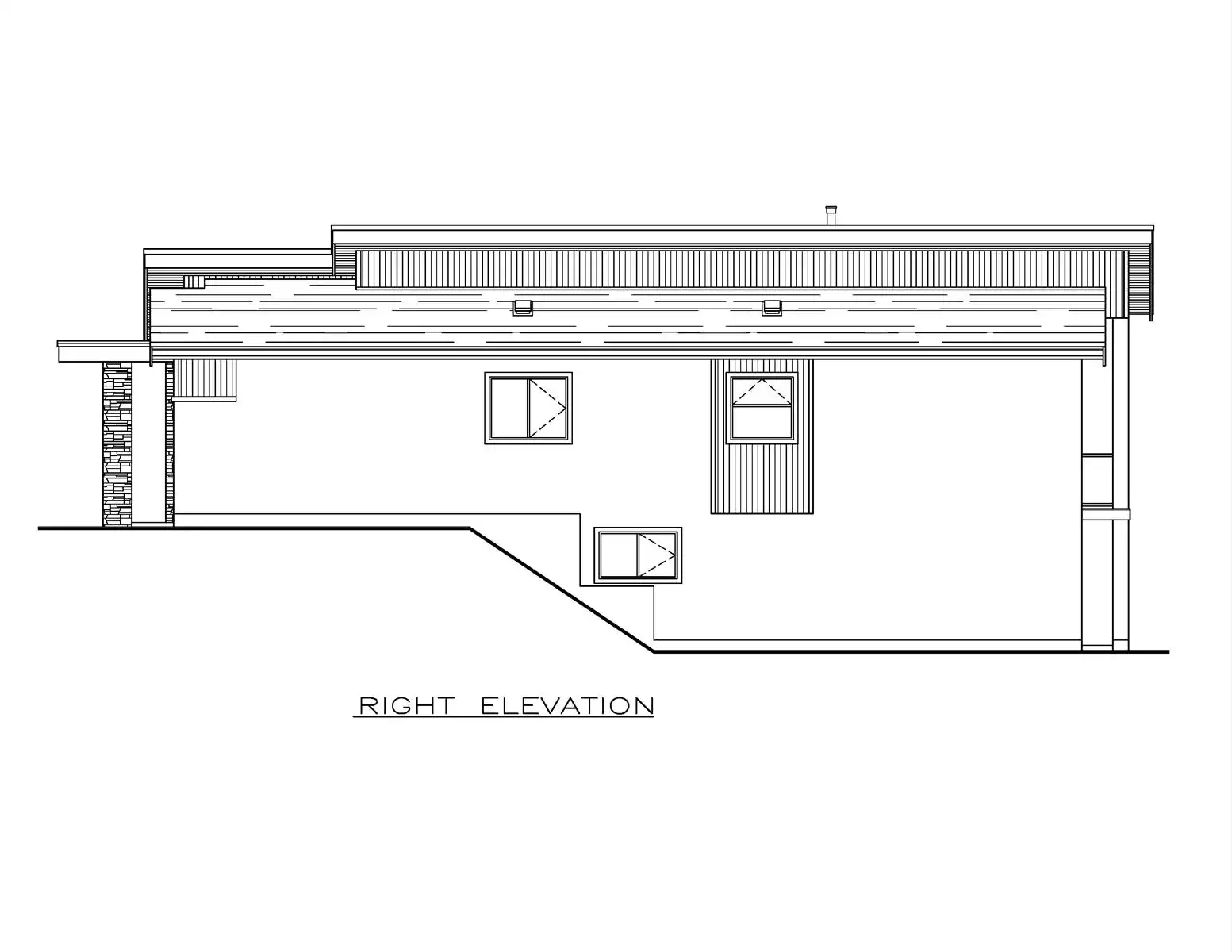

Right Elevation

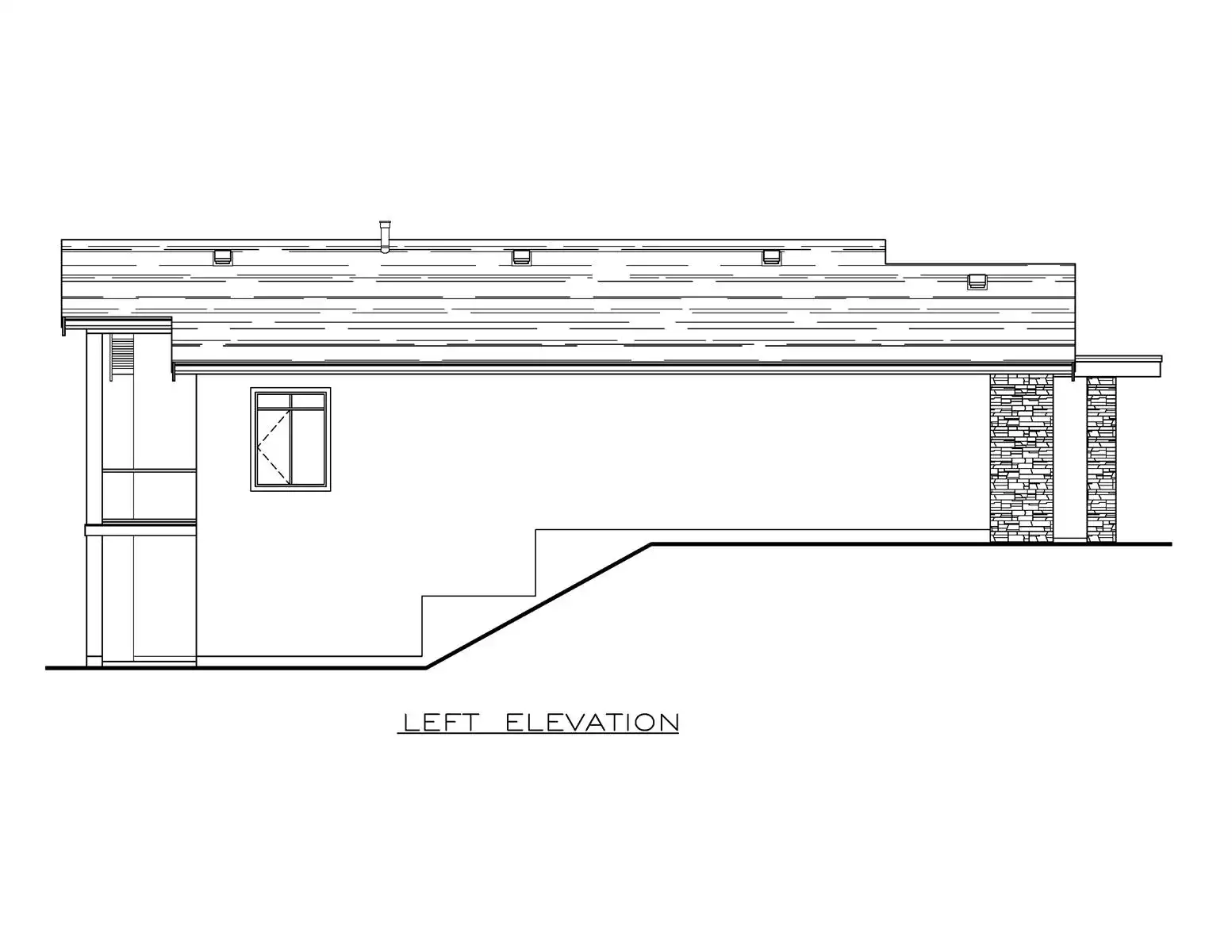

Left Elevation

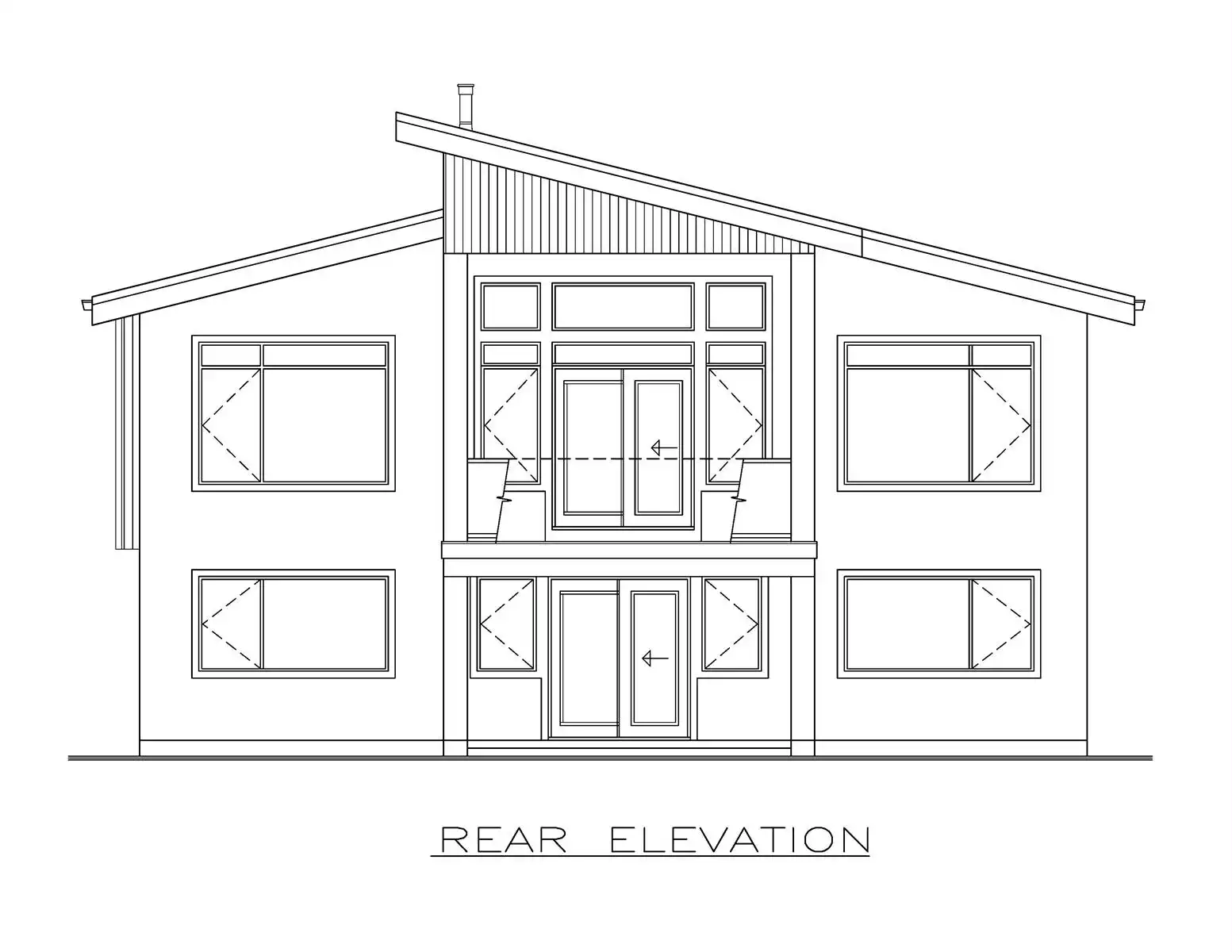

Rear Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,646 FT²

From

$1,598.85

Beds

Baths

Stories

Garage

Depth

65' 4"

Width

40'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

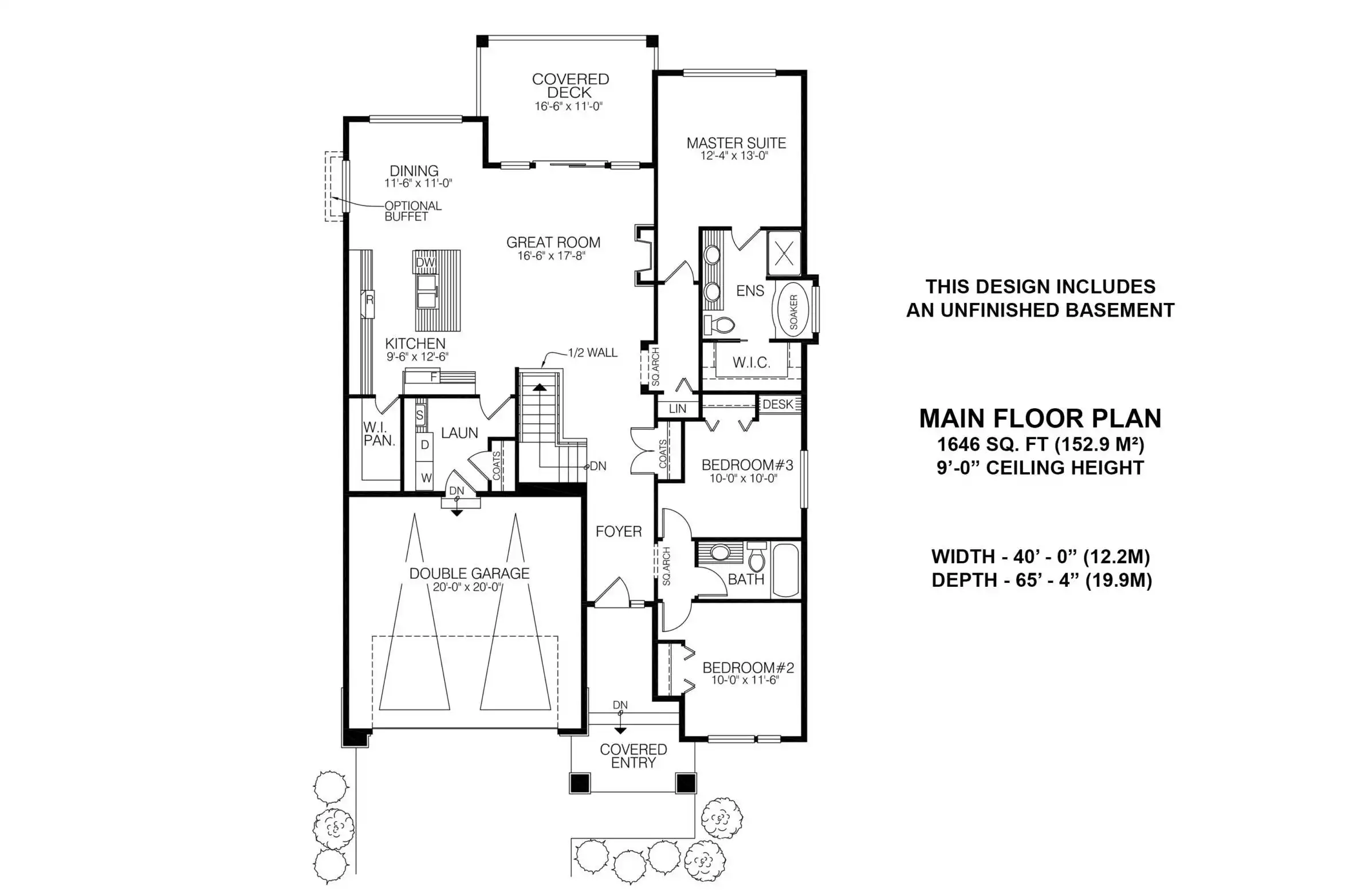

1st Floor

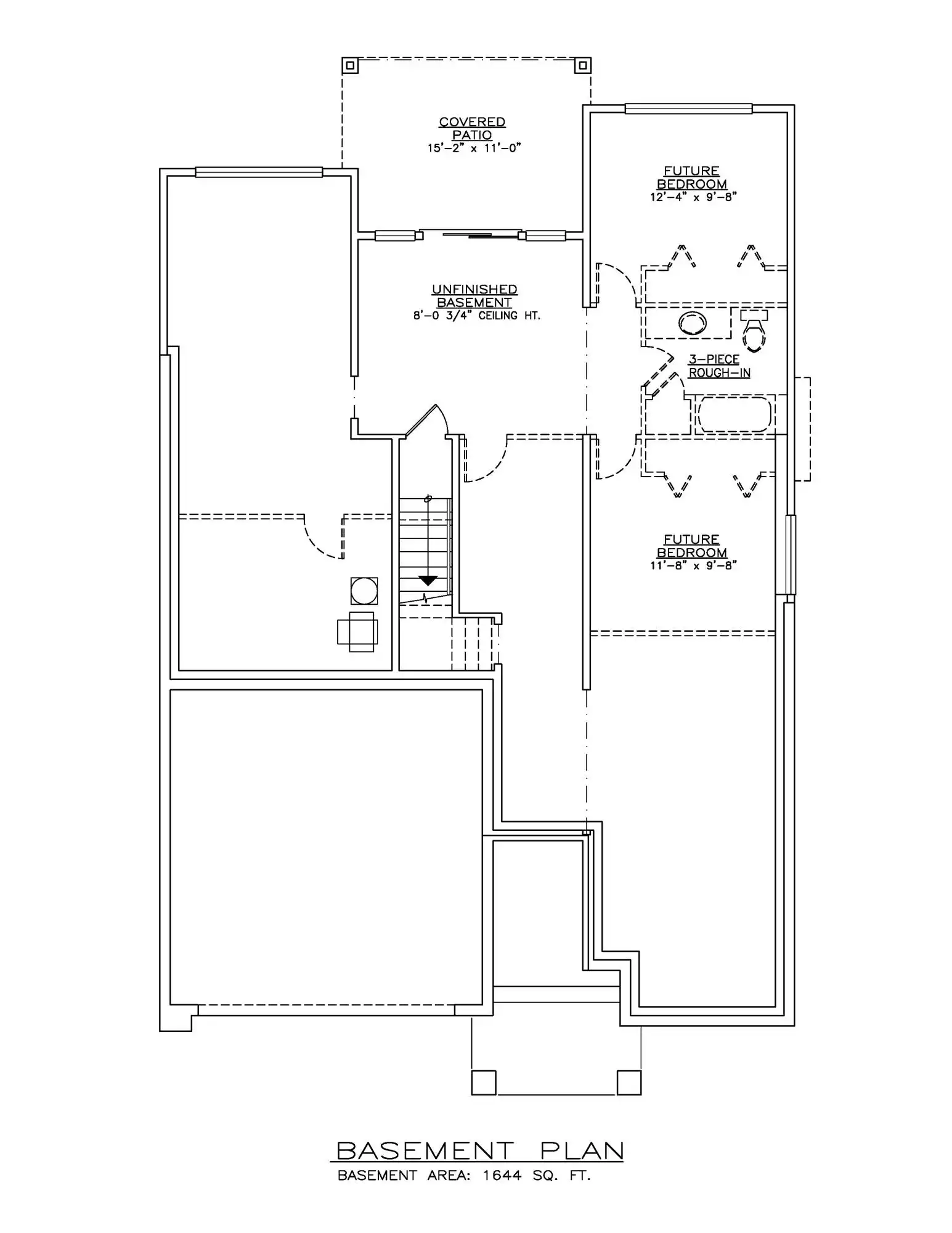

Basement Plan

1st Floor

Basement Plan

About This Plan

The Chestnut Heights is a versatile and thoughtfully designed home that features both functionality and style. Offering a total living space of 1,646 square feet on the main floor, this plan includes three bedrooms and two bathrooms. The open concept layout seamlessly connects the great room, dining area, and kitchen, making it ideal for entertaining or cozy family living. The master suite boasts a spacious walk-in closet and a private en-suite bathroom with a corner shower. A covered deck off the main living area extends the entertaining space outdoors. The unfinished 1,644 sq. ft. basement offers future expansion possibilities, including space for additional bedrooms, a bathroom, and storage. With a 2-car garage and thoughtful touches like a walk-in pantry and laundry room, Chestnut Heights is a perfect blend of practicality and elegance.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Family Style
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Rear Porch
Deck

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

2 Story Volume
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Unfinished Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

3,714 Ft

Total Structure

1,646 Ft

Total Heated

1,646 Ft

1st Floor

1,644 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

65' 4"

Depth

19' 4"

Height

9' 0"

Main Floor Ceiling

12' 0"

Living/Great Room Ceiling

14' 0"

Foyer Ceiling

2x6

Framing

Truss

Roof Framing

3/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

426 Ft

Garage

165 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,386

PDF Single Build

~~$1,631~~

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,386

Sale: $1,599

5 Printed Sets + PDF

~~$1,881~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,599

Sale: $2,683

CAD Single Build

~~$3,156~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $2,683

Sale: $5,365

CAD Unlimited Build

~~$6,312~~

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

Sale: $5,365

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
