Sq Ft
1,509 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
48' 4"

Width
62'

From
$1,485.00

Front Elevation

View 3D Video Showcasing Exterior & Interior Images!

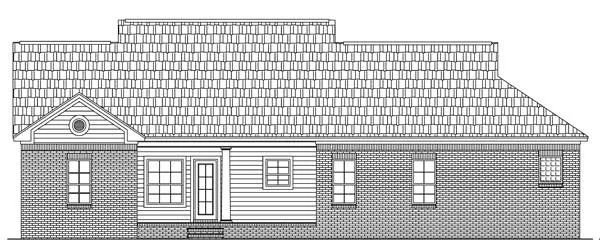

Rear Elevation

Interior View - Kitchen

Interior View - Great Room

View All 6 Images | Photographs may reflect modified home | Video Tour

Sq Ft

1,509 FT²

From

$1,485.00

Beds

Baths

Stories

Garage

Depth

48' 4"

Width

62'

New Home Tour

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

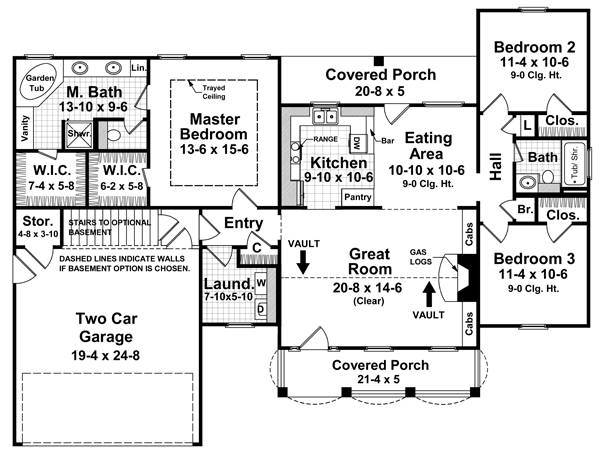

1st Level Floorplan

About This Plan

This home provides a very functional split-floor plan layout with many of the features that your family desires. Expansive master bedroom / bath with trayed ceiling and plenty of storage space in the his and her walk-in closets. Large great room with vaulted ceiling and gas log fireplace. Front and rear covered porches. Laundry Room. Open kitchen layout with plenty of counter space for that growing family. Basement foundation option. Great value with a wide variety of innovative features. Make this your home today!

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for sloping lot
Suited for view lot

Additional features

Exercise Room
Fireplace
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Workshop

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized

1,509 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

62' 0"

Width

48' 4"

Depth

22' 0"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

12 in 12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

519 Ft

Garage

210 Ft

Porch

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,315

Study Set - Printed

One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.

$1,315

$1,485

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,485

$1,595

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595

$1,680

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,680

$2,075

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,075

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
