The Jefferson - 1625 3066 - 3 Bedrooms and 2 Baths

This delightful 3 or 4 bedroom cottage is designed to drastically cut heating and cooling cost but without adding substantial building cost. Among the many energy saving features:
1. Insulated doors and windows
2. 2x6 exterior walls with R19 insulation
3. Modified Roof Design to accommodate 12" thick R38 ceiling insulation
4. Positive vapor barrier to enhance comfort control
5. Centrally located plumbing and heating/AC for added efficiency
6. Small foot print to minimize land cost
7. Properly oriented, this home is designed to provide natural solar gain
8. New and improved framing techniques that allow previously un-insulated areas to become insulated.
9. All heat/AC ductwork is located within the heated area to maximize efficiency but all the ducts are hidden from view.

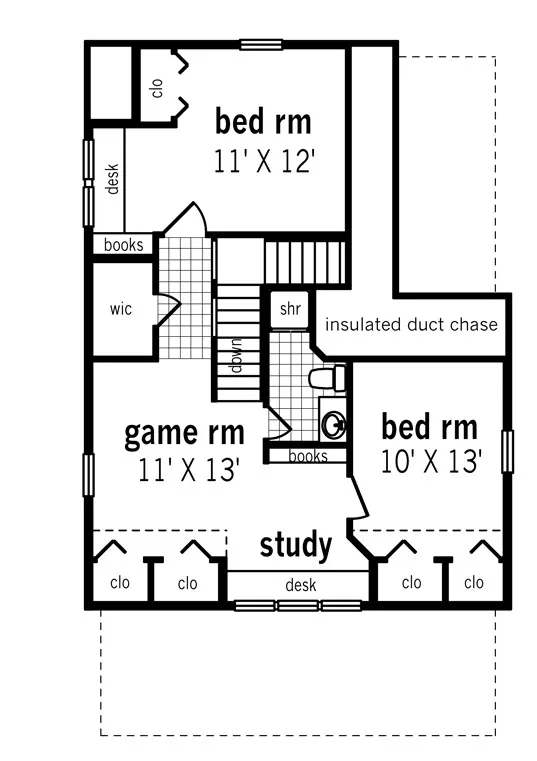

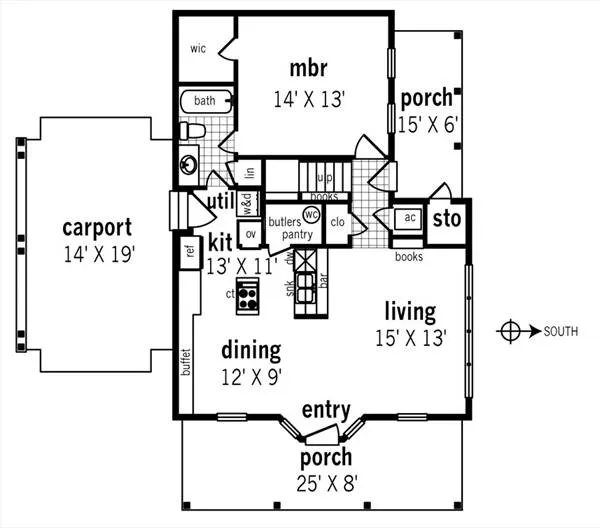

The kitchen is compactly but efficiently designed and has easy access to the washer/dryer, carport and butlers pantry. In addition, there is a buffet server, glass door china cabinet, eating bar and a built in desk. The open design of the living area disguises the fact this is a small compact home. The upper level bedrooms have maximum closet space and there are two built-in desk and books shelf units. The game room can also serve as an extra bedroom.

See all our small house plans

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Country Kitchen
Kitchen Island
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for narrow lot
Suited for view lot

Additional features

Laundry 1st Fl
Open Floor Plan
Storage Space

Garage Location

Side

Garage Options

Attached
Carport

2,194 Ft

Total Structure

1,628 Ft

Total Heated

870 Ft

1st Floor

758 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

1.5

Stories

41' 0"

Width

45' 0"

Depth

24' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

4:12

Dormer Roof Pitch

4:12

Porch Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

270 Ft

Garage

18 Ft

Storage

278 Ft

Porch

Exterior Styles

Beach

Cottage

Country

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
